Launch window — phasing with target orbit

1. What is phasing? (WHAT)

You launch into a lower (or higher) orbit and coast along a transfer ellipse. During the transfer time $t_t$ , the target keeps moving. You must fire when the target is exactly far enough ahead that it coasts into the arrival point just as you get there.

2. Deriving the required phase angle (HOW / derive from scratch)

Set up two co-planar circular orbits: chaser radius $r_1$ , target radius $r_2$ . We use a Hohmann transfer (half-ellipse) to connect them.

Step 1 — Transfer time

The transfer ellipse has semi-major axis $a_t=\frac{r_1+r_2}{2}$ Why? Perigee sits at $r_1$ , apogee at $r_2$ ; for an ellipse $r_p+r_a=2a$ .

The transfer is exactly half a period (perigee → apogee): $t_t=\frac{T_{\text{ellipse}}}{2}=\pi\sqrt{\frac{a_t^{3}}{\mu}}$ Why? Kepler's third law $T=2\pi\sqrt{a^3/\mu}$ ; half the ellipse takes half the period because of symmetry about the major axis.

Step 2 — How far the target moves during transfer

The target's angular speed (mean motion) is $n_2=\sqrt{\frac{\mu}{r_2^{3}}}$ Why? For a circular orbit $v=\sqrt{\mu/r}$ and $n=v/r=\sqrt{\mu/r^3}$ .

During $t_t$ the target sweeps $\Delta\theta_{2}=n_2\,t_t=\sqrt{\frac{\mu}{r_2^{3}}}\;\pi\sqrt{\frac{a_t^{3}}{\mu}}=\pi\left(\frac{a_t}{r_2}\right)^{3/2}=\pi\left(\frac{r_1+r_2}{2r_2}\right)^{3/2}$ Why this step? $\mu$ cancels — the physics is pure geometry + timing.

Step 3 — Rendezvous condition

The chaser flies $180^\circ=\pi$ around during the Hohmann transfer (it goes from perigee to apogee, half the sky). To meet the target, the target must arrive at that same apogee point. So at launch the target must lead the arrival point by exactly what it will still travel, i.e. the required lead angle is:

$\boxed{\;\phi=\pi-\Delta\theta_2=\pi\left[1-\left(\dfrac{r_1+r_2}{2r_2}\right)^{3/2}\right]\;}$

Step 4 — Synodic period → how often the window repeats

The relative angular geometry repeats every synodic period: $T_{\text{syn}}=\frac{2\pi}{|n_1-n_2|},\qquad n_i=\sqrt{\frac{\mu}{r_i^{3}}}$ Why? The two bodies drift apart at relative rate $|n_1-n_2|$ ; a full $2\pi$ of relative drift returns the same phasing.

So the launch window recurs every $T_{\text{syn}}$ . On the ground, add the Earth's rotation so your site passes under the plane (period ≈ 1 sidereal day) — the true window is where both conditions coincide.

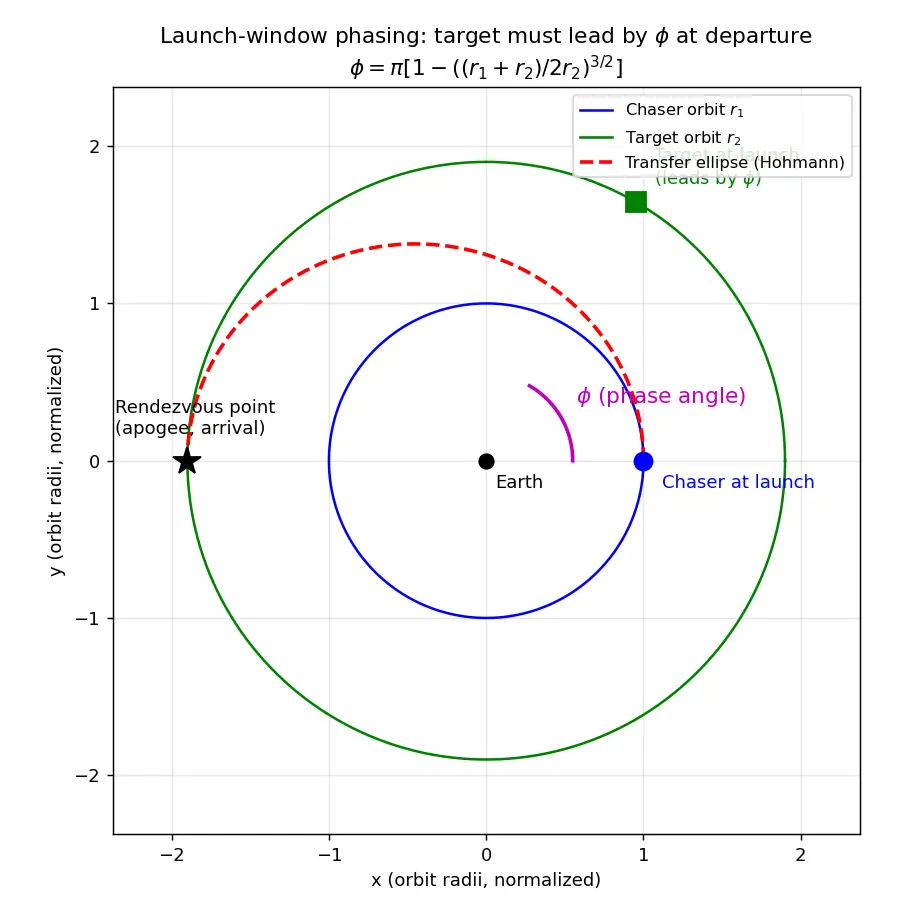

Figure — Launch window — phasing with target orbit

3. Worked examples

Worked example Example 1 — LEO chaser to higher LEO target

$r_1=6\,700$ km, $r_2=7\,000$ km, $\mu_\oplus=3.986\times10^{5}\ \text{km}^3/\text{s}^2$ . Step A: $a_t=(6700+7000)/2=6850$ km. Why? mean of perigee & apogee. Step B: ratio $\dfrac{r_1+r_2}{2r_2}=\dfrac{6850}{7000}=0.9786$ . Raise to $3/2$ : $0.9682$ . Step C: $\phi=\pi(1-0.9682)=\pi(0.0318)=0.0999\ \text{rad}\approx 5.7^\circ$ . Interpretation: target must lead by ~ $5.7^\circ$ . Because $r_2>r_1$ but only slightly, we still get a small positive lead? Check sign carefully: here it came out positive small because the arc the target covers is just under $\pi$ .

Worked example Example 3 — synodic period, ISS-like chase

$r_1=6\,778$ km (chaser 400 km), $r_2=6\,795$ km (target). $n_1=\sqrt{\mu/r_1^3}=\sqrt{3.986\times10^5/6778^3}=1.132\times10^{-3}\ \text{rad/s}$ $n_2=1.128\times10^{-3}\ \text{rad/s}$ ; $|n_1-n_2|=4.2\times10^{-6}$ . $T_{\text{syn}}=2\pi/4.2\times10^{-6}\approx1.5\times10^{6}$ s $\approx 17$ days. Why big? Nearly equal radii → nearly equal $n$ → they drift apart very slowly, so the same phasing repeats only every couple weeks. This is why ISS visits use multiple phasing orbits to fine-tune, not a single Hohmann.

4. Common mistakes (steel-manned)

5. Flashcards

What two conditions define a real launch window?

Plane match (site rotates under the orbital plane) AND phasing (target at correct lead angle to rendezvous).

Formula for required phase angle in a Hohmann rendezvous?

\phi=\pi\left[1-\left(\frac{r_1+r_2}{2r_2}\right)^{3/2}\right]

Why does

\mu

cancel in the phase-angle formula?

Because

\phi

depends only on the ratio of transfer arc times, which reduces to geometric radius ratios;

\mu

scales all times equally.

What is the transfer time of a Hohmann transfer?

Half the ellipse period:

t_t=\pi\sqrt{a_t^3/\mu}

with

a_t=(r_1+r_2)/2

Define synodic period and give its formula.

Time for the relative phasing geometry to repeat:

T_{\text{syn}}=2\pi/|n_1-n_2|

Why do nearly-equal orbits have very long synodic periods?

Their mean motions are nearly equal, so relative drift

|n_1-n_2|

is tiny →

2\pi

of relative drift takes a long time.

During a LEO→GEO transfer, roughly how far ahead must GEO be at departure?

About

100^\circ

(target only moves ~

44^\circ

during the slow long transfer).

What angle does the chaser sweep during a Hohmann transfer?

Exactly

180^\circ

(perigee to apogee, half the ellipse).

Recall Feynman: explain to a 12-year-old

Imagine you and a friend running on two circular tracks, your friend on the outer track going slower. You want to throw a ball to your friend, but by the time the ball flies out, your friend has moved. So you don't throw at where they are — you throw ahead of them, to where they'll be. A launch window is the exact moment when your friend is the right distance ahead so your throw (the transfer orbit) meets them perfectly. And this perfect moment comes back again and again, every so often — that "every so often" is the synodic period.

Connections

Hohmann Transfer Orbit — provides $a_t$ and transfer time used here.
Kepler's Third Law — source of $T=2\pi\sqrt{a^3/\mu}$ .
Mean Motion and Orbital Period — defines $n=\sqrt{\mu/r^3}$ .
Synodic Period — how often the window repeats.
Orbital Plane and Inclination — the geometry side of the launch window.
Rendezvous and Phasing Orbits — fine-tuning when a single Hohmann isn't enough.
Lambert's Problem — general (non-Hohmann) transfer timing.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, launch window ka matlab sirf "rocket ready hai" nahi hota. Asli baat ye hai ki jab tum launch karo, tab target orbit mein sahi jagah par ho, taaki jab tumhara rocket transfer ellipse par ghoom kar upar pahunche, target bhi wahi aa jaye. Ek friend jo bahar wale (bade) track par slowly bhaag raha hai — usko ball tab throw karo jab wo thoda aage ho, kyunki ball pahunchte pahunchte wo aur aage nikal jayega. Yahi lead angle ko hum phase angle $\phi$ kehte hain.

Formula simple geometry se aata hai: transfer time $t_t=\pi\sqrt{a_t^3/\mu}$ hai (Hohmann half ellipse), aur is time mein target $\Delta\theta_2=\pi(a_t/r_2)^{3/2}$ angle ghoom jata hai. Chaser toh pura $180^\circ$ ghumta hai, toh target ko departure par $\phi=\pi-\Delta\theta_2$ itna aage hona chahiye. Mast baat ye hai ki is formula mein $\mu$ cancel ho jata hai — matlab phase angle sirf radii ke ratio par depend karta hai, planet kitna heavy hai isse farak nahi padta.

Ye window baar baar aata hai — har synodic period $T_{\text{syn}}=2\pi/|n_1-n_2|$ ke baad. Agar dono orbits ke radius lagभग barabar hain (jaise ISS chase), toh $n_1$ aur $n_2$ almost equal, isliye synodic period bahut lamba (~17 din type). Isiliye real missions mein ek Hohmann se kaam nahi chalta, multiple phasing orbits use karte hain fine-tuning ke liye.
