Visual walkthrough — Angle of attack, lift coefficient, drag coefficient

---

Step 1 — What "the air pushes" even means

WHAT: Imagine a window of area $S$ standing in the wind. In one second, a slab of air of length $V$ (metres travelled in that second) passes through it.

WHY: Force is change of momentum per second. To get force we must first ask: how much air, carrying how much momentum, arrives each second? Nothing about wings yet — just bookkeeping the air.

PICTURE: The blue slab below is exactly one second's worth of air. Its volume is $S\times V$, so its mass is $\dot{m}=\rho SV$ (density times volume). The little dot over $m$ is shorthand for "rate of change with time": $\dot{m}\equiv \frac{dm}{dt}$, i.e. kilograms passing per second.

$\underset{\text{kg per second}}{\underbrace{\dot{m}}}=\underset{{\text{kg per m}}^3}{\underbrace{\rho }}\times \underset{{\text{m}}^2}{\underbrace{S}}\times \underset{\text{m per s}}{\underbrace{V}},\dot{m}\equiv \frac{dm}{dt}$

Each symbol pulls its weight: $\rho$ turns volume into mass, $SV$ is the volume of the slab per second, and the product $\dot{m}$ is a mass flow rate (the $\dot{}$ over $m$ always means "per second").

---

Step 2 — Turning mass-flow into a force scale

WHAT: Multiply the mass-per-second by the speed each kilogram carries.

$\dot{m}V=(\rho SV)V=\rho S{V}^2$

WHY these symbols, WHY squared: One $V$ came from "how much air arrives" (Step 1); the second $V$ came from "how much momentum each bit carries". Momentum-per-second is a force (Newton's second law). So any aerodynamic force must be built from $\rho S{V}^2$ — there is no other combination with the right units.

PICTURE: Two arrows stacked — a thin one for $V$ (how fast) and a fat one for $\dot{m}$ (how much). Their product is the shaded force block $\rho S{V}^2$.

---

Step 3 — Packaging it: dynamic pressure $q$

Recall The Bernoulli form you need here

Bernoulli's Equation says along a streamline the total stays constant: $p+\frac{1}{2}\rho V^2=\text{constant}$. The term $p$ is the ordinary static pressure; the term $\frac{1}{2}\rho V^2$ is the extra pressure the motion carries. That second term is exactly what we are about to name $q$ — so $q$ is not invented, it is lifted straight out of Bernoulli.

WHAT: We take the messy $\rho V^2$ and glue a $\frac{1}{2}$ in front, calling the result $q$.

WHY the $\frac{1}{2}$: kinetic energy of a lump is $\frac{1}{2}m{V}^2$; per unit volume that is $\frac{1}{2}\rho V^2$. This is the same $\frac{1}{2}\rho V^2$ that appears in Bernoulli's Equation (see the recall box above), so $q$ slots directly into pressure bookkeeping. Choosing $q$ (not $\rho V^2$) means every coefficient we define later will match Bernoulli's constant exactly — no factor-of-2 mismatch.

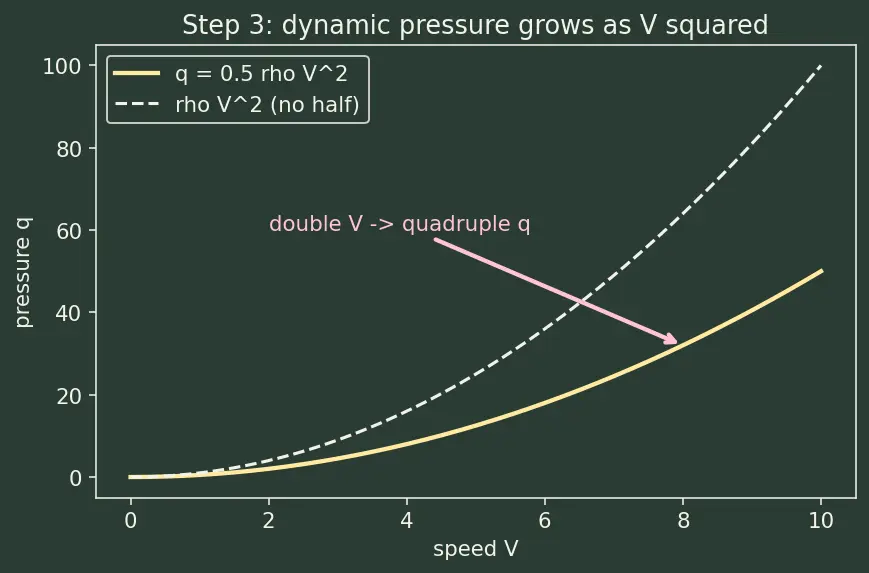

PICTURE: A parabola of $q$ against $V$ — doubling the speed quadruples the pushing pressure. The dashed line shows the "half" scaling the $\frac{1}{2}$ introduces.

---

Step 4 — Now the airfoil: circulation is the trick

WHAT: Replace the solid airfoil with an imaginary sheet of tiny spinning vortices lying along the chord of length $c$. Their combined swirl equals $\Gamma$.

WHY a vortex sheet: we want the simplest object that (a) can be tilted by angle $\alpha$ and (b) makes the air on top move faster than the bottom. A sheet of swirl does exactly that and is easy to integrate.

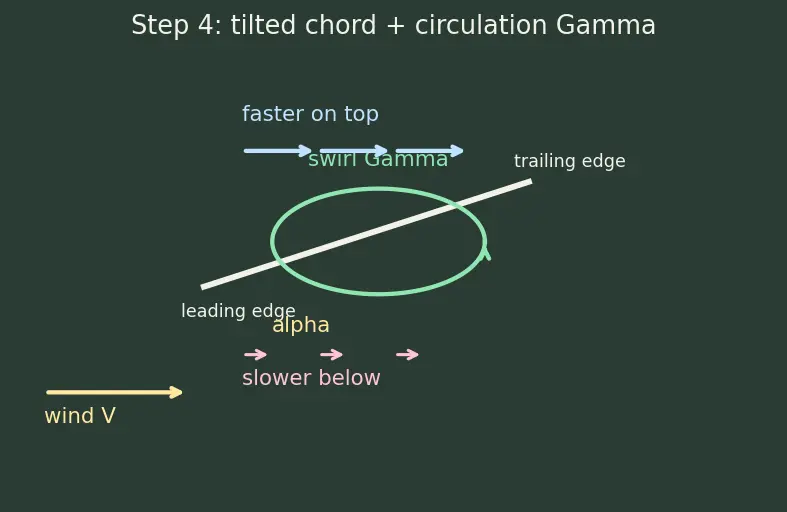

PICTURE: The flat chord tilted at angle $\alpha$ to the oncoming wind $V$, wrapped by a green swirl loop of strength $\Gamma$. Faster arrows on top (blue), slower on the bottom (pink).

---

Step 5 — Where the $\pi$ comes from: adding up the sheet

WHAT — the sketch, made honest, step by tiny step:

(a) Relabel position by an angle. Put the nose at $x=0$ and tail at $x=c$. Define $x=\frac{c}{2}(1-\cos \theta ),\theta :0(\text{nose})\to \pi (\text{tail}).$ Differentiating gives the line element (how much real length a small $d\theta$ covers): $dx=\frac{c}{2}\sin \theta d\theta .$ This $dx$ is the hidden "Jacobian" — it is just the chain rule, nothing mysterious: near the nose and tail ($\theta \approx 0,\pi$) a step in $\theta$ covers little real chord, which is why the ruler bunches points there.

(b) What Kutta forces $\gamma$ to be. The flow speed a flat plate would demand near the nose blows up like $\sqrt{(c-x)/x}$ (sharp leading edge), i.e. proportional to $\frac{1+\cos \theta }{\sin \theta }$ in the new ruler. The Kutta condition kills the matching blow-up at the tail by requiring $\gamma (\theta =\pi )=0$. The combination that satisfies both — singular at the nose, exactly zero at the tail — is $\gamma (\theta )=2\alpha V\frac{1+\cos \theta }{\sin \theta }.$ Check the tail: at $\theta =\pi$, $1+\cos \pi =0$, so $\gamma =0$ — Kutta is obeyed. That is why this specific shape, and no other, appears.

(c) Add them up — the $\sin \theta$ cancels. Now form $\Gamma ={\int }_0^c\gamma dx$ and substitute both $\gamma (\theta )$ and $dx=\frac{c}{2}\sin \theta d\theta$: $\Gamma ={\int }_0^{\pi }2\alpha V\frac{1+\cos \theta }{\cancel{\sin \theta }}\cdot \frac{c}{2}\cancel{\sin \theta }d\theta =\alpha Vc{\int }_0^{\pi }(1+\cos \theta )d\theta .$ The awkward $\sin \theta$ in the denominator of $\gamma$ is exactly cancelled by the $\sin \theta$ inside $dx$ — that is why the line element $dx$ mattered. What remains is the clean integral ${\int }_0^{\pi }(1+\cos \theta )d\theta =[\theta +\sin \theta {]}_0^{\pi }=\pi .$

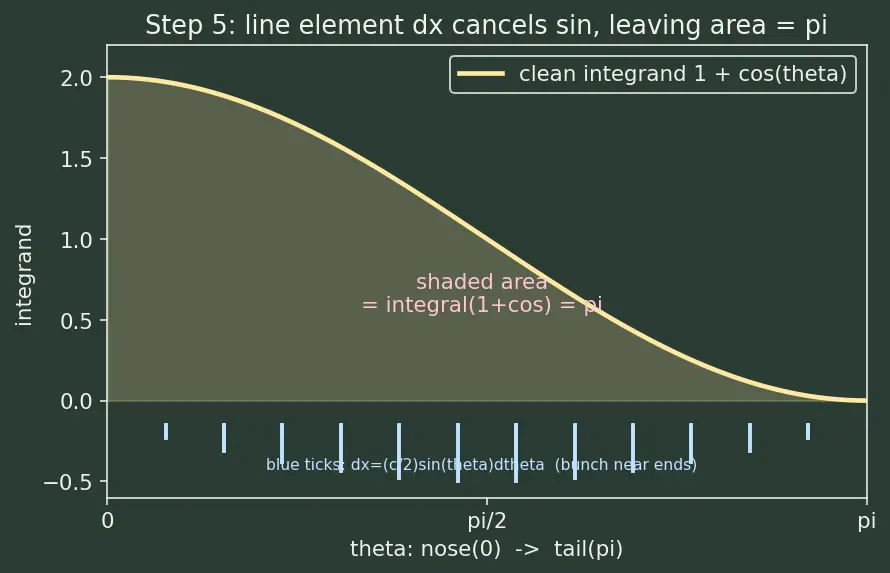

PICTURE: the chord relabelled by $\theta$ ($0$ nose $\to \pi$ tail), the line element $dx=\frac{c}{2}\sin \theta d\theta$ shown as bunched tick-marks, and the shaded area under the clean integrand $1+\cos \theta$ equal to $\pi$.

Putting the pieces together, the total swirl is:

$\Gamma =\underset{\text{from}{\int }_0^{\pi }(1+\cos \theta )d\theta }{\underbrace{\pi }}\underset{\text{chord length}}{\underbrace{c}}\underset{\text{wind speed}}{\underbrace{V}}\underset{\text{tilt, radians}}{\underbrace{\alpha }}$

WHY each symbol is there: longer chord $c$ = more sheet to sum; faster $V$ = stronger flow to curl; bigger tilt $\alpha$ = more asymmetry top-vs-bottom; and the $\pi$ is the leftover of the swept half-circle. Crucially $\Gamma \propto \alpha$ — swirl grows in a straight line with tilt. (The full mathematics lives in the Kutta-Joukowski Theorem deep dive; here we keep the picture.)

---

Step 6 — Kutta–Joukowski turns swirl into lift

WHAT: Feed the Kutta swirl from Step 5 into the Kutta-Joukowski Theorem.

WHY this theorem: it is the exact bridge between "how much the flow spins" ($\Gamma$) and "how hard the wing is pushed sideways" ($L^{\prime }$). It answers precisely our question — given the swirl, what is the force? — and nothing simpler does.

PICTURE: Swirl $\Gamma$ (green) crossed with oncoming wind $V$ (yellow) yields an upward lift arrow $L^{\prime }$ (blue), perpendicular to the wind. A little "right-hand" cross shows why the force points up.

---

Step 7 — Assemble: out pops $2\pi \alpha$

WHAT: Substitute $\Gamma =\pi cV\alpha$ into $L^{\prime }=\rho V\Gamma$, then divide by $qS$ to get the coefficient. Use span $=1$, so area $S=c\times 1=c$.

$C_L=\frac{L^{\prime }}{qS}=\frac{\rho V(\pi cV\alpha )}{\frac{1}{2}\rho V^{2}c}$

Cancel term by term — this is the satisfying part:

$C_L=\frac{\rho \cancel{V}\pi \cancel{c}\cancel{V}\alpha }{\frac{1}{2}\cancel{\rho }\cancel{V^2}\cancel{c}}=\frac{\pi \alpha }{\frac{1}{2}}=\boxed{2\pi \alpha }$

• $\rho$ cancels (top and bottom) → lift coefficient doesn't care how thick the air is.
• $V^2$ cancels → $C_L$ does not depend on speed, exactly as promised in the parent note.
• $c$ cancels → the coefficient is size-independent: the wing's "DNA".
• The lone $\frac{1}{2}$ downstairs flips $\pi$ into $2\pi$.

WHY it matters: $C_L=2\pi \alpha$ means the lift-curve slope is $2\pi$ per radian $\approx 0.11$ per degree — a straight line, true for any thin airfoil at small tilt.

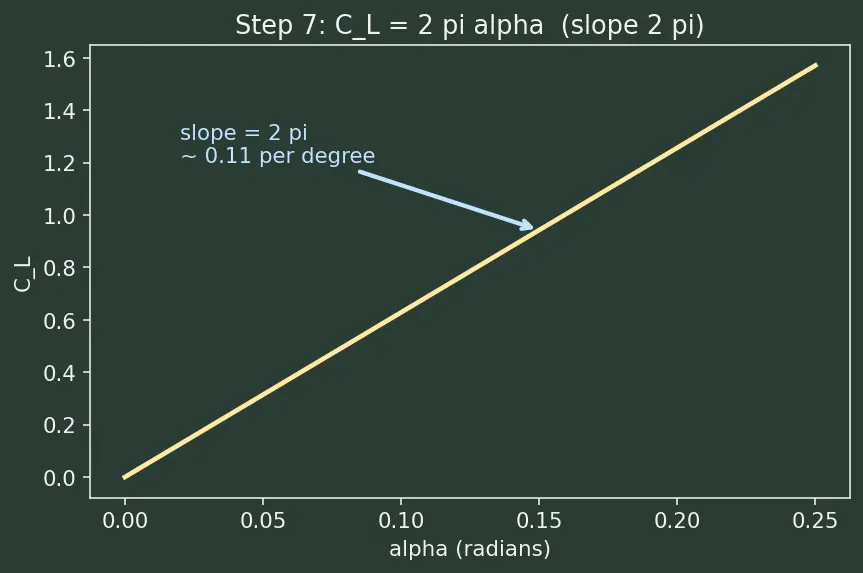

PICTURE: the straight line $C_L$ vs $\alpha$, slope $2\pi$, passing through the origin.

---

Step 8 — The edge cases the straight line hides

Case A — zero lift is not always at $\alpha =0$. For a cambered (curved) airfoil the plate already deflects air even when flat. Lift hits zero at a negative angle ${\alpha }_{L=0}$. The real formula is $C_L=2\pi (\alpha -{\alpha }_{L=0})$ — the line slides left but keeps its slope.

Case B — stall. Past $\sim 15^{\circ }$ the boundary layer separates: air can no longer hug the top surface, swirl $\Gamma$ collapses, and $C_L$ falls off a cliff while drag spikes. The straight line is a lie here.

Case C — high speed. Near the speed of sound the assumption "$\rho$ is constant" breaks. Compressibility steepens the slope by the Prandtl–Glauert factor $1/\sqrt{1-M^2}$, where $M$ is the Mach Number. As $M\to 1$ the prediction blows up — a warning, not a real infinity.

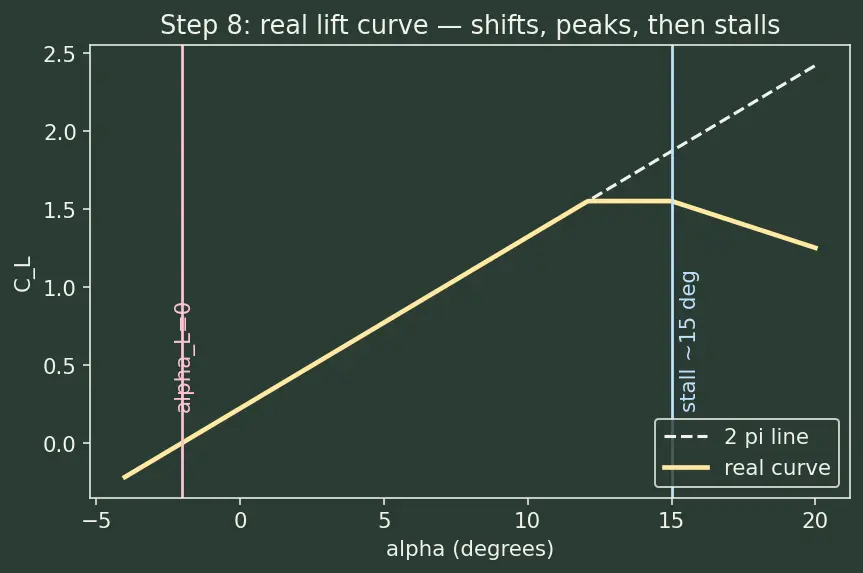

PICTURE: the real lift curve: the $2\pi$ line, its origin shifted by ${\alpha }_{L=0}$, the smooth rise, the peak $C_{L,\max }$, and the post-stall drop, all labelled.

---

The one-picture summary

Everything in a single chain: air arrives → carries momentum → tilt makes swirl → swirl makes lift → divide by $qS$ → a clean number $2\pi \alpha$.

Recall Feynman retelling in plain words

Picture a fat block of air sailing at you every second — that's $\rho SV$ kilograms. Each kilogram is moving, so it carries a punch; the punch per second scales like $\rho S{V}^2$. We tidy half of that into $q$, the "wind pressure". Now tilt a flat card into the stream. The tilt makes the air rush faster over the top than the bottom — we call that lopsided rush "swirl", $\Gamma$, and the sharp back edge forces exactly one amount of swirl (the Kutta rule): $\Gamma =\pi cV\alpha$. A famous theorem says lift equals density times speed times swirl. Plug the swirl in, divide by the wind pressure and the area, and — magic — the speed, the density, and the size all cancel, leaving one tidy number: $C_L=2\pi \alpha$. It's a straight line: twice the tilt, twice the lift... until the air can't hold on and the wing stalls.

Recall Self-test

Why does $V$ cancel in $C_L$? ::: The lift $L^{\prime }=\rho V\Gamma$ has one $V$ from Kutta–Joukowski and $\Gamma$ carries another; the denominator $q=\frac{1}{2}\rho V^2$ has $V^2$ — they cancel, so $C_L$ is speed-independent. Where does the $2$ in $2\pi$ come from? ::: The $\frac{1}{2}$ inside dynamic pressure $q=\frac{1}{2}\rho V^2$; dividing by $\frac{1}{2}$ turns $\pi \alpha$ into $2\pi \alpha$. Why does the $\sin \theta$ in $\gamma (\theta )$ disappear? ::: The line element $dx=\frac{c}{2}\sin \theta d\theta$ carries a matching $\sin \theta$ that cancels it, leaving the clean integrand $1+\cos \theta$. Where does the $\pi$ in $\Gamma$ come from? ::: From ${\int }_0^{\pi }(1+\cos \theta )d\theta =\pi$ after the $\sin \theta$ cancels — the swept half-circle.

---

Connections

• Bernoulli's Equation — where the $\frac{1}{2}\rho V^2$ of $q$ comes from.
• Kutta-Joukowski Theorem — the $L^{\prime }=\rho V\Gamma$ bridge in Step 6.
• Boundary Layer Separation & Stall — Case B, the collapse of the line.
• Compressible Flow & Mach Number — Case C, the high-speed slope correction.
• Reynolds Number — a secondary knob hidden inside $C_L$.
• Induced Drag & Wingtip Vortices — the drag price of the very swirl we built.
