Angle of attack, lift coefficient, drag coefficient

1. What is the angle of attack?

HOW to picture it: hold your flat hand out a car window. Flat (small $\alpha$ ) → little push. Tilt up → hand pushes upward strongly → but tilt too far and it flutters and the lift dies. That flutter point is the stall.

2. Why force ∝ dynamic pressure (deriving the coefficient form)

Derivation from first principles (dimensional reasoning):

The momentum flux of air hitting area $S$ per second is $\dot{m}\,V = (\rho \, S\, V)\,V = \rho S V^2.$

So any aerodynamic force scales like $\rho V^2 S$ . We tidy this with the dynamic pressure $q = \tfrac{1}{2}\rho V^2,$ which is the kinetic energy per unit volume of the moving air (WHY the $\tfrac12$ : it's literally $\tfrac12 \rho V^2$ , the KE density, matching Bernoulli's pressure term).

Then we define the dimensionless coefficients so that they absorb everything else:

WHY this is powerful: test a small model in a wind tunnel, get $C_L(\alpha)$ , and predict the full-size aircraft's lift at any speed and altitude. The coefficient is the "DNA" of the shape.

3. How $C_L$ depends on $\alpha$ (thin-airfoil result)

Sketch of WHY $2\pi$ : thin-airfoil theory models the airfoil as a vortex sheet along the chord. Enforcing that flow leaves smoothly at the trailing edge (the Kutta condition) and integrating the circulation gives total circulation $\Gamma = \pi c V \alpha$ . The Kutta–Joukowski theorem $L' = \rho V \Gamma$ then gives, per unit span with $S = c\cdot 1$ : $C_L = \frac{\rho V (\pi c V \alpha)}{\tfrac12 \rho V^2 c} = 2\pi\alpha.$

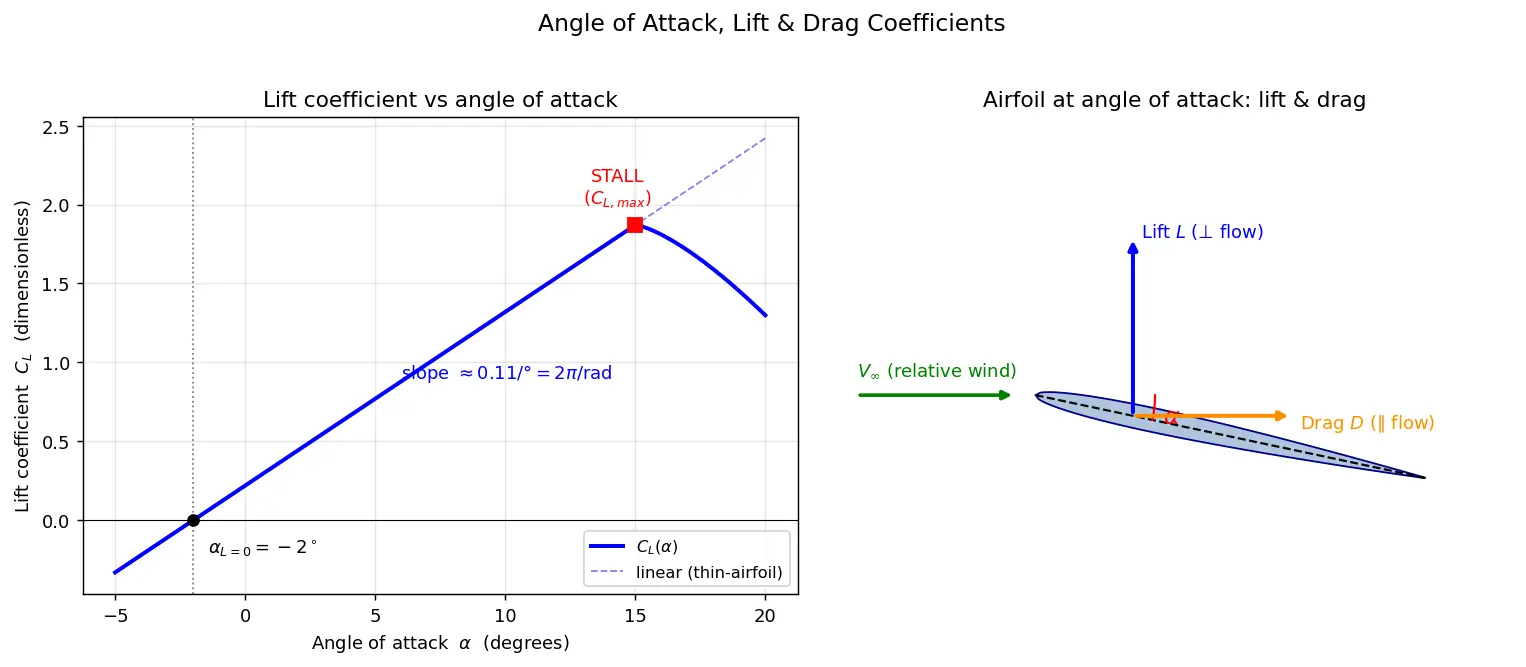

Figure — Angle of attack, lift coefficient, drag coefficient

4. Drag: the $C_D$ story

WHY induced drag ∝ $C_L^2$ : generating lift sheds vortices at the wingtips that tilt the local flow downward (downwash). This tilts the lift vector backward, producing a drag component proportional to lift² for a given wing.

5. Worked example: actual force

6. Common mistakes

Recall Feynman: explain to a 12-year-old

Stick your hand out of a moving car and tilt it. Tilted a little, the wind pushes your hand up — that's lift. The wind also pushes it backward — that's drag. Tilt more and the lift gets stronger, until suddenly your hand starts shaking and the lift vanishes — that's stall. Scientists invented a "magic number" (the lift coefficient) that tells you how good a wing shape is, no matter how fast it goes — so they can test a tiny model and know how the real plane behaves.

Connections

Bernoulli's Equation — source of dynamic pressure $q=\tfrac12\rho V^2$ .
Kutta-Joukowski Theorem — $L'=\rho V \Gamma$ , basis of the $2\pi\alpha$ result.
Boundary Layer Separation & Stall — why $C_L$ collapses.
Reynolds Number & Mach Number — secondary parameters $C_L,C_D$ depend on.
Induced Drag & Wingtip Vortices — origin of the $C_L^2$ term.
Compressible Flow — corrections to $a_0$ at high Mach (Prandtl–Glauert).

What is the angle of attack?

Angle between the airfoil chord line and the relative wind (oncoming velocity

V_\infty

Define dynamic pressure.

q=\tfrac12\rho V^2

, the kinetic energy per unit volume of the moving air.

Write the lift equation in coefficient form.

L = C_L\,\tfrac12\rho V^2 S

Give the formula for the lift coefficient.

C_L = L/(\tfrac12\rho V^2 S)

, dimensionless.

What does thin-airfoil theory predict for the lift-curve slope?

dC_L/d\alpha = 2\pi

per radian (

\approx 0.11/

deg).

Why does

C_L

stop increasing at high

\alpha

Flow separates (boundary layer detaches) → stall → lift drops sharply.

What is induced drag proportional to?

C_L^2

(and inversely to aspect ratio):

C_{D,i}=C_L^2/(\pi e\,\mathrm{AR})

What does

\alpha_{L=0}

mean?

The angle of attack at which lift (and

C_L

) is zero; negative for cambered airfoils.

Why is

C_L

independent of speed?

All speed dependence sits in the

V^2

of the formula;

C_L

depends on

\alpha

, shape, Mach, Reynolds.

What is

L/D

and why care?

Lift-to-drag ratio

=C_L/C_D

; measures aerodynamic/glide efficiency.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho tum car ki khidki se haath bahar nikalte ho aur thoda tilt karte ho — hawa tumhare haath ko upar push karti hai, yahi lift hai, aur peeche ki taraf push karti hai, yahi drag hai. Jis angle pe tumhara haath (ya wing ka chord line) oncoming hawa se tilt hota hai, usko angle of attack ( $\alpha$ ) kehte hain. Jitna zyada tilt, utni zyada lift — par ek limit ke baad flow alag ho jaata hai aur lift achaanak gir jaata hai, isko stall bolte hain.

Ab force ko number me kaise laaye? Koi bhi aerodynamic force $\rho V^2 S$ ke proportional hota hai (density × speed² × area). Hum isme se physics wali "magic number" alag nikaalte hain: $L = C_L \cdot \tfrac12\rho V^2 S$ . Yaha $\tfrac12\rho V^2$ ko dynamic pressure $q$ kehte hain (hawa ki kinetic energy per volume). $C_L$ aur $C_D$ dimensionless hote hain — yeh sirf shape aur $\alpha$ pe depend karte hain, speed pe nahi. Isiliye chhota wind-tunnel model test karke pure plane ka behaviour predict kar sakte hain — bahut powerful idea!

Ek important baat: thin-airfoil theory kehti hai $C_L = 2\pi\alpha$ (radian me), yaani slope $\approx 0.11$ per degree, jab tak flow attached hai. Lekin stall ke baad yeh rule fail ho jaata hai. Drag do hisse me hota hai: ek constant profile drag $C_{D,0}$ , aur ek induced drag jo $C_L^2$ ke proportional hai — yani lift banaane ki keemat. Exam me galti mat karna: $\tfrac12$ kabhi bhulna mat, aur "zyada angle = hamesha zyada lift" galat hai — stall ke baad lift girta hai.
