Airfoil aerodynamics — camber, chord, thickness

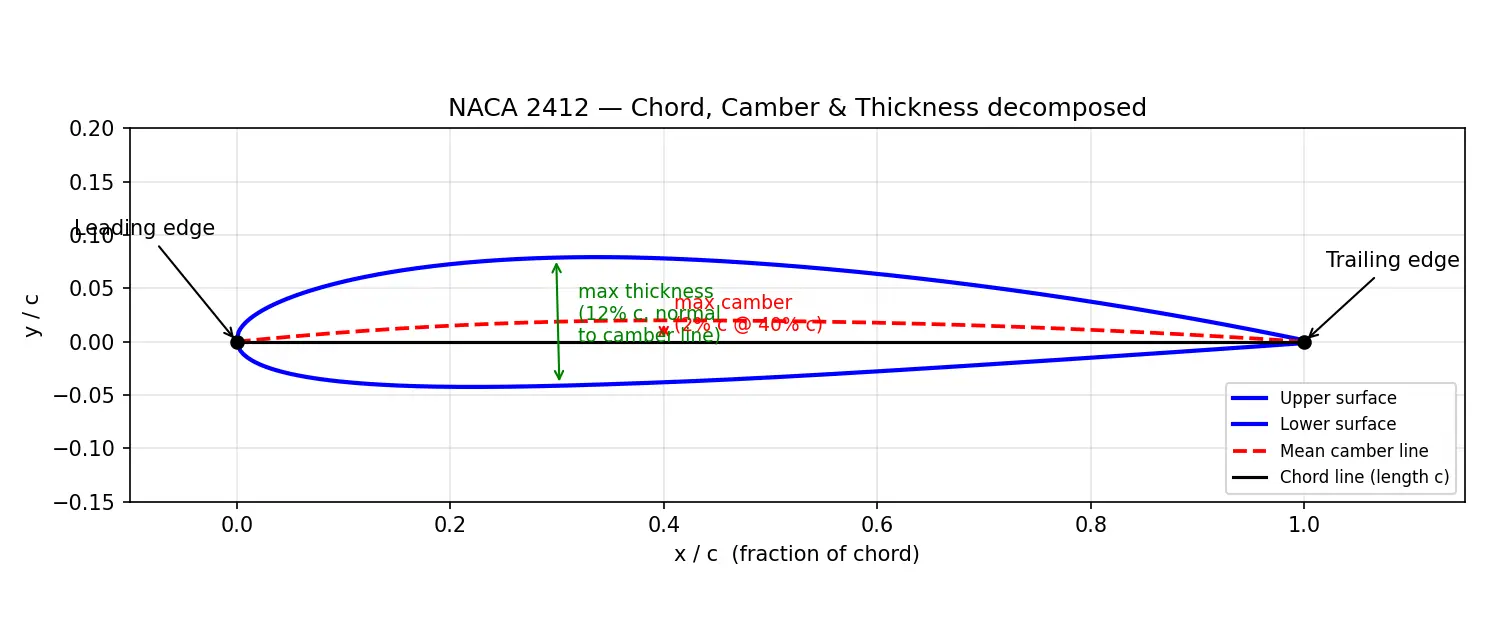

1. The three descriptors

2. Reconstructing the surface (derivation from scratch)

We build the surface point-by-point. Let $x$ run from $0$ (LE) to $c$ (TE).

Step 1 — camber gives the skeleton. Define $y_c(x)$ , the mean camber line height. Why this step? It carries all the asymmetry (the lift-from-shape).

Step 2 — half-thickness gives the flesh. Define $y_t(x)\ge 0$ , half the local thickness. Why? Thickness is symmetric about the skeleton, so we add $+y_t$ above and $-y_t$ below, along the normal to the camber line.

Step 3 — add perpendicular to the camber line. If the camber line has slope angle $\theta = \arctan\!\left(\frac{dy_c}{dx}\right),$ then the surfaces are offset perpendicular to the camber line (i.e. along its normal):

Formula Surface coordinates (derived, not dumped)

$x_U = x - y_t\sin\theta,\qquad y_U = y_c + y_t\cos\theta$ $x_L = x + y_t\sin\theta,\qquad y_L = y_c - y_t\cos\theta$ Why $\sin/\cos$ ? Moving a distance $y_t$ along the unit normal $(-\sin\theta,\cos\theta)$ to the camber line gives the upper point; the negative normal gives the lower. Note: $2y_t$ is therefore the thickness measured normal to the camber line, which equals the chord-perpendicular thickness only when $\theta\to0$ . For thin airfoils $\theta\approx0$ , so $\cos\theta\approx1,\sin\theta\approx0$ and it collapses to the simple $y_U\approx y_c+y_t$ , $y_L\approx y_c-y_t$ — the two thickness directions coincide.

3. Why camber creates lift at zero angle of attack

This is captured by thin-airfoil theory. The lift coefficient is

Formula Thin-airfoil lift line (sketch of derivation)

$\boxed{c_\ell = 2\pi(\alpha - \alpha_{L0})}$ where $\alpha$ is angle of attack (radians) and $\alpha_{L0}$ is the zero-lift angle, set by camber. The standard thin-airfoil result is $\alpha_{L0} = -\frac{1}{\pi}\int_0^\pi \frac{dz}{dx}\,\cos\theta\,d\theta,\qquad x=\tfrac{c}{2}(1-\cos\theta),$ where $z(x)=y_c(x)$ is the camber line and $\theta$ is the change-of-variable angle. Why is the slope $2\pi$ ? Thin-airfoil theory models the camber line as a vortex sheet; integrating the Kutta condition gives circulation $\Gamma \propto \alpha$ , and $L=\rho V\Gamma$ (Kutta–Joukowski) makes $c_\ell$ linear in $\alpha$ with slope $2\pi$ per radian. Camber only shifts the line left (makes $\alpha_{L0}<0$ ); it does not change the slope.

4. Common mistakes (steel-manned)

Recall Feynman: explain it to a 12-year-old (click to open)

Imagine slicing a wing like a loaf of bread — that flat slice is the airfoil. Draw a straight line from the nose to the tail: that's the chord, the wing's ruler. Now draw a wavy line that always stays in the middle between the top and bottom skins: if it bows upward, the wing is cambered, like a gentle smile. How fat the slice is, top-to-bottom, is the thickness. The smile (camber) lets the wing throw air downward and lift up even when it's not tilted; the fatness (thickness) makes it strong but a bit draggy. The ruler (chord) just tells you how big everything is.

Connections

Thin-Airfoil Theory — gives $c_\ell = 2\pi(\alpha-\alpha_{L0})$ used above.
Kutta–Joukowski Theorem — $L=\rho V_\infty \Gamma$ , the engine behind lift.
Bernoulli's Equation — links the velocity field to surface pressure.
Boundary Layer & Flow Separation — why thickness/camber affect stall.
Reynolds Number — uses chord $c$ as the reference length.
NACA Airfoil Series — the geometry generator we decoded.
Lift and Drag Coefficients — non-dimensional forces referenced to $c$ .

Flashcards

What is the chord line of an airfoil?

The straight line from the leading edge to the trailing edge; its length

c

is the reference dimension.

Define the mean camber line.

The locus of points midway between the upper and lower surfaces (measured perpendicular to chord).

What exactly is "camber"?

The maximum distance between the mean camber line and the chord line, expressed as a fraction of chord.

What does zero camber imply?

The airfoil is symmetric (mean camber line coincides with the chord line); zero-lift angle

\alpha_{L0}=0

How is thickness distributed in the NACA construction?

The half-thickness

y_t

is laid off perpendicular to the mean camber line; for thin/symmetric airfoils this matches the chord-perpendicular thickness.

Decode NACA 2412.

2% max camber, located at 40% chord, 12% max thickness.

Decode NACA 0012.

Symmetric (0 camber), 12% max thickness.

Thin-airfoil lift-coefficient formula?

c_\ell = 2\pi(\alpha-\alpha_{L0})

with

\alpha

in radians.

Standard thin-airfoil zero-lift angle formula?

\alpha_{L0} = -\frac{1}{\pi}\int_0^\pi \frac{dz}{dx}\cos\theta\,d\theta

, with

x=\frac{c}{2}(1-\cos\theta)

Which descriptor sets the lift line's intercept — slope or intercept?

The intercept (camber shifts

\alpha_{L0}

negative); the slope stays

2\pi

per radian.

Why does a symmetric airfoil produce zero lift at

\alpha=0

It deflects top and bottom flow equally, so net downward momentum given to the air is zero.

Why is "equal transit time" wrong?

Top and bottom air do not meet at the trailing edge; lift comes from net flow turning (circulation + Kutta condition), not equal path times.

Upper-surface coordinate in terms of camber & thickness?

x_U=x-y_t\sin\theta,\ y_U=y_c+y_t\cos\theta

with

\theta=\arctan(dy_c/dx)

Which descriptor sets the Reynolds number's length scale?

The chord

c

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Socho ek wing ko bread ki tarah slice kiya — jo cross-section milta hai wahi airfoil hai. Is shape ko samajhne ke liye sirf teen cheezein yaad rakho: chord, camber, aur thickness. Chord matlab nose (leading edge) se tail (trailing edge) tak ki seedhi line — yeh airfoil ka ruler hai, baaki sab measurements isi ke fraction mein bolte hain. Camber matlab beech wali "mean camber line" kitni upar bowed hai chord ke comparison mein — yeh ek smile jaisi curve hai. Thickness matlab upar aur neeche surface ke beech ka gap; NACA construction mein yeh gap camber line ke normal par measure hota hai, par patle ya symmetric airfoil mein yeh chord ke perpendicular wale gap ke barabar hi nikalta hai.

Ab sabse important baat — lift kahaan se aati hai? Galat baat jo sab bolte hain: "upar ka path lamba hai isliye air fast jaati hai" — yeh galat hai (equal transit time ka assumption jhootha hai, planes ulta bhi udte hain). Sahi reason: airfoil air ko neeche deflect karta hai, aur Newton ke third law se air wing ko upar push karti hai. Camber ka magic yeh hai ki zero angle pe bhi air ko neeche bend kar deta hai, isliye symmetric airfoil ke comparison mein cambered airfoil $\alpha=0$ par bhi lift deta hai.

Formula yaad rakho: thin-airfoil theory se $c_\ell = 2\pi(\alpha - \alpha_{L0})$ , aur standard zero-lift angle $\alpha_{L0} = -\frac{1}{\pi}\int_0^\pi \frac{dz}{dx}\cos\theta\,d\theta$ hota hai. Yahan camber sirf $\alpha_{L0}$ ko negative shift karta hai (line ko left khiska deta hai), slope $2\pi$ same rehta hai. NACA naam padhna seekho: 2412 = 2% camber, 40% chord pe, 12% thick. 0012 = symmetric (00 camber), 12% thick. Bas itna pakka karlo toh aadha aerodynamics clear.
