Prandtl-Meyer function ν(M): Visual walkthrough

Before any calculus, we need three plain-language pictures: what a supersonic flow arrow is, what a Mach wave is, and what "turning away" means. We build those first.

Step 0 — The three things you must already picture

WHAT. A supersonic flow is a stream of air moving faster than sound. We draw it as an arrow of length $V$ (the speed) pointing in the direction the air travels.

$V$ ::: the flow speed (how many metres per second the air moves).
$a$ ::: the local speed of sound — how fast a tiny pressure ripple travels through that same air.
$M = V / a$ ::: the Mach number, "how many times faster than sound." $M > 1$ means supersonic.

WHY these symbols. Everything downstream is a story about the arrow $V$ turning and growing, and about the ratio $M$ that measures how supersonic we are. We cannot talk about waves until we have $V$ , $a$ , and $M$ named.

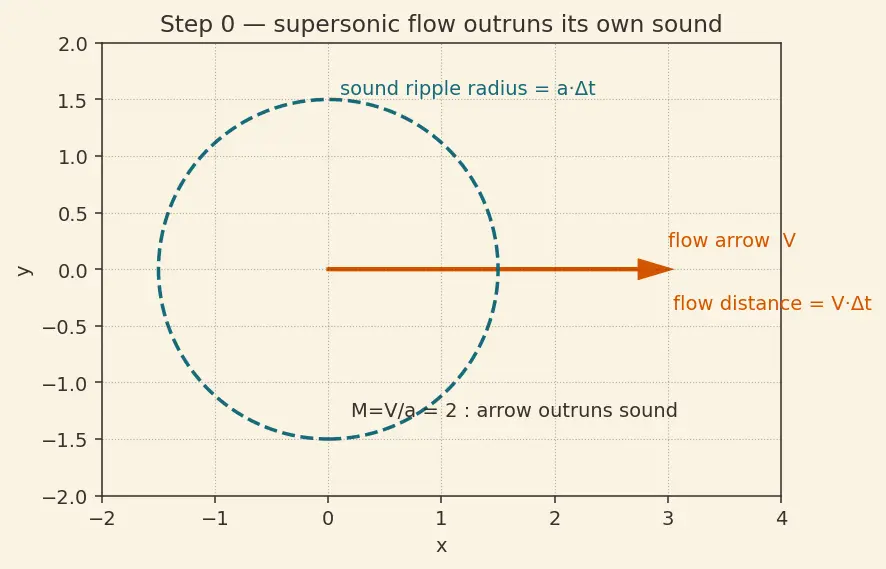

PICTURE. A single flow arrow, plus a tiny circle showing how far a sound ripple has spread in the same time — the arrow outruns the circle because $M > 1$ .

Step 1 — One weak wave, and the velocity triangle

WHAT. Put a single Mach wave in the flow. The air crosses it and bends away by a tiny angle $d θ$ . We claim: only the velocity component perpendicular to the wave changes; the component parallel to the wave is untouched.

WHY only the normal component. A Mach wave is infinitely weak — it is just a line of stacked sound ripples. Sound ripples push along their direction of travel (perpendicular to the wavefront). So the wave can only nudge the flow in its own normal direction; sideways (tangential) motion sails right through unchanged. This single fact is the engine of the whole derivation.

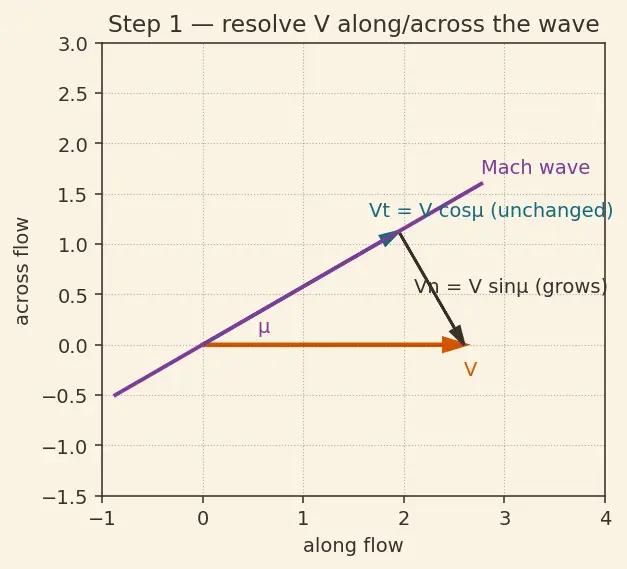

PICTURE. Resolve the incoming arrow $V$ into two pieces relative to the wave line: a tangential piece $V_{t}$ (along the wave) and a normal piece $V_{n}$ (across it). After the wave, $V_{t}$ is the same, but $V_{n}$ has grown slightly, so the resultant arrow is both longer and rotated by $d θ$ .

A crucial number falls out here. The normal Mach number is $M_{n} = V_{n} / a = M sin μ = M \cdot \frac{1}{M} = 1$ . The flow crosses a Mach wave at exactly sonic speed normal to it — that is literally what makes it a Mach wave and not a shock.

Step 2 — Turn the triangle into $d θ = \frac{M ^{2} - 1}{V} d V$

WHAT. Read the geometry of that velocity triangle to relate the tiny bend $d θ$ to the tiny speed increase $d V$ .

WHY this exact factor. When $V_{t}$ is frozen and $V_{n}$ grows by $d V_{n}$ , the tip of the arrow slides along the direction perpendicular to the wave. A small right-triangle at the arrow tip says: the bend $d θ$ (rotation of the arrow) times the length $V$ equals the sideways slide $d V_{n}$ , projected through the geometry. Working it through (see figure) the ratio that appears is $cot μ$ .

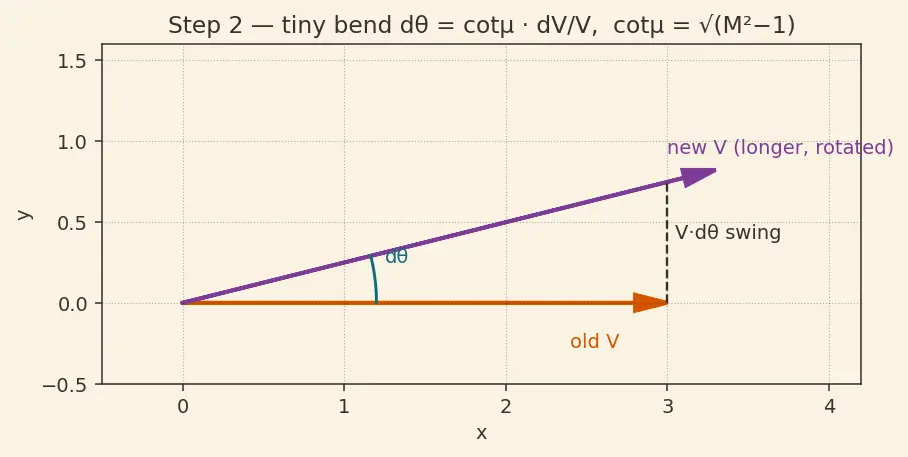

PICTURE. A zoom on the arrow tip: the old arrow, the slightly-longer-and-rotated new arrow, and the little right triangle whose legs are "growth along the flow" and "sideways swing $V d θ$ ."

Step 3 — Trade $d V / V$ for $d M / M$

WHAT. We want the answer in terms of Mach number $M$ (that's what tables use), not raw speed $V$ . So convert $d V / V$ into $d M / M$ .

WHY it isn't just $d V / V = d M / M$ . Because $V = M a$ , and the sound speed $a$ drops as the flow accelerates (an expanding gas cools). So when $M$ rises, $V$ rises less than proportionally — part of the "would-be" speed gain is eaten by the falling $a$ . We must account for that.

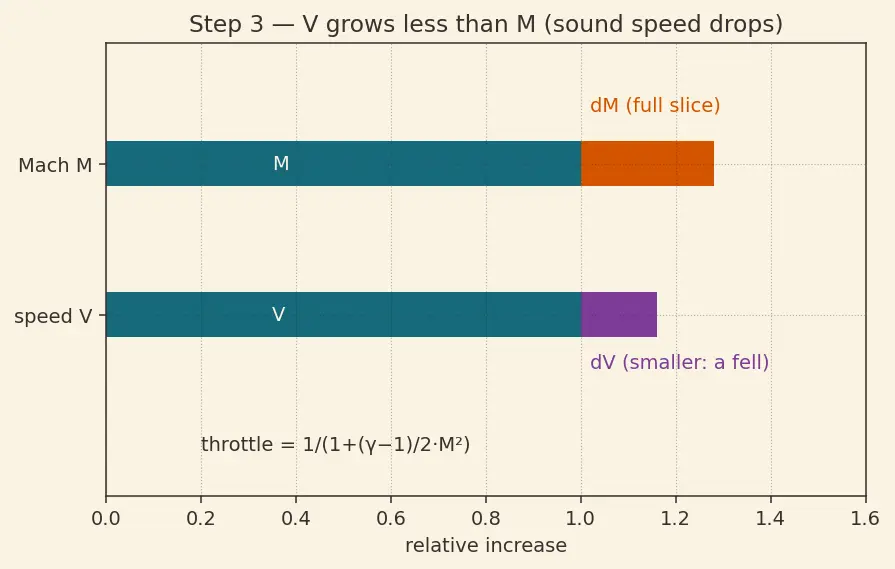

PICTURE. Two stacked bars for a small acceleration: the top bar shows $M$ growing by a full slice; the bottom bar shows $V$ growing by a smaller slice, because $a$ shrank. The shrink factor is exactly the denominator below.

Take logs of $V = M a$ : $ln V = ln M + ln a$ , differentiate: $\frac{d V}{V} = \frac{d M}{M} + \frac{d a}{a}$ . The isentropic temperature law (see Isentropic Flow Relations) gives $a^{2} \propto T \propto (1 + \frac{γ - 1}{2} M^{2})^{- 1}$ , and differentiating that supplies $d a / a$ . The result:

Step 4 — Combine into one clean differential

WHAT. Substitute Step 3 into the boxed result of Step 2. Everything is now in $M$ alone.

WHY. We now have $d θ$ expressed purely through $M$ — a self-contained rule for "how much the flow bends per tiny bump in Mach number." That is exactly what we can integrate.

$d θ = call this f (M) \frac{M ^{2} - 1}{1 + \frac{γ - 1}{2} M ^{2}} \frac{d M}{M}$

Numerator $M^{2} - 1$ (from Step 2) turns bending on; zero at $M = 1$ .
Denominator $1 + \frac{γ - 1}{2} M^{2}$ (from Step 3) throttles it as $M$ grows.
Their ratio, divided by $M$ , is the "turning per unit Mach."

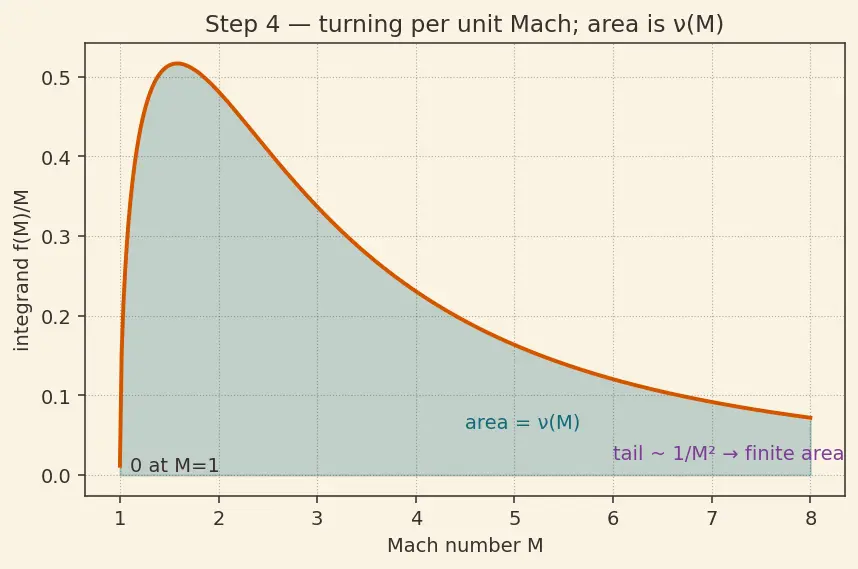

PICTURE. The integrand $f (M) / M$ plotted vs. $M$ : starts at $0$ (at $M = 1$ ), rises to a hump, then decays toward $0$ as $M \to \infty$ . The area under this curve is the total turning $ν$ — that decaying tail is why the total area is finite.

Step 5 — Integrate from sonic to $M$ : this is $ν (M)$

WHAT. Add up all the tiny $d θ$ 's from $M = 1$ (where we declare $θ = 0$ ) up to the target $M$ .

WHY start at $M = 1$ . We need a common zero-point so that everyone's "angle budget" is measured from the same place. Sonic flow is the natural origin: below it there is no Mach wave, no fan. Setting $ν (1) = 0$ makes $ν$ a universal ledger.

$ν (M) = \int_{1}^{M} \frac{M ^{'2} - 1}{1 + \frac{γ - 1}{2} M ^{'2}} \frac{d M ^{'}}{M ^{'}} .$

Carrying out this standard integral (substitute so the two arctangent pieces separate) gives the closed form:

Step 6 — The edge case: $M \to \infty$ gives a finite ceiling $ν_{m a x}$

WHAT. Push $M$ to infinity. Both arctangents saturate at their maximum value $π /2$ (because $M^{2} - 1 \to \infty$ , and $arctan (\infty) = π /2$ ).

WHY it matters. You might expect infinite turning for infinite speed. But each arctangent tops out, so the total turning is capped:

$ν_{m a x} = \frac{γ + 1}{γ - 1} \cdot \frac{π}{2} - \frac{π}{2} = \frac{π}{2} (\frac{γ + 1}{γ - 1} - 1) \approx 130.4 5^{\circ} (γ = 1.4) .$

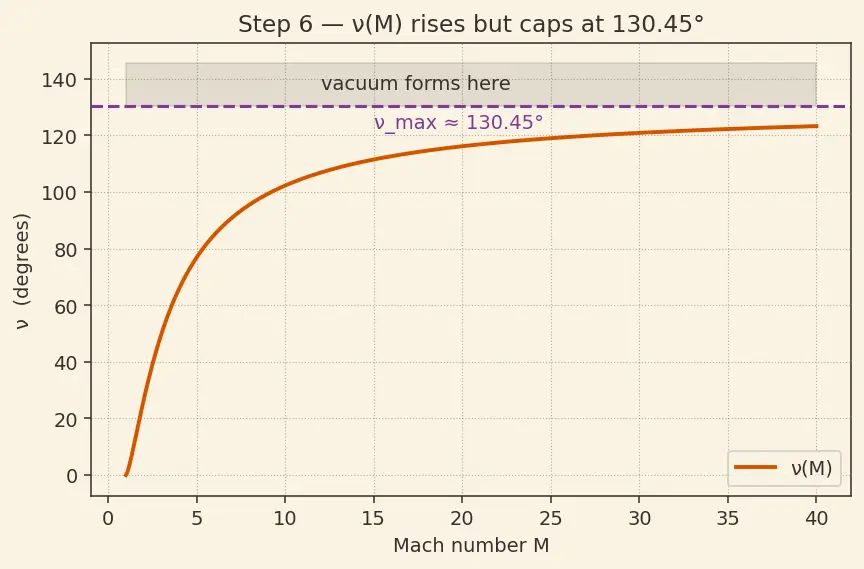

PICTURE. The full $ν (M)$ curve: rising steeply out of $M = 1$ , then flattening toward a horizontal asymptote at $130.4 5^{\circ}$ . A shaded gap beyond the asymptote is labelled "vacuum forms here."

Step 7 — Reading the ledger both ways (worked mini-example, all annotated)

WHAT. Use $ν$ as a two-way lookup for a $1 5^{\circ}$ expansion at $M_{1} = 2$ (matching the parent note).

WHY. This shows the only thing you ever do with $ν$ : convert $M \to ν$ , add/subtract the turn, convert back.

$ν (2) = 26.3 8^{\circ}$ — the budget already spent reaching $M = 2$ .
Expansion adds the turn: $ν (M_{2}) = 26.3 8^{\circ} + 1 5^{\circ} = 41.3 8^{\circ}$ .
Invert $ν = 41.3 8^{\circ} \Rightarrow M_{2} \approx 2.60$ (monotonic, so unique).

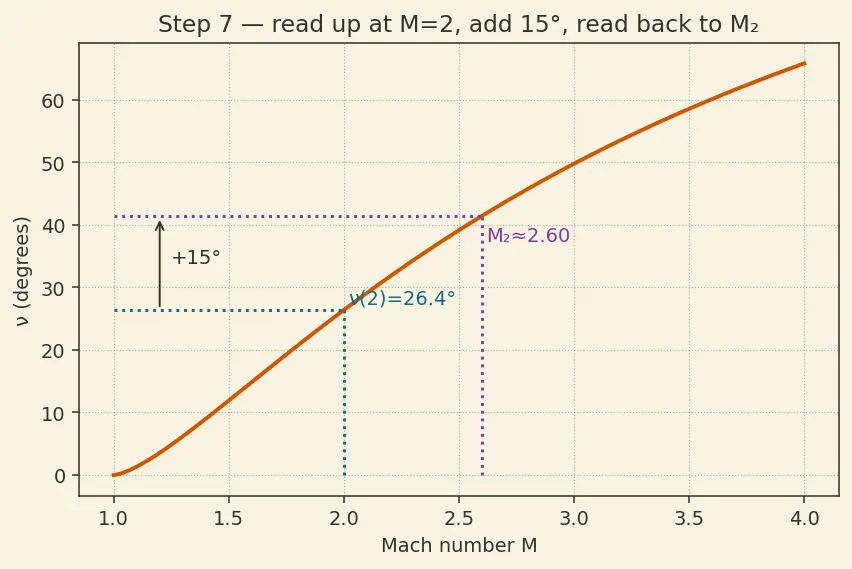

PICTURE. The $ν (M)$ curve with a horizontal "budget line": read up at $M = 2$ , step up by $1 5^{\circ}$ , read back down to $M_{2} \approx 2.6$ .

The one-picture summary

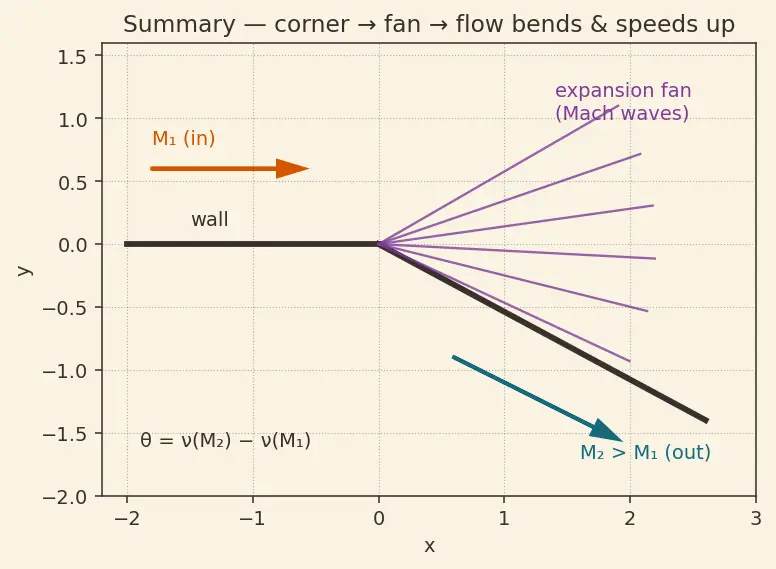

Everything above, compressed: a supersonic arrow enters a convex corner; the corner spawns a fan of Mach waves; the arrow bends away and lengthens wave by wave; each tiny bend is $d θ = f (M) d M / M$ ; the total bend, integrated from sonic, is $ν (M_{2}) - ν (M_{1})$ . See Expansion Fan / Centered Rarefaction and Nozzle Design (Supersonic) for where this gets used.

Recall Feynman retelling of the whole walkthrough

Picture yourself sprinting faster than sound along a wall. Because you outrun your own noise, your sound piles up into a slanted line — a Mach wave — tilted at angle $μ$ where $sin μ = 1/ M$ . Now the wall bends away. You cross one such wave; it can only shove you sideways (perpendicular to itself), never drag you along it. That sideways shove speeds you up a hair and swings your direction a hair — that hair is $d θ = M^{2} - 1 d V / V$ . But your speed grows slower than your Mach number, because the air cools and sound slows down, so we swap in $d M$ and pick up a throttle factor $1 + \frac{γ - 1}{2} M^{2}$ . Adding up a whole fan of these tiny bends from the moment you were barely supersonic gives a single running score, $ν (M)$ — two neat arctangents. Best part: it stalls at $13 0^{\circ}$ . Even infinite speed can only turn you so far; ask for more and you tear a vacuum in the flow.

Active recall

Prove

cot μ = M^{2} - 1

starting from

sin μ = 1/ M

cos μ = 1 - 1/ M^{2} = M^{2} - 1 / M

, so

cot μ = cos μ / sin μ = M^{2} - 1

Why is the integrand's area finite?

The tail decays like

1/ M^{2}

, so

\int_{1}^{\infty}

converges — giving

ν_{m a x} \approx 130.4 5^{\circ}

What does

arctan M^{2} - 1

equal geometrically?

9 0^{\circ} - μ

, the tilt of the Mach wave relative to the flow.
