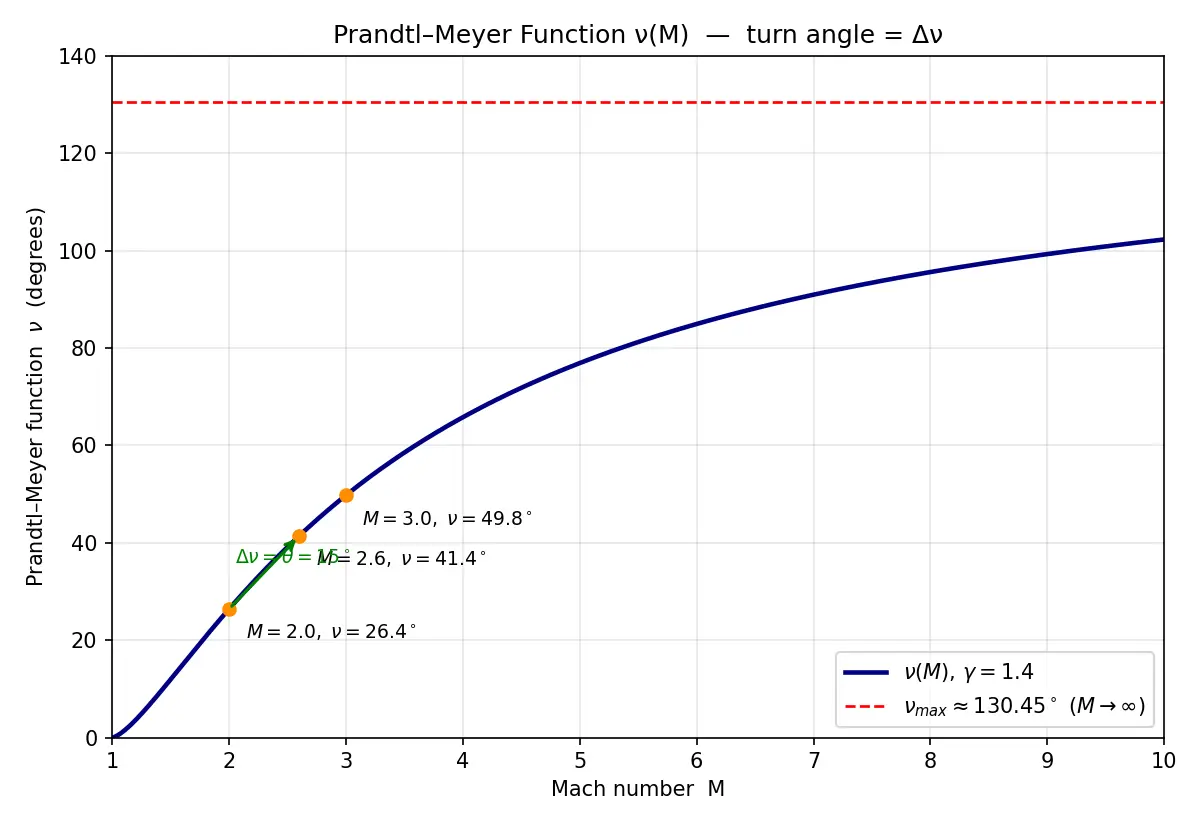

Prandtl-Meyer function ν(M)

WHAT is it?

The key practical statement: the turning angle equals the change in $\nu$ . No shock tables, no iteration on shock relations — just two lookups.

WHY does a fan, not a shock, form?

Each infinitesimal Mach wave makes the Mach angle $\mu$ with the local flow, $\mu = \arcsin\!\left(\frac{1}{M}\right).$

HOW to derive ν(M) from scratch

We build the relation between a tiny flow deflection $d\theta$ and the tiny speed change across one Mach wave.

Step 1 — Velocity triangle across a Mach wave. A Mach wave is so weak that only the velocity component normal to the wave changes; the tangential component is preserved. Resolving the velocity $V$ into components along and across the wave and applying a small turn $d\theta$ , the geometry of the velocity triangle gives: $d\theta = \frac{\sqrt{M^2-1}}{V}\,dV.$ Why this step? The normal Mach number is $M\sin\mu=1$ , and the tangential balance forces this exact factor $\sqrt{M^2-1}=\sqrt{M^2\sin^2\mu \cdot \frac{1}{\sin^2\mu}-1}$ … concretely $\cot\mu=\sqrt{M^2-1}$ appears from the triangle.

Step 2 — Convert $dV/V$ into $dM/M$ . From $V=M a$ and the isentropic temperature relation $\dfrac{a_0^2}{a^2}=1+\dfrac{\gamma-1}{2}M^2$ , take logs and differentiate: $\frac{dV}{V} = \frac{1}{1+\frac{\gamma-1}{2}M^2}\,\frac{dM}{M}.$ Why this step? $V$ depends on $M$ both directly and through the local speed of sound $a$ ; the temperature drop in an accelerating flow slows the growth of $V$ , hence the denominator.

Step 3 — Combine. $d\theta = \frac{\sqrt{M^2-1}}{1+\frac{\gamma-1}{2}M^2}\,\frac{dM}{M}.$

Step 4 — Integrate from $M=1$ (where $\theta=0$ ) to $M$ : $\nu(M) = \int_1^{M} \frac{\sqrt{M^2-1}}{1+\frac{\gamma-1}{2}M^2}\,\frac{dM}{M}.$

Step 5 — Closed form (standard integral, substitute $M^2-1$ trig):

Worked examples

Worked example Example 1 — Expansion over a corner

Air ( $\gamma=1.4$ ) at $M_1=2.0$ turns through a $\theta=15^\circ$ convex corner. Find $M_2$ . Step 1. Compute $\nu(M_1)$ . Plugging $M=2$ into the formula gives $\nu(2)=26.38^\circ$ . Why? This is the "angle budget already spent" to reach $M=2$ from sonic. Step 2. Add the turn: $\nu(M_2)=\nu(M_1)+\theta=26.38^\circ+15^\circ=41.38^\circ$ . Why? Expansion increases $\nu$ by exactly the turn angle (the boxed relation). Step 3. Invert $\nu(M_2)=41.38^\circ \Rightarrow M_2\approx 2.60$ . Why? $\nu$ is monotonic in $M$ , so one $\nu$ ↔ one $M$ .

Common mistakes

Recall Feynman: explain to a 12-year-old

Imagine you're running fast around the inside edge of a curving wall, faster than sound. When the wall suddenly bends away from you, you get a tiny bit of extra room, so you speed up and spread out — like water rushing off the end of a ramp. It doesn't happen with a sudden "bump"; it happens through lots of teeny fan-shaped pushes. The Prandtl–Meyer number is just a score that counts how much "spreading-out turning" your flow has done since it was just barely supersonic. If you bend the wall away by 15 degrees, your score goes up by 15. From the score you can read off how fast you're now going.

Active recall

What does the Prandtl–Meyer function ν(M) physically represent?

The angle through which a sonic (M=1) flow must expand isentropically to reach Mach number M; ν(1)=0.

Relation between turning angle and ν for an expansion?

θ = ν(M₂) − ν(M₁), with M₂ > M₁.

Why does an expansion corner form a smooth fan instead of a shock?

Mach waves spread apart (never coalesce), so the flow stays isentropic — no discontinuity.

Local Mach angle μ in terms of M?

μ = arcsin(1/M).

The differential relation driving the derivation?

dθ = [√(M²−1) / (1 + (γ−1)/2·M²)] · dM/M.

Closed form of ν(M)?

ν = √((γ+1)/(γ−1))·arctan√((γ−1)/(γ+1)·(M²−1)) − arctan√(M²−1).

ν_max for γ=1.4 and its meaning?

≈130.45°; the max turn for M→∞ (p→0); more turn ⇒ vacuum forms.

Why can't you use ν(M) for a sharp compression corner?

It produces a shock, which is non-isentropic; ν was derived assuming isentropic flow.

Across a Prandtl–Meyer fan, does static pressure rise or fall?

Falls (expansion: flow accelerates, cools, rarefies); p₀ stays constant.

Procedure to find M₂ given M₁ and turn θ?

M₁→ν₁; ν₂=ν₁+θ; invert ν₂→M₂.

Connections

Oblique Shock Waves — the compression counterpart (non-isentropic).
Mach Waves and Mach Angle — the building blocks of the fan.
Isentropic Flow Relations — supplies $p/p_0$ , $T/T_0$ used after finding $M_2$ .
Method of Characteristics — uses $\nu(M)\pm\theta$ as Riemann invariants.
Expansion Fan / Centered Rarefaction — the physical structure $\nu$ describes.
Nozzle Design (Supersonic) — contour design relies on Prandtl–Meyer expansion.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, jab supersonic flow ek aisे corner se guzarta hai jahan wall flow se door mud jaati hai (convex corner), to flow ek hi jhatke mein nahi mudta — wahan koi shock nahi banta. Iske badle bante hain bahut saare patle-patle Mach waves ka ek pankha (expansion fan), aur har wave flow ko thoda-thoda mod ke uski speed (Mach number) badha deta hai. Prandtl–Meyer function $\nu(M)$ basically ek hisaab hai: yeh batata hai ki $M=1$ se le kar abhi tak flow ne kitna total angle "kharch" kiya hai accelerate hone ke liye.

Sabse kaam ki baat: agar flow ko $\theta$ angle se expand karna hai, to bas $\nu_2 = \nu_1 + \theta$ . Yaani turning angle ko seedha $\nu$ mein jod do. Phir us naye $\nu_2$ se ulta jaakar $M_2$ nikaal lo. Yaad rakho — $\theta$ ko $M$ mein mat jodna, $\nu$ mein jodna hai, kyunki $\nu$ aur $M$ ka relation linear nahi hai.

Yeh process isentropic hota hai (entropy nahi badhti), isliye total pressure $p_0$ constant rehta hai, aur hum smooth isentropic relations use kar sakte hain. Compression corner mein situation ulti hoti hai — wahan Mach waves ek jagah ikatthe ho ke shock bana dete hain, jo non-isentropic hota hai, isliye wahan $\nu$ wala formula mat lagao, oblique shock relations lagao.

Ek important physical limit: $\gamma=1.4$ ke liye $\nu_{\max}\approx 130.45^\circ$ . Iska matlab flow itna hi maximum mud sakta hai expansion se ( $M\to\infty$ , pressure → 0). Agar corner isse zyada turn maange to wahan vacuum ban jaata hai. Exams aur nozzle design dono mein yeh concept bahut kaam aata hai.
