This page is the drill deck for the Area–Mach relation . The parent note built the formula; here we push it through every kind of situation a nozzle can throw at you — subsonic branch, supersonic branch, the sonic point, tiny and huge Mach limits, choking, real word problems, and an exam twist.
Throughout we use the master formula (air, γ = 1.4 , so the exponent 2 ( γ − 1 ) γ + 1 = 3 ):
Before the examples, let us name every case so nothing sneaks up on you.
Think of the A / A ∗ curve as a U-shaped valley (see below). Every problem lands in one of these cells:
#
Case class
What is special about it
Which example
C1
Sonic point M = 1
the exact bottom of the valley, A / A ∗ = 1
Ex 1
C2
Subsonic branch M < 1
left wall of the valley; A / A ∗ > 1
Ex 2
C3
Supersonic branch M > 1
right wall; same A / A ∗ as some subsonic M
Ex 2
C4
Both roots for one area
geometry alone is ambiguous
Ex 3
C5
Limit M → 0
A / A ∗ → ∞ (huge reservoir, still air)
Ex 4
C6
Limit M → ∞
A / A ∗ → ∞ (hypersonic, area blows up)
Ex 4
C7
Choked mass flow
throat sits at M = 1 ; m ˙ frozen
Ex 5
C8
Real-world word problem
wind-tunnel / rocket design phrasing
Ex 6
C9
Exam twist — property from area
chain A / A ∗ → M → p , T , ρ , V
Ex 7
C10
Exam twist — back-pressure picks branch
same duct, two flow states
Ex 8

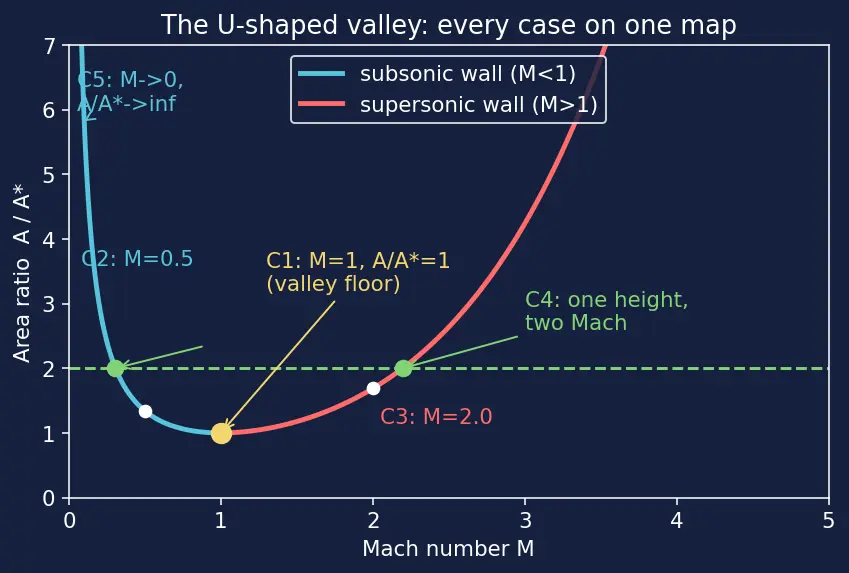

The figure is the map for everything below. Point to a dot on it as you read each example.
Worked example The bottom of the valley
A stream is exactly at M = 1 . What is A / A ∗ ? What would A / A ∗ be at M = 1.001 and M = 0.999 ?
Forecast: Guess before reading. At M = 1 the flow is the sonic reference, so surely A / A ∗ = 1 . Just off M = 1 , should the ratio go up or down? (It can only go up — 1 is a minimum .)
Step 1 — Plug M = 1 .
A ∗ A = 1 1 [ 1.2 1 + 0.2 ( 1 ) ] 3 = [ 1.2 1.2 ] 3 = 1.
Why this step? This is the definition of A ∗ turned into arithmetic: at M = 1 the local area is the sonic area, so the ratio must be exactly 1. If your formula did not give 1 here, it is wrong.
Step 2 — Nudge to M = 0.999 and M = 1.001 .
A ∗ A ( 0.999 ) ≈ 1.0000003 , A ∗ A ( 1.001 ) ≈ 1.0000003.
Why this step? Both sides rise above 1 — that is the visual proof the valley has a flat minimum at M = 1 (the derivative is zero there). Flat bottom = the throat area changes very little for a big Mach swing near sonic, which is why nozzle throats are so sensitive.
Verify: A / A ∗ = 1 at M = 1 exactly, and the two neighbours are both > 1 and nearly equal — consistent with a smooth minimum. ✔
Worked example Walk up both walls
Compute A / A ∗ at (a) M = 0.5 (subsonic) and (b) M = 2.0 (supersonic).
Forecast: Both are away from M = 1 , so both give A / A ∗ > 1 . The steep supersonic wall usually climbs faster, so expect the M = 2 value to be a fair bit above the M = 0.5 value.
Step 1 — Subsonic, M = 0.5 .
A ∗ A = 0.5 1 [ 1.2 1 + 0.2 ( 0.25 ) ] 3 = 2 [ 1.2 1.05 ] 3 = 2 ( 0.875 ) 3 ≈ 1.340.
Why this step? Direct substitution — no ambiguity when M is given . The 1/ M = 2 factor dominates the small bracket, so we sit modestly above 1 on the left wall .
Step 2 — Supersonic, M = 2.0 .
A ∗ A = 2 1 [ 1.2 1 + 0.2 ( 4 ) ] 3 = 2 1 [ 1.2 1.8 ] 3 = 2 1 ( 1.5 ) 3 = 2 3.375 = 1.6875.
Why this step? Now the bracket ( 1.5 ) 3 grows fast and beats the 1/2 — we are on the right wall , higher than the subsonic case, as forecast.
Verify: 1.340 (sub) < 1.6875 (super), both > 1 . Locate both dots on the s01 map: same height rule fails here because these are different M — but each sits above the sonic minimum. ✔
Worked example Geometry is ambiguous
A duct station has A / A ∗ = 2.0 , γ = 1.4 . Find all Mach numbers.
Forecast: 2 > 1 , so the valley is cut by a horizontal line at height 2 — it crosses twice . One root well below 1 (near 0.3 ), one well above 1 (near 2.2 ).
Step 1 — Set up the equation.
2 = M 1 [ 1.2 1 + 0.2 M 2 ] 3 .
Why this step? We are inverting f ( M ) . There is no closed-form inverse (it mixes 1/ M with a cubed polynomial), so we iterate or read a table — this is exactly why compressible-flow tables exist.
Step 2 — Subsonic root by iteration. Trying M = 0.3 gives A / A ∗ ≈ 2.035 ; M = 0.31 gives ≈ 1.978 . Interpolating:
M sub ≈ 0.306.
Why this step? Bracket the answer between two guesses whose outputs straddle 2, then squeeze — a hand-version of Newton's method.
Step 3 — Supersonic root by iteration. M = 2.2 gives A / A ∗ ≈ 2.005 ; M = 2.19 gives ≈ 1.985 . So
M super ≈ 2.197.
Why this step? The same height line hits the right wall too. Which one is physical depends on back-pressure (see Ex 8) — the formula alone will not choose.
Verify: Plug both back: f ( 0.306 ) ≈ 2.00 and f ( 2.197 ) ≈ 2.00 . Two valid roots for one area — exactly the U-shape prediction from the parent note . ✔
Worked example What happens at the extremes?
Estimate A / A ∗ as M → 0 and as M → ∞ . Use M = 0.05 and M = 5 as stand-ins.
Forecast: Both limits blow up. Near-still air (M → 0 ) needs a huge pipe to carry the same mass slowly; hypersonic flow (M → ∞ ) needs a huge pipe because density collapses. So both walls climb to ∞ .
Step 1 — M → 0 tail. For tiny M , the bracket → ( 1/1.2 ) 3 ≈ 0.5787 constant, while 1/ M → ∞ :
A ∗ A ≈ M 0.5787 M → 0 ∞.
Check M = 0.05 : 0.05 1 ( 0.5787 ) ≈ 11.57.
Why this step? The 1/ M factor is the culprit — it says "to squeeze a fixed mass flow through nearly-stationary gas you need enormous area." Physically: V → 0 in m ˙ = ρ A V forces A → ∞ .
Step 2 — M → ∞ tail. The bracket ∼ ( 1.2 0.2 M 2 ) 3 = ( 0.1 6 M 2 ) 3 grows like M 6 , divided by M gives ∼ M 5 → ∞ .
A ∗ A ( 5 ) = 5 1 [ 1.2 1 + 0.2 ( 25 ) ] 3 = 5 1 ( 5 ) 3 = 5 125 = 25.0.
Why this step? At high Mach, density ρ crashes toward zero, so continuity again demands large area. The right wall wins the race to infinity much faster (power M 5 vs. 1/ M ).
Verify: A / A ∗ ( 0.05 ) ≈ 11.57 and A / A ∗ ( 5 ) = 25.0 , both large and rising — matches "both limits → ∞ ". ✔
Worked example How much air can this nozzle pass?
Reservoir p 0 = 500 kPa , T 0 = 300 K , throat A ∗ = 10 cm 2 = 1 0 − 3 m 2 , air (R = 287 J/kg⋅K , γ = 1.4 ). Find the choked mass flow.
Forecast: With a half-megapascal reservoir and a 10 cm 2 throat, expect order ∼ 1 kg/s of air — a lot for so small a hole, because the throat is running at Mach 1.
Step 1 — Use the choked-flow formula. See Choked Flow & Maximum Mass Flow :
m ˙ = T 0 p 0 A ∗ R γ ( γ + 1 2 ) 2 ( γ − 1 ) γ + 1 .
Why this step? When the throat hits M = 1 (A = A ∗ ), the mass flow is set purely by reservoir state — dropping the exit pressure cannot pull more air through. This is the physical meaning of A ∗ being a constant yardstick .
Step 2 — Bracket factor. γ + 1 2 = 2.4 2 = 0.8333 , exponent = 3 , so ( 0.8333 ) 3 = 0.5787 .
Why this step? It is the same sonic constant we met in the M → 0 tail — no coincidence: both describe the sonic reference state.
Step 3 — Numbers.
m ˙ = 300 500000 ⋅ 1 0 − 3 287 1.4 ( 0.5787 ) ≈ 1.157 kg/s .
Why this step? Assemble the pieces. 300 ≈ 17.32 , 1.4/287 ≈ 0.06983 .
Verify (units): K Pa ⋅ m 2 J/kg⋅K 1 = K N J kg⋅K = K N ⋅ N⋅m K kg = N N⋅m kg = N⋅kg/m = kg 2 / s 2 = kg/s . ✔ Value ≈ 1.16 kg/s matches parent Example 3. ✔
Worked example Size the tunnel
You want a supersonic wind tunnel test section at M = 3.0 for air. Your throat is A ∗ = 25 cm 2 . What test-section area A e must you machine?
Forecast: M = 3 is deep on the supersonic wall — expect A / A ∗ around 4, so A e several times the throat, roughly 100 cm 2 .
Step 1 — Evaluate f ( 3 ) .
A ∗ A e = 3 1 [ 1.2 1 + 0.2 ( 9 ) ] 3 = 3 1 [ 1.2 2.8 ] 3 = 3 1 ( 2.3333 ) 3 = 3 12.7037 ≈ 4.235.
Why this step? The task gives M , so this is a forward evaluation — no ambiguity. We are firmly on the supersonic branch by design intent (flow is choked at the throat then expands in the diverging section — see Converging-Diverging (de Laval) Nozzle ).
Step 2 — Scale by the throat.
A e = 4.235 × 25 cm 2 ≈ 105.9 cm 2 .
Why this step? A / A ∗ is dimensionless; multiply by the real throat area to get real millimetres of hardware.
Verify: 105.9/25 = 4.235 = f ( 3 ) . Larger than the throat, consistent with "supersonic accelerates by diverging." ✔
Worked example Chain the whole toolkit
Same tunnel as Ex 6: M e = 3.0 , T 0 = 300 K , p 0 = 500 kPa , air. Find test-section T e , p e , and speed V e .
Forecast: At M = 3 the temperature drops hard (kinetic energy stolen from thermal), so T e well below 300 K — maybe ~100 K; pressure crashes to a few percent of p 0 .
Step 1 — Temperature via stagnation relation (Isentropic Stagnation Relations ):
T 0 T e = 1 + 0.2 ( 9 ) 1 = 2.8 1 = 0.3571 ⇒ T e = 107.1 K .
Why this step? M known ⇒ every thermodynamic ratio follows. Temperature comes first because pressure and density are built from it.
Step 2 — Pressure.
p 0 p e = ( T 0 T e ) γ / ( γ − 1 ) = ( 0.3571 ) 3.5 = 0.02722 ⇒ p e = 13.6 kPa .
Why this step? Isentropic flow links p and T by the exponent γ / ( γ − 1 ) = 3.5 — no heat added, so entropy fixes the relation.
Step 3 — Speed. Local sound speed (Speed of Sound a = sqrt(gamma R T) ):
a e = γ R T e = 1.4 ⋅ 287 ⋅ 107.1 = 207.5 m/s , V e = M e a e = 3 ( 207.5 ) = 622.5 m/s .
Why this step? V = M a — Mach is a ratio , so you always need the local sound speed (which depends on the local , colder, T e ) to recover a real velocity in m/s.
Verify: T e ≈ 107 K (cold, as forecast), p e ≈ 13.6 kPa (2.7% of p 0 ), V e ≈ 623 m/s. All internally consistent: V e / a e = 622.5/207.5 = 3.0 = M e . ✔
Worked example Same duct, two different flows
A CD nozzle has A e / A ∗ = 2.0 . (a) If it runs fully subsonic (high back-pressure, throat NOT sonic), the exit sits on the subsonic root. (b) If it runs choked & fully expanded supersonic , the exit sits on the supersonic root. State the exit Mach in each case and explain why the number differs even though the shape is identical.
Forecast: Same A e / A ∗ = 2 from Ex 3, so the two roots are already known: M ≈ 0.306 and M ≈ 2.197 . The only difference is the pressure boundary condition, not the metal.
Step 1 — Case (a) subsonic exit. Back-pressure is high; flow decelerates in the diverging part (subsonic branch), never reaching M = 1 at the throat. Exit root:
M e = 0.306.
Why this step? On the subsonic wall, a diverging area slows the flow (d A / A = ( M 2 − 1 ) d V / V with M < 1 ⇒ d A and d V opposite signs) — see Area-Velocity Relation dA-A = (M^2-1) dV-V .
Step 2 — Case (b) supersonic exit. Back-pressure low enough to choke the throat (M = 1 there); the diverging section now accelerates the flow. Exit root:
M e = 2.197.
Why this step? Once M > 1 past the throat, the same diverging area speeds the flow up — the sign flip in the area–velocity relation. This is why geometry alone (Ex 3) could not decide.
Step 3 — The tie-break. The physical selector is the exit pressure ratio p e / p 0 demanded by the downstream reservoir. High p b → subsonic; sufficiently low p b → supersonic (possibly with a normal shock inside for in-between pressures).
Why this step? It closes the "which root?" question the U-shape leaves open.
Verify: Both M = 0.306 and M = 2.197 satisfy f ( M ) = 2.0 (checked in Ex 3). Same area, two legal flows, chosen by back-pressure — not by geometry. ✔
Recall Quick self-test
A / A ∗ at M = 1 ? ::: Exactly 1 (Ex 1, the valley floor).
A / A ∗ at M = 0.5 and M = 2.0 ? ::: 1.340 and 1.6875 (Ex 2).
How many Mach numbers give A / A ∗ = 2 ? ::: Two — M ≈ 0.306 and M ≈ 2.197 (Ex 3).
What decides which root is physical? ::: The downstream back-pressure, not the shape (Ex 8).
Choked m ˙ for p 0 = 500 kPa, T 0 = 300 K, A ∗ = 10 cm 2 ? ::: ≈ 1.16 kg/s (Ex 5).
Test-section area for M = 3 if A ∗ = 25 cm 2 ? ::: ≈ 106 cm 2 (Ex 6).
Mnemonic The matrix in one breath
Floor is 1, walls fly up; one height, two Machs; throat freezes flow; pressure breaks the tie.
