Foundations — Area-Mach number relation A - A - = f(M) — isentropic flow

Before you can read the parent note Area–Mach Relation $A/A^*=f(M)$, every squiggle in its formulas must mean something concrete. The parent's headline formula is written $A/A^{\ast }=f(M)$ — read that as "the ratio of the local area $A$ to the special sonic area $A^{\ast }$ is some function $f$ of the Mach number $M$." By the end of this page every one of those symbols — $A$, $A^{\ast }$, $M$, and the machinery behind $f$ — will be built from scratch. Start at line one and never skip.

1. Position along the pipe — $x$

Picture: paint tick marks $x=0,1,2,\dots$ on the outside of the pipe. Every quantity that follows (area, speed, density) can be measured "at station $x$."

Why the topic needs it: the pipe's properties change as you move down it, so we need a name for the position. Writing something as a function of $x$ means "its value at that station."

2. The pipe and its cross-section — $A$

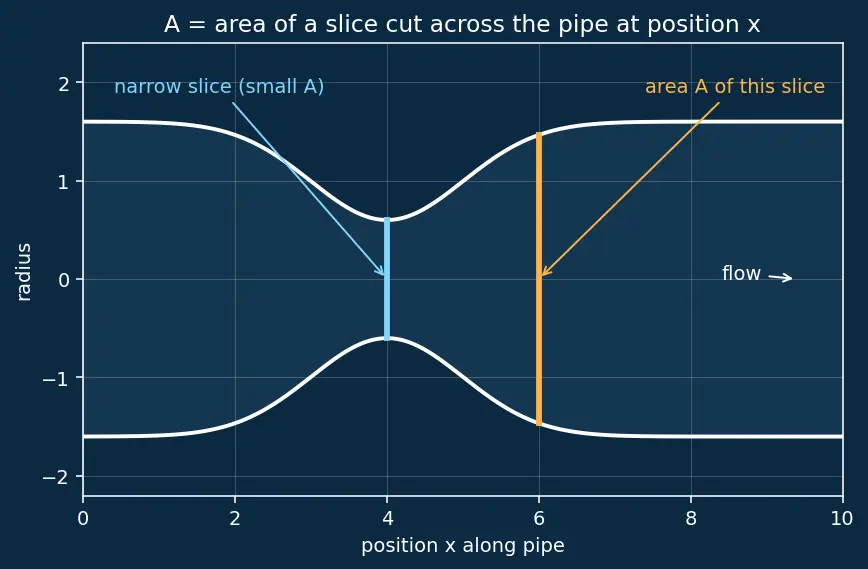

Picture: imagine cutting a bottle straight through — the circle you expose is $A$. Slide the cut along the bottle and $A$ changes: wide at the belly, narrow at the neck.

Why the topic needs it: the whole subject is about a pipe whose $A$ changes along its length. We write $A(x)$, meaning "the area $A$ measured at position $x$" (using the ruler from section 1). The shape of the pipe is the function $A(x)$, and our goal is to turn that shape into a flow speed.

3. Density $\rho$ and velocity $V$ — the stuff and how fast it moves

Picture: think of dots painted in the air. $\rho$ is how many dots per box; $V$ is how fast the dots drift downstream.

4. Pressure $p$ — the push of the air

Picture: the air molecules constantly drum against the pipe wall; $p$ measures how hard that drumming is per unit area.

Why the topic needs it: pressure is one of the properties we ultimately want to predict at each station. It is tied to density and temperature through the gas law, and (like them) it changes as the flow speeds up. When we later write "$p$ as a fraction of the reservoir," $p$ is this local push.

5. Mass flow rate $\dot{m}$ — the thing that never changes

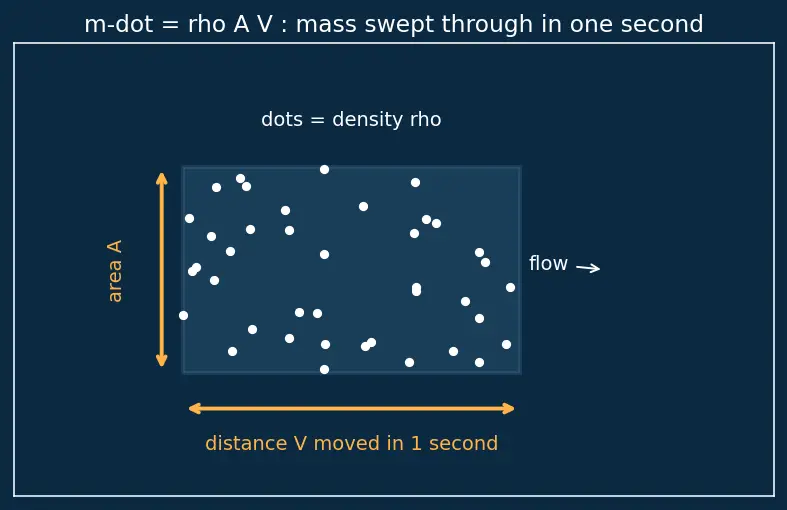

Why that product? In one second the air moves forward a distance $V$ (metres). That sweeps out a tube of volume $A\times V$ (area times length). Multiply by density $\rho$ and you get mass. So $\dot{m}=\rho AV$ is just "volume swept per second, weighed."

Because $\rho AV$ is fixed, if $A$ shrinks then the product $\rho V$ must grow — the seed of "narrow pipe ⇒ faster flow."

6. Temperature $T$ and the gas constant $R$

Why the topic needs $T$: hot air and cold air carry sound at different speeds, and speeding air up cools it down. So temperature is not a spectator — it changes as the air moves, and it controls the next symbol.

7. The speed of sound $a$ — nature's speedometer

Picture: clap your hands; the "bump" spreads outward at speed $a$. In warmer air ($T$ larger) the molecules jostle faster, so news travels faster — hence $a$ grows with $\sqrt{T}$.

Why the square root? Sound speed depends on temperature, but doubling $T$ does not double $a$ — it multiplies it by $\sqrt{2}$. The relation $a=\sqrt{\gamma RT}$ is derived in Speed of Sound a = sqrt(gamma R T); here just accept it as our built-in speedometer.

The symbol $\gamma$ inside it needs its own paragraph.

8. The ratio of specific heats $\gamma$

Why the topic needs it: $\gamma$ is the fingerprint of the gas. It sets how strongly density and temperature respond when the flow speeds up. Every exponent in the Area–Mach formula is built from $\gamma$, so you will see $\frac{\gamma -1}{2}$ and $\frac{\gamma +1}{2(\gamma -1)}$ constantly. With air, $\frac{\gamma -1}{2}=0.2$ and $\frac{\gamma +1}{2(\gamma -1)}=3$ — memorise those two.

9. Mach number $M$ — speed measured in "sounds"

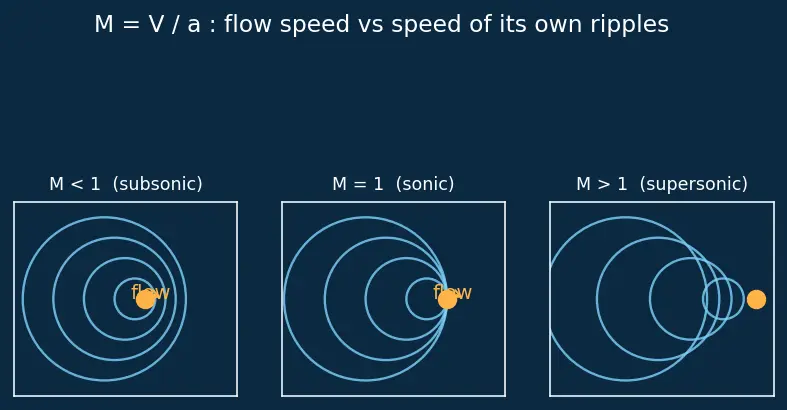

Picture: if the air moves at $V=340\text{m/s}$ and sound travels at $a=340\text{m/s}$, then $M=1$: the air keeps pace with its own ripples. $M<1$ is subsonic (slower than sound), $M>1$ is supersonic (faster than sound).

10. Stagnation state — the reservoir $p_0,T_0,{\rho }_0$

Why the topic needs it: the tank conditions $p_0,T_0$ are constant all along an isentropic flow (they are conserved). They act as a fixed anchor, so we can measure the local $T$, $\rho$ and $p$ (sections 3–6) as fractions of the reservoir. Those fractions depend only on $M$ and $\gamma$: $\frac{T_0}{T}=1+\frac{\gamma -1}{2}{M}^2,\frac{{\rho }_0}{\rho }={\left(1+\frac{\gamma -1}{2}{M}^2\right)}^{\frac{1}{\gamma -1}}$

11. "Isentropic" — the fair-play rulebook

Why the topic needs it: only under this fair-play rule are the stagnation values constant and the clean formulas valid. If a shock appears, isentropy breaks and $A^{\ast }$ jumps — but that is a later story. For now, isentropic keeps our yardstick trustworthy.

12. The sonic reference area $A^{\ast }$ — the yardstick

Picture: every slice of real pipe has its own area $A$, but there is one imaginary "sonic slice" of area $A^{\ast }$ they all get compared to. The ratio $A/A^{\ast }$ then means "how many times wider than sonic is this slice?"

The two ideas — smallest area at the throat and $M=1$ there — connect through the area–velocity relation, leading to Choked Flow & Maximum Mass Flow and the Converging-Diverging (de Laval) Nozzle.

How it all feeds the topic

Read it top-down: position fixes area; area, density and velocity build mass flow; temperature and $\gamma$ build the speed of sound; velocity over sound speed gives Mach; stagnation relations (fed by pressure, Mach and $\gamma$) plus the yardstick $A^{\ast }$ finally assemble the Area–Mach relation.

Equipment checklist

Test yourself — cover the right side and answer aloud.
