Foundations — Chemical potential μ = (∂G - ∂N)_{T,P}

To understand the parent topic, you must be fluent in every symbol it throws around. Below we build each one from absolutely nothing — plain words, then a picture, then why the topic can't live without it. Read top to bottom: every idea leans on the one above it, and no symbol appears in a formula before it has its own section.

1. $N$ — the particle count

The whole point of chemical potential is "what happens when $N$ changes?" — a molecule evaporates, diffuses through a wall, or reacts. So $N$ is the star variable. Everything else measures how the system reacts to nudging $N$ up or down by one.

2. $\Delta$, $d$, and $\partial$ — three flavours of "change"

Before any formula, you must read these three symbols correctly. They all mean "change," but at different zoom levels.

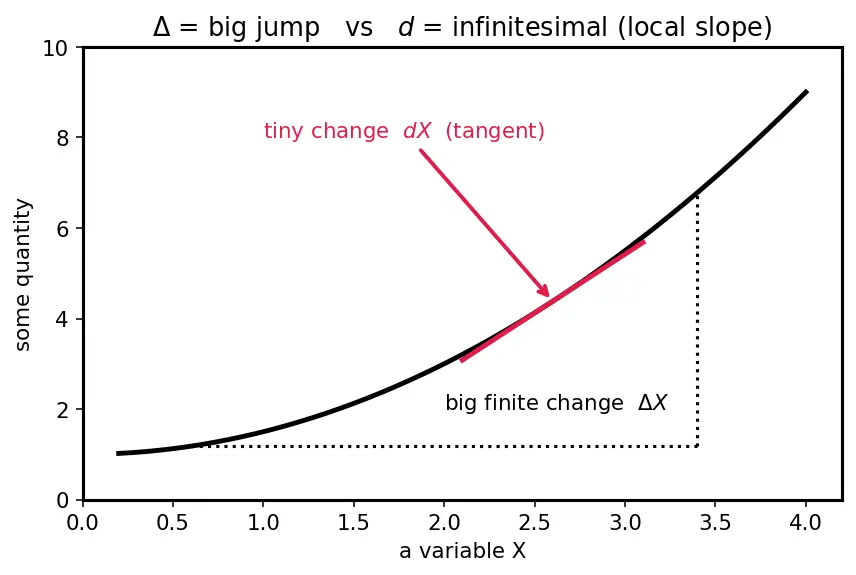

Figure s01 (below) shows a smooth curve of "some quantity" versus a variable $X$. The dotted black steps mark a big finite change $\Delta X$; the red straight line is the tangent, showing how the curve looks under infinite zoom — the world of $dX$.

Why the topic needs $\partial$ (partial derivative): the energy budget we'll build (call it $G$) depends on temperature, pressure, AND particle number all together. When we later write ${\left(\frac{\partial G}{\partial N}\right)}_{T,P}$ we mean: "nudge $N$ a tiny bit, watch how $G$ responds, but keep the other two pinned." The little subscript is a promise about what we held still. Skip that promise and the number means something else entirely.

3. The derivative as a slope

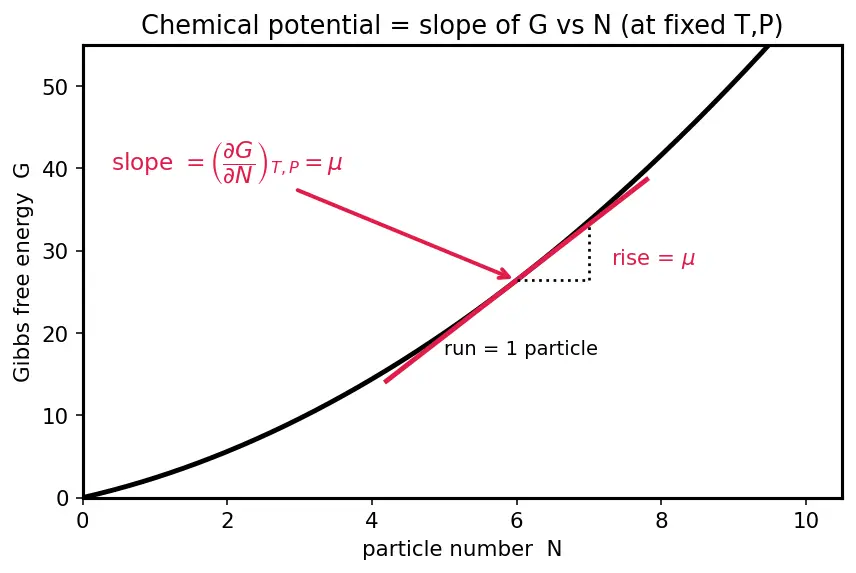

Figure s02 (below) plots a rising curve of $G$ against $N$. The red tangent line touches it at one point; its rise over a run of one particle is the slope — and that slope is what we will name $\mu$.

The tool we're using here — the derivative — is the right tool because the question is literally "rate of change of budget with count." No other operation answers "per one more particle." Integration would add things up; algebra can't capture a rate; only a derivative gives a local slope. (And thanks to the thermodynamic limit of §1, that slope is well defined even though $N$ counts whole particles.)

4. $T$ and $S$ — temperature and entropy

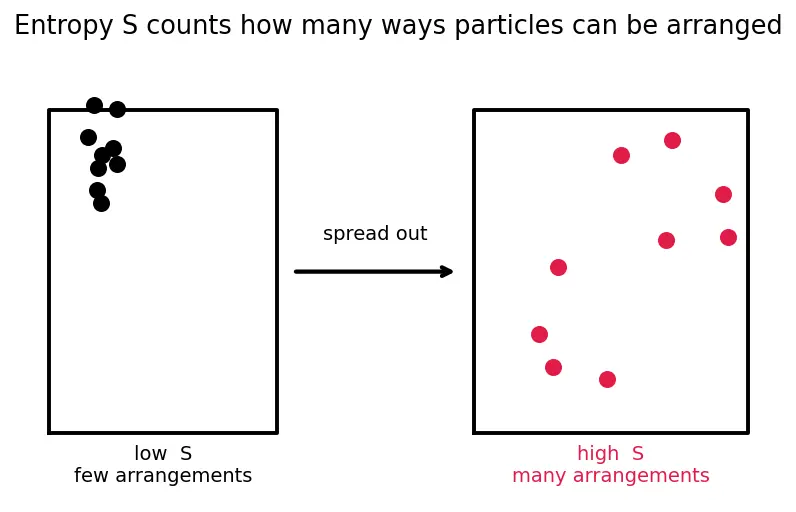

Figure s03 (below) shows two identical boxes. On the left the particles are clustered in a corner (few arrangements, low $S$); on the right the red particles are spread across the whole box (many arrangements, high $S$). The arrow reminds you which way "spread-out-ness" grows.

5. $P$ and $V$ — pressure and volume

$P$ and $V$ form the second conjugate pair: $PdV$ is the mechanical work done as the walls move. We will later hold $P$ fixed (not $V$) in the definition of $\mu$ because in a real lab you control the pressure — you leave the beaker open to the atmosphere — while volume is free to adjust.

6. $U$ — internal energy, and the First Law

Now that $T,S,P,V$ each have a meaning, we can safely write the energy law that ties them together.

The First Law says energy is conserved. In its differential form for a system whose particle count is fixed:

Each piece is a "driving force × the thing it changes." Once we allow $N$ to vary, we simply add the third conjugate pair $(\mu ,N)$ — the very knob promised in §1:

So the generalized first law reads $dU=TdS-PdV+\mu dN,$ and this equation is literally where $\mu$ is born: it is the coefficient sitting in front of $dN$.

7. $G$ — Gibbs free energy (and its master differential)

Now let's derive the differential of $G$ — don't just believe it, watch it fall out of the two ingredients we already have.

Hold $T$ and $P$ fixed (so $dT=0$ and $dP=0$); the first two terms vanish and only $\mu dN$ survives — which is precisely why $\mu =(\partial G/\partial N{)}_{T,P}$.

8. $\mu$ — the chemical potential (assembling it all)

Now every symbol in this formula is earned: $\partial /\partial N$ is the slope (§3, valid because of the thermodynamic limit of §1), the subscript $T,P$ is the "held fixed" promise (§2), and $G$ with its differential is the fixed-$T,P$ budget (§7). $\mu$ is simply the third conjugate force, partner of $N$, in the same family as $T$ (partner of $S$) and $P$ (partner of $V$).

9. Three more symbols you'll meet

How the foundations feed the topic

Every arrow means "you need the tail before the head makes sense." Notice all roads pass through $G$ and its differential into $\mu$ — that's the spine of the topic.

Equipment checklist

Test yourself. Cover the right side and answer out loud before revealing.

Once every line is instant, you're ready for the full derivation in the parent note.
