Gibbs-Helmholtz equation: Visual walkthrough — Physics deep dive

Everything on this page is a slow-motion replay of the result on the parent Gibbs–Helmholtz note.

Step 0 — The three characters, drawn

Before any algebra, meet the players. Each is just a number attached to a system at some temperature.

Look at the stacked bar. The blue bar is the full enthalpy $H$ . The orange slice, $T S$ , is the "temperature tax" — entropy $S$ multiplied by temperature $T$ . Whatever is left, the green bar, is the Gibbs energy $G$ . That picture is the equation:

$G = blue: total H - orange: tax T S$

$G$ — what's left over to actually "spend."
$H$ — the total pile.
$T$ — temperature; taller when hotter, so the orange tax grows with heat.
$S$ — entropy; how big the tax is per degree.

Why start here? Because everything below is just this one equation, viewed from clever angles.

Step 1 — How does the budget $G$ change when we warm it up?

WHAT. We nudge the temperature by a tiny amount and watch $G$ respond, holding pressure fixed.

WHY. We want to catch $H$ , but $H$ is hidden inside $G$ . To dig it out we need to know how $G$ moves with $T$ . The rate of that movement is written $(\frac{\partial G}{\partial T})_{P}$ — read aloud: "how fast $G$ changes as $T$ changes, keeping pressure $P$ constant."

PICTURE.

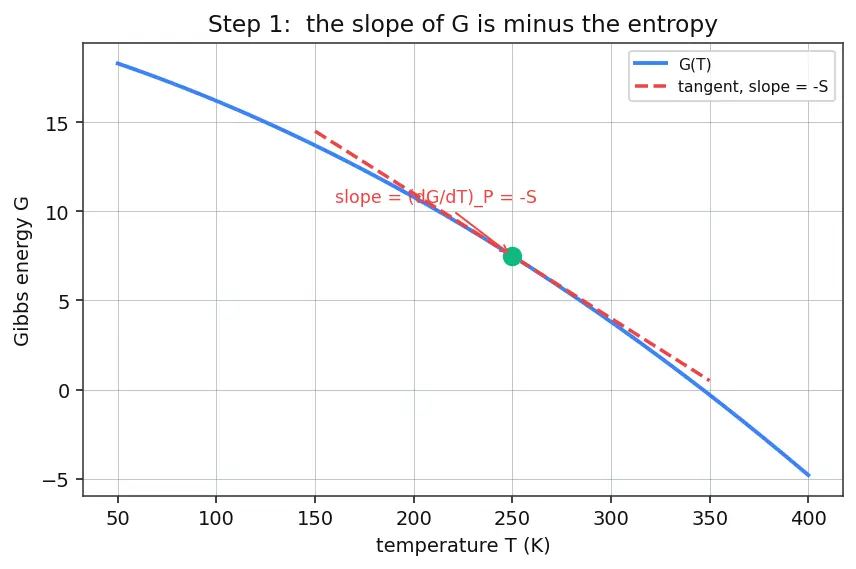

The blue curve is $G$ plotted against temperature $T$ . The red tangent line is its slope. A remarkable fact of thermodynamics is that this slope equals minus the entropy:

$(\frac{\partial G}{\partial T})_{P} = - S$

Left side — the slope of the blue curve.
$- S$ — negative because $G = H - T S$ : increasing $T$ makes the orange tax bigger, so $G$ slides downward. More entropy ⇒ steeper downhill slope.

Where did this come from? From the differential $d G = - S d T + V d P$ (derived on the parent note and part of the Maxwell relations family). At constant $P$ the $V d P$ term dies, leaving slope $= - S$ .

Step 2 — Trap $H$ using that slope

WHAT. Substitute the slope-fact into the definition to isolate $H$ .

WHY. In $G = H - T S$ the unknowns are $H$ and $S$ . Step 1 gave us $S = - (\partial G / \partial T)_{P}$ , purely in terms of $G$ . Swap it in and $S$ is gone — only $H$ remains unknown.

$G = H - T S = H - T [- (\frac{\partial G}{\partial T})_{P}] = H + T (\frac{\partial G}{\partial T})_{P}$

Rearranging for $H$ :

$H \;=\; G \;-\; T\left(\frac{\partial G}{\partial T}\right)_P \tag{$\star$}$

PICTURE.

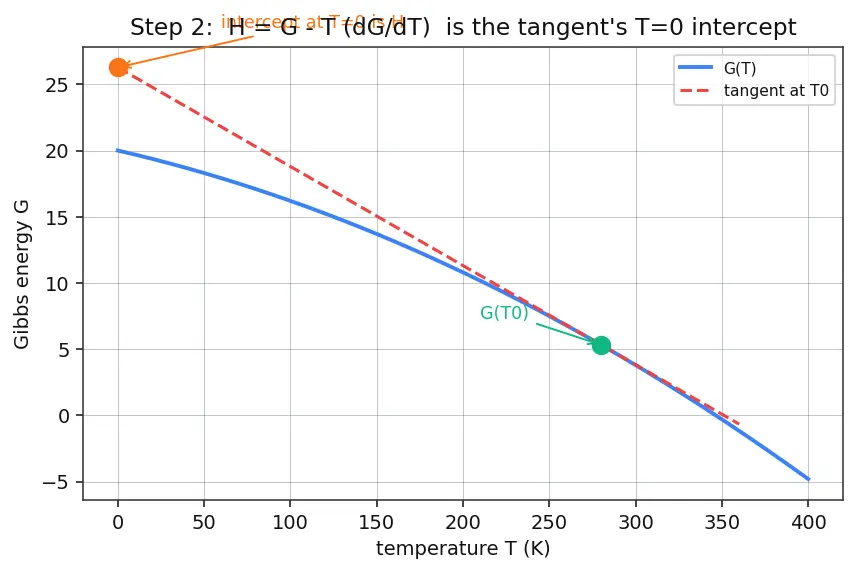

Read the figure geometrically. At temperature $T_{0}$ :

the green dot is $G (T_{0})$ ;
the red tangent has slope $(\partial G / \partial T)_{P}$ ;
extend that tangent back to $T = 0$ . Its intercept on the vertical axis is exactly $H$ (the orange dot).

That is what $(⋆)$ says: $H = G - T \cdot (slope)$ is the "back-project the tangent to $T = 0$ " recipe. It works, but it needs both the value and the slope. The next step makes it prettier.

$H$ — the $T = 0$ intercept of the tangent.
$G$ — the height of the curve at $T_{0}$ .
$- T (\partial G / \partial T)_{P}$ — how far the tangent climbs back as we walk from $T_{0}$ down to $0$ .

Step 3 — The magic division: differentiate $G / T$ , not $G$

WHAT. Instead of studying $G$ , we study the ratio $G / T$ and take its slope.

WHY. Formula $(⋆)$ is clumsy. But notice the shape $G - T \partial_{T} G$ . That exact combination is what pops out of the quotient rule applied to $G / T$ . Nature is hinting: divide first.

Apply the quotient rule $\frac{d}{d T} \frac{u}{v} = \frac{v u ^{'} - u v ^{'}}{v ^{2}}$ with $u = G$ , $v = T$ (so $v^{'} = 1$ ):

$(\frac{\partial ( G / T )}{\partial T})_{P} = \frac{T ( \frac{\partial G}{\partial T} ) _{P} - G}{T ^{2}}$

Numerator $T \partial_{T} G - G$ — this is just $- (G - T \partial_{T} G)$ , which is $- H$ by $(⋆)$ .
Denominator $T^{2}$ — comes from the quotient rule's $v^{2}$ .

PICTURE.

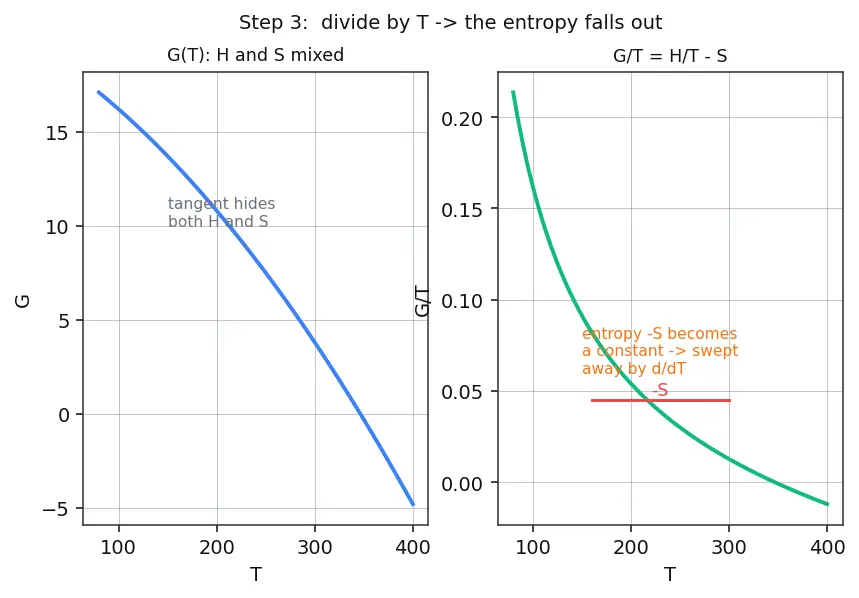

The left panel plots $G$ (its tangent hides both $H$ and $S$ ). The right panel plots $G / T$ — and the annotation shows the entropy term collapsing to a constant $- S$ that the derivative erases. Watch the orange " $- S$ " tag get crossed out.

Step 4 — The result appears

WHAT. Combine the last two lines.

WHY. We just showed the numerator equals $- H$ . Divide by $T^{2}$ :

$(\frac{\partial ( G / T )}{\partial T})_{P} = - \frac{H}{T ^{2}}$

The slope of $G / T$ versus $T$ — measurable.
$- H / T^{2}$ — the enthalpy, cleanly, no entropy in sight.

The minus sign is honest: as $T$ rises, $H / T^{2}$ shrinks, and (for positive $H$ ) $G / T$ climbs. No entropy anywhere. Mission accomplished.

Step 5 — The friendlier form: plot against $1/ T$

WHAT. Change the horizontal axis from $T$ to $1/ T$ , so we read $H$ off a straight-line slope.

WHY. That awkward $1/ T^{2}$ disappears under a change of variable. Let $β = 1/ T$ . A tiny calculus fact: $d T = - T^{2} d (1/ T)$ (because $\frac{d ( 1/ T )}{d T} = - 1/ T^{2}$ ). Substituting kills the $T^{2}$ and flips the minus:

$(\frac{\partial ( G / T )}{\partial ( 1/ T )})_{P} = H$

PICTURE.

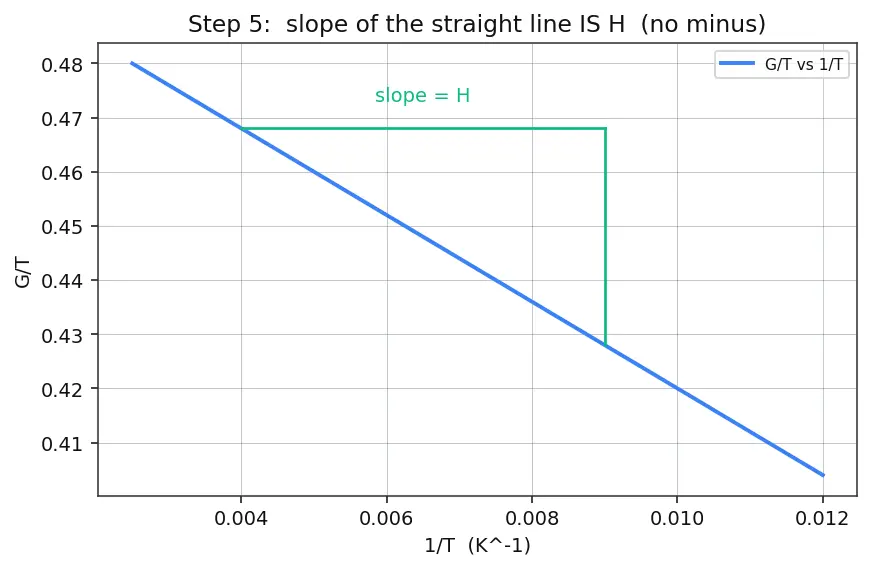

Now $G / T$ plotted against $1/ T$ is (for constant $H$ ) a straight line whose slope is simply $H$ — the green triangle's rise-over-run. This is exactly the plot chemists use, and feeding $Δ G^{\circ} = - R T ln K$ into it produces the van 't Hoff equation.

Horizontal axis $1/ T$ — "inverse temperature," small when hot.
Slope of the line — the enthalpy $H$ (or $Δ H$ for a reaction).
No minus sign — the reason we prefer this form.

Step 6 — Edge cases: don't get burned

Every scenario, so the reader never hits a surprise.

The one-picture summary

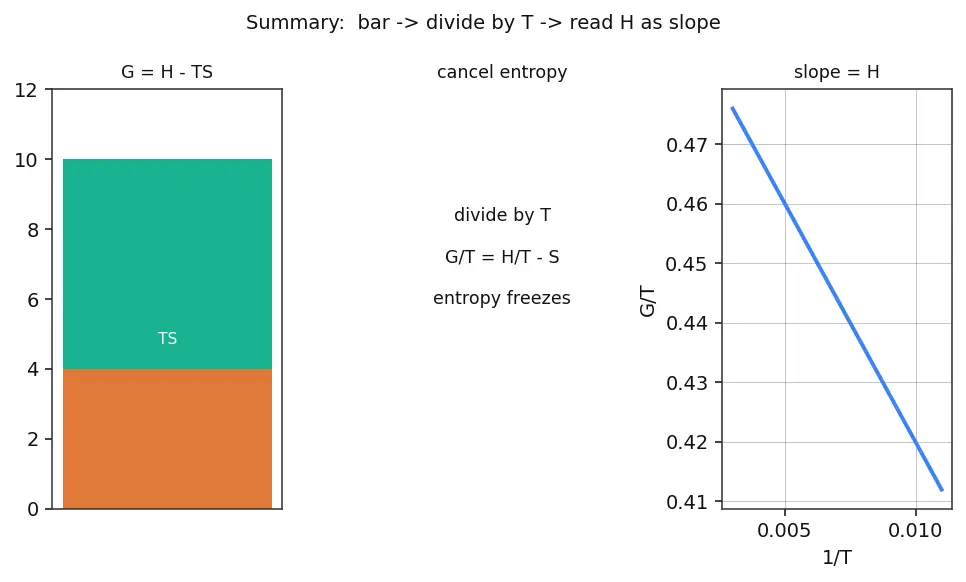

One frame compressing all six steps: start from the stacked bar $G = H - T S$ (left), divide by $T$ to shed the entropy (middle), and read $H$ as the slope of $G / T$ versus $1/ T$ (right). Follow the arrows and you have re-derived Gibbs–Helmholtz from nothing.

Recall Feynman: tell the whole walkthrough to a 12-year-old

Your spendable pocket money $G$ is your total savings $H$ minus a "heat tax" that gets bigger when the day is hotter — the tax is temperature $T$ times messiness $S$ . If you just watch your pocket money change as it warms up, you're mostly watching the tax wobble, so you can't see your real savings. Clever move: look at money-per-degree, $G / T$ . Dividing by the temperature cancels the temperature inside the tax, so the tax turns into a flat number that stops changing. Now when you watch how $G / T$ shifts as the day changes, the tax sits still and only your real savings $H$ show through. Plot $G / T$ against "one-over-temperature" and the steepness of that straight line hands you $H$ on a plate. That steepness-reading is the Gibbs–Helmholtz equation.

Recall Quick self-check

Why does $G$ slope downward with $T$ ? ::: because slope $= - S$ , and entropy is positive.
Which combination made the quotient rule useful? ::: $T \partial_{T} G - G = - H$ .
What is the slope of $G / T$ vs $1/ T$ ? ::: the enthalpy $H$ .
What happens at $T = 0$ ? ::: the relation diverges; use the Third Law instead.
