Visual walkthrough — Lift — Kutta-Joukowski theorem L = ρV∞Γ

We will assume nothing except: air is a fluid that flows, and faster-moving air pushes sideways less (that fact is Bernoulli's Principle, and we will re-earn it visually in Step 3).

---

Step 1 — Draw the wind and the wing

WHAT: We place a wing in a steady horizontal wind $V_{\infty }$ blowing left-to-right.

WHY: Every force we compute is a force relative to the oncoming air. So the first honest picture is just: air arriving, wing sitting in it.

PICTURE: In the figure, the black arrows are the wind $V_{\infty }$ (all the same length far away — that's what "undisturbed" means). The red shape is the wing. Notice we have not yet said anything about lift; we are only setting the stage.

---

Step 2 — What "circulation" $\Gamma$ actually looks like

WHAT: We draw a loop $C$ around the wing and mark, at four points, whether the air is helping the loop (clockwise) or not.

WHY: If there is a net clockwise loop of air, the top and bottom of the wing must move at different speeds — and that speed difference is the seed of lift. So $\Gamma \ne 0$ is the whole game.

PICTURE: The red loop is $C$. Along the top the air (black arrows) points the same way as our clockwise walk → positive contribution. Along the bottom the air points against our walk → also adds to clockwise $\Gamma$ because we are now walking leftward with slowed air. Sign convention: clockwise circulation is positive and gives upward lift.

---

Step 3 — Split the speed into "wind" plus "swirl"

$V_{\text{top}}=\underset{\text{plain wind}}{\underbrace{V_{\infty }}}+\underset{\text{swirl adds on top}}{\underbrace{v}},V_{\text{bot}}=\underset{\text{plain wind}}{\underbrace{V_{\infty }}}-\underset{\text{swirl subtracts below}}{\underbrace{v}}$

WHAT: We introduce one new small number $v$ = the swirl speed the circulation adds.

WHY: We split the problem so each piece is simple. Only the swirl $v$ carries the lift information; the plain wind $V_{\infty }$ is the same top and bottom and will cancel later. Splitting like this is why the algebra stays clean.

PICTURE: Red arrow on top = wind and swirl pointing the same way (long, fast). Red arrow below = wind and swirl fighting (short, slow). Same wind, opposite swirl.

---

Step 4 — Faster air = lower pressure (Bernoulli, visually)

WHAT: Apply Bernoulli on top and on the bottom, then subtract to get the pressure difference $\Delta p$.

WHY: Lift is nothing but a pressure difference across the wing pushing it up. Bernoulli is the tool that converts a speed difference into a pressure difference — that is exactly the conversion we need.

$\Delta p=p_{\text{bot}}-p_{\text{top}}=\frac{1}{2}\rho \left(\underset{\text{top is faster}\Rightarrow \text{ positive}}{\underbrace{V_{\text{top}}^2-V_{\text{bot}}^2}}\right)$

Now expand using Step 3. Watch the perfect cancellation: $V_{\text{top}}^2-V_{\text{bot}}^2=(V_{\infty }+v{)}^2-(V_{\infty }-v{)}^2=\underset{\text{the }{V}_{\infty }^2\text{ and }{v}^2\text{ terms cancel}}{\underbrace{4V_{\infty }v}}$

So: $\Delta p=\frac{1}{2}\rho (4V_{\infty }v)=\underset{\text{pressure jump across wing}}{\underbrace{2\rho V_{\infty }v}}$

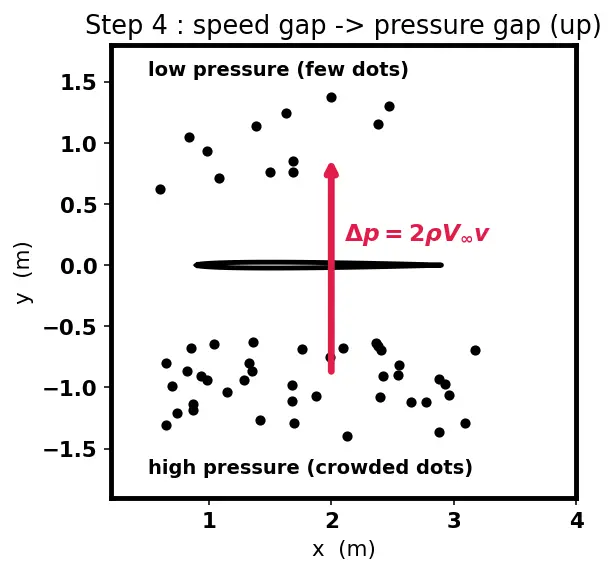

PICTURE: Top region shaded to mean "low pressure" (few, spread dots), bottom shaded "high pressure" (crowded dots). The net red arrow points up — that is $\Delta p$ pushing the wing up.

---

Step 5 — Turn pressure difference into lift force

WHAT: Multiply the pressure jump by the chord $c$.

WHY: $\Delta p$ is force per area. To get force per metre of span we multiply by the width the pressure acts over, which is $c$.

$L^{\prime }=\Delta p\cdot c=\underset{\text{from Step 4}}{\underbrace{2\rho V_{\infty }v}}\cdot c=2\rho V_{\infty }(vc)$

PICTURE: The wing seen from the side, chord $c$ marked as the black baseline, and the pressure jump $\Delta p$ acting over it to give the single red lift arrow $L^{\prime }$.

---

Step 6 — Connect the swirl $v$ back to circulation $\Gamma$

WHAT: Estimate $\Gamma$ using the same rectangular loop, keeping only the top and bottom legs.

WHY: We have $L^{\prime }$ in terms of the swirl $v$, but $v$ is not something we measure — $\Gamma$ is. So we must trade $v$ for $\Gamma$. We reuse the loop from Step 2 because that loop is the definition of $\Gamma$.

Walk the loop clockwise. Top leg (length $c$, air speed $V_{\infty }+v$ with you) and bottom leg (length $c$, air speed $V_{\infty }-v$ against you, so it contributes $+(V_{\infty }-v)$ when you walk left). The short vertical sides cancel: $\Gamma \approx \underset{\text{top leg}}{\underbrace{(V_{\infty }+v)c}}-\underset{\text{bottom leg}}{\underbrace{(V_{\infty }-v)c}}=\underset{V_{\infty }\text{ cancels!}}{\underbrace{2vc}}$

So $vc=\frac{\Gamma }{2}$.

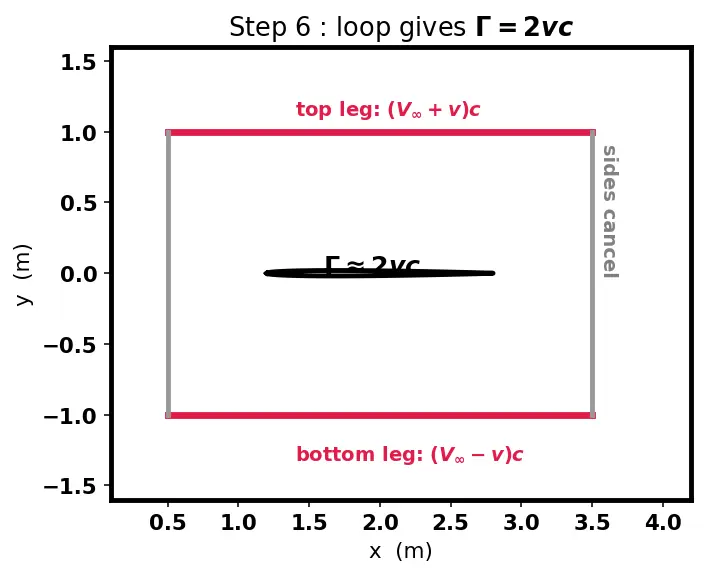

PICTURE: The rectangle loop with its four legs labelled; the two horizontal legs glow red (they carry all the circulation), the vertical legs are greyed (they cancel).

---

Step 7 — Substitute and read off the theorem

WHAT: Put $vc=\Gamma /2$ into the lift from Step 5.

WHY: This is the final substitution that removes the un-measurable swirl and leaves only measurable quantities.

$L^{\prime }=2\rho V_{\infty }(vc)=2\rho V_{\infty }\cdot \frac{\Gamma }{2}=\boxed{\rho V_{\infty }\Gamma }$

Term by term: $L^{\prime }=\underset{\text{denser air}\to \text{more lift}}{\underbrace{\rho }}\underset{\text{faster flight}\to \text{more lift}}{\underbrace{V_{\infty }}}\underset{\text{more swirl}\to \text{more lift}}{\underbrace{\Gamma }}$

Notice the wing shape vanished — only $\rho$, $V_{\infty }$, $\Gamma$ survive. This is the deep result the Blasius Theorem proves exactly: every shape-dependent pressure term integrates to zero around the body.

---

Step 8 — Edge & degenerate cases (never leave a gap)

PICTURE: Four mini-panels, one per case, each showing the wing/ball and the resulting red lift arrow (up, none, down, none).

---

The one-picture summary

Everything on this page compressed into a single flow: wind + swirl → speed difference → pressure difference → lift, with $\Gamma$ measuring the swirl.

Recall Feynman retelling — the whole walkthrough in plain words

Start with wind blowing past a wing (Step 1). The wing makes the air loop around it — that loop is called circulation, $\Gamma$, and we can measure it by walking a lap and counting how much the air helps us (Step 2). That loop of air adds a little forward push on top and a little backward push on the bottom, so the top air is fast and the bottom air is slow (Step 3). Fast air pushes sideways less and slow air pushes more — that's Bernoulli — so there's less pressure on top and more below, giving a pressure jump that points up (Step 4). Multiply that pressure jump by the wing's width and you get an upward force per metre of wing (Step 5). But we'd rather talk about $\Gamma$ than the little swirl speed, so we trade one for the other using the same loop (Step 6). Plug it in and the wing's shape magically disappears, leaving just density × speed × swirl: $L^{\prime }=\rho V_{\infty }\Gamma$ (Step 7). And it behaves sensibly at every extreme — kill the swirl, the wind, or the air and lift vanishes; flip the swirl and lift flips down (Step 8).

Recall

In one line, why does the wing shape not appear in $L^{\prime }=\rho V_{\infty }\Gamma$? ::: Because all shape-dependent pressure terms integrate to zero around a closed body (Blasius Theorem); only the circulation term survives. In Step 4, what happened to the $V_{\infty }^2$ and $v^2$ pieces of $V_{\text{top}}^2-V_{\text{bot}}^2$? ::: They cancelled, leaving exactly $4V_{\infty }v$. What single relation lets us swap the swirl $v$ for circulation? ::: $\Gamma \approx 2vc$, i.e. $vc=\Gamma /2$.
