2.2.25Fluid Mechanics

Lift — Kutta-Joukowski theorem L = ρV∞Γ

1,977 words9 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHAT — Definitions first

WHY — Where does L′=ρV∞ΓL' = \rho V_\infty \Gamma come from?

We derive it from first principles two complementary ways.

Derivation 1 — Bernoulli + a model flow (physical picture)

Why this works: lift = net pressure force. Pressure differences come from speed differences (Bernoulli). Circulation is exactly what creates the speed difference between top and bottom.

Model the airfoil as a flat plate in freestream V∞V_\infty with a superimposed circulation that adds a small swirl velocity vv on top and bottom.

  • Top speed: Vtop=V∞+vV_{\text{top}} = V_\infty + v
  • Bottom speed: Vbot=V∞−vV_{\text{bot}} = V_\infty - v

Why? A clockwise circulation Γ\Gamma adds velocity in the freestream direction on top and opposes it on the bottom.

Bernoulli (no height change): p+12ρV2=constp + \tfrac12\rho V^2 = \text{const}, so Δp=pbot−ptop=12ρ(Vtop2−Vbot2).\Delta p = p_{\text{bot}} - p_{\text{top}} = \tfrac12\rho\left(V_{\text{top}}^2 - V_{\text{bot}}^2\right).

Why this step? Higher speed ⇒ lower pressure, so subtract bottom-pressure expression from top.

Vtop2−Vbot2=(V∞+v)2−(V∞−v)2=4V∞v.V_{\text{top}}^2 - V_{\text{bot}}^2 = (V_\infty+v)^2-(V_\infty-v)^2 = 4 V_\infty v.

So Δp=2ρV∞v\Delta p = 2\rho V_\infty v. The lift per unit span over a chord cc is L′=Δp⋅c=2ρV∞(vc)L' = \Delta p \cdot c = 2\rho V_\infty (v c).

Now relate vv to circulation. The extra swirl going back along the top and forward along the bottom over chord cc contributes (rough loop estimate): Γ=∮V⃗⋅dl⃗≈(V∞+v)c−(V∞−v)c=2vc.\Gamma = \oint \vec V\cdot d\vec l \approx (V_\infty+v)c - (V_\infty - v)c = 2vc.

Why? Top and bottom are the dominant legs of the loop; the freestream parts cancel, leaving 2vc2vc.

Substitute vc=Γ/2vc = \Gamma/2: L′=2ρV∞⋅Γ2=ρV∞Γ.✓L' = 2\rho V_\infty \cdot \frac{\Gamma}{2} = \rho V_\infty \Gamma. \qquad\checkmark

Derivation 2 — Momentum / vector form (the clean one)

For a uniform stream V⃗∞\vec V_\infty and circulation magnitude Γ\Gamma, the exact vector statement is L⃗′=ρ V⃗∞×Γ⃗,\vec L' = \rho\, \vec V_\infty \times \vec\Gamma, with ∣L⃗′∣=ρV∞Γ|\vec L'| = \rho V_\infty \Gamma, lift perpendicular to the freestream. This is why an airfoil's lift is at right angles to the oncoming wind, not vertical, and follows directly from integrating pressure (from the Blasius/complex-potential theorem) around the body — every term except ρV∞Γ\rho V_\infty \Gamma integrates to zero.

HOW — Using it & the Kutta condition

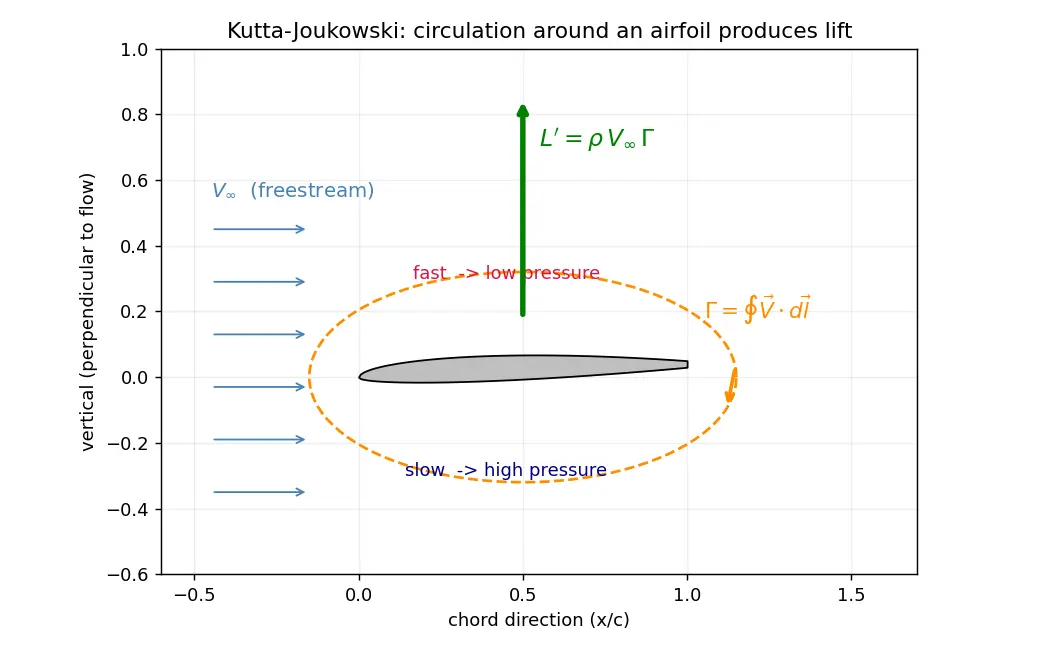

Figure — Lift — Kutta-Joukowski theorem L = ρV∞Γ

Worked Examples

Common Mistakes (Steel-manned)

Recall Feynman: explain it to a 12-year-old

Imagine running with a spinning top in your hand. The spin grabs the air and makes it whirl. Now run forward through still air: the air rushes faster over one side (where spin and wind go the same way) and slower over the other. Fast air pushes less, slow air pushes more — so the ball gets shoved sideways. A wing does the same trick: its shape makes the air whirl around it, and that whirl (Γ\Gamma) times how fast you fly (VV) times how thick the air is (ρ\rho) gives the upward push that holds a plane up.

Active Recall

State the Kutta–Joukowski theorem and the units of each term.
L′=ρV∞ΓL' = \rho V_\infty \Gamma; L′L' in N/m, ρ\rho in kg/m³, V∞V_\infty in m/s, Γ\Gamma in m²/s.
Define circulation Γ\Gamma.
Γ=∮CV⃗⋅dl⃗\Gamma = \oint_C \vec V\cdot d\vec l, the closed-loop line integral of velocity; units m²/s.
What physical condition selects the actual value of Γ\Gamma for a real airfoil?
The Kutta condition — flow must leave the sharp trailing edge smoothly (finite velocity).
Why does the airfoil shape not appear in L′=ρV∞ΓL' = \rho V_\infty \Gamma?
Because all shape-dependent pressure contributions integrate to zero around the body; only the circulation term survives (Blasius theorem).
Thin-airfoil circulation vs angle of attack?
Γ=πV∞c α\Gamma = \pi V_\infty c\,\alpha, giving cℓ=2παc_\ell = 2\pi\alpha.
Why is lift perpendicular to the freestream, not vertical?
From the vector form L⃗′=ρV⃗∞×Γ⃗\vec L' = \rho \vec V_\infty \times \vec\Gamma, force is at right angles to V⃗∞\vec V_\infty.
Steel-man fix for the "equal transit time" myth.
Air need not rejoin; lift comes from circulation set by the Kutta condition, not from path-length matching.
A ball spins in a wind. Which effect, same formula?
Magnus effect; sideways force =ρV∞Γ= \rho V_\infty \Gamma with Γ\Gamma from rotation.

Connections

  • Bernoulli's Principle — supplies the pressure–speed link used in Derivation 1.
  • Circulation and Vorticity — defines Γ\Gamma and relates it to vorticity via Stokes' theorem.
  • Kutta Condition — fixes the unknown Γ\Gamma.
  • Magnus Effect — same theorem for spinning bodies.
  • Thin Airfoil Theory — gives Γ=πV∞cα\Gamma = \pi V_\infty c\alpha.
  • Drag — d'Alembert's Paradox — why inviscid theory predicts lift but zero drag.
  • Blasius Theorem — rigorous complex-analysis proof of K–J.

Concept Map

line integral of velocity

scales lift

scales lift

creates speed difference

via

gives

times chord c

equals

assumptions for

times span

Circulation Gamma

Freestream Vinfty

Air density rho

Kutta-Joukowski L' = rho Vinfty Gamma

Top faster bottom slower

Bernoulli p + half rho V squared

Pressure difference delta p

Lift per unit span L'

Total lift L = L' x span b

2-D steady incompressible inviscid

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, plane hawa mein kaise tikta hai? Sabse common galat kahani hai "upar ka raasta lamba hai isliye air fast" — par asli baat hai circulation, yaani Γ\Gamma. Wing ke aas-paas hawa ek "ghoomav" (swirl) ke saath behti hai. Is swirl ki wajah se upar wali hawa tez (fast) ho jaati hai aur neeche wali slow. Bernoulli ke hisaab se fast hawa ka pressure kam, slow hawa ka pressure zyada — toh net upar ki taraf push milta hai. Yahi lift hai.

Kutta–Joukowski theorem isko ek line mein keh deta hai: L′=ρV∞ΓL' = \rho V_\infty \Gamma. Matlab lift per unit span = air ki density ρ\rho × freestream speed V∞V_\infty × circulation Γ\Gamma. Mazedaar baat: airfoil ka exact shape formula mein aata hi nahi — sirf Γ\Gamma matter karta hai. Shape ka kaam sirf itna hai ki woh kitna Γ\Gamma banata hai.

Ab sawaal — Γ\Gamma ki value kaun decide karta hai? Iska jawaab hai Kutta condition: hawa ko sharp trailing edge (peeche ki nukili kinaari) se smoothly nikalna padta hai, infinite speed allowed nahi. Yeh ek physical rule Γ\Gamma ko fix kar deta hai. Thin airfoil ke liye Γ=πV∞cα\Gamma = \pi V_\infty c \alpha, jisse famous cℓ=2παc_\ell = 2\pi\alpha aata hai.

Yaad rakhna: L′L' "per unit span" hai (N/m), total lift ke liye span bb se multiply karo. Aur yahi theorem spinning ball (cricket ki swing, football ki banana kick) ka Magnus effect bhi explain karta hai — wahan Γ\Gamma ball ke ghoomne se aata hai. Ek hi formula, kitni saari cheezein!
