Reynolds number Re = ρvL - μ — laminar vs turbulent criterion: Visual walkthrough

This is the visual companion to the parent topic.

Step 1 — Meet the fluid, and name every letter

WHAT. Before any physics, let us just look at a chunk of moving fluid and give names to what we see. No formulas yet — only labelled pictures.

WHY. The contract of this page: never a symbol before a picture. So we earn each letter on a drawing first.

PICTURE. Below is a square slab of fluid sliding to the right.

Figure — Reynolds number Re = ρvL - μ — laminar vs turbulent criterion

$v$ (the red arrow) is the speed the fluid moves — how many metres it travels per second ( $m/s$ ). Longer arrow = faster.
$L$ is a characteristic length — one representative size of the flow, in metres ( $m$ ). For a pipe, $L$ is its diameter (see the mistake below). It sets both the width and the height of our slab, so the face area is $L \times L = L^{2}$ .
$ρ$ (Greek "rho") is the density — how many kilograms are packed into each cubic metre ( $kg/m^{3}$ ). Heavy fluid = big $ρ$ .
$μ$ (Greek "mu") is the dynamic viscosity — the fluid's stickiness, its internal friction ( $Pa\cdots$ ). Honey has big $μ$ ; water small. This letter comes from Viscosity and Newton's law of viscosity.

Step 2 — The two personalities of a fluid

WHAT. A moving fluid has two competing urges, and we will draw both.

WHY. Reynolds number is a ratio — so we need two things to divide. Step 2 identifies what those two things are, in words and pictures, before we measure them.

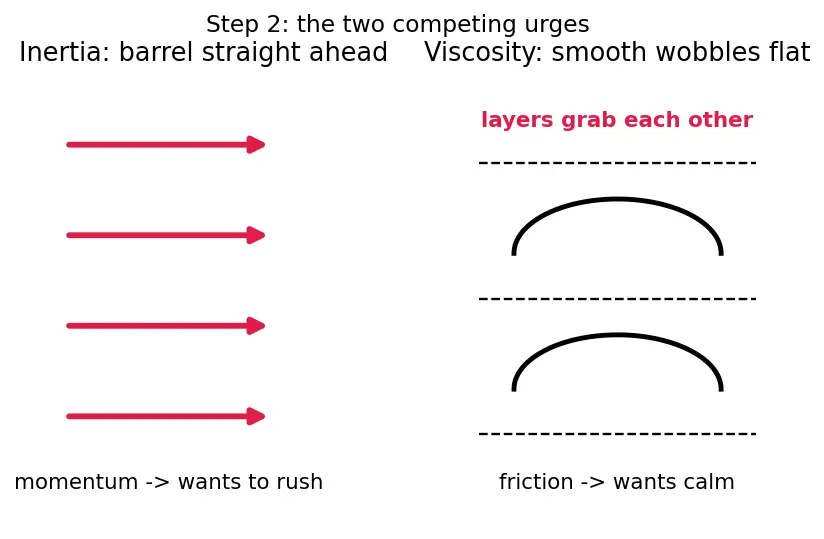

PICTURE. Left panel: inertia — the fluid wants to barrel straight ahead, keeping its momentum (arrows all parallel). Right panel: viscosity — neighbouring layers grab each other and try to smooth any wobble back into order (curved "hand-holding" arrows).

Step 3 — Measure the inertial force (the troublemaker)

WHAT. We compute how much "push" the moving mass delivers per second. That push is a force, because force = momentum delivered per second.

WHY. We choose to measure inertia as a force so that later it can be compared, apples-to-apples, with the viscous force. Same units → a clean ratio.

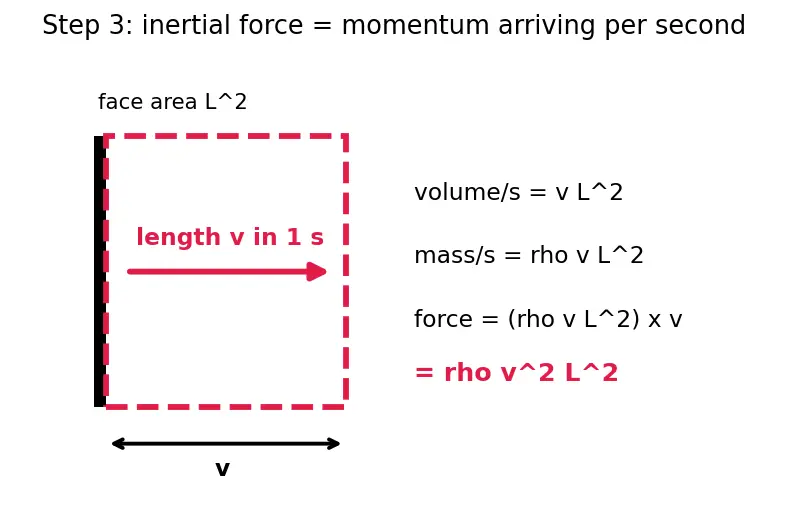

PICTURE. Watch the fluid pour through the square face of area $L^{2}$ . In one second, a column of length $v$ passes through.

Build it in three small moves, each shown on the figure:

Volume through the face per second = area $\times$ speed: $face area L^{2} \times how far it moves in 1 s v = v L^{2} (m^{3} / s)$
Mass through per second ( $\overset{m}{˙}$ , the dot means "per second") = density $\times$ that volume: $\overset{m}{˙} = kg per m^{3} ρ \times m^{3} per s v L^{2} = ρ v L^{2} (kg/s)$
Force = each kilogram carries velocity $v$ , so momentum arriving per second is: $F_{inertia} \sim ρ v L^{2} \overset{m}{˙} \times velocity each kg carries v = ρ v^{2} L^{2}$

Step 4 — Measure the viscous force (the peacemaker)

WHAT. Now the friction force between sliding layers, using Newton's law of viscosity.

WHY. We need viscosity as a force too, so it can share the same units as $F_{inertia}$ . The tool that turns stickiness into force is shear stress, and that tool comes from Viscosity and Newton's law of viscosity — we use it because it is the only law that connects $μ$ to a mechanical push.

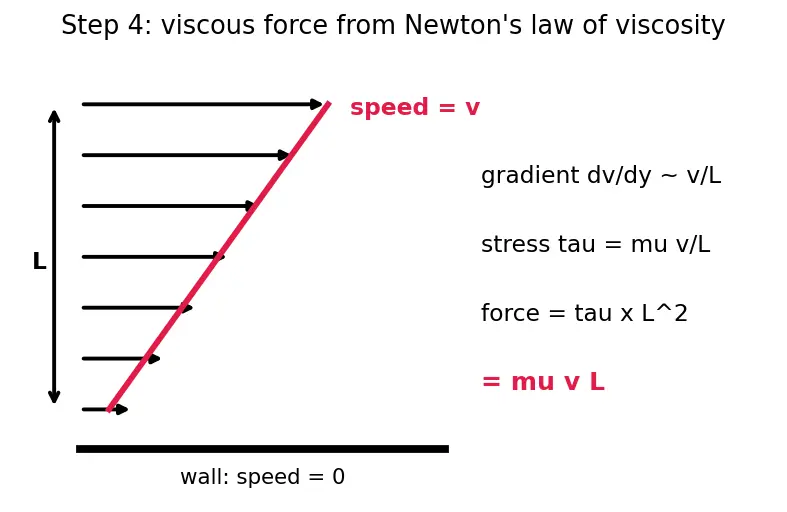

PICTURE. The fluid at the wall is stuck (speed $0$ ); far away it moves at $v$ . The speed climbs from $0$ to $v$ across a thickness of order $L$ . That change-over-distance is the velocity gradient.

Newton's law of viscosity says the shear stress $τ$ (force per unit area) is: $τ = μ \frac{d v}{d y}$

$μ$ = stickiness (bigger → stronger grip).
$\frac{d v}{d y}$ = the velocity gradient — how fast the speed changes as you step a distance $d y$ sideways. Steep change = big number.

Here the speed drops from $v$ to $0$ over a distance $\sim L$ , so the gradient is about: $\frac{d v}{d y} \sim \frac{v}{L}$ Therefore the stress is $τ \sim μ \frac{v}{L}$ . Multiply by the area $L^{2}$ it acts on to get a force: $F_{visc} = τ \cdot L^{2} \sim stickiness μ gradient \frac{v}{L} area L^{2} = μ v L$

Step 5 — Divide the two forces

WHAT. Take troublemaker over peacemaker.

WHY. A ratio answers the real question: "which urge wins?" A ratio bigger than $1$ means inertia is winning; less than $1$ means viscosity is winning. And because both are forces, all the units cancel — the answer is a pure number (Dimensional analysis explains why that makes it universal).

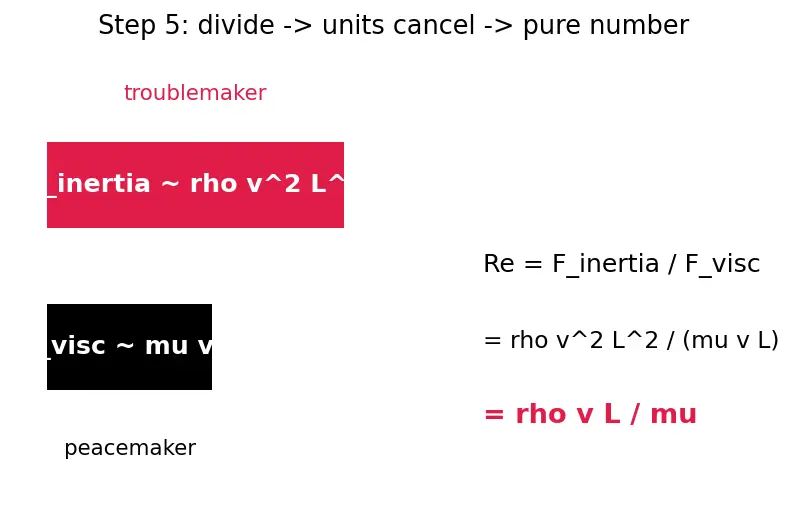

PICTURE. The two force bars from Steps 3 and 4, side by side, with the cancellations struck through.

$R e = \frac{F _{inertia}}{F _{visc}} = \frac{ρ v ^{2} L ^{2}}{μ v L}$

Cancel one $v$ (top has $v^{2}$ , bottom has $v$ ) and one $L$ (top $L^{2}$ , bottom $L$ ): $R e = \frac{ρ v ^{2} L ^{2}}{μ v L} = \frac{ρ v L}{μ}$

Step 6 — Read the number: what each size means

WHAT. Turn the number into a picture of the flow.

WHY. A formula that predicts nothing is useless. We now map the value of $R e$ to the look of the flow.

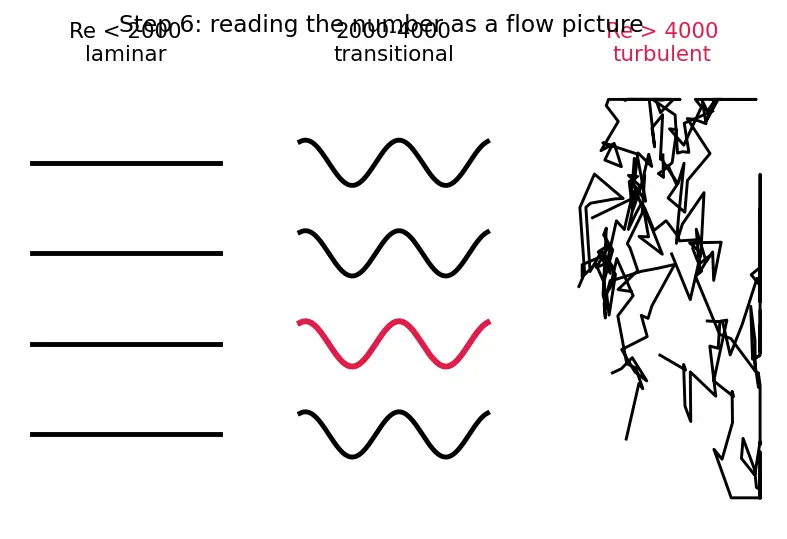

PICTURE. Three pipes, left to right: neat parallel lines, a wobble beginning, and full chaos.

$R e$	Who wins	Flow looks like
$R e < 2000$	viscosity (peacemaker)	Laminar — smooth layers
$2000 < R e < 4000$	neither cleanly	Transitional — flickering
$R e > 4000$	inertia (troublemaker)	Turbulent — swirling chaos

Step 7 — Edge case: what if a force is zero?

WHAT. Push the formula to its extremes so no scenario surprises the reader.

WHY. A derivation you trust must survive the corners. We check the two limits of the tug-of-war.

PICTURE. Left: viscosity vanishing ( $μ \to 0$ ) blows $R e$ up. Right: speed vanishing ( $v \to 0$ ) collapses $R e$ to zero.

$μ \to 0$ (no stickiness). Denominator shrinks, so $R e \to \infty$ . Pure inertia, zero friction — the idealised inviscid flow of Bernoulli's principle. Real fluids never reach this, but Bernoulli assumes it.
$v \to 0$ (barely moving). Numerator has $v$ , so $R e \to 0$ . Deeply laminar. This is the world of Stokes' law and terminal velocity — slow drag on a tiny sphere, where viscosity rules completely.
$v$ tiny and $μ$ huge together (honey oozing): both effects stack, $R e$ is minuscule → smooth ribbons every time.
$L \to 0$ (very thin tube). $R e \to 0$ : thin tubes stay laminar. This is exactly the regime where Poiseuille's law holds.

Step 8 — Put numbers in: water, honey, and the tipping speed

WHAT. Three plug-ins to make the picture concrete.

WHY. A formula is only trustworthy once you have watched it give sane answers.

PICTURE. A number line of $R e$ with water, honey, and the critical speed marked.

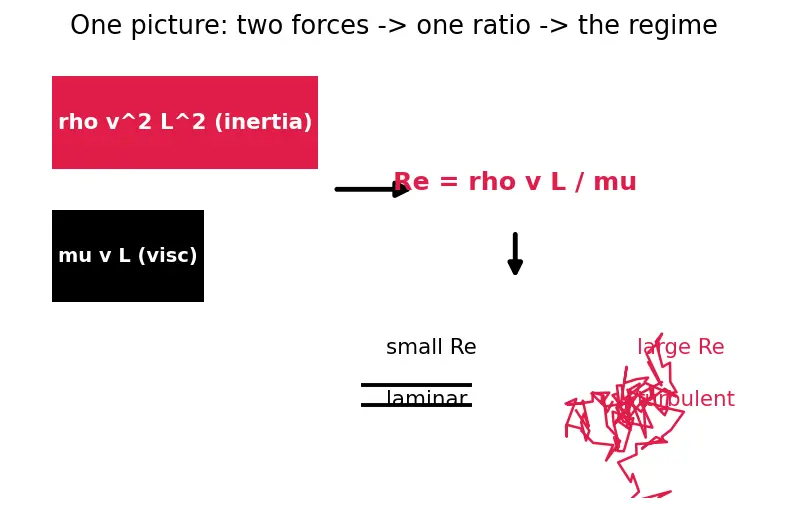

The one-picture summary

Everything on one canvas: two forces → one ratio → three flow regimes.

Recall Feynman retelling — the whole walkthrough in plain words

Picture a square scoop of fluid sliding along. It has two moods. One mood — inertia — just wants to rush forward and never stop; the faster and heavier it is, the harder it shoves, and because speed counts twice (once for how much stuff arrives, once for how fast each bit is going) its shove grows like speed-squared: $ρ v^{2} L^{2}$ . The other mood — viscosity — is like the fluid holding hands with itself; the stickier it is, the more it drags any wobble back to calm, and its pull grows like $μv L$ . Now just ask: which mood is stronger? Divide rushing by holding-hands. A pile of $v$ 's and $L$ 's cancel, and out drops one clean number, $R e = ρ v L / μ$ . Big number → rushing wins → chaos (turbulent). Small number → holding-hands wins → neat lines (laminar). Honey holds hands so hard it's always calm; fast water lets go and goes wild. And if you ever set viscosity to zero, the number rockets to infinity — that's the perfect frictionless dream fluid. That's the entire idea, in one fraction.

Connections

Viscosity and Newton's law of viscosity — supplies $τ = μ d v / d y$ used in Step 4.
Dimensional analysis — why the cancelled, unitless $R e$ is universal.
Poiseuille's law — the low- $R e$ (laminar) pipe regime of Step 7.
Stokes' law and terminal velocity — the $v \to 0$ corner of Step 7.
Bernoulli's principle — the $μ \to 0$ , $R e \to \infty$ idealisation of Step 7.
Drag force and drag coefficient — $C_{d}$ is a function of $R e$ .
