Foundations — Reynolds number Re = ρvL - μ — laminar vs turbulent criterion

This page assumes you know nothing. Before you can even read $Re=\frac{\rho vL}{\mu }$, you must be able to look at each of those five squiggles and see a picture. That is what we build here, one symbol at a time, each resting on the one before.

0. What a "symbol" and a "ratio" even are

Before any physics: a symbol is just a nickname. Instead of writing "the density of the fluid" fifty times, we write one Greek letter, $\rho$. That is all a symbol is — a shorthand label pinned to a real quantity.

A ratio is one number divided by another, asking "how many times bigger is the top than the bottom?" If top $=10$ and bottom $=2$, the ratio is $5$: the top is five times the bottom. Keep this picture — the whole Reynolds number is one ratio.

1. Length $L$ — the size of the flow

The simplest symbol first. $L$ is a characteristic length: one distance that captures "how big is this flow situation." For a pipe it is the pipe's diameter (the full width, not the radius). For a ball moving through water it is the ball's diameter.

Look at the figure: the cyan pipe has one width marked $L$. We don't need every dimension of the pipe — just this one "ruler" that says how much room the fluid has to swirl in. A wide pipe (big $L$) gives disturbances more room to grow.

2. Speed $v$ — how fast the fluid moves

$v$ is the flow speed: how many metres of fluid pass by each second, measured in $\text{m/s}$ (metres per second). In the figure the amber arrow shows fluid marching to the right at speed $v$.

Why does the topic need $v$? Because speed is where the "wanting to rush ahead" comes from. Slow fluid drifts politely in lines; fast fluid carries so much momentum it overshoots and tumbles. Speed is the throttle of chaos.

3. Density $\rho$ — how much mass is packed in

$\rho$ (Greek letter "rho", say "row") is density: how many kilograms of fluid are squeezed into each cubic metre, units ${\text{kg/m}}^3$. Water is $1000{\text{kg/m}}^3$; air is about $1.2{\text{kg/m}}^3$ — a thousand times lighter.

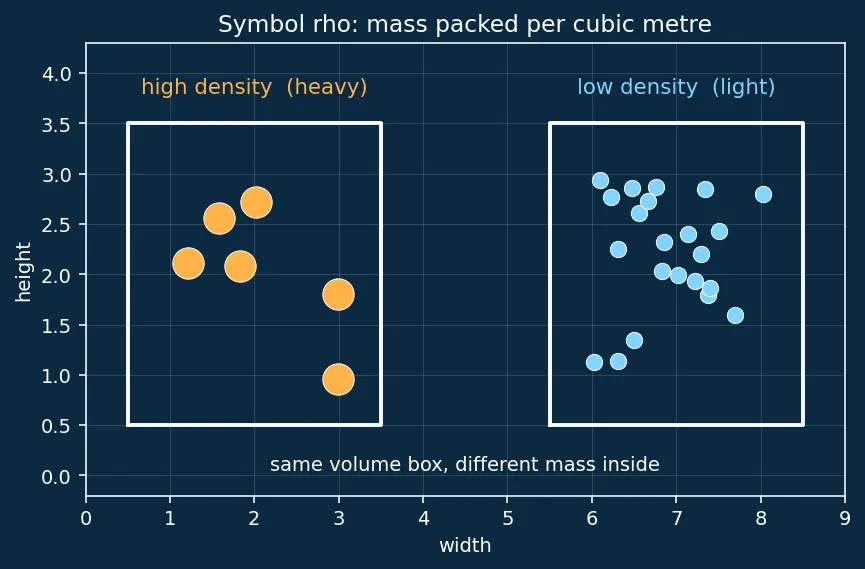

Look at the figure: the same box, filled with few heavy dots (dense) versus many light dots. Why does the topic need $\rho$? Because heavy stuff has more momentum at the same speed. A charging truck is harder to stop than a bicycle at the same speed — more mass means more "keep-going" force. Density supplies the mass half of momentum.

4. Momentum and inertia — "wanting to keep going"

Now combine mass and speed. Momentum = mass $\times$ velocity. Inertia is the everyday name for this tendency of moving mass to keep moving in a straight line. This is the top of our tug-of-war.

We won't derive the full inertial force here (the parent does: $F_{\text{inertia}}\sim \rho v^2{L}^2$) — for foundations you only need to see that inertia is built from $\rho$ (mass) and $v$ (speed) and $L$ (size). All three top-of-fraction ingredients are the "rush ahead" team.

5. Viscosity $\mu$ — the stickiness that keeps order

$\mu$ (Greek "mu", say "mew") is dynamic viscosity: how strongly the fluid resists being sheared — how "sticky" or "thick" it is. Honey has huge $\mu$; water has small $\mu$; air has tiny $\mu$. Units are $\text{Pa⋅s}$ (pascal-seconds).

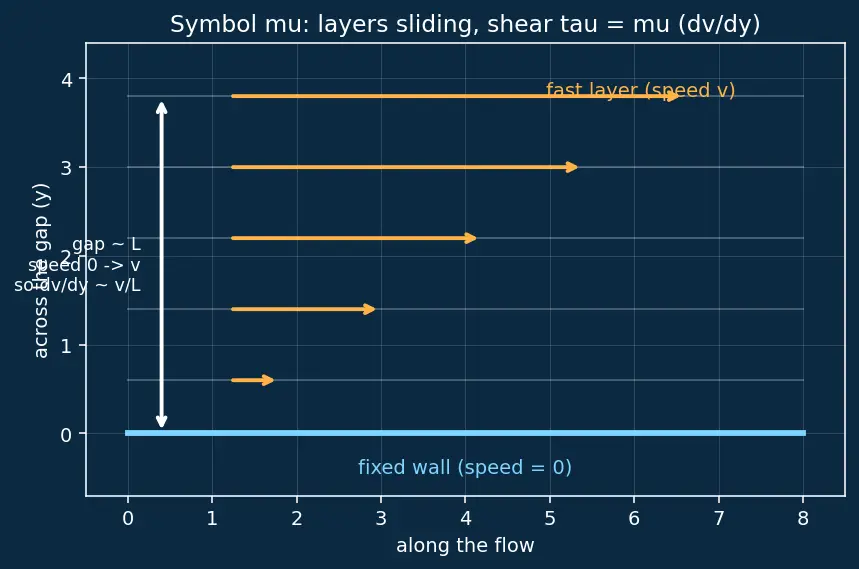

To see viscosity we need one more idea: shear. Imagine stacking flat sheets of fluid and sliding the top ones faster than the bottom ones. In the figure the top layer moves fast (long amber arrow), the bottom layer clings to the wall and moves slowly (short arrow). Neighbouring layers rub against each other — that rubbing is viscous friction, and $\mu$ measures its strength.

Why does the topic need $\mu$? Because viscosity is the peacemaker — it drags fast-moving disturbances back into line. It is the bottom of the tug-of-war. That is why in $Re$ it goes in the denominator: more $\mu$ → smaller $Re$ → calmer, more laminar flow.

6. The velocity gradient $\frac{dv}{dy}$ — how fast speed changes across the gap

One notation from the parent needs unpacking: $\frac{dv}{dy}$. Plain words: how much the speed $v$ changes for each little step $y$ across the flow. In the shear figure, speed goes from $0$ at the wall to $v$ at the top over a gap of thickness $\sim L$. So the change per step is roughly

$\frac{dv}{dy}\approx \frac{v}{L}.$

The letter "$d$" here just means "a tiny bit of." $\frac{dv}{dy}$ reads: "a tiny change in speed divided by the tiny change in position that caused it" — the steepness of the speed-vs-position graph. A steep gradient means layers slide past each other hard, so lots of friction.

7. Kinematic viscosity $\nu$ — viscosity per unit mass

Last symbol. $\nu$ (Greek "nu", say "new" — careful, it is not the letter $v$) is kinematic viscosity: dynamic viscosity divided by density.

8. Putting the symbols together

Now — and only now — the formula reads as a sentence you can see:

$Re=\frac{\rho vL}{\mu }=\frac{(\text{mass-ness})(\text{speed})(\text{size})}{\text{stickiness}}=\frac{\text{rush-ahead team}}{\text{peacemaker}}$

Top = the three ingredients of inertia ($\rho ,v,L$). Bottom = viscosity $\mu$. Because both top and bottom secretly represent forces of the same units, the units cancel and $Re$ is a pure number — exactly the ratio idea from Section 0.

Prerequisite map

Equipment checklist

Test yourself — you are ready for the parent topic only if each reveal feels obvious.

Connections

• Viscosity and Newton's law of viscosity — the full story of $\mu$, $\tau$, and $dv/dy$ built here in miniature.
• Dimensional analysis — why a pure number like $Re$ is universal across scales.
• Poiseuille's law — uses these same symbols in the laminar regime.
• Stokes' law and terminal velocity — low-$Re$ drag, another place $\mu$ and $L$ meet.
• Bernoulli's principle — the $\mu \to 0$ (inviscid) idealisation.
• Drag force and drag coefficient — the drag coefficient is a function of $Re$.
