Density, specific gravity: Visual walkthrough — Physics deep dive

Step 1 — Fill a box and count what's inside

WHAT. Take an empty transparent box. It has a size — the amount of space it walls off. We call that amount its volume, written $V$ . Now drop identical marbles in and weigh them; the total amount of "stuff" is the mass, written $m$ .

WHY. Before we can talk about how packed something is, we need two separate ideas that must never be confused: how big (that's $V$ ) and how heavy (that's $m$ ). A big empty box and a small full box can weigh the same — so $m$ and $V$ are genuinely independent measurements.

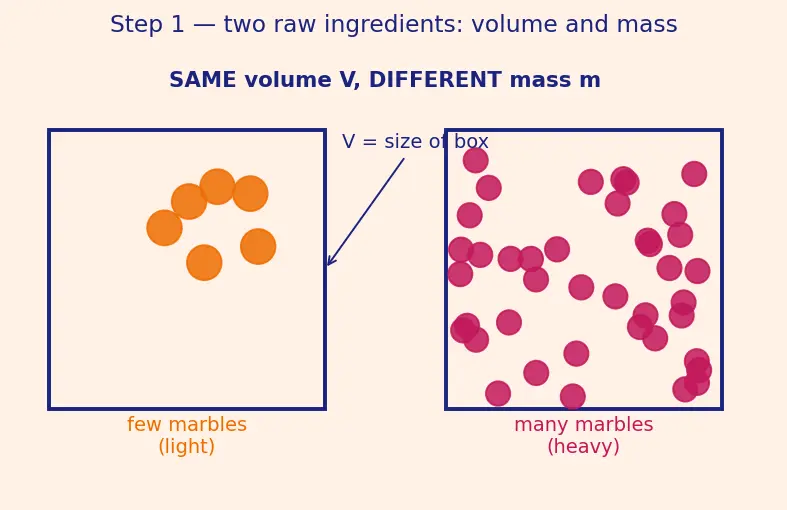

PICTURE. Look at the two boxes below. Same box, different fillings.

Step 2 — Ask the right question: "how crowded?"

WHAT. We want a single number that answers "how much stuff is squeezed into each unit of space?" Not "how much stuff total" and not "how big" — but the crowding.

WHY division, and not subtraction? Crowding is a rate: stuff per space. "Per" always means divide. If $6 kg$ sits in $2 m^{3}$ , then each cubic metre carries $6 \div 2 = 3 kg$ . Subtraction ( $6 - 2$ ) would mix incompatible units (you can't subtract metres-cubed from kilograms) and would change if you just rescaled the box. Division cancels the "size" cleanly.

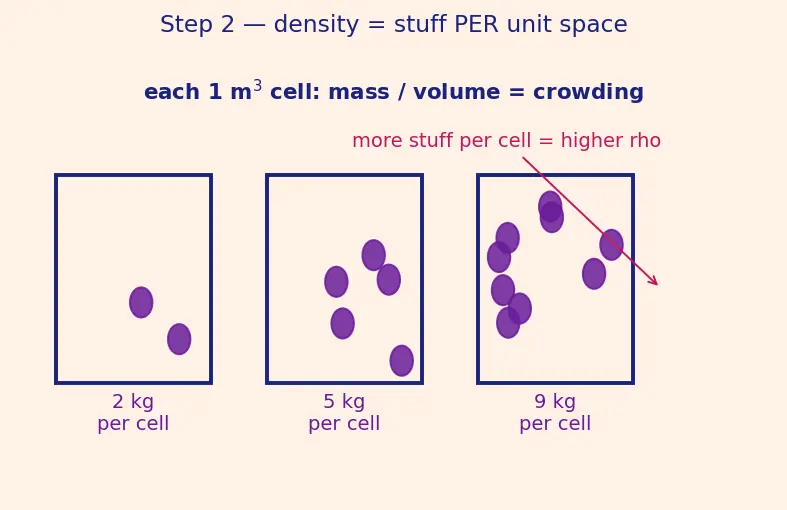

PICTURE. Watch one cubic-metre cell get more and more marbles: the number in each cell is the quantity we're after.

Check the units earn their place: $\frac{kg}{m ^{3}}$ — literally "kilograms per cubic metre". The unit is the sentence.

Step 3 — Why $ρ$ doesn't care how much you took

WHAT. Cut the filled box in half. You now have half the mass and half the volume. Compute $ρ$ for the half.

WHY this matters. Half over half is $\frac{m /2}{V /2} = \frac{m}{V}$ — the same $ρ$ . This is the whole point: density is an intrinsic property. It tags the material, not the chunk. Iron is iron whether you hold a nail or a girder.

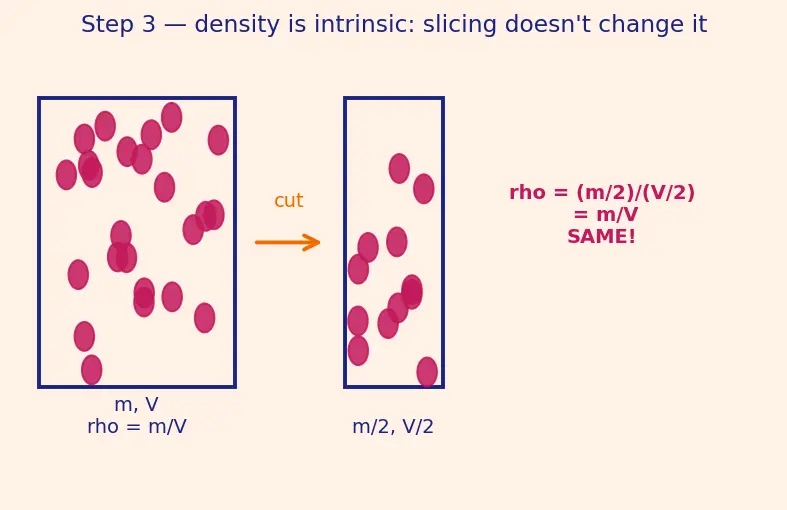

PICTURE. The red number (crowding) stays fixed as the box is sliced; only mass and volume shrink together.

Recall Why "intrinsic" is the payoff

Question ::: If you halve a block, what happens to its mass, volume, and density? Answer ::: Mass halves, volume halves, density is unchanged — that's what makes it a property of the material.

Step 4 — Anchor to water, then compare (specific gravity)

WHAT. Pick one material as a yardstick and measure everything against it. The natural yardstick is water: $ρ_{water} = 1000 kg/m^{3}$ . Divide any density by water's: $SG = \frac{ρ _{substance}}{ρ _{water}}$

WHY a ratio? Two reasons, both visible below. (1) The units cancel — $kg/m^{3}$ over $kg/m^{3}$ leaves a pure number, so no unit-baggage when comparing. (2) That number reads directly as a float/sink verdict: bigger crowding than water ( $SG > 1$ ) sinks, less ( $SG < 1$ ) floats. The tool here is division-as-comparison — it answers "how many times as crowded as water?".

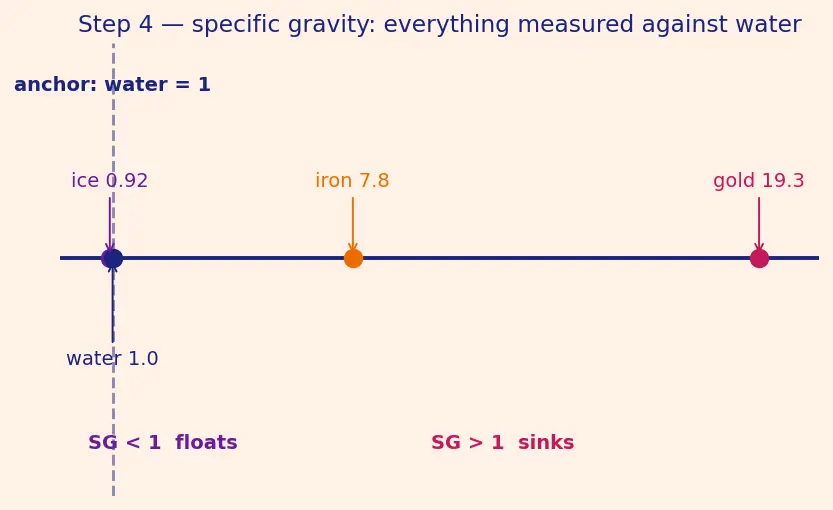

PICTURE. A number line anchored at water $= 1$ ; each material lands as a multiple of water.

Details of the float verdict live in Buoyancy and Archimedes' principle; the pressure it drives lives in Pressure in fluids.

Step 5 — Mixing: add the stuff, add the space

WHAT. Pour material 1 (mass $m_{1}$ , volume $V_{1}$ ) and material 2 ( $m_{2}$ , $V_{2}$ ) into one box. What is the density of the blend?

WHY these two additions? Mass is conserved — no matter vanishes — so the total mass is just $m_{1} + m_{2}$ . If the liquids don't chemically shrink into each other (ideal mixing), the space they occupy also just stacks: $V_{1} + V_{2}$ . Then apply the same definition from Step 2.

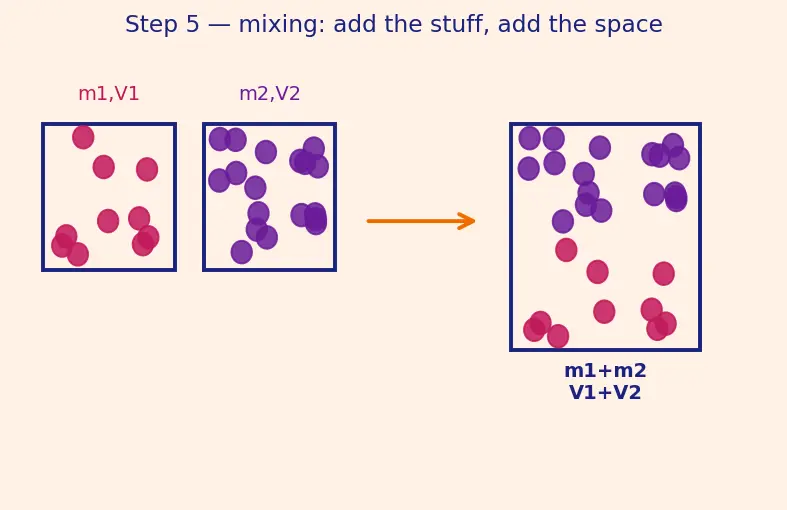

PICTURE. Two filled boxes tipped into one; the mass column and the volume column each stack.

Step 6 — Case A: equal volumes → arithmetic mean

WHAT. Suppose $V_{1} = V_{2} = V$ (same-size pours). Substitute each mass as $m_{i} = ρ_{i} V$ : $ρ_{mix} = \frac{ρ _{1} V + ρ _{2} V}{V + V} = \frac{ρ _{1} + ρ _{2}}{2}$

WHY it lands on the plain average. With equal volumes, each material contributes the same amount of space, so neither is "over-represented" in the bottom. The two crowdings just split the difference — an ordinary average. The $V$ 's cancel top and bottom (that's why they vanish).

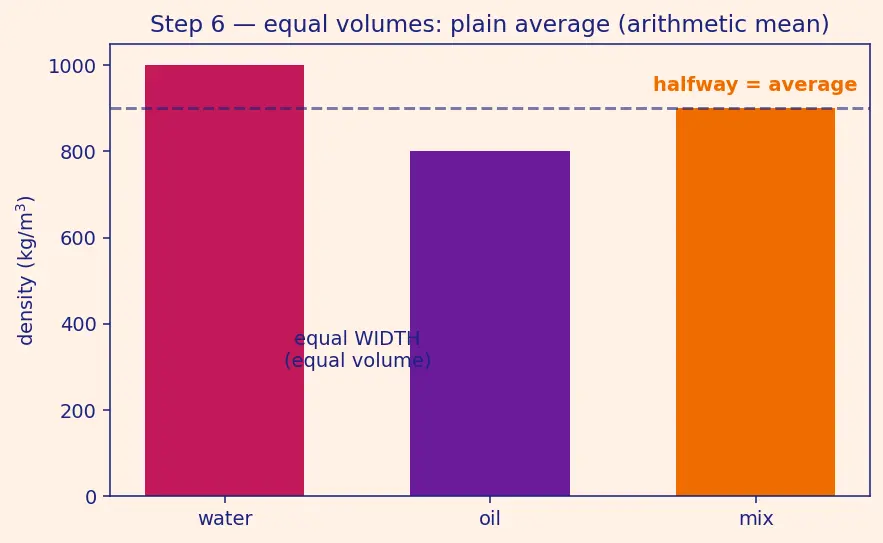

PICTURE. Two equal-width columns side by side; the blend's crowding sits exactly halfway.

Step 7 — Case B: equal masses → harmonic mean (the tricky one)

WHAT. Now $m_{1} = m_{2} = m$ . The volumes are no longer equal — the denser material takes less space for the same mass. Substitute $V_{i} = m / ρ_{i}$ : $ρ_{mix} = \frac{m + m}{\frac{m}{ρ _{1}} + \frac{m}{ρ _{2}}} = \frac{2 m}{m ( \frac{1}{ρ _{1}} + \frac{1}{ρ _{2}} )} = \frac{2 ρ _{1} ρ _{2}}{ρ _{1} + ρ _{2}}$

WHY it is not a plain average. Look at the bottom: it's a sum of $1/ ρ$ 's. Because the denser stuff crams its mass into a thin slice of volume, the volumes are unequal, so the two crowdings should not split evenly. The blend leans toward the less dense material (it hogs more space). The harmonic mean is exactly the shape that respects "equal mass, unequal volume".

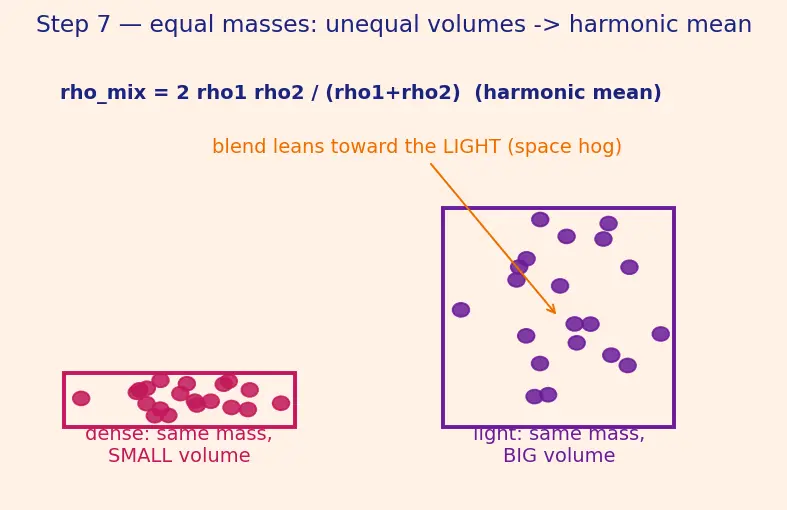

PICTURE. Same two masses, but the denser column is short and fat, the lighter one tall — the blend's crowding is pulled toward the tall (lighter) side.

Step 8 — Degenerate & limiting cases (never get surprised)

WHAT & WHY. A good picture must survive the extremes. Walk each edge:

Empty box ( $m = 0$ ): $ρ = 0/ V = 0$ . Crowding of nothing is zero. ✓
Zero volume ( $V \to 0$ with $m > 0$ ): $ρ = m / V \to \infty$ . Squeezing finite stuff into no space means infinite crowding — the formula screams, correctly.
Identical materials mixed ( $ρ_{1} = ρ_{2} = ρ$ ): both means collapse to $ρ$ . Arithmetic: $\frac{ρ + ρ}{2} = ρ$ . Harmonic: $\frac{2 ρ ^{2}}{2 ρ} = ρ$ . Mixing a thing with itself changes nothing. ✓
One material extremely dense ( $ρ_{2} \to \infty$ , equal masses): harmonic mean $\to \frac{2 ρ _{1} ρ _{2}}{ρ _{2}} = 2 ρ_{1}$ — it saturates, because the ultra-dense speck takes near-zero volume and so barely dilutes the volume total. The plain average would blow up to infinity — another proof the harmonic mean is the honest one here.

PICTURE. Four mini-panels, one per edge case, each with the resulting $ρ$ called out.

Recall Check your limits

As volume shrinks to zero with fixed mass, density does what? ::: Blows up to infinity — infinite crowding. Mixing two portions of the same material gives what density? ::: The same density, from both the arithmetic and harmonic formulas.

The one-picture summary

Everything above collapses into one map: two independent inputs → one ratio → a yardstick → two mixing rules → the edges. Trace the arrows.

Recall Feynman retelling — the whole walk in plain words

I started with an empty box, so I had two totally separate facts: how big it is (volume) and how heavy its contents are (mass). To ask "how crowded is the stuff?" I divided heavy by big — because "per" means divide — and got density. Slicing the box proved density ignores how much you took; it's a fingerprint of the material. Then I compared every material to water by dividing — that ratio is specific gravity, a pure number that instantly says float or sink. For mixtures I just added all the stuff on top and all the space on the bottom. Equal-size pours split the crowding evenly (plain average). Equal-weight pours don't, because the dense one hides its mass in a thin slice of space — so the blend leans light, and the honest formula is the harmonic mean. Finally I poked the extremes — empty, zero-space, twins, one super-dense — and the pictures never broke. That's density, built from nothing.

Connections

↑ Parent: Density & Specific Gravity
Pressure in fluids — density feeds $P = ρ g h$ .
Buoyancy and Archimedes' principle — the float/sink verdict from Step 4.
Relative density measurement (hydrometer) — reads SG directly.
Continuity equation — uses constant $ρ$ .
