Foundations — Noether's theorem — symmetry ↔ conservation law

Before we can even state Noether's theorem, we must earn every symbol it uses. The parent note throws around $q_i$, ${\dot{q}}_i$, $t$, $L$, $S$, $d$, $\partial$, $p_i$, $\delta$, $\times$, and $\int$ as if you already know them. This page builds each one from absolute zero, in the order they depend on each other. Nothing is used before it is drawn.

1. Position and the coordinate $q$

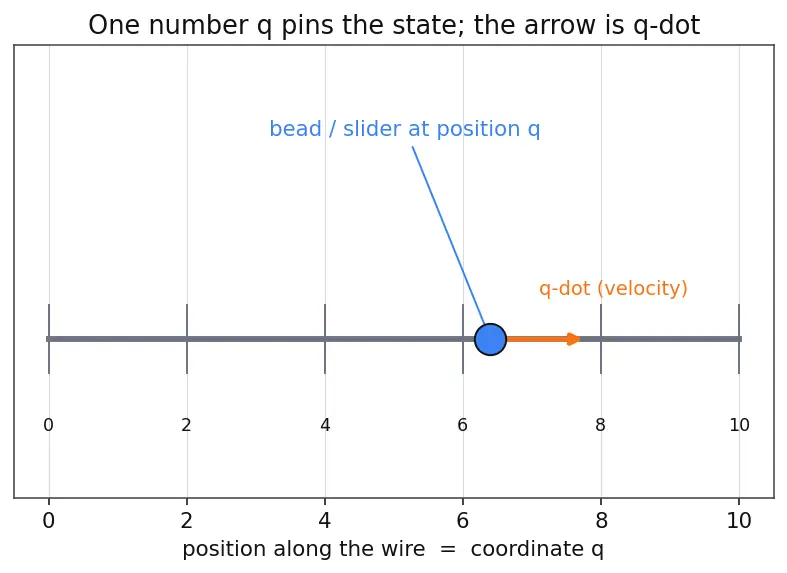

Figure s01 below draws $q$ as a slider whose value is its position on a wire.

Why the topic needs it. Noether asks "what happens to the physics when I shift a coordinate?" You cannot shift what you cannot name. $q_i$ is the name of every direction the system could move — and symmetries are shifts of these names. See Lagrangian Mechanics for where generalized coordinates come from.

2. Time $t$ — the clock we measure everything against

The picture: imagine a film reel. Each frame is stamped with a time $t$; the coordinate $q$ is what the frame shows. $t$ is the frame counter, marching $1,2,3,\dots$ no matter what happens on screen.

Why the topic needs it. Two of Noether's three headline results depend on time. "The physics doesn't change as the clock ticks" is time-translation symmetry, and it freezes energy. So $t$ is not decoration in $L(q,\dot{q},t)$ — it is a genuine input we will later shift by $ϵ$. Everything below (velocity, derivative, integral) is change measured against this clock.

3. The differential $d$ and the derivative $\frac{d}{dt}$

The picture: plot $q$ (vertical) against $t$ (horizontal). $\frac{dq}{dt}$ is the steepness of the graph at a point — steep means $q$ changes fast per tick. This is the honest meaning we will lean on every time a $\frac{d}{dt}$ appears in Noether's derivation.

Why $d$ before anything else that uses it. Velocity, the action's slices, and the whole "rate of change of momentum is zero" punchline are all built from $d$. It must be defined before $\dot{q}$, before $\int$, before $\partial$.

4. Velocity and the dot: $\dot{q}$

Why this notation and not $\frac{dq}{dt}$ every time? Because we will write dozens of these. The dot is shorthand born from writing time-derivatives so often that Newton just put a dot on top. It always means "per tick of the clock $t$." It answers the question "which way, and how fast, is the slider sliding right now?"

Back in Figure s01, $q$ is where the blue bead is; the orange arrow $\dot{q}$ shows which way and how quickly it's about to move.

5. The function machine: the Lagrangian $L$

Read $L(q,\dot{q},t)$ as: "feed me where you are, how you're moving, and what time it is; I give back one number." The commas separate the ingredients — and the third ingredient is exactly the clock $t$ from Section 2.

Why the topic needs it. A "symmetry" in Noether's world means the recipe $L$ doesn't change when you shift something. So $L$ is the object we test symmetries against. See Lagrangian Mechanics.

6. Partial derivative: $\frac{\partial L}{\partial q_i}$

Why $\partial$ and not the plain $d$? Because $L$ has many inputs. A plain $\frac{dL}{dt}$ would let all of them change at once (each riding the clock). The partial isolates the effect of one knob. It answers: "does $L$ care about this particular coordinate?" If $\frac{\partial L}{\partial q_k}=0$, the answer is no — $q_k$ is cyclic, and that is a symmetry.

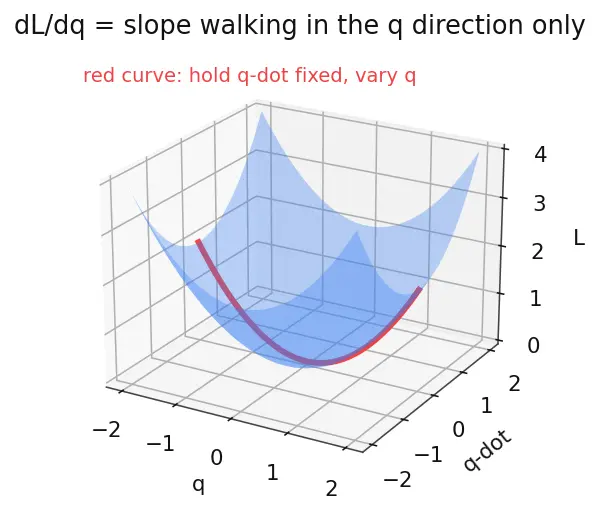

Figure s02 shows $L$ as a landscape over its inputs; the partial is the slope in one chosen direction.

7. Conjugate momentum: $p_i\equiv \frac{\partial L}{\partial {\dot{q}}_i}$

Why call it momentum? For a free particle $L=\frac{1}{2}m{\dot{x}}^2$, we get $p_x=\frac{\partial L}{\partial \dot{x}}=m\dot{x}$ — the familiar $mv$. But in general it can be something else entirely (see Conservation of Momentum and the vector-potential warning in the parent). The point: $p_i$ is whatever Noether will freeze.

8. Integral and the action: $S={\int }_{t_1}^{t_2}Ldt$

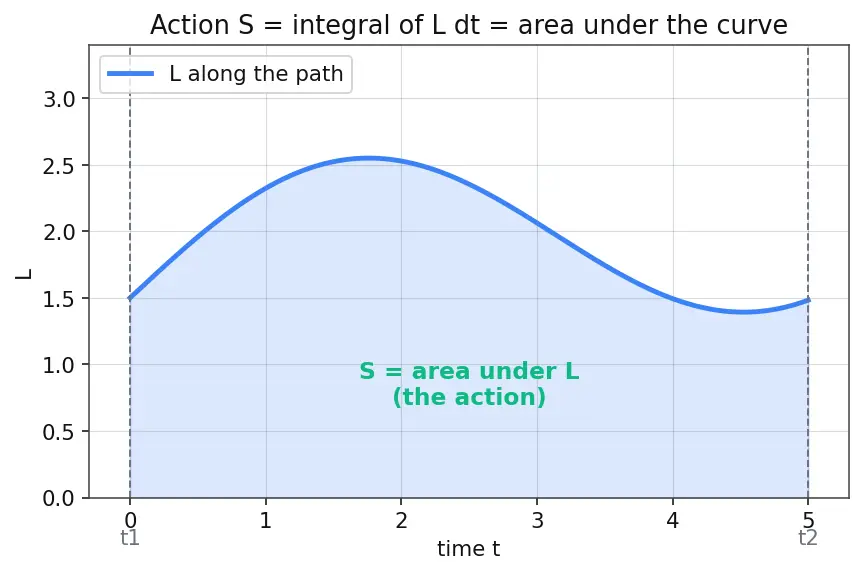

Figure s03 shows this sum as an area under the graph of $L$ versus time.

Why the topic needs it. The deepest form of a symmetry is "the action $S$ is unchanged," even if $L$ itself changes by a boundary term. The action is the ultimate scorecard nature extremizes — the object symmetries must preserve. See Euler-Lagrange Equation.

9. The variation symbol: $\delta$

Why a new symbol instead of $d$? $d$ tracks how things change as time flows on the actual path (the clock $t$ ticking). $\delta$ tracks how things change when we jump to a nearby imagined path at the same instant. Two different kinds of change need two different symbols, or the algebra becomes lies.

10. Vectors, the cross product $\times$, and the triple product

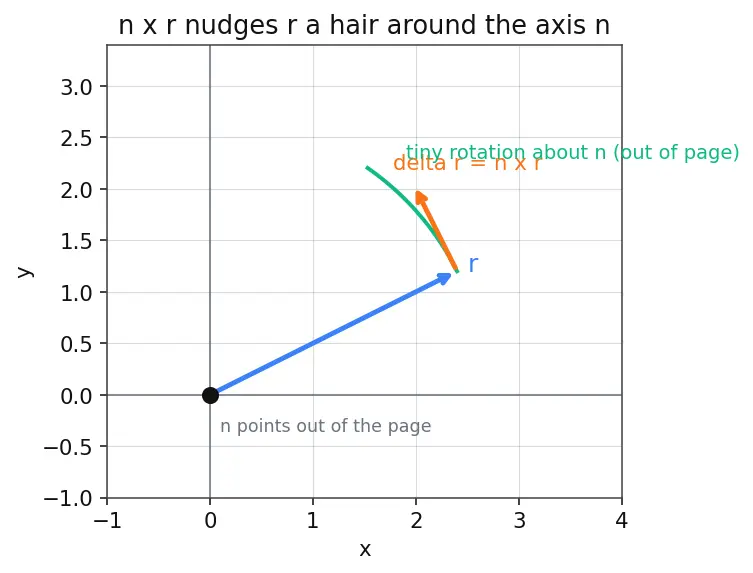

Figure s04 draws $\hat{n}\times \vec{r}$ as the little sideways nudge of an infinitesimal rotation.

The dot $\cdot$ is the dot product: $\vec{a}\cdot \vec{b}$ = (how much they point the same way) — a single number, biggest when parallel, zero when perpendicular.

11. How it all feeds Noether — reading the map

Now that every symbol is defined, here is the dependency map. Read it bottom-up as a recipe: each box needs everything feeding into it before it makes sense. Trace one path aloud — coordinate $q$ and its velocity $\dot{q}$ combine into the Lagrangian $L$; from $L$ a partial derivative gives momentum $p$; momentum plus a variation $\delta q$ builds the Noether charge $Q$; and $Q$, read for time / space / rotation, becomes the three conservation laws. Every arrow means "you must understand the tail before the head."

The three conserved quantities at the bottom are the payoff of the whole topic.

Equipment checklist

Test yourself — cover the right side and answer out loud before revealing.

Once every line above is automatic, proceed to the main derivation, and revisit Hamiltonian Mechanics, Conservation of Energy, and Symmetry Groups & Lie Algebras for the deeper layers.
