Intuition What this page is for
The parent note LC circuit note gave you the machinery: q ¨ = − L C 1 q , the solution q = q 0 cos ( ω t ) , and the energy split. This page is a workout . We list every type of question an LC circuit can throw at you, then solve one of each — including the weird edge cases (zero current start, energy-sharing instants, the limits L → 0 and C → ∞ , and an exam twist that mixes energy with timing).
Before we start, five symbols we reuse constantly, all built in the parent note:
q = charge on the capacitor (unit: coulomb, C). Think "how full the tank is." Its maximum value over a cycle is written q 0 — the amplitude of the charge oscillation .
i = d t d q = current , the rate charge flows (unit: ampere, A). Think "flow speed." Its maximum is i 0 = q 0 ω (peak charge times angular frequency).
ω = L C 1 = angular frequency (unit: rad/s). How fast the sloshing cycles.
T = ω 2 π = 2 π L C = period (unit: s) — the time for one complete slosh, so that ω T = 2 π . We use T constantly below (e.g. "T /8 "), so it is defined here up front; Ex 1 will re-derive it from the base numbers.
U E = 2 C q 2 = electric energy stored in the capacitor, and U B = 2 1 L i 2 = magnetic energy stored in the inductor (both in joules, J). These two "buckets" trade energy back and forth; their sum stays fixed.
Intuition The one picture that runs through this whole page
Because U E ∝ q 2 and U B ∝ i 2 , energy conservation U E + U B = const is the equation of an ellipse in the ( q , i ) plane. As time runs, the state ( q , i ) walks around that ellipse at constant angular speed ω . Every worked example below is really "where on this ellipse are we?" — the figure makes that concrete.

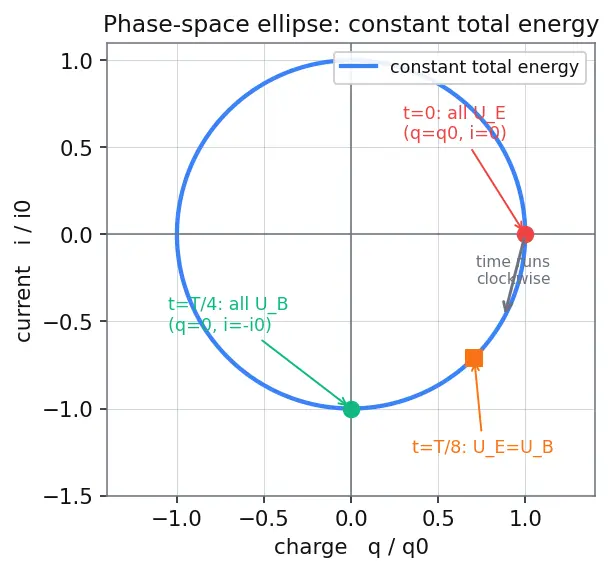

Definition Figure 2 — the phase-space ellipse (read this before the examples)
The picture below plots the circuit's state as a point ( q / q 0 , i / i 0 ) . The blue closed curve is the constant-total-energy ellipse. The red dot at ( 1 , 0 ) is t = 0 (capacitor full, no current — all U E ). The green dot at ( 0 , − 1 ) is t = T /4 (capacitor empty, current at its most negative peak — all U B ). The orange square at 45° is t = T /8 , where the two energy buckets are equal. The gray arrow shows the state moving clockwise as time advances. Every example asks "which point on this ellipse?"
Every LC problem falls into one of these cells. Each worked example below is tagged with the cell(s) it covers. (Here T is the period defined above.)
Cell
What it tests
Degenerate / edge part
Example
A Frequency & period
plug L , C into ω , T , f
large/small L and large/small C
Ex 1
B Peak current
energy swap U E → U B
—
Ex 2
C Value at a given time
evaluate q ( t ) , i ( t )
signs in each quarter-cycle
Ex 3
D Energy sharing instant
when U E = U B , or a given ratio
T /8 , general fraction
Ex 4
E Different initial condition
switch closed while current already flows
q ( 0 ) = 0 start (pure sine)
Ex 5
F Limiting behaviour
L → 0 , C → ∞ , R = 0 vs R = 0
degenerate + damped + critical/over-damped
Ex 6
G Real-world word problem
radio tuning / design a frequency
pick component to hit target
Ex 7
H Exam twist
combine timing + energy + phase
multi-step
Ex 8
We reuse one base circuit for A–D and H so numbers stay familiar:
L = 2 mH = 2 × 1 0 − 3 H , C = 5 μ F = 5 × 1 0 − 6 F .
From these once and for all:
ω = L C 1 = ( 2 × 1 0 − 3 ) ( 5 × 1 0 − 6 ) 1 = 1 0 − 8 1 = 1 0 4 rad/s .
For the base circuit (L = 2 mH , C = 5 μ F ), find ω , f , and T . Then predict what happens to T if you (a) swap in an inductor four times larger , and (b) swap in a capacitor four times larger (keeping the other component at its base value each time).
Forecast: guess first — does a bigger inductor make the oscillation faster or slower? What about a bigger capacitor? (Hint: L is the "mass" m , and 1/ C is the "spring constant" k in the analogy.)
ω = L C 1 = 1 0 4 rad/s.
Why this step? ω is what every other timing quantity is built from — get it first.
f = 2 π ω = 2 π 1 0 4 ≈ 1591.5 Hz.
Why this step? ω = 2 π f ; f counts full cycles per second, which is what "frequency" means in everyday speech.
T = f 1 = ω 2 π = 2 π L C ≈ 6.283 × 1 0 − 4 s ≈ 0.628 ms.
Why this step? Period is the reciprocal of frequency — time for one full slosh.
(a) Four times larger L : T ∝ L , so T grows by 4 = 2 . New T ≈ 1.257 ms.
Why this step? Only the L factor changed. Bigger "mass" ⟹ slower ⟹ longer period. Your forecast should have said slower .
(b) Four times larger C : T ∝ C , so again T grows by 4 = 2 . New T ≈ 1.257 ms.
Why this step? 1/ C is the "spring constant." Bigger C ⟹ softer spring ⟹ weaker pull-back ⟹ slower oscillation. So large L and large C act the same way on the timing — both slow it down — while small L or small C speed it up. This covers all four corners of the "large/small L or C " edge.
Verify: Units of L C = H ⋅ F . Since H = V⋅s/A and F = A⋅s/V , the product is s 2 , so L C is in seconds. ✓ And f ⋅ T = 1591.5 × 6.283 × 1 0 − 4 ≈ 1.000 . ✓ Both (a) and (b) give the same 4 = 2 factor ✓.
Same L , C . The capacitor is charged to q 0 = 2 × 1 0 − 4 C, then the switch closes at rest. Find the peak current i 0 .
Forecast: all the energy starts electric. Where is current biggest — where charge is full, or where it is empty?
At the start, energy is entirely electric: U E m a x = 2 C q 0 2 .
Why this step? At t = 0 the current is zero, so U B = 0 ; all energy sits in the capacitor.
At the swap point, all of it becomes magnetic: 2 C q 0 2 = 2 1 L i 0 2 .
Why this step? Energy is conserved (no resistor), so peak U E = peak U B .
Solve: i 0 = q 0 L C 1 = q 0 ω .
Why this step? Cancel the 2 1 's, isolate i 0 , and recognise 1/ L C = ω .
i 0 = ( 2 × 1 0 − 4 ) ( 1 0 4 ) = 2 A.
Why this step? Substitute the known q 0 and ω to turn the symbolic result into an actual number — the answer the question asked for.
Verify: cross-check via the current solution i ( t ) = − q 0 ω sin ( ω t ) whose amplitude is q 0 ω = 2 × 1 0 − 4 × 1 0 4 = 2 A. Same number, no energy argument needed. ✓ Units: C·(rad/s) = C/s = A. ✓
Here we must be careful with signs , because a full cycle passes through four quarter-turns and q , i change sign differently in each. The figure below tracks them.

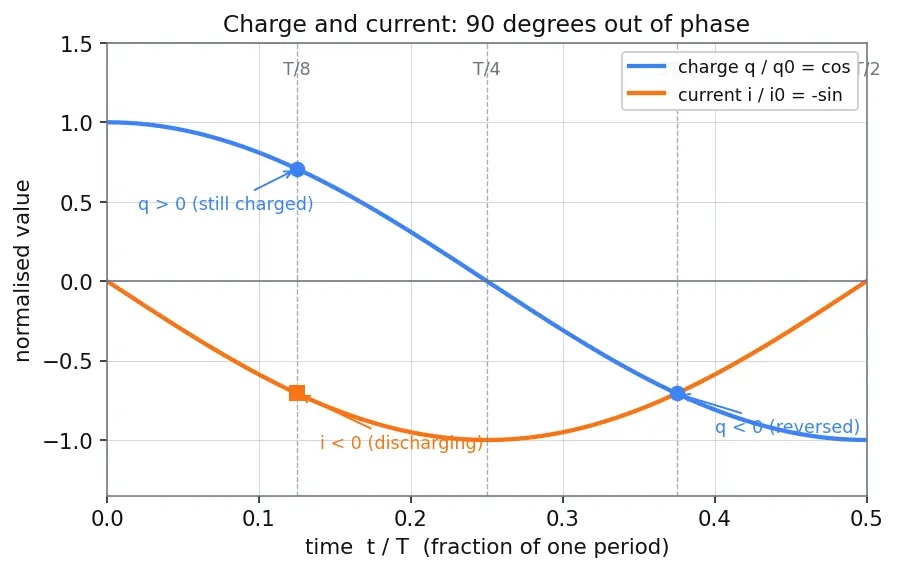

Definition Figure 1 — the two waves and their quarter-cycle signs
The blue curve is charge q ( t ) / q 0 = cos ( ω t ) ; the orange curve is current i ( t ) / i 0 = − sin ( ω t ) . Dashed gray lines mark T /8 , T /4 , 3 T /8 , T /2 . Notice the blue curve is at its peak while the orange curve crosses zero — that is the 90° phase gap. The annotations flag the exact signs used in the worked steps: at T /8 , q > 0 and i < 0 ; at 3 T /8 , q < 0 but i is still < 0 .
With q 0 = 2 × 1 0 − 4 C, ω = 1 0 4 rad/s, find q and i at t = 8 T and at t = 8 3 T .
Forecast: at T /8 we are one-eighth into the cosine. Is q still positive? Is i negative (draining) or positive?
ω t at t = T /8 : since ω T = 2 π , we get ω t = 8 2 π = 4 π .
Why this step? Everything depends on the angle ω t , not t directly. Convert once.
q = q 0 cos ( π /4 ) = 2 × 1 0 − 4 ⋅ 2 1 ≈ 1.414 × 1 0 − 4 C (positive — capacitor still partly charged, same polarity).
Why this step? π /4 is in the first quarter where cosine is positive.
i = − q 0 ω sin ( π /4 ) = − 2 ⋅ 2 1 ≈ − 1.414 A (negative — current is discharging the capacitor).
Why this step? The minus sign in i = − q 0 ω sin ( ω t ) says current flows to empty the capacitor in the first quarter. See the orange curve dipping negative in the figure.
At t = 3 T /8 : ω t = 4 3 π (second quarter). q = q 0 cos ( 3 π /4 ) ≈ − 1.414 × 1 0 − 4 C (now negative — capacitor is charging up the other way ). i = − q 0 ω sin ( 3 π /4 ) ≈ − 1.414 A (still negative, still same flow direction).
Why this step? This is the case-coverage point: past T /4 the charge flips sign but the current has not yet flipped. This is exactly the 90° phase offset.
Verify: energy must be conserved at both times. At T /8 : U E + U B = 2 ⋅ 5 × 1 0 − 6 ( 1.414 × 1 0 − 4 ) 2 + 2 1 ( 2 × 1 0 − 3 ) ( 1.414 ) 2 ≈ 2 × 1 0 − 3 + 2 × 1 0 − 3 = 4 × 1 0 − 3 J. Compare total 2 C q 0 2 = 1 0 − 5 ( 2 × 1 0 − 4 ) 2 = 4 × 1 0 − 3 J. ✓
Recall from the top of the page: U E = 2 C q 2 is the capacitor's electric energy and U B = 2 1 L i 2 is the inductor's magnetic energy. Here we ask when the two buckets hold specified fractions. On the ellipse figure above, "U E = U B " is the point where the state has swung 45° around.
(a) First time U E = U B . (b) First time the capacitor holds one-quarter of the total energy, U E = 4 1 U total .
Forecast: (a) should land at some clean fraction of T . For (b), less capacitor energy means the wave has swung further — later or earlier than (a)?
Total energy U total = 2 C q 0 2 , and U E = U total cos 2 ( ω t ) ; likewise U B = U total sin 2 ( ω t ) .
Why this step? U E = 2 C q 2 = 2 C q 0 2 cos 2 ( ω t ) — the cosine-squared carries all the time dependence; the leftover fraction is the sine-squared, which is exactly U B .
(a) U E = U B ⇒ cos 2 ω t = sin 2 ω t ⇒ tan 2 ω t = 1 ⇒ ω t = π /4 .
Why this step? Equal shares means cos 2 = sin 2 ; dividing gives tan 2 = 1 . We use tan because it packages the cosine/sine ratio into one condition.
(a) t = ω π /4 = 4 ω π = 8 T .
Why this step? ω t = π /4 and ω T = 2 π give t / T = 1/8 .
(b) U E = 4 1 U total ⇒ cos 2 ω t = 4 1 ⇒ cos ω t = 2 1 ⇒ ω t = π /3 .
Why this step? We want the first positive time, so take the smaller angle whose cosine is + 2 1 .
(b) t = ω π /3 = 6 T .
Why this step? ω t = π /3 = 6 2 π , so t = T /6 . Since T /6 > T /8 , the capacitor drops to a quarter later than it hits half — matches the forecast (wave swung further).
Verify: at t = T /6 , ω t = π /3 : cos 2 ( π /3 ) = ( 0.5 ) 2 = 0.25 ✓ and sin 2 ( π /3 ) + cos 2 ( π /3 ) = 1 ✓. At t = T /8 , cos 2 ( π /4 ) = 0.5 = sin 2 ( π /4 ) ✓.
Now the switch is closed at the instant the capacitor is fully discharged (q ( 0 ) = 0 ) but current is already flowing at its peak value i 0 . (Recall q 0 is the amplitude of the charge oscillation, and i 0 = q 0 ω is the corresponding peak current.) Write q ( t ) and i ( t ) , and find when the capacitor first reaches full charge.
Forecast: the parent note used cos because charge started at maximum. If charge starts at zero , which function should describe q ( t ) ?
General solution: q ( t ) = q 0 cos ( ω t + ϕ ) for some phase ϕ , where q 0 is the (still unknown) amplitude of the charge.
Why this step? Every solution of q ¨ = − ω 2 q is a shifted cosine; the initial conditions pick ϕ and q 0 .
Apply q ( 0 ) = 0 : q 0 cos ϕ = 0 ⇒ ϕ = − π /2 (so charge rises, not falls, right after t = 0 ).
Why this step? We choose ϕ = − π /2 rather than + π /2 so that current is initially positive (charging up).
Then q ( t ) = q 0 cos ( ω t − π /2 ) = q 0 sin ( ω t ) .
Why this step? The identity cos ( θ − π /2 ) = sin θ . So a pure sine describes charge that starts empty. This is the mirror image of the parent's cosine case. On the phase ellipse, we simply start at a different point on the same ellipse.
Current: i ( t ) = d t d q = q 0 ω cos ( ω t ) = i 0 cos ( ω t ) with i 0 = q 0 ω . At t = 0 : i = i 0 , and since the problem gives the peak current i 0 , this fixes the amplitude via q 0 = i 0 / ω .
Why this step? Differentiating sin gives cos , so now current leads with the cosine. The link i 0 = q 0 ω (from the top of the page) is what converts the given peak current back into the charge amplitude — the two are not independent. Charge and current are still exactly 90° apart.
Capacitor first full when sin ( ω t ) = 1 ⇒ ω t = π /2 ⇒ t = 2 ω π = 4 T .
Why this step? Starting empty, it takes a quarter cycle to fill — the same quarter-cycle timing as SHM going from equilibrium to maximum displacement.
Verify: check q ¨ = − ω 2 q for q = q 0 sin ω t : q ¨ = − q 0 ω 2 sin ω t = − ω 2 q ✓. And q ( 0 ) = q 0 sin 0 = 0 ✓, i ( 0 ) = i 0 cos 0 = i 0 ✓, and i 0 = q 0 ω ✓.
Explain what happens to the oscillation as (a) L → 0 , (b) C → ∞ , (c) a resistance R is added. In (c), derive the damped frequency ω d from the equation of motion, give the critical-damping threshold , and describe the over-/critically-damped regimes where the circuit no longer oscillates.
Forecast: which limit makes the oscillation infinitely fast , and which makes it stop entirely ? And when R grows, at what value does the "oscillation" die completely rather than merely fade?
(a) L → 0 : T = 2 π L C → 0 , so ω = 1/ L C → ∞ .
Why this step? L is the "mass." Zero mass ⟹ no inertia to slow the swap ⟹ infinitely fast oscillation. Physically the current can change instantly. Degenerate: not a real oscillator, it's a limit.
(b) C → ∞ : T = 2 π L C → ∞ , ω → 0 .
Why this step? 1/ C is the "spring constant." Infinite C ⟹ zero springiness ⟹ nothing pulls the charge back ⟹ the oscillation period stretches to infinity (never returns). Degenerate: effectively no restoring force.
(c) Add R : Kirchhoff's Voltage Law round the loop now gives L q ¨ + R q ˙ + C q = 0 — the damped case (see LCR Circuit ).
Why this step? The resistor adds a voltage drop R q ˙ (its V = i R with i = q ˙ ), which was absent in the ideal circuit.
Derive ω d : try q = e s t . Substituting, L s 2 + R s + C 1 = 0 , the characteristic equation . Its roots are
s = − 2 L R ± ( 2 L R ) 2 − L C 1 .
When the term under the root is negative, write it as ± j ω d with
ω d = L C 1 − ( 2 L R ) 2 , T d = ω d 2 π .
Why this step? Guessing q = e s t turns the differential equation into an ordinary quadratic (that is why we use the exponential — it is the one function whose derivatives are copies of itself). The real part − R /2 L gives amplitude decay e − R t /2 L ; the imaginary part gives the oscillation at ω d . Because ω d < ω , damping makes the swing slightly slower (T d > T ).
Critical threshold: the root becomes real (no oscillation) exactly when ( 2 L R ) 2 = L C 1 , i.e.
R crit = 2 C L .
Why this step? This is the boundary case where ω d = 0 . For R < R crit the circuit oscillates while decaying (underdamped). At R = R crit it is critically damped — returns to zero as fast as possible without overshooting. For R > R crit it is overdamped — charge oozes back to zero with no oscillation at all. These are the important non-oscillatory edge cases.
Sanity ordering: as R → 0 , ω d → 1/ L C = ω and T d → 2 π L C , recovering the ideal LC result.
Why this step? A limit check — any correct damped formula must collapse back to the undamped one when the new ingredient (R ) is switched off; this confirms we did not break the R = 0 case.
Verify: for our base circuit, R crit = 2 L / C = 2 ( 2 × 1 0 − 3 ) / ( 5 × 1 0 − 6 ) = 2 400 = 40 Ω . Take R = 8 Ω (well below, so underdamped): L C 1 = 1 0 8 , ( 2 L R ) 2 = ( 2000 ) 2 = 4 × 1 0 6 , so ω d = 1 0 8 − 4 × 1 0 6 = 9.6 × 1 0 7 ≈ 9798 rad/s < 1 0 4 ✓ (slower). T d = 2 π / ω d ≈ 6.413 × 1 0 − 4 s > 6.283 × 1 0 − 4 s ✓. At R = 40 Ω : ( 2 L R ) 2 = ( 1 0 4 ) 2 = 1 0 8 = L C 1 , so ω d = 0 — exactly critical ✓.
A radio's tuning circuit uses a fixed inductor L = 0.25 μ H . What capacitance C makes it resonate at f = 100 MHz (an FM station)? (See Resonance and AC Circuits — resonance is exactly ω = 1/ L C .)
Forecast: to hit a high frequency, should C be large or tiny?
Start from f = 2 π L C 1 and solve for C .
Why this step? We know f and L , want C — rearrange the tuning formula.
Square: f 2 = 4 π 2 L C 1 ⇒ C = 4 π 2 f 2 L 1 .
Why this step? L C appears under a reciprocal; squaring removes the root cleanly.
Plug in f = 1 0 8 Hz, L = 0.25 × 1 0 − 6 H:
C = 4 π 2 ( 1 0 8 ) 2 ( 0.25 × 1 0 − 6 ) 1 = 4 π 2 ⋅ 1 0 16 ⋅ 0.25 × 1 0 − 6 1 .
Denominator = 4 π 2 ⋅ 2.5 × 1 0 9 ≈ 9.870 × 1 0 10 , so C ≈ 1.013 × 1 0 − 11 F ≈ 10.1 pF.
Why this step? Direct substitution; keep track of powers of ten carefully.
Interpretation: a tiny ~10 pF capacitor — high frequency needs small C , matching the forecast.
Why this step? Reading the number back as physics confirms the design intuition and catches gross power-of-ten slips.
Verify: feed the exact C = 4 π 2 f 2 L 1 back into f = 2 π L C 1 : it returns exactly 1 0 8 Hz = 100 MHz ✓. Units: 1/ H ⋅ F is 1/ s , i.e. hertz. ✓
Base circuit, q 0 = 2 × 1 0 − 4 C. Starting from full charge at rest, find the first time t ∗ at which the inductor's magnetic energy equals three times the capacitor's electric energy, and give the current there.
Forecast: U B dominating over U E means we are past the halfway sharing point (T /8 ) but before the swap (T /4 ). So t ∗ lies between T /8 and T /4 — agree?
Condition: U B = 3 U E ⇒ sin 2 ω t = 3 cos 2 ω t ⇒ tan 2 ω t = 3 .
Why this step? U B ∝ sin 2 , U E ∝ cos 2 ; their ratio is tan 2 . Using tan collapses two conditions into one.
tan ω t = 3 ⇒ ω t = 3 π (first positive solution).
Why this step? tan ( π /3 ) = 3 ; we take the smallest positive angle for the first time.
t ∗ = ω π /3 = 3 ⋅ 1 0 4 π ≈ 1.047 × 1 0 − 4 s. Check bracket: T /8 = 0.785 × 1 0 − 4 s, T /4 = 1.571 × 1 0 − 4 s — yes t ∗ sits between them ✓ (forecast confirmed).
Why this step? Convert angle to time and sanity-check against the two landmark instants.
Current: i = − q 0 ω sin ( π /3 ) = − ( 2 ) ⋅ 2 3 = − 3 ≈ − 1.732 A.
Why this step? Use the current solution at ω t = π /3 ; the sign is negative (discharging first quarter).
Verify: at ω t = π /3 : U B / U E = sin 2 ( π /3 ) / cos 2 ( π /3 ) = 0.75/0.25 = 3 ✓. Energy check: U B = 2 1 L i 2 = 2 1 ( 2 × 1 0 − 3 ) ( 1.732 ) 2 = 3 × 1 0 − 3 J, and total is 4 × 1 0 − 3 J, so U B should be 4 3 ⋅ 4 × 1 0 − 3 = 3 × 1 0 − 3 J ✓.
Recall Quick self-test on the matrix
Which cell does "find C for a 100 MHz radio" belong to? ::: Cell G (real-world design).
In Ex 3, why is q < 0 at 3 T /8 but the current still negative? ::: Charge has flipped polarity (2nd quarter) but current still 90° behind, still draining that direction.
Why does L → 0 give infinite frequency? ::: L is the inertia; zero inertia means the current can swap instantly, T = 2 π L C → 0 .
First time U E = 4 1 U total ? ::: t = T /6 (from cos ω t = 2 1 ).
At what R does the circuit stop oscillating entirely? ::: At R crit = 2 L / C (critical damping); above it, overdamped.
With small R added, is the period longer or shorter? ::: Longer, because ω d = 1/ L C − ( R /2 L ) 2 < ω , so T d = 2 π / ω d > T .
