Foundations — Dielectrics — polarization, dielectric constant, effect on capacitance

Before you can follow a single line of the parent note, you need a toolbox of symbols. Below is every symbol, term, and piece of notation the topic uses — each with its plain meaning, the picture it stands for, and why the topic can't live without it. They are ordered so each one leans only on the ones above it.

0. The starting picture: two charged plates

Two flat metal plates face each other, a small gap between them. One plate is pushed full of extra positive charge, the other full of negative charge. In the gap, invisible "force lines" run straight from the + plate to the − plate. That gap and those lines are the stage on which the whole topic happens. See Electric Field of Parallel Plates and Capacitance and Capacitors for the full build.

1. Charge $Q$ and charge-per-area $\sigma$

The picture: if $Q$ coulombs are painted evenly over a plate of area $A$, then $\sigma$ tells you how densely the paint is spread — coulombs on every square metre.

Why the topic needs it: the field between plates depends only on how crowded the charge is, not the total. So $\sigma$, not $Q$, is what directly makes the field. Later we meet two flavours — free ${\sigma }_f$ (delivered by the battery) and bound ${\sigma }_b$ (created inside the insulator).

2. Electric field $\vec{E}$ and its magnitude $E$

The picture: the straight lines in the gap are $\vec{E}$. Denser lines = stronger field. Between big parallel plates the field is the same everywhere (uniform), which is why the arrows in the figure are all equal length.

Why the topic needs it: the dielectric's entire job is to shrink $E$. You can't talk about shrinking a thing you haven't named.

3. The permittivity of free space ${\epsilon }_0$

The picture: think of it as the "stiffness of empty space." A big ${\epsilon }_0$ would mean charge produces only a weak field. It's the conversion rate between "charge crowding $\sigma$" and "field strength $E$."

Why the topic needs it: it appears in $E_0={\sigma }_f/{\epsilon }_0$ and in the capacitance formula. As a sanity check of the units, a plate charge of ${\sigma }_f=8.85\times 10^{-6}{\text{C/m}}^2$ gives

$E_0=\frac{8.85\times 10^{-6}}{8.85\times 10^{-12}}=10^6\text{V/m},$ a clean, easy-to-remember round number.

4. Voltage $V$ and gap $d$

The picture: voltage is field-strength summed over the walk across the gap. Same field over a wider gap = more voltage; same field over a thinner gap = less. This one line is why "field drops by $\kappa$" instantly becomes "voltage drops by $\kappa$" (with $d$ frozen).

5. Capacitance $C$

The picture: a big bucket holds lots of water for a small rise in level; a big-$C$ capacitor holds lots of charge for a small rise in voltage. $C$ is the bucket's width.

Why the topic needs it: the headline result of the whole topic is $C=\kappa C_0$. You must know what $C$ is before you can be impressed that it grows.

6. Electric dipole $\vec{p}$ — the molecule's tiny arrow

The picture: a see-saw with a + kid on one end and a − kid on the other. In a field the + end is pushed one way, the − end the other, so the see-saw tips to line up with the field — this is a torque (see Electric Dipoles and Torque).

Why the topic needs it: a dielectric is a room full of these see-saws. Their collective tipping is the entire mechanism. See also Electric Susceptibility for how eagerly they tip.

7. Polarization $\vec{P}$ — dipoles counted per volume

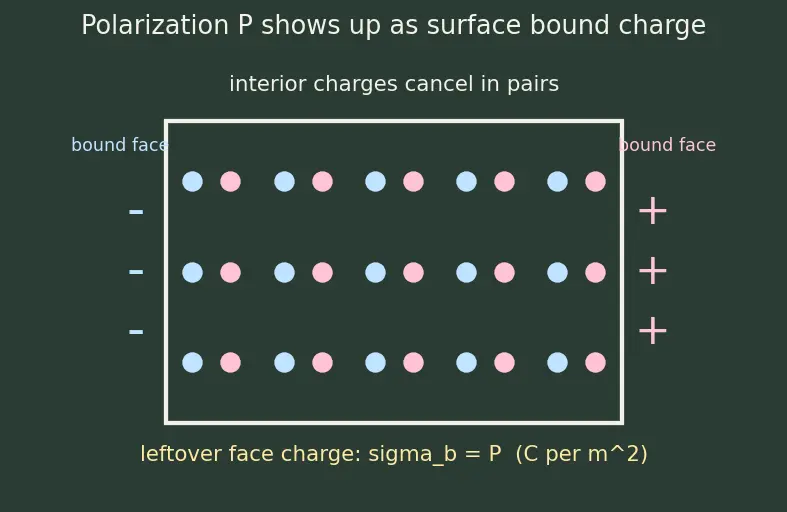

The picture — why the units are C/m²: when every see-saw inside the slab tips the same way, the + end of one sits against the − end of its neighbour and they cancel in pairs. Only the two outer faces are left with uncancelled charge. So all that internal tipping shows up as a sheet of charge on each face — a charge per area.

Why the topic needs it: $\vec{P}$ is the bridge from "molecules tipping" to "an extra charged sheet that fights the field." It is the pivot of the whole derivation.

8. Bound vs free charge: ${\sigma }_b$ and ${\sigma }_f$

The picture: on each plate, the metal's free charge; a hair's breadth away, the dielectric's bound charge of opposite sign. The + plate's free charge sits beside the dielectric's − bound face. Because they're opposite, the bound sheet's field points against the free sheet's field.

Why the topic needs it: the field cancellation is exactly $E=({\sigma }_f-{\sigma }_b)/{\epsilon }_0$. Keeping free and bound charge in separate piles also motivates a later shortcut field (often written $\vec{D}$, the "displacement field") that is built to respond only to the free charge — but that is a topic in its own right, developed fully in Gauss's Law and the D-field. On this page you only need to know the two piles are counted separately.

9. Susceptibility ${\chi }_e$ and dielectric constant $\kappa$

The picture: $\kappa =1$ (empty space, nothing tips) → no shrink. Water, $\kappa \approx 80$ → the field is choked to $1/80$ of its bare value. Both are pure numbers — no units.

Why the topic needs it: $\kappa$ is the single number that carries every consequence — $E\downarrow$ by $\kappa$, $V\downarrow$ by $\kappa$, $C\uparrow$ by $\kappa$.

10. Energy stored $U$

The picture: work you did pushing like charges together against their repulsion, now sitting ready to be released. Which formula to use depends on what is held fixed — $Q$ (battery disconnected) or $V$ (battery connected). See Energy Stored in a Capacitor.

Why the topic needs it: the two-regime subtlety (energy falls vs rises) is decided entirely by choosing the right one of these two forms.

The prerequisite map

The diagram below is drawn with mermaid; if it does not render in your app, read the plaintext version underneath instead — they say the same thing.

Plaintext version of the map (read top to bottom):

• Charge $Q$ → spread out → surface density $\sigma$.
• $\sigma$ together with permittivity ${\epsilon }_0$ → field $E$.
• Field $E$ over gap $d$ → voltage $V=Ed$.
• $Q$ and $V$ together → capacitance $C=Q/V$.
• Dipole $\vec{p}$ → packed per volume → polarization $\vec{P}$ → bound charge ${\sigma }_b$.
• Free charge ${\sigma }_f$ (from $\sigma$ on the plates) and bound charge ${\sigma }_b$ → field cancellation.
• Cancellation + susceptibility ${\chi }_e$ → dielectric constant $\kappa$.
• $\kappa$ acting on $C$ → final $C=\kappa C_0$ → feeds stored energy $U$.
