Dielectrics — polarization, dielectric constant, effect on capacitance

WHY do we even care?

A capacitor stores charge $Q$ at voltage $V$ with $C=Q/V$ . We want more charge at less voltage (and we don't want the plates to spark across). Stuffing an insulator between the plates does both. Understanding why requires understanding what an electric field does to neutral matter.

WHAT is polarization?

Two mechanisms (both feel like "stretching"):

Electronic / non-polar (e.g. $O_2$ ): the field pushes electron cloud one way, nucleus the other → induced dipole.
Orientational / polar (e.g. $H_2O$ ): permanent dipoles, normally random, get torqued into partial alignment.

HOW polarization produces "bound charge" (derive it)

Imagine a uniformly polarized slab, field pointing right. Each molecule = (−)(+) pair separated by $d$ . Inside, the (+) end of one molecule sits next to the (−) end of the next → cancellation. Only at the two faces do uncancelled charges remain.

Why this step? We equated two ways of writing the same total dipole moment — "per-volume times volume" must equal "exposed charge times its lever arm." Geometry does the rest.

HOW bound charge reduces the field (the heart of it)

Plates carry free charge $\sigma_f$ (what the battery delivers). The dielectric's faces carry bound charge $\sigma_b$ , opposite in sign to the nearby plate (the + plate attracts the dipoles' − ends).

Formula Net field inside the dielectric

Vacuum field from free charge: $E_0=\dfrac{\sigma_f}{\varepsilon_0}$ . Bound charge field opposes it: $E_b=\dfrac{\sigma_b}{\varepsilon_0}$ . $E = E_0 - E_b = \frac{\sigma_f-\sigma_b}{\varepsilon_0}$ Since $\sigma_b=P$ and (for linear dielectrics) $P=\varepsilon_0\chi_e E$ : $E = E_0 - \frac{\varepsilon_0\chi_e E}{\varepsilon_0}=E_0-\chi_e E \;\Rightarrow\; E(1+\chi_e)=E_0 \;\Rightarrow\; \boxed{E=\frac{E_0}{1+\chi_e}=\frac{E_0}{\kappa}}$

HOW capacitance changes

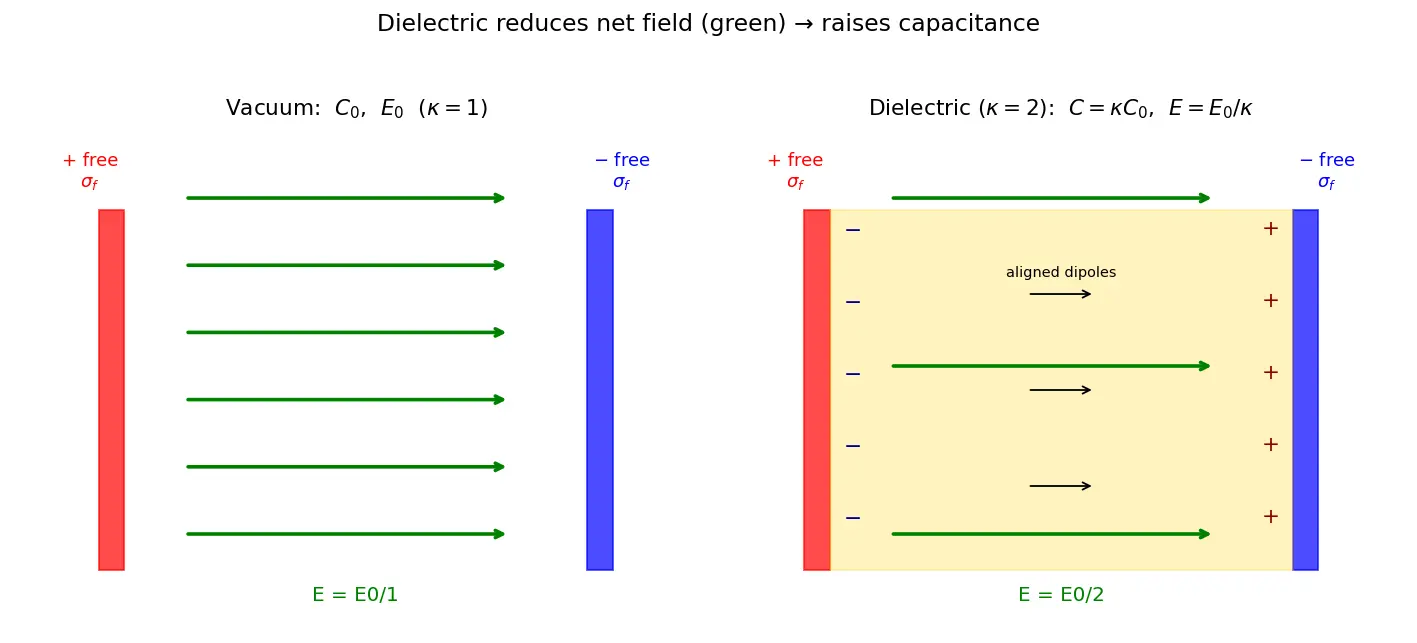

Figure — Dielectrics — polarization, dielectric constant, effect on capacitance

Worked Examples

Common Mistakes

Recall Feynman: explain to a 12-year-old

Imagine the capacitor plates are two crowds, one all "happy" (+), one all "grumpy" (−), pulling on a room full of tiny see-saws (molecules). Each see-saw tips so its happy end faces the grumpy crowd. Now the see-saws' own little pulls partly cancel the crowds' pull, so the tug across the room feels weaker. Weaker tug = you can pack in more happy and grumpy people before it gets dangerous. That "packing more" is higher capacitance, and the number telling you how much weaker the tug got is $\kappa$ .

Active-Recall Flashcards

What is polarization

\vec P

physically?

Electric dipole moment per unit volume of the dielectric; units C/m².

Why does inserting a dielectric reduce the field inside?

Aligned dipoles produce bound surface charge that opposes the free charge, partially cancelling it.

Relation between bound surface charge and polarization?

\sigma_b = \vec P\cdot\hat n

(magnitude

\sigma_b=P

Define dielectric constant in terms of fields.

\kappa = E_0/E \ge 1

, the factor by which the dielectric reduces the field.

\kappa

in terms of susceptibility?

\kappa = 1+\chi_e

Parallel-plate capacitance with dielectric?

C=\kappa\varepsilon_0 A/d = \kappa C_0

Battery DISCONNECTED, insert dielectric: what changes?

Q

fixed;

E

and

V

drop by

\kappa

;

C

rises; energy

U=Q^2/2C

falls.

Battery CONNECTED, insert dielectric: what changes?

V

and

E

fixed;

Q

and

U=\tfrac12CV^2

rise by

\kappa

Bound charge in terms of free charge and

\kappa

\sigma_b=\sigma_f(1-1/\kappa)

Can

\kappa<1

No,

\kappa=1+\chi_e\ge1

for ordinary dielectrics.

Connections

Capacitance and Capacitors
Electric Field of Parallel Plates
Gauss's Law and the D-field
Electric Dipoles and Torque
Energy Stored in a Capacitor
Electric Susceptibility

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, dielectric ek insulator hota hai jise hum capacitor ki do plates ke beech daal dete hain. Jab bahar ka electric field lagta hai, toh material ke andar ke chhote chhote molecules dipole ban jaate ya align ho jaate hain — matlab ek taraf thoda plus, doosri taraf thoda minus. Isse material ke do faces par bound charge ( $\sigma_b$ ) aa jaata hai, jo plate ke free charge ke opposite hota hai. Yahi cancellation andar ka net field kam kar deta hai, factor $\kappa$ se.

Field kam hua matlab same charge ke liye voltage $V=Ed$ bhi $\kappa$ guna kam ho gaya. Aur $C=Q/V$ — V neeche, toh $C$ upar! Isliye $C=\kappa C_0$ . Yeh do faayde deta hai: zyada charge store, aur plates ke beech spark hone ka risk bhi kam (kyunki field weak ho gaya).

Ek important baat jo students bhool jaate hain: kya constant hai? Agar battery judi hui hai (connected), toh $V$ fix rehta hai, isliye field bhi same, par charge $Q$ badh jaata hai. Agar battery hata di (disconnected), toh $Q$ fix, ab field aur voltage dono $\kappa$ se neeche gir jaate hain. Question mein hamesha pehle yeh dekho ki battery connected hai ya nahi — phir formula lagao. Bas itna yaad rakho: dielectric field ko cut karta hai aur capacitance ko crank karta hai.
