This page is a graded workout for the parent topic. Try each problem with the Solution folded away, then unfold. Everything you need was built in the parent note; where a symbol reappears I re-state it so you never guess.
WHAT: only the medium between plates changed; the geometry A (plate area) and d (gap) are untouched.
WHY: the formula C=dκε0A=κC0 shows κ is the only extra factor when geometry is fixed.
C=κC0=4×6=24μF.
Larger, by exactly κ=4. A dielectric always raisesC (it "cuts the field, cranks the C").
Recall Solution
WHAT: the field shrank from E0 to E at fixed charge.
WHY: the definition of κ is precisely this ratio, κ=E0/E — "how many times weaker the tug got."
κ=EE0=1×1055×105=5.
WHAT: we plug straight into the parallel-plate-with-dielectric formula.
WHY that formula: parallel plates make a uniform field, so capacitance is purely geometric (A/d) times the medium factor κ.
C=dκε0A=1×10−33×8.85×10−12×0.02.
Numerator =3×8.85×10−12×0.02=5.31×10−13. Divide by 10−3:
C=5.31×10−10F=531pF.
Recall Solution
(i) WHAT/WHY: the field a sheet of free charge would make on its own is E0=σf/ε0 (this comes from Gauss's law for parallel plates).
E0=8.85×10−121.77×10−5=2.0×106V/m.(ii) WHY divide by κ: the net field inside is the vacuum field cut by κ (charge fixed):
E=κE0=22.0×106=1.0×106V/m.(iii) WHY this bound-charge formula: the leftover field is made by σf−σb, so E=(σf−σb)/ε0=σf/(κε0). Rearranged, σb=σf(1−1/κ).
σb=1.77×10−5(1−21)=8.85×10−6C/m2.

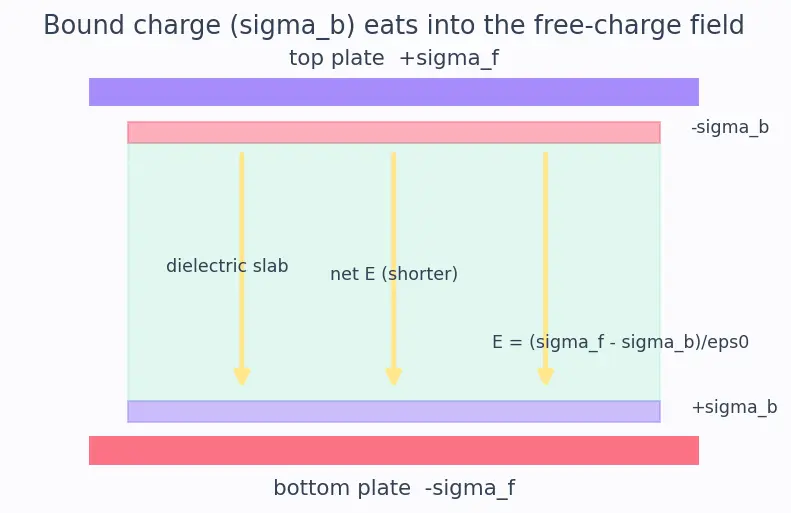

Look at the picture: the plate holds σf; just inside, a thinner opposite sheet σb eats away part of it, so the arrows crossing the gap are shorter.
WHAT is held fixed: the wire is cut, so no charge can leave — Q is frozen.
Q=C0V0=(2×10−6)(200)=4×10−4C=400μC(unchanged).New capacitance:C=κC0=4×2=8μF.
New voltage — WHY it drops: with Q fixed, V=Q/C falls as C rises:
V=CQ=8×10−64×10−4=50V=κV0.Energy — WHICH formula: since Q is the fixed quantity, use U=Q2/(2C).
U0=2C0Q2=2(2×10−6)(4×10−4)2=0.04J=40mJ.U=2CQ2=2(8×10−6)(4×10−4)2=0.01J=10mJ.
Energy fell by 30 mJ. That missing energy is the work the field does pulling the slab in — the slab is sucked into the gap.
Recall Solution
WHAT is held fixed: the battery clamps V=200 V no matter what.
New capacitance:C=κC0=8μF.
New charge — WHY it rises:Q=CV with V fixed, so Q grows with C:
Q=CV=(8×10−6)(200)=1.6×10−3C=1600μC.
Original Q0=C0V=(2×10−6)(200)=400μC, so the battery pushed in
ΔQ=1600−400=1200μCextra.Energy — WHICH formula:V is fixed, so use U=21CV2.
U0=21(2×10−6)(200)2=0.04J=40mJ.U=21(8×10−6)(200)2=0.16J=160mJ.
Energy rose by 120 mJ — pumped in by the battery (see Energy Stored in a Capacitor).
WHAT/WHY series: the same charge Q sits on the plates, and the voltage across the gap is the sum of the drops across each layer — that is the defining signature of capacitors in series (see Capacitance and Capacitors).
Layer 1 (vacuum, thickness d/2): C1=d/2ε0A=d2ε0A.
Layer 2 (dielectric, thickness d/2): C2=d/2κε0A=d2κε0A.
Series combination — WHY reciprocals add: in series the voltages add at fixed Q, and V=Q/C, so 1/C=1/C1+1/C2.
C1=2ε0Ad+2κε0Ad=2ε0Ad(1+κ1).
Invert:
C=d2ε0A⋅κ+1κ=dε0A⋅κ+12κ.
So κeff=κ+12κ=3+12×3=46=1.5.Sanity:κeff=1.5 sits between vacuum (1) and full fill (3) — the half-fill helps, but the vacuum layer is the "weak link" that dominates the series stack.
The figure shows the stacked layers and the two field arrows — longer in the vacuum, shorter in the dielectric, because the field must be smaller inside κ.
Recall Solution
WHY parallel: both halves see the same voltageV (they share the same top and bottom plates) — same-voltage-different-charge is the signature of parallel.
Each half has area A/2.
Left (dielectric): CL=dκε0(A/2)=2dκε0A.
Right (vacuum): CR=dε0(A/2)=2dε0A.
WHY they add: in parallel the charges add at the same V, so C=CL+CR.
C=2dε0A(κ+1)=dε0A⋅2κ+1.
So κeff=2κ+1=23+1=2.Compare with L4·A: same slab, same amount of material, but the parallel arrangement gives κeff=2 vs the series1.5. Filling across the field lines side-by-side beats stacking along them — the vacuum gap no longer throttles the whole path.
WHY energy method: the plates exert a fringing force on the slab that is awkward to sum directly; but energy bookkeeping is exact. With the battery gone, Q is fixed, so the stored energy is U=Q2/(2C), and the mechanical work done on the slab by the field equals the drop in stored energy (energy conservation, no battery involved).
Uout=2C0Q2=2(2×10−6)(4×10−4)2=0.04J.Uin=2CQ2=2(8×10−6)(4×10−4)2=0.01J.Won slab=Uout−Uin=0.04−0.01=0.03J=30mJ.
Since energy drops as the slab enters, the system "wants" the slab in: the force pulls the slab inward. (Physically the fringing field grabs the induced bound charges and drags them into the strong-field region.)
Recall Solution
WHY Vmax=Emaxd: the field inside is uniform, E=V/d, so it first reaches the breakdown value Emax when V=Emaxd. Beyond that a spark jumps.
Material A:
Vmax=Emaxd=(3×106)(2×10−3)=6000V.
Material B:
Vmax=(20×106)(2×10−3)=40000V.Comment: the dielectric wins twice — it raises capacitance by κ=5and it has a higher breakdown field (20 vs 3MV/m), so you can apply a far larger voltage before it sparks. That double benefit (more C, safer V) is exactly why real capacitors are stuffed with dielectric, not left as vacuum.
Recall Solution
Step 1 — κ: by definition κ=1+χe=1+3=4 (see Electric Susceptibility).
Step 2 — field E: the free sheet alone makes E0=σf/ε0; inside it shrinks by κ:
E=κε0σf=4×8.85×10−122×10−5=5.65×105V/m.Step 3 — polarization P:P=ε0χeE (the linear-material definition of how much dipole-per-volume the field induces).
P=(8.85×10−12)(3)(5.65×105)=1.5×10−5C/m2.Step 4 — bound charge:σb=P=1.5×10−5C/m2 (the exposed-face charge equals the polarization magnitude). Cross-check: σf(1−1/κ)=2×10−5(1−0.25)=1.5×10−5. ✓
Step 5 — the D-field: the displacement field is defined so it "sees only free charge": D=ε0κE (see Gauss's Law and the D-field).
D=(8.85×10−12)(4)(5.65×105)=2.0×10−5C/m2=σf.✓
The beauty: D came out equal to σfexactly, confirming that Gauss's law for D ignores the bound charge and reads off the free plate charge directly.
