Intuition The one-sentence ideaThe Q factor (quality factor) measures how many oscillations a system rings for before its energy dies away . A church bell has high Q Q Q Q Q Q
Definition Quality factorQ Q Q energy ratio per cycle :
Q = 2 π × energy stored in oscillator energy lost per oscillation period Q = 2\pi \times \frac{\text{energy stored in oscillator}}{\text{energy lost per oscillation period}} Q = 2 π × energy lost per oscillation period energy stored in oscillator Q Q Q smaller the fractional energy loss per cycle , and the longer/sharper the oscillator.
Three faces of the same number (we will derive each so they're not magic):
Energy decay — how slowly energy leaks out.Amplitude decay (ring-down) — how many swings before it stops.Resonance sharpness (bandwidth) — how narrow the resonance peak is.
A damped oscillator obeys
m x ¨ + b x ˙ + k x = 0. m\ddot{x} + b\dot{x} + kx = 0. m x ¨ + b x ˙ + k x = 0.
Divide by m m m ω 0 = k / m \omega_0 = \sqrt{k/m} ω 0 = k / m γ = b / m \gamma = b/m γ = b / m x ¨ + γ x ˙ + ω 0 2 x = 0. \ddot{x} + \gamma\dot{x} + \omega_0^2 x = 0. x ¨ + γ x ˙ + ω 0 2 x = 0.
Why these symbols? ω 0 \omega_0 ω 0 wants to swing; γ \gamma γ removes speed. The ratio of "swing rate" to "loss rate" is exactly what tells us "how good" the oscillator is — so we expect Q Q Q ω 0 / γ \omega_0/\gamma ω 0 / γ
For light damping, the solution is x ( t ) = A 0 e − γ t / 2 cos ( ω d t ) x(t) = A_0 e^{-\gamma t/2}\cos(\omega_d t) x ( t ) = A 0 e − γ t /2 cos ( ω d t )
Why e − γ t / 2 e^{-\gamma t/2} e − γ t /2 Substitute x = e λ t x=e^{\lambda t} x = e λ t λ 2 + γ λ + ω 0 2 = 0 \lambda^2+\gamma\lambda+\omega_0^2=0 λ 2 + γ λ + ω 0 2 = 0 λ = − γ 2 ± i ω 0 2 − γ 2 / 4 \lambda = -\frac{\gamma}{2}\pm i\sqrt{\omega_0^2-\gamma^2/4} λ = − 2 γ ± i ω 0 2 − γ 2 /4 − γ / 2 -\gamma/2 − γ /2
Energy ∝ \propto ∝ 2 ^2 2 E ( t ) = E 0 e − γ t . E(t) = E_0\, e^{-\gamma t}. E ( t ) = E 0 e − γ t . Why? E ∝ A 2 ∝ ( e − γ t / 2 ) 2 = e − γ t E\propto A^2 \propto (e^{-\gamma t/2})^2 = e^{-\gamma t} E ∝ A 2 ∝ ( e − γ t /2 ) 2 = e − γ t
Energy lost per period T = 2 π / ω 0 T=2\pi/\omega_0 T = 2 π / ω 0 ω d ≈ ω 0 \omega_d\approx\omega_0 ω d ≈ ω 0 Δ E E ≈ γ T = γ ⋅ 2 π ω 0 . \frac{\Delta E}{E} \approx \gamma T = \gamma\cdot\frac{2\pi}{\omega_0}. E Δ E ≈ γ T = γ ⋅ ω 0 2 π . Why this approximation? For small γ \gamma γ γ T \gamma T γ T Δ E / E ≈ γ T \Delta E/E \approx \gamma T Δ E / E ≈ γ T 1 − e − γ T 1-e^{-\gamma T} 1 − e − γ T
Plug into the definition:
Q = 2 π ⋅ E Δ E = 2 π ⋅ 1 γ T = 2 π ⋅ ω 0 2 π γ = ω 0 γ . ✓ Q = 2\pi\cdot\frac{E}{\Delta E} = 2\pi\cdot\frac{1}{\gamma T} = 2\pi\cdot\frac{\omega_0}{2\pi\gamma} = \frac{\omega_0}{\gamma}.\;\checkmark Q = 2 π ⋅ Δ E E = 2 π ⋅ γ T 1 = 2 π ⋅ 2 π γ ω 0 = γ ω 0 . ✓

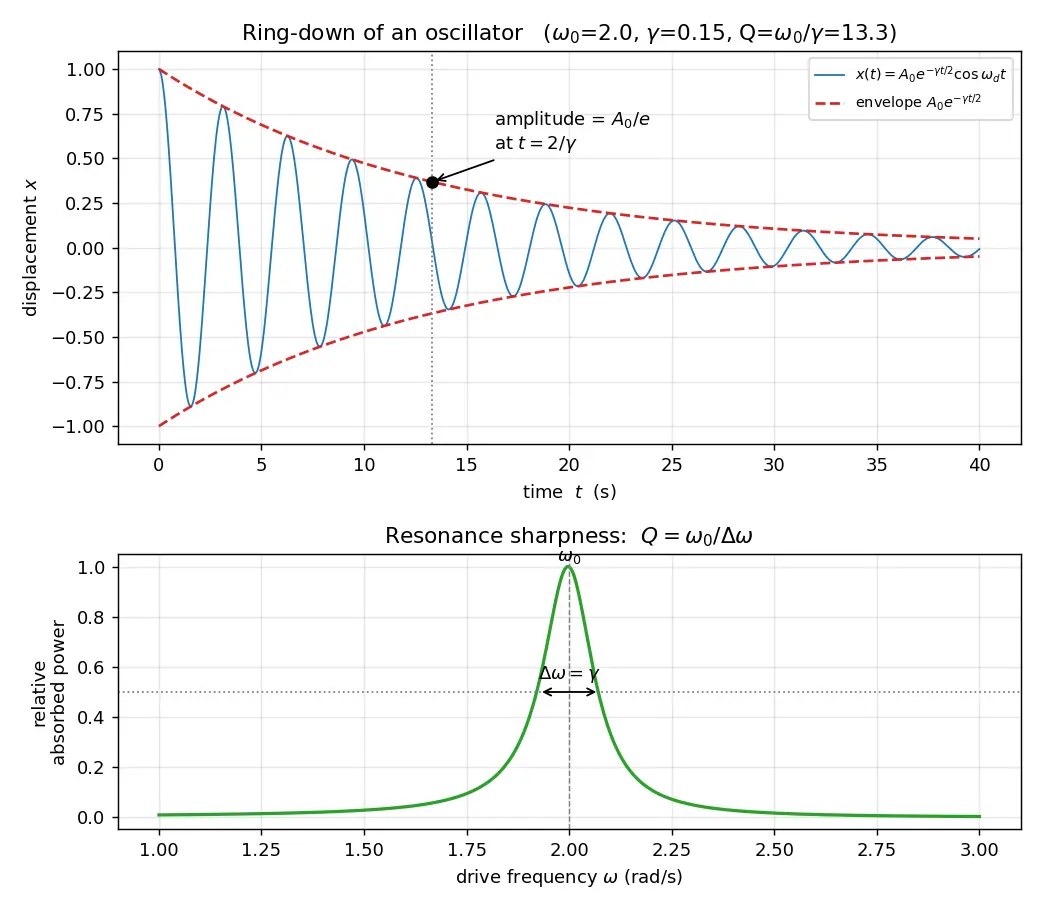

The amplitude envelope A 0 e − γ t / 2 A_0 e^{-\gamma t/2} A 0 e − γ t /2 1 / e 1/e 1/ e τ = 2 γ ( amplitude 1 / e time ) . \tau = \frac{2}{\gamma}\quad(\text{amplitude } 1/e \text{ time}). τ = γ 2 ( amplitude 1/ e time ) . ω 0 τ = 2 ω 0 / γ = 2 Q \omega_0\tau = 2\omega_0/\gamma = 2Q ω 0 τ = 2 ω 0 / γ = 2 Q
Drive the oscillator: x ¨ + γ x ˙ + ω 0 2 x = ( F 0 / m ) cos ω t \ddot x+\gamma\dot x+\omega_0^2 x = (F_0/m)\cos\omega t x ¨ + γ x ˙ + ω 0 2 x = ( F 0 / m ) cos ω t ω 0 \omega_0 ω 0 full width at half-maximum power of that peak is
Δ ω = γ . \Delta\omega = \gamma. Δ ω = γ .
Why γ \gamma γ the power absorbed is a Lorentzian ∝ 1 ( ω 2 − ω 0 2 ) 2 + γ 2 ω 2 \propto \dfrac{1}{(\omega^2-\omega_0^2)^2+\gamma^2\omega^2} ∝ ( ω 2 − ω 0 2 ) 2 + γ 2 ω 2 1 ∣ ω − ω 0 ∣ ≈ γ / 2 |\omega-\omega_0|\approx \gamma/2 ∣ ω − ω 0 ∣ ≈ γ /2 γ \gamma γ
Worked example 1 — Pendulum clockA pendulum with ω 0 = 6.0 s − 1 \omega_0 = 6.0\ \text{s}^{-1} ω 0 = 6.0 s − 1 2 % 2\% 2% Q Q Q Step 1: Δ E / E = 0.02 \Delta E/E = 0.02 Δ E / E = 0.02 Why? That's the data plugged straight into the energy definition.
Step 2: Q = 2 π E Δ E = 2 π ⋅ 1 0.02 = 100 π ≈ 314. Q = 2\pi\,\dfrac{E}{\Delta E} = 2\pi\cdot\dfrac{1}{0.02} = 100\pi \approx 314. Q = 2 π Δ E E = 2 π ⋅ 0.02 1 = 100 π ≈ 314. Why? Definition: Q = 2 π / ( Δ E / E ) Q=2\pi/(\Delta E/E) Q = 2 π / ( Δ E / E ) Q / π ≈ 100 Q/\pi\approx 100 Q / π ≈ 100 1 / e 1/e 1/ e
Worked example 2 — From mass, spring, dampingm = 0.5 kg m=0.5\ \text{kg} m = 0.5 kg k = 200 N/m k=200\ \text{N/m} k = 200 N/m b = 0.4 kg/s b=0.4\ \text{kg/s} b = 0.4 kg/s Q Q Q Step 1: ω 0 = k / m = 400 = 20 rad/s . \omega_0=\sqrt{k/m}=\sqrt{400}=20\ \text{rad/s}. ω 0 = k / m = 400 = 20 rad/s . Why? Definition of natural frequency.
Step 2: γ = b / m = 0.4 / 0.5 = 0.8 s − 1 . \gamma = b/m = 0.4/0.5 = 0.8\ \text{s}^{-1}. γ = b / m = 0.4/0.5 = 0.8 s − 1 . Why? From the normalized ODE.
Step 3: Q = ω 0 / γ = 20 / 0.8 = 25. Q=\omega_0/\gamma = 20/0.8 = 25. Q = ω 0 / γ = 20/0.8 = 25. Why? Boxed formula. Lightly damped (✓ since Q ≫ 1 2 Q\gg \tfrac12 Q ≫ 2 1
Worked example 3 — Radio tuner (bandwidth)An RLC circuit resonates at f 0 = 100 MHz f_0 = 100\ \text{MHz} f 0 = 100 MHz Δ f = 0.2 MHz \Delta f = 0.2\ \text{MHz} Δ f = 0.2 MHz Q Q Q Step 1: Q = f 0 / Δ f = 100 / 0.2 = 500. Q=f_0/\Delta f = 100/0.2 = 500. Q = f 0 /Δ f = 100/0.2 = 500. Why? Bandwidth definition of Q Q Q Q Q Q
Common mistake "Higher Q means more energy loss."Why it feels right: "Quality" sounds like it might track activity , and a vigorously losing system seems more energetic.
The fix: Q = 2 π E / Δ E Q=2\pi E/\Delta E Q = 2 π E /Δ E denominator . More loss ⇒ smaller Q Q Q Q Q Q stingy with energy.
Common mistake "Q is the number of oscillations before stopping completely."Why it feels right: Q Q Q The fix: It's the count for amplitude/energy to fall by a factor 1 / e 1/e 1/ e Q / π Q/\pi Q / π amplitude 1 / e 1/e 1/ e
Q = ω 0 / γ Q=\omega_0/\gamma Q = ω 0 / γ Why it feels right: The formula is clean and symbol-based.
The fix: The energy-per-cycle and bandwidth derivations assume light damping (Q ≳ 1 Q\gtrsim 1 Q ≳ 1
Recall Feynman: explain to a 12-year-oldImagine pushing a kid on a swing once, then never touching it again. A good swing keeps going back and forth a long time before stopping — that's a high-Q swing. A swing stuck in mud stops almost immediately — low Q . The Q number basically says: "how many back-and-forths do you get for free?" Big Q = lots of free swings = ringy bell, clear radio. Small Q = one thud and done.
"Q = Quietly keeps going." High Q = quiet about losing energy = keeps ringing.
And the three formulas spell E-R-B : E nergy (2 π E / Δ E 2\pi E/\Delta E 2 π E /Δ E R ing-down (ω 0 / γ \omega_0/\gamma ω 0 / γ B andwidth (f 0 / Δ f f_0/\Delta f f 0 /Δ f
Recall Predict before computingIf you double the damping b b b (keep m , k m,k m , k Q Q Q Answer: Q = m k / b Q=\sqrt{mk}/b Q = mk / b Q Q Q halves . The peak gets twice as wide; rings half as long.
What does the Q factor physically measure? How many oscillations (radians of swing) a system rings for before its energy decays — i.e. how small the fractional energy loss per cycle is.
Energy definition of Q Q = 2 π × energy stored energy lost per period Q = 2\pi \times \dfrac{\text{energy stored}}{\text{energy lost per period}} Q = 2 π × energy lost per period energy stored Q in terms of ω 0 \omega_0 ω 0 γ \gamma γ Q = ω 0 / γ = m ω 0 / b = m k / b Q=\omega_0/\gamma = m\omega_0/b = \sqrt{mk}/b Q = ω 0 / γ = m ω 0 / b = mk / b Q in terms of resonance Q = ω 0 / Δ ω = f 0 / Δ f Q=\omega_0/\Delta\omega = f_0/\Delta f Q = ω 0 /Δ ω = f 0 /Δ f (resonant freq ÷ FWHM bandwidth)
Does high Q mean more or less energy loss per cycle? Less — high Q is "stingy", losing a tiny fraction each cycle.
After roughly how many oscillations does amplitude fall to 1 / e 1/e 1/ e About
Q / π Q/\pi Q / π oscillations (energy
1 / e 1/e 1/ e after
Q / 2 π Q/2\pi Q /2 π ).
Why is the bandwidth Δ ω = γ \Delta\omega=\gamma Δ ω = γ The absorbed-power curve is a Lorentzian that drops to half-max at
∣ ω − ω 0 ∣ ≈ γ / 2 |\omega-\omega_0|\approx\gamma/2 ∣ ω − ω 0 ∣ ≈ γ /2 , total width
γ \gamma γ .
What limiting assumption do the Q formulas require? Light (underdamped) damping; no oscillations to count if critically/over-damped.
If damping b b b Q halves (since
Q ∝ 1 / b Q\propto 1/b Q ∝ 1/ b ).
Q factor energy ratio per cycle
Damped ODE m x'' + b x' + kx = 0
Natural freq w0 = sqrt k/m
x = A0 e^-gamma t/2 cos wd t
Intuition Hinglish mein samjhoDekho, Q factor ka matlab simple hai: oscillator kitna "achha" hai, yaani energy lose hone se pehle kitni der tak jhoolta rehta hai. Ek mandir ki ghanti bajao to der tak "nnnn..." karti hai — uska Q bada hai. Aur darwaza zor se band karo to ek hi "dhamm" aur khatam — uska Q chhota hai. Formula yaad rakho: Q = 2 π × Q = 2\pi \times Q = 2 π × chhota Q — yeh common galti hai jisme log ulta soch lete hain.
Damping ki bhasha mein Q = ω 0 / γ Q=\omega_0/\gamma Q = ω 0 / γ ω 0 = k / m \omega_0=\sqrt{k/m} ω 0 = k / m γ = b / m \gamma=b/m γ = b / m light damping (underdamped) mein chalta hai — agar system itna damped ho ki jhoole hi na, to "kitne oscillations" count karna bekaar hai. Amplitude 1 / e 1/e 1/ e Q / π Q/\pi Q / π
Teesra roop sabse useful hai radio aur circuits ke liye: Q = f 0 / Δ f Q=f_0/\Delta f Q = f 0 /Δ f Δ f \Delta f Δ f
