Visual walkthrough — Q factor — quality of oscillator

Step 1 — A wobble that never dies: pure oscillation

WHAT. Start with the friendliest possible motion: something that swings back and forth forever, never losing energy. A mass on a spring with no friction. Its position $x$ (how far from the middle) traces a smooth wave in time.

WHY start here. Before we can measure how quickly an oscillator dies, we must first draw the oscillator that doesn't die. That perfect wave is our ruler. Everything after this is "the same wave, but shrinking." This is the SHM baseline.

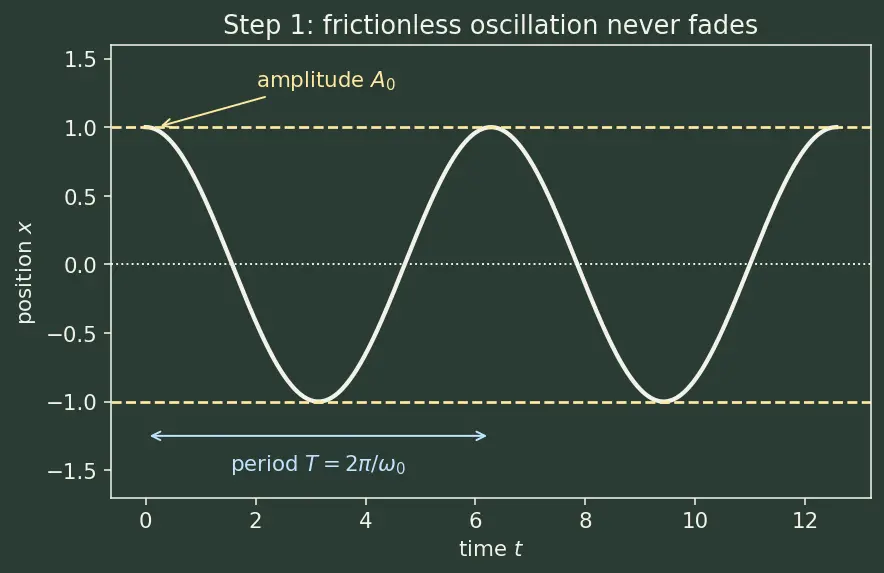

PICTURE.

The motion is $x(t)=A_0\cos ({\omega }_{0}t).$

Let me name every piece, right where it sits:

• $x(t)$ — the position at time $t$ (up–down axis of the picture).
• $A_0$ — the amplitude: the biggest distance from the middle. In the picture it's the height of the highest peak. It never changes here.
• $\cos (\cdot )$ — the wave shape. Cosine starts at $1$ (fully to one side) and rocks between $+1$ and $-1$.
• ${\omega }_0$ — the natural angular frequency: how fast the phase spins, in radians per second. Bigger ${\omega }_0$ ⇒ peaks packed closer together.

One full back-and-forth takes a period $T=\frac{2\pi }{{\omega }_0}$ (the phase must advance by $2\pi$ radians to return home).

Step 2 — Let friction in: the equation of motion

WHAT. Now add friction — a drag force that always opposes motion and grows with speed. Newton's law ($\text{mass}\times \text{acceleration}=\text{sum of forces}$) becomes a rule the motion must obey.

WHY. A door slam and a church bell are the same physics with different friction. To capture "how good" the oscillator is, we need the friction term in the equation, because that's the term that eventually kills the wave. This is Damped Harmonic Motion.

PICTURE.

Three forces act on the mass: $\underset{\text{mass}\times \text{accel}}{\underbrace{m\ddot{x}}}=\underset{\text{spring pulls back}}{\underbrace{-kx}}\underset{\text{drag opposes motion}}{\underbrace{-b\dot{x}}}.$

Every symbol:

• $\dot{x}$ (x with one dot) — the velocity, how fast position changes. In the picture, the slope of the wave.
• $\ddot{x}$ (x with two dots) — the acceleration, how fast the velocity changes.
• $-kx$ — the spring restoring force. Minus sign: pull is always back toward the middle.
• $-b\dot{x}$ — the drag. Minus sign: it always fights the current motion. $b$ is the damping constant (kg/s): bigger $b$, stronger brake.

Move everything to one side and divide by $m$: $\ddot{x}+\gamma \dot{x}+{\omega }_0^{2}x=0,\boxed{\gamma \equiv \frac{b}{m}},{\omega }_0^2=\frac{k}{m}.$

Step 3 — Guess the shape: a shrinking wave

WHAT. We need the actual motion $x(t)$. We guess $x=e^{\lambda t}$ (an exponential) and let the equation tell us what $\lambda$ must be.

WHY an exponential? Because $e^{\lambda t}$ is the one function whose derivative is itself times a constant. That turns the calculus equation into ordinary algebra — the derivatives just pull down copies of $\lambda$. It's the right tool precisely because it converts "rates of change" into "multiply by $\lambda$." No other simple function does that.

Plug $x=e^{\lambda t}$ in. Each dot brings down one $\lambda$: ${\lambda }^2+\gamma \lambda +{\omega }_0^2=0.$

Solve this quadratic (the standard formula for $a{\lambda }^2+b\lambda +c$): $\lambda =-\frac{\gamma }{2}\pm \underset{\text{decides the case}}{\underbrace{\sqrt{\frac{{\gamma }^2}{4}-{\omega }_0^2}}}.$

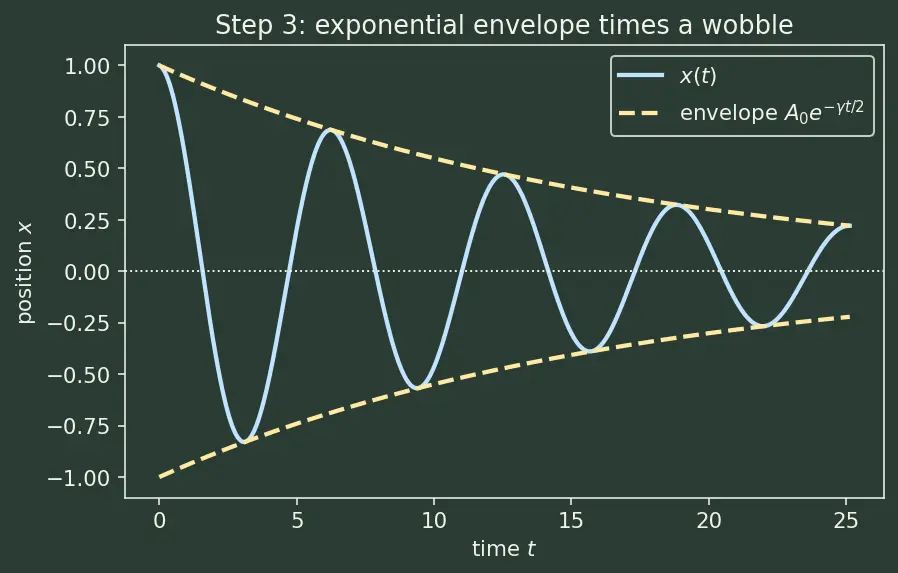

PICTURE.

Read the two parts of $\lambda$:

• The real part $-\gamma /2$ is always there. It's the shrink rate — the reason the wave fades.
• The square-root part decides everything else. If ${\omega }_0>\gamma /2$, the inside is negative, so the root is imaginary: $\pm i{\omega }_d$ where ${\omega }_d=\sqrt{{\omega }_0^2-{\gamma }^2/4}$. Imaginary exponent means oscillation (Euler's rule $e^{i\theta }=\cos \theta +i\sin \theta$).

For light damping (friction gentle enough to still swing) we get: $\boxed{x(t)=A_0{e}^{-\gamma t/2}\cos ({\omega }_{d}t).}$

Symbol by symbol:

• $e^{-\gamma t/2}$ — the envelope: the shrinking height. Its shrink rate is $\gamma /2$.
• $\cos ({\omega }_{d}t)$ — the wobble inside the envelope.
• ${\omega }_d\approx {\omega }_0$ when damping is light, so the wobble looks almost like Step 1's — just fading.

Step 4 — The three damping cases (leave no scenario unshown)

WHAT. The sign of that square-root term ${\gamma }^2/4-{\omega }_0^2$ splits reality into three worlds. We must show all three, because $Q$ only counts oscillations in one of them.

WHY. A reader who only sees the ringing case will wrongly apply $Q={\omega }_0/\gamma$ to a car suspension (which shouldn't wobble at all). The formula's home is the underdamped world; the others are its boundaries.

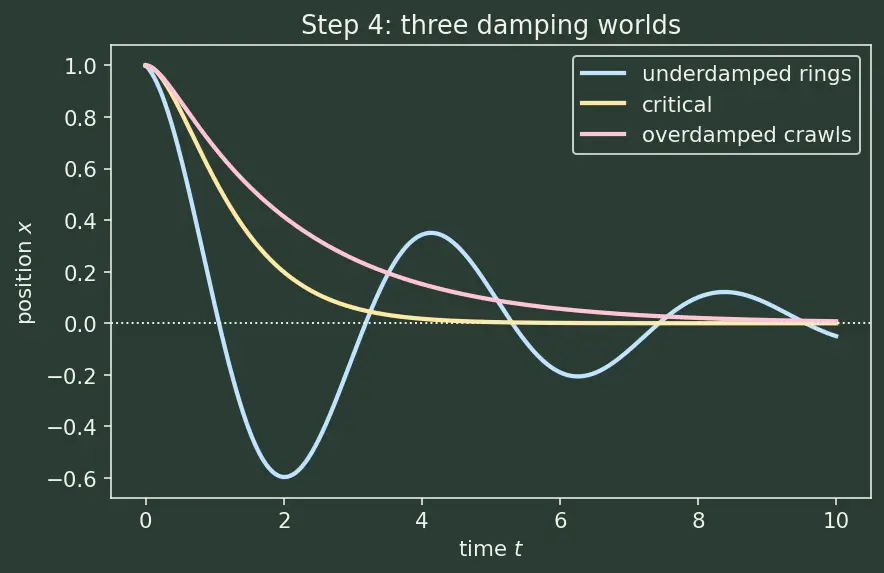

PICTURE.

The boundary $\gamma =2{\omega }_0$ corresponds to ${\omega }_0/\gamma =\frac{1}{2}$ — a preview that $Q={\omega }_0/\gamma$ and $Q=\frac{1}{2}$ marks the edge of "no more ringing."

Step 5 — From amplitude to energy: square the envelope

WHAT. Turn the shrinking height into shrinking energy, because $Q$ is defined by energy, not amplitude.

WHY energy? Because the definition of $Q$ (parent note) is an energy ratio. Also energy is what we feel dying — the swing's vigour. So we must translate the picture's envelope into an energy curve. The link is: energy stored in an oscillator is proportional to amplitude squared (see Energy in Oscillations — a stretched spring stores $\frac{1}{2}k{x}^2$).

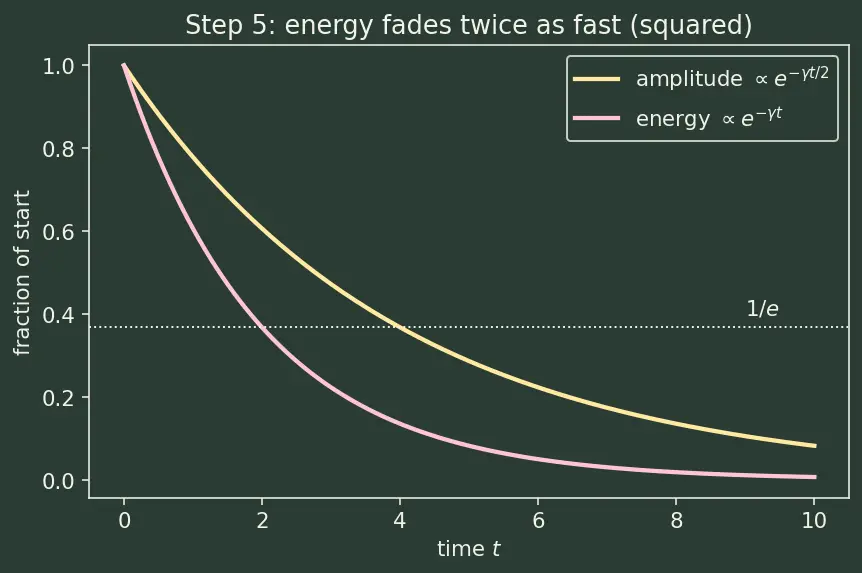

PICTURE.

The height is $A(t)=A_0{e}^{-\gamma t/2}$. Square it: $E(t)\propto A(t{)}^2=A_0^2{\left(e^{-\gamma t/2}\right)}^2=E_0{e}^{-\gamma t}.$

Notice the shrink rate doubled: amplitude fades at rate $\gamma /2$, energy at rate $\gamma$. That factor of two is why the amplitude-$1/e$ time and the energy-$1/e$ time differ — a source of endless confusion, now visible.

• $E_0$ — the starting energy (top of the pink energy curve).
• $e^{-\gamma t}$ — energy's own envelope, steeper than amplitude's.

Step 6 — Energy lost in one cycle

WHAT. Compute the fraction of energy leaked during one single period $T$.

WHY. The definition of $Q$ compares energy stored to energy lost per cycle. So we need "how much does $E$ drop in one back-and-forth?"

PICTURE.

After one period $T=2\pi /{\omega }_0$, the energy is $E(T)=E_0{e}^{-\gamma T}$. The fraction lost: $\frac{\Delta E}{E}=\frac{E_0-E_0{e}^{-\gamma T}}{E_0}=1-e^{-\gamma T}.$

For light damping $\gamma T$ is tiny, and $e^{-x}\approx 1-x$ for small $x$, so: $\frac{\Delta E}{E}\approx \gamma T=\gamma \cdot \frac{2\pi }{{\omega }_0}.$

Term by term:

• $\Delta E$ — the little bite taken out per cycle (shaded slice in the figure).
• $1-e^{-\gamma T}$ — exact fractional loss; the curved drop.
• $\gamma T$ — the straight-line (tangent) approximation, valid only when the slice is thin.

Step 7 — Assemble $Q={\omega }_0/\gamma$

WHAT. Drop our cycle-loss into the definition and simplify.

WHY. This is the payoff: the energy definition and the damping ratio become the same number.

PICTURE.

Start from the definition: $Q=2\pi \times \frac{E}{\Delta E}=2\pi \times \frac{1}{\gamma T}.$

Substitute $T=2\pi /{\omega }_0$: $Q=2\pi \times \frac{1}{\gamma }\cdot \frac{{\omega }_0}{2\pi }=\frac{{\omega }_0}{\gamma }.$

The $2\pi$ from the definition and the $2\pi$ inside $T$ cancel — the picture circles them. What survives is the pure ratio of swing-rate to loss-rate: $\boxed{Q=\frac{{\omega }_0}{\gamma }=\frac{m{\omega }_0}{b}=\frac{\sqrt{mk}}{b}.}$

• ${\omega }_0/\gamma$ — "how eager to swing" ÷ "how fast friction brakes." Exactly our Step 2 intuition.
• $m{\omega }_0/b$ — put $\gamma =b/m$ back in.
• $\sqrt{mk}/b$ — put ${\omega }_0=\sqrt{k/m}$ in: $m\sqrt{k/m}=\sqrt{mk}$.

Step 8 — The same number as resonance sharpness

WHAT. Now drive the oscillator with a wiggling force at frequency $\omega$ and watch the steady response. The peak's narrowness is — surprisingly — the very same $Q$.

WHY show this. A radio tuner never "rings down"; it sits in a driven state picking one station. We must connect the ring-down $Q$ to the sharpness $Q$ so the reader trusts they're one number. This is Resonance & Forced Oscillations.

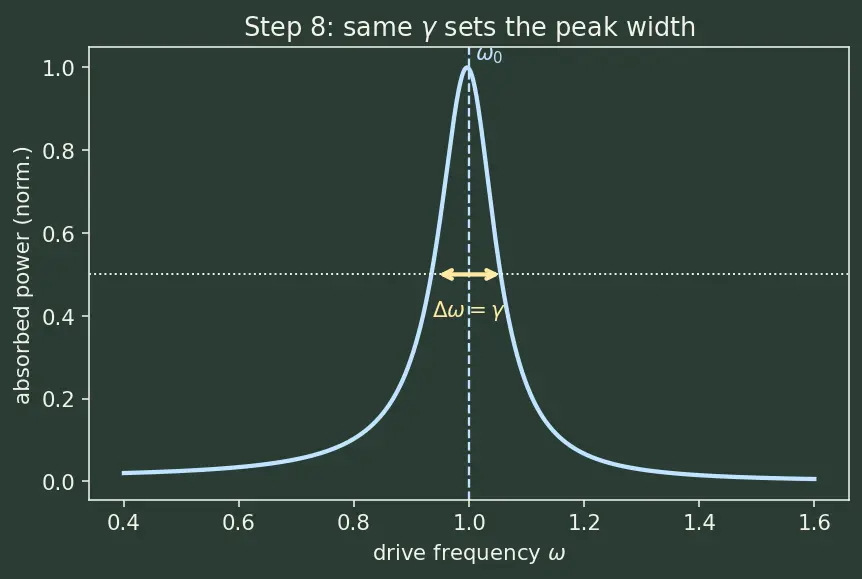

PICTURE.

The power the oscillator absorbs versus drive frequency is a Lorentzian hump peaking at ${\omega }_0$: $P(\omega )\propto \frac{1}{({\omega }^2-{\omega }_0^2{)}^2+{\gamma }^2{\omega }^2}.$

The full width at half maximum (how wide the hump is at half its peak height) is $\Delta \omega =\gamma .$

So dividing the peak's location by its width: $\boxed{Q=\frac{{\omega }_0}{\Delta \omega }=\frac{f_0}{\Delta f}.}$

• ${\omega }_0$ — where the hump peaks (blue dashed line).
• $\Delta \omega =\gamma$ — the width at half-height (yellow bar). Same $\gamma$ as the ring-down decay rate — that's the whole trick.
• Narrow hump ⇒ big $Q$ ⇒ selective tuner; fat hump ⇒ small $Q$ ⇒ mushy. See RLC Circuits for $Q=\frac{1}{R}\sqrt{L/C}$, the electrical twin.

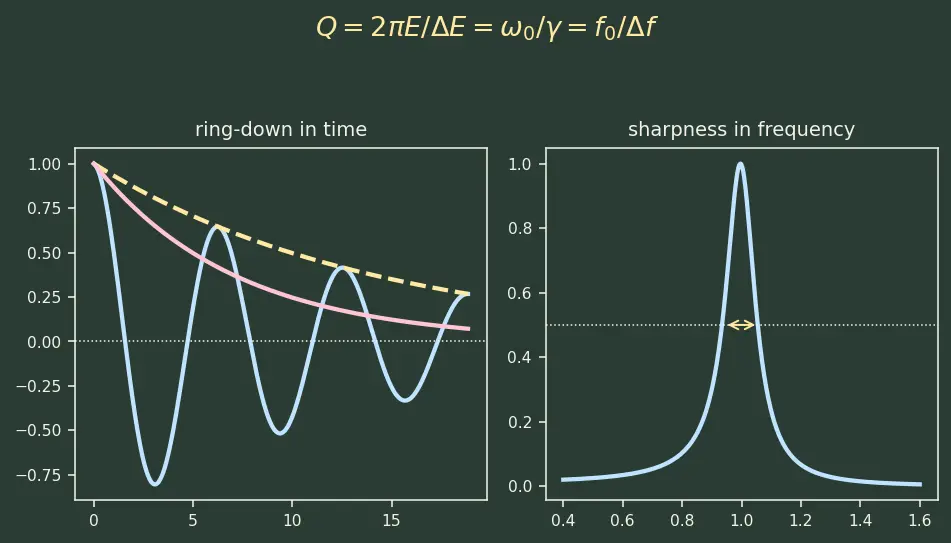

The one-picture summary

Everything collapses into one frame: the fading wave (Step 3) with its squared energy envelope (Step 5), the per-cycle bite (Step 6) feeding the definition (Step 7), and — mirrored on the right — the resonance hump of width $\gamma$ (Step 8). All three arrows point at one boxed number: $Q={\omega }_0/\gamma$.

$\underset{\text{energy}}{\underbrace{2\pi \frac{E}{\Delta E}}}=\underset{\text{ring-down}}{\underbrace{\frac{{\omega }_0}{\gamma }}}=\underset{\text{bandwidth}}{\underbrace{\frac{f_0}{\Delta f}}}=Q.$

Quick self-check

Fill each blank before revealing:

Connections

• Simple Harmonic Motion — the frictionless ruler wave of Step 1.
• Damped Harmonic Motion — the equation and $e^{-\gamma t/2}$ envelope of Steps 2–3.
• Energy in Oscillations — why $E\propto A^2$ (Step 5).
• Resonance & Forced Oscillations — the bandwidth face (Step 8).
• RLC Circuits — the electrical version, $Q=\frac{1}{R}\sqrt{L/C}$.
• Q factor — quality of oscillator — the parent topic this walkthrough serves.
