Foundations — ω, T, f relationships

Before you can convert between $T$, $f$, and $\omega$, you must be able to read every mark on the page. Below is every symbol and idea the parent note leans on, ordered so each one is built only from things already explained.

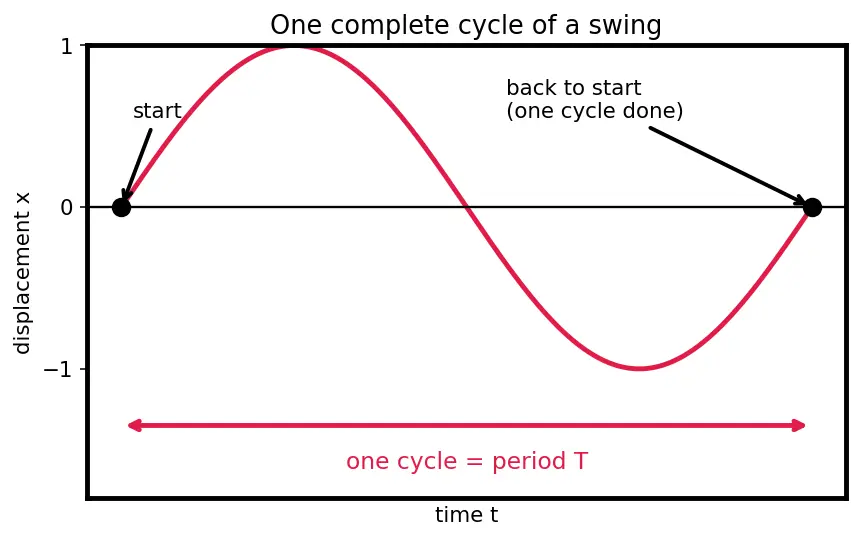

1. What "one cycle" means

Picture a child on a swing. She starts at the far-left, swings through the bottom to the far-right, and comes all the way back to the far-left moving the same direction. That whole out-and-back journey is one cycle. If you only watched her go left-to-right, that is half a cycle — she is not yet "ready to repeat".

Why the topic needs it: every one of the three quantities is defined by counting or timing cycles. If "cycle" is fuzzy, all three become fuzzy.

2. Time $t$ and the symbol for seconds

There is nothing mysterious here: $t$ is what a stopwatch reads. When we later write $x(t)$, the "$(t)$" means "the value at the moment $t$ seconds" — read it aloud as "$x$ at time $t$".

Why the topic needs it: $T$, $f$, and $\omega$ are all rates or durations — they all compare something to time, so time is the ruler everything is measured against.

3. Period $T$ — seconds per cycle

On the swing: if one full out-and-back takes 2 seconds, then $T=2\text{s}$. It is a duration — a length of time.

Why the topic needs it: $T$ answers the question "how long for one cycle?" — the most stopwatch-friendly description of rhythm.

4. Frequency $f$ — cycles per second, and the unit hertz

The little "$-1$" in ${\text{s}}^{-1}$ means "per second" — it is $\frac{1}{\text{s}}$. So $\text{Hz}$ and ${\text{s}}^{-1}$ are the same unit, just written two ways.

If one cycle takes half a second ($T=0.5\text{s}$), you fit two cycles into each second, so $f=2\text{Hz}$. Notice $f$ and $T$ are flip-sides of the same fact:

$f=\frac{1}{T}$

Why the topic needs it: $f$ is the natural language for "how fast is it going?" — bigger $f$ means faster repetition.

5. What an angle is, and why we measure it in radians

Here comes the idea most people have never truly seen. Angular frequency $\omega$ talks about a swept angle, so first: what is an angle, measured the physicist's way?

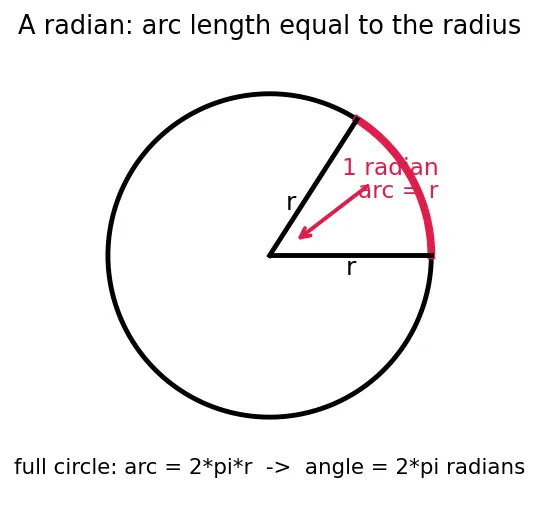

Why measure angles this way instead of degrees? Because it ties the angle directly to distance travelled along the circle. If you go all the way around a full circle, the arc length is the whole circumference $2\pi r$. Divide by the radius $r$:

$\text{full turn}=\frac{2\pi r}{r}=2\pi \text{radians}.$

Why the topic needs it: $\omega$ measures angle per second, and calculators do calculus/trig cleanly only in radians. The famous factor $2\pi$ IS "one cycle in radian language".

6. The circle–oscillation link (where $\omega$ is born)

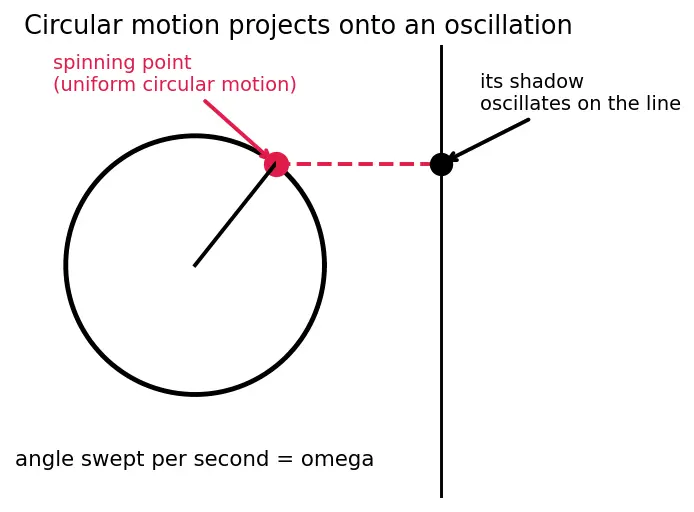

Watch the red dot go around the circle at steady speed while its shadow (the black dot on the line) slides back and forth. One full lap of the dot = one full cycle of the shadow. This is why an angle sneaks into oscillations at all: the honest, spinning source of the motion is a point sweeping an angle.

Since one lap sweeps $2\pi$ radians and takes one period $T$:

$\omega =\frac{\text{angle in one cycle}}{\text{time for one cycle}}=\frac{2\pi }{T}.$

Why the topic needs it: $\omega$ is the quantity that appears inside the maths of oscillations (see next section), so we must connect the stopwatch quantities $T,f$ to it.

7. The cosine curve and phase $\varphi$

The parent writes $x(t)=A\cos (\omega t+\varphi )$. Let us name every mark.

Why cosine and not just a straight line? Because cosine is exactly the horizontal shadow of a point going round a circle — so it repeats forever between $\pm 1$, matching a swing that goes forever between $\pm A$. The input to cosine is an angle in radians; that is why $\omega t$ (radians-per-second $\times$ seconds $=$ radians) fits right in.

Why the topic needs it: this equation is where $\omega$ is "used" — matching it to real numbers is half the worked examples on the parent page. $\varphi$ is what links this page to Phase and Phase Difference.

How the foundations feed the topic

Equipment checklist

Test yourself — cover the right side and answer before revealing.

Connections

• Uniform Circular Motion — the spinning point that gives birth to $\omega$ and the $2\pi$.
• Simple Harmonic Motion — where $x=A\cos (\omega t+\varphi )$ lives.
• Phase and Phase Difference — the phase $\omega t+\varphi$ and the constant $\varphi$.
• Wave Speed v = fλ — frequency $f$ carried into the spatial picture.
• Springs and Pendulums — real systems whose $T$, $f$, $\omega$ you compute.
