ω, T, f relationships

WHAT are these three quantities?

WHY do they relate the way they do? (Derive from scratch)

Step 1 — $f$ and $T$ are inverses.

Why this step? Frequency counts cycles per second; period is seconds per cycle. If one cycle takes $T$ seconds, then in 1 second you fit $1/T$ cycles. That number is the frequency.

$f = \frac{\text{cycles}}{\text{time}} = \frac{1}{T} \qquad\Longrightarrow\qquad T = \frac{1}{f}$

Step 2 — Where does $\omega$ come from?

Why this step? Oscillation is the shadow (projection) of uniform circular motion. Picture a point going around a circle at constant speed. One full lap = one full cycle of the oscillation. Going around a circle sweeps an angle of $2\pi$ radians.

So in one period $T$, the angle swept is $2\pi$. The rate of sweeping angle is:

$\omega = \frac{\text{angle swept}}{\text{time taken}} = \frac{2\pi}{T}$

Step 3 — Combine with Step 1.

Why this step? Substitute $T = 1/f$ to express $\omega$ via frequency.

$\boxed{\,\omega = \frac{2\pi}{T} = 2\pi f\,}$

HOW it shows up in SHM

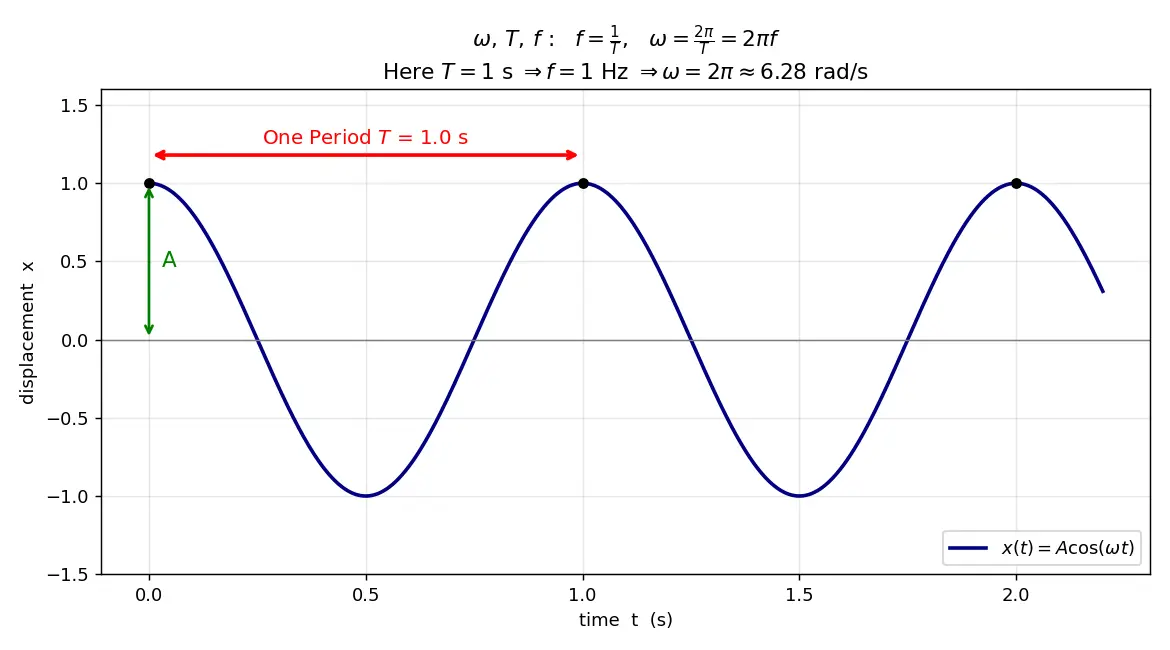

For simple harmonic motion $x(t) = A\cos(\omega t + \phi)$:

• The argument of cosine, $(\omega t + \phi)$, is the phase in radians.
• One full cycle happens when phase advances by $2\pi$, i.e. when $t$ advances by $T = 2\pi/\omega$. ✔ consistent.
• $\omega$ is what appears inside the trig function; $f$ and $T$ describe what you measure with a stopwatch.

Worked Examples

Common Mistakes (Steel-manned)

Active Recall Flashcards

Connections

• Simple Harmonic Motion — $\omega$ sits inside $x=A\cos(\omega t)$.
• Uniform Circular Motion — the source of the $2\pi$ and of $\omega$.
• Phase and Phase Difference — phase $=\omega t + \phi$ measured in radians.
• Wave Speed v = fλ — frequency links time-rhythm to spatial wavelength.
• Springs and Pendulums — formulas like $\omega=\sqrt{k/m}$ feed into $T,f$.

Concept Map

Hinglish (regional understanding)
