Visual walkthrough — Torque τ = r × F — definition, physical meaning

We will use only three plain ideas along the way, and each is drawn before it is used:

• a pivot (the fixed point something spins around),
• a position arrow $\vec{r}$ (from pivot to where you push),
• a force arrow $\vec{F}$ (your push).

---

Step 1 — Set the stage: pivot, arm, push

WHAT. We draw the whole cast of characters. A green dot is the pivot — the fixed point everything rotates about. From it, a blue arrow $\vec{r}$ points to the spot where a hand pushes. A yellow arrow $\vec{F}$ is that push.

WHY. Before any formula, we must agree where things start. The single most common error is measuring $\vec{r}$ from the wrong place. So we nail it down: $\vec{r}$ always starts at the pivot and ends at the point where the force touches. If you move the pivot, $\vec{r}$ changes, and so does the twist.

PICTURE.

---

Step 2 — The experiment that reveals what matters

WHAT. We repeat one push in three ways and watch the door: (a) push far and sideways, (b) push near the pivot, (c) push straight along $\vec{r}$ toward the pivot.

WHY. We don't yet know the formula — so we let the physics tell us which ingredients matter. The door answers clearly: far + sideways spins best; near the pivot spins weakly; pushing along $\vec{r}$ spins not at all. That last case is the golden clue: whatever formula we build must give zero when $\vec{F}$ lines up with $\vec{r}$.

PICTURE.

---

Step 3 — Split the force: which part actually spins?

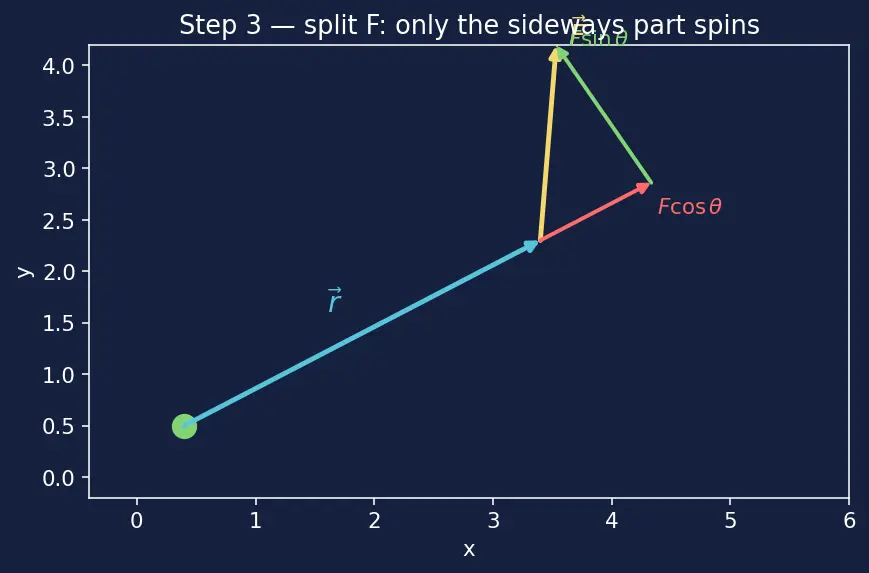

WHAT. We break the yellow force $\vec{F}$ into two arrows: one along $\vec{r}$ (radial, red) and one perpendicular to $\vec{r}$ (tangential, green). Right-triangle trigonometry gives their lengths.

WHY. The radial part pushes the point straight toward (or away from) the pivot — it can only stretch or squash the arm, never circle it. Only the perpendicular part curves the motion. To find each length we use a right triangle where $\vec{F}$ is the hypotenuse and $\theta$ sits between $\vec{F}$ and $\vec{r}$.

The side along $\vec{r}$ is the adjacent side, so $F_{\parallel }=F\cos \theta ,$ and the side perpendicular to $\vec{r}$ is the opposite side, so $F_{\perp }=\underset{\text{how hard}}{\underbrace{F}}\underset{\text{fraction that is sideways}}{\underbrace{\sin \theta }}.$

• $F$ — full push strength.
• $\sin \theta$ — the fraction of it pointing sideways (opposite over hypotenuse).
• $F_{\perp }$ — the only part that spins the door.

PICTURE.

---

Step 4 — Picture 1: distance times the sideways force

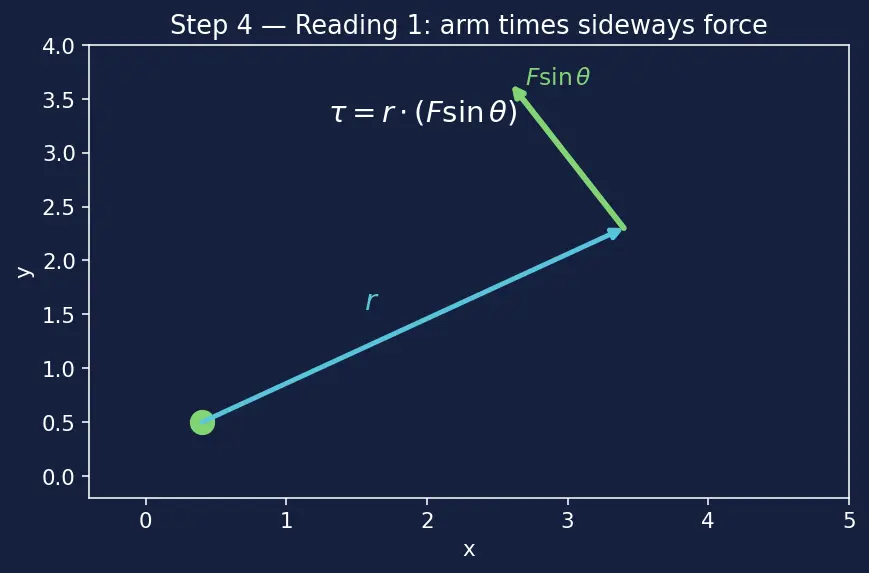

WHAT. We combine the full arm length $r$ with the spinning part $F_{\perp }$ from Step 3: $\tau =r{F}_{\perp }=r(F\sin \theta ).$

WHY. This is the most direct reading of "far + sideways". A longer arm $r$ multiplies the effect of the same sideways push — that is the door handle beating the hinge-side push.

• $r$ — length of the blue arm (metres).
• $F\sin \theta$ — the green sideways force from Step 3 (newtons).
• $\tau$ — their product, the twist (newton-metres).

PICTURE.

---

Step 5 — Picture 2: the moment arm (perpendicular distance)

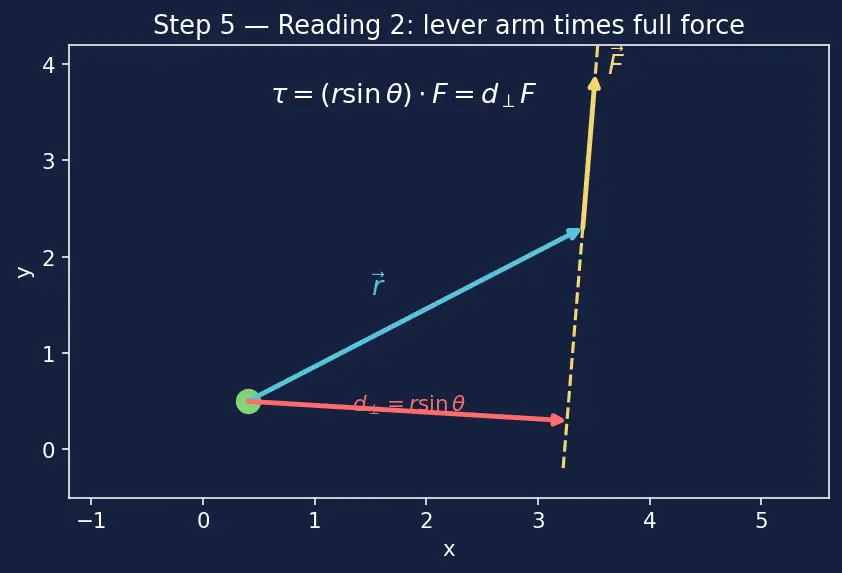

WHAT. Now we bundle the $\sin \theta$ with $r$ instead of with $F$: $\tau =(r\sin \theta )F=d_{\perp }F.$ The quantity $d_{\perp }=r\sin \theta$ is the perpendicular distance from the pivot to the line of action of the force — the dashed red segment in the figure.

WHY. Multiplication doesn't care how we group the numbers, so $r(F\sin \theta )$ and $(r\sin \theta )F$ are the same number. But the stories differ. Here we imagine sliding the force along its own line and dropping a perpendicular from the pivot onto that line. That perpendicular is the true "lever" the force gets to work with.

• $\vec{F}$'s line of action — extend the yellow arrow both ways (dashed yellow).
• $d_{\perp }=r\sin \theta$ — shortest (perpendicular) distance from pivot to that line (dashed red).
• $F$ — full force strength, no splitting needed now.

PICTURE.

---

Step 6 — The area picture: why the cross product

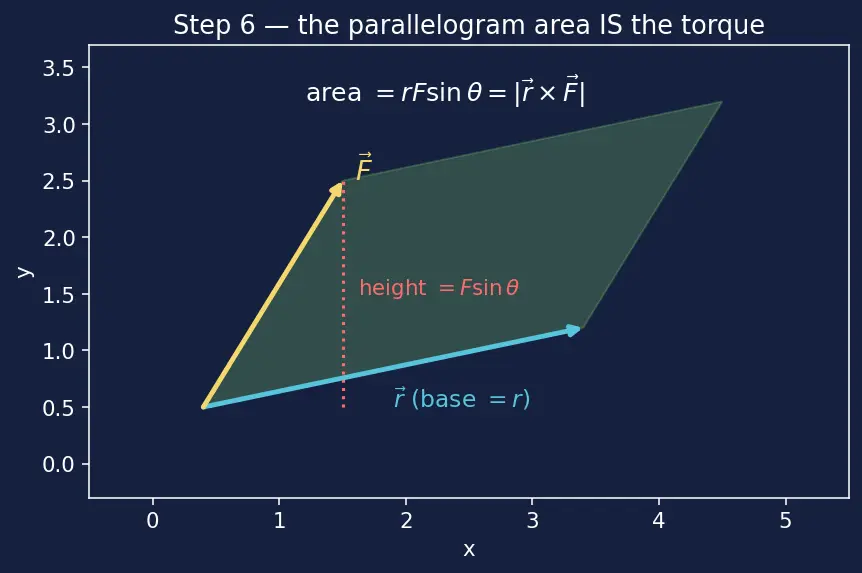

WHAT. Lay the parallelogram spanned by $\vec{r}$ and $\vec{F}$. Its base is $r$ and its height is $F\sin \theta$, so its area is $\text{area}=rF\sin \theta =\tau .$ This is exactly the magnitude of the cross product $\vec{r}\times \vec{F}$.

WHY. We want a single mathematical machine that (i) multiplies $r$ and $F$, (ii) fades to zero when they line up, and (iii) also hands us a direction (an axis to spin about). The parallelogram area does (i) and (ii) automatically — a flat, collapsed parallelogram has zero area, matching Step 2's zero-twist case. The cross product packages this area and points along the axis, which is why $\vec{\tau }=\vec{r}\times \vec{F}$ is the natural definition, not a lucky guess.

• base $=r$ — one side of the parallelogram.
• height $=F\sin \theta$ — how far the other side rises above the base.
• area $=rF\sin \theta$ — the twist magnitude.

PICTURE.

---

Step 7 — The direction: which way does it point?

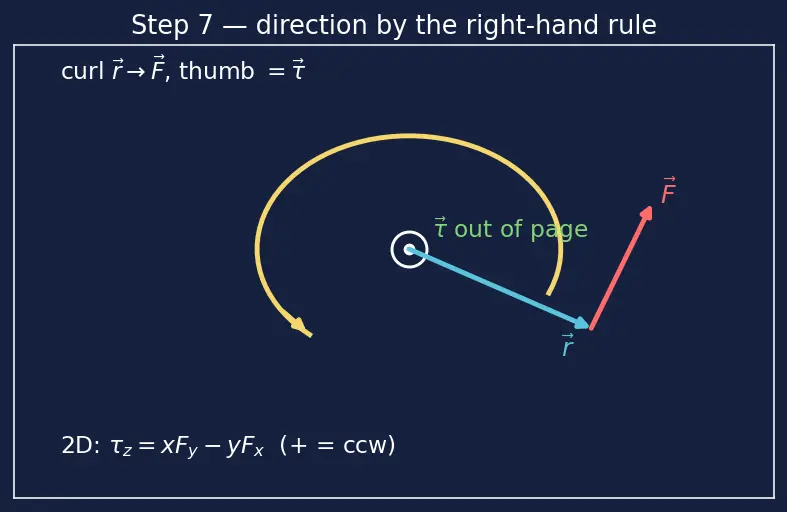

WHAT. The area gives a number; a spin also needs an axis and a sense. The right-hand rule supplies it: curl the fingers of your right hand from $\vec{r}$ toward $\vec{F}$; your thumb points along $\vec{\tau }$.

WHY. A rotation lives in a plane, but the cleanest way to name a plane is by the line sticking straight out of it. That line is the torque vector. In a flat 2D problem this collapses to a single sign: ${\tau }_z=\underset{\text{ccw part}}{\underbrace{x{F}_y}}-\underset{\text{cw part}}{\underbrace{y{F}_x}},$ where $(x,y)$ are the components of $\vec{r}$ and $(F_x,F_y)$ those of $\vec{F}$.

• $+$ (out of page) → anticlockwise spin.
• $-$ (into page) → clockwise spin.

PICTURE.

---

Step 8 — All the special cases in one sweep

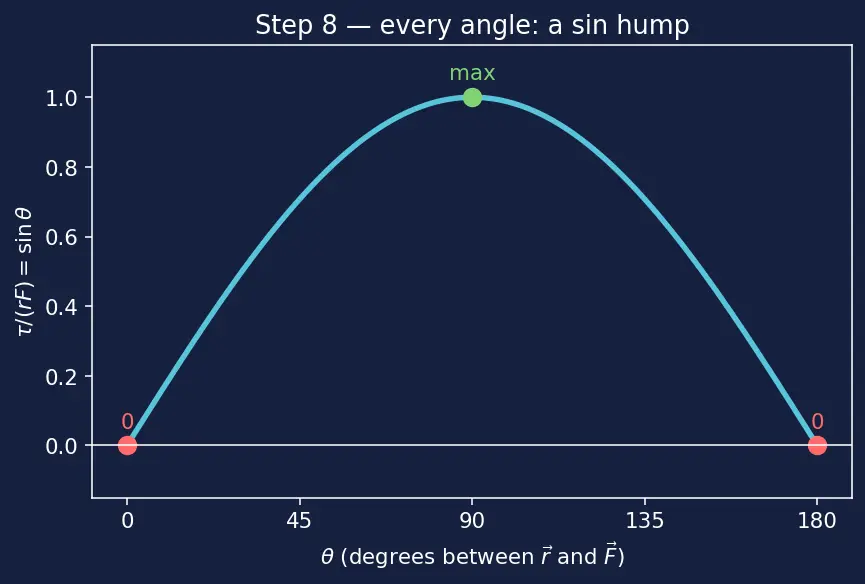

WHAT. We rotate $\vec{F}$ around a fixed arm $\vec{r}$ and watch $\tau =rF\sin \theta$ at the tricky angles.

WHY. A formula you trust is one whose edge cases you have seen. We check every corner so no scenario surprises you.

$\theta$	$\sin \theta$	$\tau$	What it looks like
$0^{\circ }$	$0$	$0$	Push straight out along $\vec{r}$ — no spin (Step 2 clue).
$90^{\circ }$	$1$	$rF$ (max)	Pure sideways push — strongest twist.
$180^{\circ }$	$0$	$0$	Push straight in toward pivot — no spin.
$0<\theta <90^{\circ }$	between	rising	Partly sideways — partial twist, $+$ sense.
$90^{\circ }<\theta <180^{\circ }$	falling	falling	Still $+$ sense, but weakening.
$r=0$	—	$0$	Push at the pivot itself — no arm, no twist.
$F=0$	—	$0$	No push, no twist.

PICTURE.

---

Numeric checkpoint

---

The one-picture summary

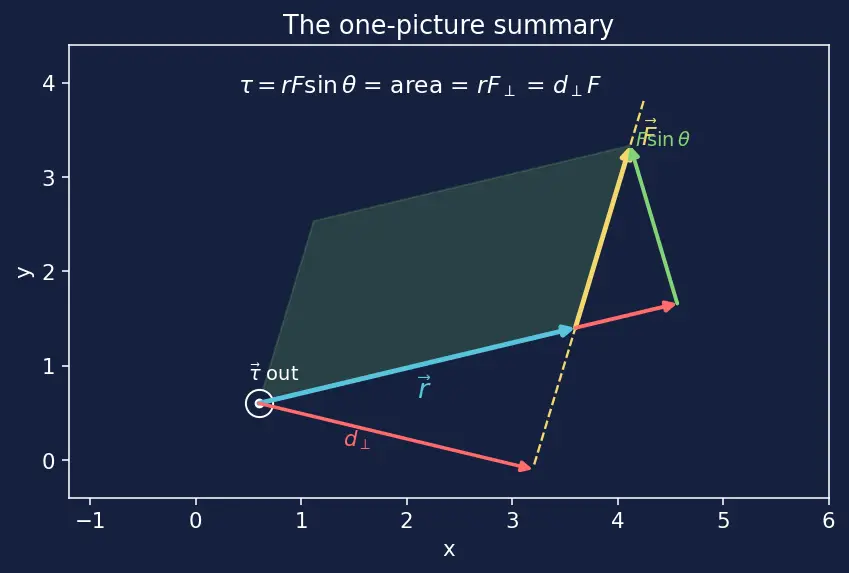

WHAT. One figure holds the whole story: the arm $\vec{r}$, the force $\vec{F}$, the split into $F\sin \theta$ and $F\cos \theta$, the lever arm $d_{\perp }=r\sin \theta$, the shaded parallelogram of area $rF\sin \theta$, and the torque vector $\vec{\tau }$ coming out of the page.

Recall Feynman retelling — the whole walkthrough in plain words

Put your finger on a green dot; that's the spinning point. Draw an arrow to where you push (that's the arm), and another arrow for the push itself. Now try it three ways and you learn the rules: push far and sideways for lots of spin, push near the dot for barely any, and push straight toward the dot for none. So the only part of your push that matters is the sideways part, which trig calls $F\sin \theta$. Multiply that sideways push by the arm length and you get the twist: $rF\sin \theta$. You can also read it backwards — keep the full push but measure only the shortest distance from the dot to the push's line; multiply those and you get the very same number. And if you draw the arm and the push as two sides of a slanted box, the twist is just the area of that box — which is exactly what the cross product measures, and it even tells you the spin axis by pointing your right thumb. The box goes flat (zero area, zero twist) precisely when you push along the arm. That single box is torque.

Recall Where this connects

The direction machinery: Cross Product (Vector Algebra). What torque does once you have it: Newton's Second Law for Rotation, Angular Momentum, Equilibrium of Rigid Bodies, and Work-Energy Theorem (Rotational). The role of the arm's mass distribution: Moment of Inertia and Center of Mass & Gravity.

---
