Visual walkthrough — Motion of centre of mass — external force determines a_CM

Before any symbols, four plain words we will keep re-using:

---

Step 1 — Where is the balance point?

WHAT. We place a few dots of different masses on a line and ask: at which single spot does the whole set balance, like a see-saw?

WHY. Every later step is about this one point moving. So we must first pin down what the point is — the mass-weighted average position, not the plain midpoint.

PICTURE. In the figure the light dot (small $m$) sits left, the heavy red dot (big $m$) sits right. The balance point (black triangle underneath) sits close to the heavy one. That closeness is the whole story of "mass-weighted".

---

Step 2 — Clear the fraction

WHAT. Multiply both sides of the definition by $M$ so no fraction is left.

WHY. In the next steps we will take rates of change (see Step 3). Fractions with $M$ on the bottom make that messy; $M$ is a constant, so moving it up front keeps everything clean.

PICTURE. Think of it as scaling the balance-point arrow up by the factor $M$ until it exactly equals the tip-to-tail sum of all the small $m_i{\vec{r}}_i$ arrows. The figure stacks those weighted arrows and shows the single $M{\vec{R}}_{CM}$ arrow reaching the same tip.

---

Step 3 — Watch it move (velocity)

WHAT. Let time run. Each dot's position arrow ${\vec{r}}_i$ changes; its rate of change is its velocity ${\vec{v}}_i$. We take the rate of change of both sides of Step 2's equation.

WHY — and why this exact tool. "Rate of change over time" is what a derivative measures: how fast an arrow's tip moves. We use it (and not, say, just subtracting positions) because we want the instantaneous speed of the balance point, valid at every instant, not an average over a chunk of time. Writing ${\vec{v}}_i$ for "rate of change of ${\vec{r}}_i$" is exactly that.

PICTURE. Each dot now trails a velocity arrow. The balance point trails its own arrow ${\vec{V}}_{CM}$. The figure shows the red dot rushing right, a light dot drifting left, and the resulting ${\vec{V}}_{CM}$ leaning toward the heavier motion.

---

Step 4 — Watch it accelerate (force enters)

WHAT. Take the rate of change once more. The rate of change of velocity ${\vec{v}}_i$ is the acceleration ${\vec{a}}_i$; the rate of change of ${\vec{V}}_{CM}$ is ${\vec{a}}_{CM}$.

WHY. We want the force controlling the balance point. Force links to acceleration through Newton's 2nd law ${\vec{F}}_i=m_i{\vec{a}}_i$ — so we differentiate again to make accelerations (and hence forces) appear.

PICTURE. Now each dot carries a force arrow (what pushes it). The figure shows all these push-arrows on the dots, and a single net push-arrow on the balance point. We haven't sorted the pushes yet — that's Step 5.

---

Step 5 — Split every push: inside vs outside

WHAT. Sort the forces on each dot into two piles: external (from outside the system — gravity, a wall, a hand) and internal (dots pushing each other — springs, strings, collisions).

WHY. Because the two piles behave totally differently. We suspect (Step 6) the internal pile cancels itself. To prove that, we must first separate it out cleanly.

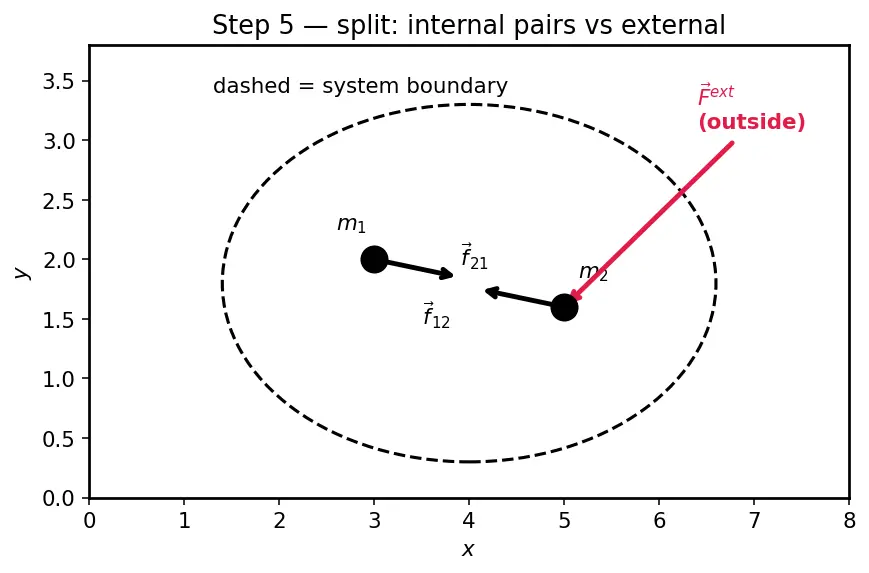

PICTURE. Draw a dashed boundary around the system. Arrows crossing the boundary = external (kept in red). Arrows living entirely inside, dot-to-dot = internal (black pairs). The figure labels one internal pair ${\vec{f}}_{12}$ and ${\vec{f}}_{21}$.

---

Step 6 — The internal pile cancels (the heart)

WHAT. Use Newton's Third Law: dot $j$ pushes dot $i$ with ${\vec{f}}_{ij}$, and dot $i$ pushes back on $j$ with the exact opposite ${\vec{f}}_{ji}=-{\vec{f}}_{ij}$. Every internal push has a twin pointing the other way.

WHY. Add a number and its negative → zero. Do that for every pair → the whole internal pile sums to $\vec{0}$. This is why "internal fights can't move the balance point", no matter how violent.

PICTURE. The figure zooms on two dots joined by a spring: the two force arrows are equal length, opposite direction — laid tip-to-tail they close up to nothing. The red "sum" arrow shrinks to a point.

---

Step 7 — The master result

WHAT. Put Step 6 ($\vec{0}$) back into Step 5, then into Step 4. Only the external pile survives.

WHY. This is the payoff: the balance point of any system — chain, explosion, colliding cars — obeys plain $\vec{F}=M\vec{a}$ using only forces from outside.

PICTURE. All the internal clutter erased; a single red external arrow drives one point of total mass $M$. The messy many-body picture collapses to one dot obeying one law.

---

Step 8 — The edge cases (never left hanging)

WHAT. Check the boundary scenarios so no reader hits an unseen case.

WHY. A derivation you trust must survive its extremes: zero external force, one particle, zero mass.

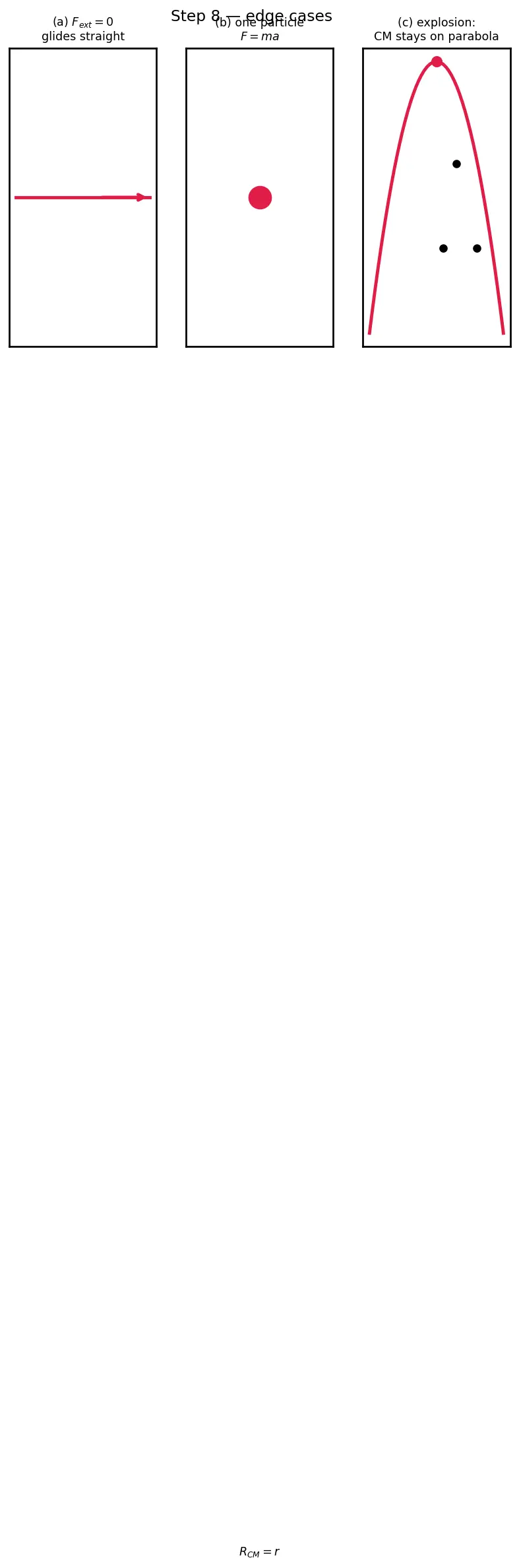

PICTURE. Three mini-panels: (a) ${\vec{F}}_{ext}=\vec{0}$ → balance point glides in a straight line at constant speed; (b) a single particle → ${\vec{R}}_{CM}$ is that particle, formula reduces to ordinary $\vec{F}=m\vec{a}$; (c) an exploding shell → each fragment scatters (black) but the balance point (red) stays on the same parabola.

• Case (b) — one particle only. ${\sum }_i{m}_i{\vec{r}}_i=m\vec{r}$, so ${\vec{R}}_{CM}=\vec{r}$. The balance point sits on the particle and ${\vec{F}}_{ext}=m\vec{a}$ — ordinary Newton, no surprise.
• Case (c) — explosion / collision. All the blast forces are internal → cancel (Step 6). Only gravity (external) remains → ${\vec{a}}_{CM}=\vec{g}$. The CM never leaves its parabola.
• A note on Rocket Propulsion: there mass is ejected, so $M$ changes with time — Step 3's "spectator $M$" no longer holds, and you must track momentum carried by the exhaust. That's why rockets get a whole separate treatment.

---

The one-picture summary

The full journey in a single frame: definition → two rates of change → split forces → internal pairs die → one point, one external force.

Recall Feynman retelling of the whole walkthrough

Picture a gang of friends floating in space, some heavy, some light, tied by springs. Step 1–2: find the gang's balance point — it sits nearer the heavy friends, not the plain middle. Step 3: let time run — the balance point drifts, and its drift equals the gang's total momentum divided by total mass. Step 4: speed up or slow that drift — that needs forces. Step 5: sort forces into "friends shoving each other" (inside) and "someone outside shoving the gang" (outside). Step 6: every inside shove has an equal shove-back, so all the inside shoving cancels to nothing — the gang can thrash forever and the balance point won't care. Step 7: only outside shoves are left, and the balance point moves like one lump of the whole mass, ${\vec{F}}_{ext}=M{\vec{a}}_{CM}$. Step 8: if nobody outside shoves, the balance point just coasts straight; a lone friend is their own balance point; and an exploding shell's balance point rides the same parabola while the pieces scatter.

---

Connections

• Parent topic — Hinglish version
• Newton's Third Law — the equal-and-opposite twin that kills the internal sum (Step 6).
• Conservation of Linear Momentum — the ${\vec{F}}_{ext}=\vec{0}$ case (Step 8a).
• Collisions (Elastic & Inelastic) — internal forces, CM rides through (Step 8c).
• Rocket Propulsion — where $M$ changes and Step 3's spectator trick breaks.
• Rigid Body Dynamics — the balance point of a solid body obeys the same master law.
