Hooke's law — spring force F = −kx: Foundations

Before you can read $F = - k x$ you need to already own eight small ideas. This page builds each one from nothing — plain words first, then a picture, then why the topic can't live without it. Read top to bottom; each idea leans on the one above.

1. Position and displacement — the number $x$

The word "signed" is doing real work. We agree on a direction to call positive:

$x > 0$ → you pulled the spring out (stretched).
$x < 0$ → you pushed the spring in (compressed).
$x = 0$ → home. Nothing pulled or pushed.

Figure — Hooke's law — spring force F = −kx

Look at the number line in the figure: home sits at the middle. Walking right makes $x$ grow positive; walking left makes it grow negative. This is why $x$ is not just "distance" — a plain distance is always positive and could never tell the spring which way to fight. The sign of $x$ carries the direction, and the whole minus-sign story later depends on it.

2. Force — the number $F$ and its sign

$F > 0$ → the force pushes/pulls toward the positive (right) side.
$F < 0$ → the force points toward the negative (left) side.

The single most important habit: $x$ and $F$ share one arrow of "positive." If right is positive for position, right is positive for force too. Mixing up these two conventions is where nearly every sign mistake is born.

In the figure, the spring is stretched right ( $x > 0$ , pale-yellow arrow) and the force it produces points left ( $F < 0$ , pink arrow). Same axis, opposite directions — that opposition is the seed of the minus sign we meet in step 6.

3. Proportionality — the phrase "directly proportional"

We write this as $F \propto x$ , read " $F$ is proportional to $x$ ." The symbol $\propto$ just means "grows in lockstep with, at a fixed rate."

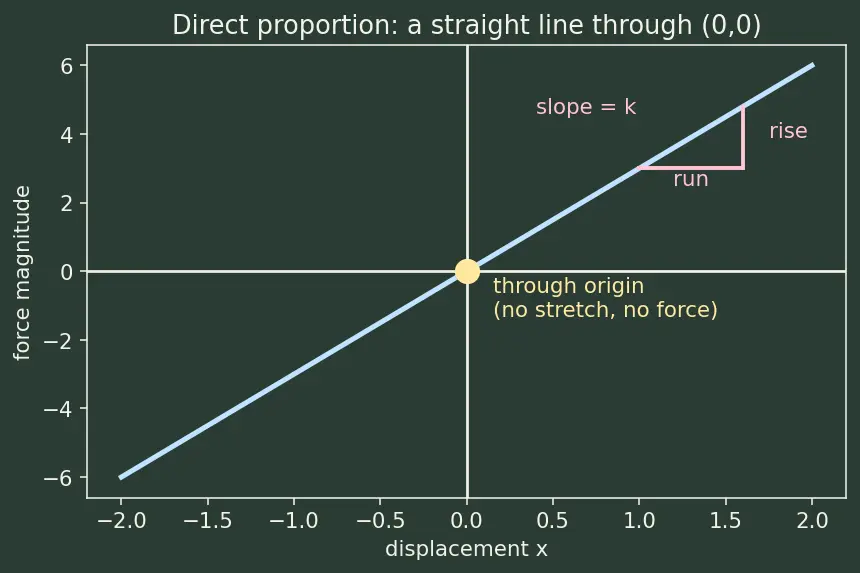

The chalk-blue line in the figure is straight and passes through $(0, 0)$ . Straight-through-origin is the visual signature of proportionality: no bend (that would mean the rate changes) and no offset (at $x = 0$ there is no force, because home means no push).

4. The constant of proportionality — the number $k$

Slope answers "how many extra newtons of force per extra metre of stretch?" $k = \frac{change in force}{change in displacement}$

Big $k$ → steep line → stiff spring (a car suspension).
Small $k$ → shallow line → floppy spring (a slinky).

$k$ is a property of the spring itself — its metal, thickness, number of coils. It does not change as you stretch (as long as you don't overstretch and wreck it). The force changes; the slope does not.

5. Equilibrium — the special point $x = 0$

Two facts make this point special:

It is where the spring wants to be — leave it alone and it stays.
It is where we anchor our whole coordinate: displacement is measured from here.

If you disturb the spring even slightly it pushes back toward equilibrium — this is what makes it stable, like a marble at the bottom of a bowl rather than balanced on a hilltop.

6. The restoring force and the minus sign

Now combine steps 1, 2 and 5. Whatever the sign of $x$ , the force points the opposite way:

You do this	Sign of $x$	Spring responds	Sign of $F$
Stretch right	$x > 0$	pulls left	$F < 0$
Compress left	$x < 0$	pushes right	$F > 0$
Leave at home	$x = 0$	no force	$F = 0$

Read the table: $F$ and $x$ always carry opposite signs (except at home, where both are zero). That is exactly what a minus sign does in mathematics — it flips the sign. So writing $F = - k x$ is just the compact way of saying "the force is $k$ times the stretch, pointing the other way." The minus sign is not "the force is negative"; it is "the force is opposite to the displacement."

7. Potential energy $U$ and "force is downhill"

Picture $U$ as the height of a landscape plotted against position $x$ . Equilibrium sits at the very bottom of a valley. A ball placed on the slope rolls downhill — toward lower energy. That "rolling downhill" is the force. In symbols the parent note writes it as $F = - \frac{d U}{d x}$ which reads: "the force equals minus the steepness of the energy hill." The steeper the hill, the stronger the push; the minus says "push toward lower ground." (The $\frac{d U}{d x}$ notation — the slope of the energy curve — is unpacked in Conservative forces and potential energy; here just picture the slope of the valley wall.)

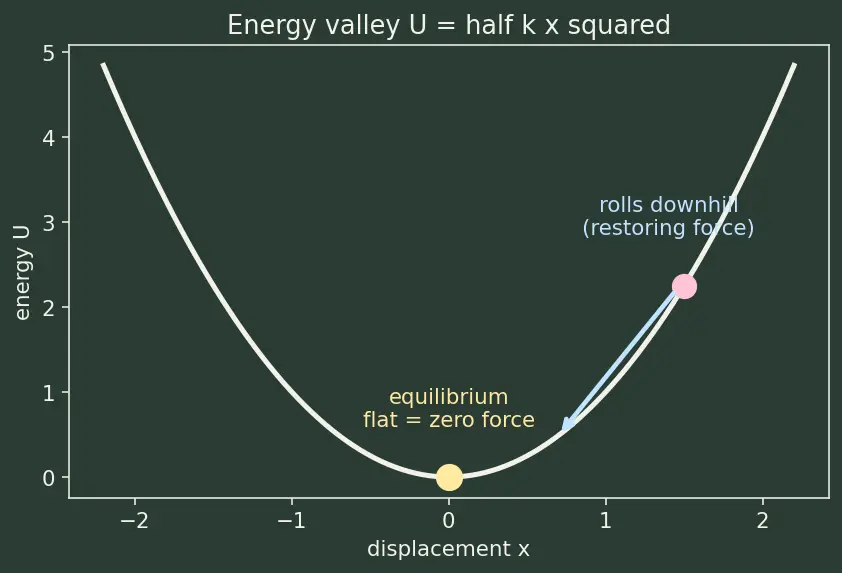

The figure shows the energy valley $U = \frac{1}{2} k x^{2}$ , a smooth U-shaped bowl. At the bottom ( $x = 0$ ) the ground is flat — zero slope means zero force, which is exactly why equilibrium is where nothing pushes. On either wall the slope points back down toward the bottom, giving the restoring force of step 6.

8. Area under a graph, and the integral $\int$

Because the spring force $F = k x$ (magnitude) grows in a straight line from $0$ up to $k x$ , the total added-up area is simply the area of a triangle: half the base times the height.

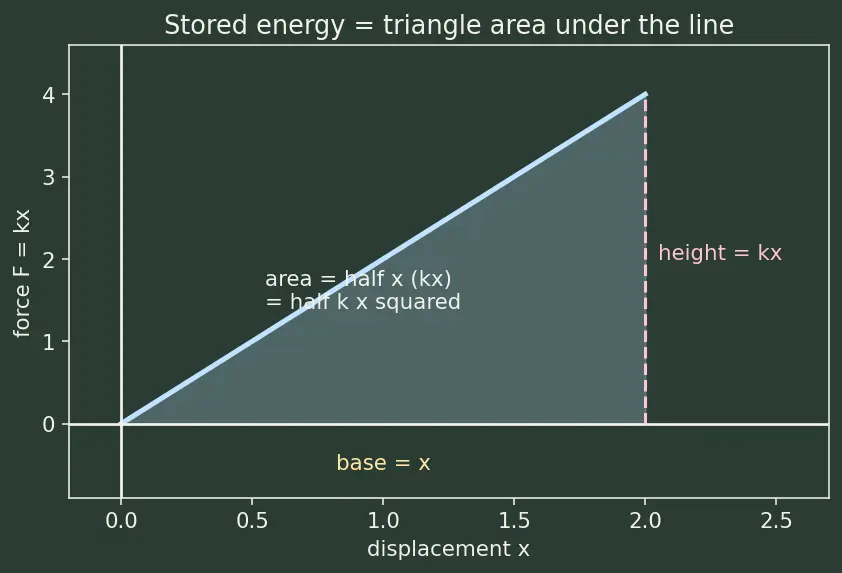

In the figure the shaded chalk-blue triangle sits under the line $F = k x$ . Base $= x$ , height $= k x$ , so $area = \frac{1}{2} \times base \times height = \frac{1}{2} x (k x) = \frac{1}{2} k x^{2} .$ That area is the stored energy $U = \frac{1}{2} k x^{2}$ . This is why the answer is half $k x^{2}$ and not $k x^{2}$ : you're taking the triangle, not the whole rectangle — the force started at zero, so on average it was only half its final value. (The formal machinery lives in Work done by a variable force.)

How these feed the topic

Everything on the left is a foundation; the two boxes on the right are the parent topic itself, Hooke's law.

Equipment checklist

I can state, in plain words, what a signed displacement

x

is and why the sign matters

x

is the distance from equilibrium with a direction: positive stretched, negative compressed; the sign tells the spring which way you moved.

I can explain why force

F

must share the same positive direction as

x

So that comparing their signs is meaningful — that's how we detect that the force opposes the displacement.

I can say what "directly proportional" looks like on a graph

A straight line through the origin — double one, the other doubles.

I know what the spring constant

k

is and its units

The slope of the

F

–

x

line, the stiffness, measured in N/m.

I can explain why

k

does not change as I stretch the spring

k

is the line's slope, a fixed property of the spring; it's the force (a point on the line) that changes, not the slope.

I can define equilibrium and say why it's

x = 0

The resting natural length where the spring exerts no force; we measure displacement from it, so it is the origin.

I can explain what a restoring force is and why

F = - k x

has a minus sign

A force always pointing back to equilibrium; since

F

and

x

always have opposite signs, the minus encodes that opposition.

I can picture potential energy

U

as a landscape and say what

F = - d U / d x

means

U

is a valley with equilibrium at the bottom; force is minus the slope, pushing "downhill" toward the bottom.

I can explain why stored spring energy is

\frac{1}{2} k x^{2}

and not

k x^{2}

It's the triangle area under the straight line

F = k x

(base

x

, height

k x

), because the force grew from zero.

Connections

Parent: Hooke's law F = −kx — the topic these foundations build toward.
Work done by a variable force — the "add up the slivers" integral in full.
Conservative forces and potential energy — the $F = - d U / d x$ landscape idea.
Elastic potential energy — the $\frac{1}{2} k x^{2}$ reservoir.
Simple Harmonic Motion — what $F = - k x$ makes a mass do.
Conservation of mechanical energy — how the spring swaps stored and moving energy.
Interatomic forces — tiny bonds that are springs near their own valleys.
