Foundations — Kinetic energy — derivation

Before you can derive kinetic energy, you must own every letter in $K=\frac{1}{2}m{v}^2$ and $W=\vec{F}\cdot \vec{d}$. This page builds each one from nothing, in the order the derivation actually needs them. If the parent page assumed you knew a symbol, we earn it here.

---

0. The map of what we're building

Read this top to bottom: mass and acceleration make force; force over distance makes work; kinematics links distance to speed; the three feed the derivation; out pops $K$. We now unlock each box.

---

1. Mass $m$ — the "how much stuff" number

The picture: imagine pushing a shopping trolley. An empty one darts forward from a small shove; a full one barely budges from the same shove. The "full-ness" that resists your push is mass.

Why the topic needs it: kinetic energy asks "how much go-energy is in a moving thing." A heavier thing at the same speed carries more — so $m$ must sit inside the formula.

---

2. Speed $v$ and velocity — "how fast" vs "how fast, which way"

The picture (below): a car with an arrow. The arrow's length is the speed; the arrow's direction is the extra information velocity carries.

Why the topic needs it: kinetic energy grows with motion. But notice the parent uses $v^2$, not $v$ — squaring throws the direction away (a negative velocity squared is positive). That is the first clue that energy will be a scalar. Hold that thought for §7.

---

3. Acceleration $a$ — how fast the speed itself changes

The picture: press a car's pedal and the speedometer needle climbs — that climbing rate is acceleration. If it climbs by $2\text{m/s}$ every second, then $a=2{\text{m/s}}^2$.

Why the topic needs it: to get an object moving from rest, something must accelerate it. The derivation trades force for "mass × acceleration," so $a$ is the bridge from push to motion.

---

4. Force $F$ and Newton's second law — the push

The picture (below): a block on a floor, one clear arrow showing the net push $F$, and a second faint arrow showing the resulting acceleration $a$ in the same direction.

Why the topic needs it — and why this tool: we want kinetic energy written in terms of motion ($v$), but work is written in terms of force ($F$). Newton's law $F=ma$ is the only thing that converts a force statement into a motion statement. That is exactly why Step 2 of the parent derivation substitutes $F=ma$. See Newton's Second Law.

---

5. Displacement $s$ — how far, in the push's direction

The picture: a dashed track from where the object started (a green dot) to where it ended (a red dot); $s$ is the length of that straight segment.

Why the topic needs it: a force that acts but moves nothing does zero work. Energy is transferred only over distance travelled. So work must multiply force by displacement — which brings us to work itself.

---

6. Work $W$ and the dot product — force paid over distance

Now the general case, because force and motion need not be aligned.

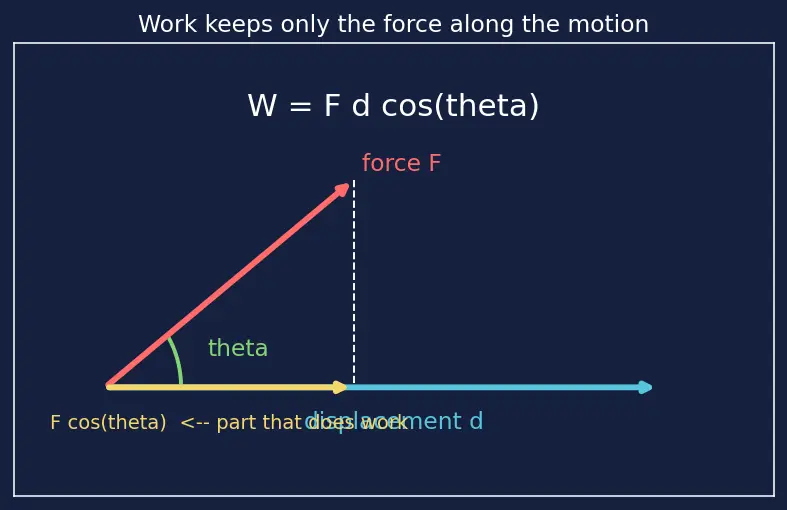

Why the $\cos \theta$? (see figure) Only the component of the push pointing where you're going actually does work.

• If $\theta =0^{\circ }$ (push straight along motion): $\cos 0=1$, so $W=Fd$ — maximum work.
• If $\theta =90^{\circ }$ (push sideways, e.g. carrying a bag while walking level): $\cos 90^{\circ }=0$, so $W=0$ — no work.
• If $\theta =180^{\circ }$ (push opposes motion, like friction): $\cos 180^{\circ }=-1$, so $W=-Fd$ — negative work, energy removed. This is exactly why Example 3 on the parent page gets a minus sign.

Why the topic needs it: the whole derivation starts from $W=Fs$ (parent Step 1). See Work — definition and dot product.

---

7. Scalar vs vector — why energy has no arrow

The picture: velocity is drawn as an arrow (§2); kinetic energy would be drawn as… nothing but a labelled number, because "9 joules pointing north" is meaningless.

Why the topic needs it: the parent asks why $K$ is a scalar. Answer: $K$ is built from a dot product (which outputs a number) and from $v^2$ (which erases direction). Both ingredients are directionless, so $K$ is directionless. See Momentum vs Energy for how momentum keeps its arrow while energy does not.

---

8. Squaring, and why $v^2$ (not $v$) appears

Why the topic needs it: this single fact explains the parent's headline surprise — double the speed, quadruple the energy — and guarantees $K\ge 0$ always.

---

9. Kinematics: $v^2=u^2+2as$ — the distance–speed bridge

The picture: a number line of speed climbing from $u$ up to $v$ while the object slides through distance $s$ under steady acceleration $a$. This equation is special because it links speed and distance without mentioning time — exactly what the derivation wants.

Why this equation and not another? The derivation has the leftover chunk $as$ and wants it in terms of $v$. Among the kinematic equations, $v^2=u^2+2as$ is the only one connecting $a$, $s$, and $v$ while leaving out time — so it substitutes cleanly. See Equations of Motion (kinematics).

---

10. Putting the symbols back into the parent

Now every letter in the parent's four steps is earned:

Symbol	Meaning	Section
$m$	mass (kg)	§1
$v$	final speed (m/s)	§2
$a$	acceleration (m/s²)	§3
$F$	net force (N)	§4
$s$	displacement (m)	§5
$W$	work (J)	§6
$u$	initial speed (m/s)	§9
$K$	kinetic energy (J)	the goal

$W\underset{\text{§6}}{=}Fs\underset{\text{§4}}{=}(ma)s\underset{\text{§9}}{=}m\left(\frac{1}{2}{v}^2\right)=\frac{1}{2}m{v}^2=K.$

Every equals-sign now points at a section you have built. Go back to the parent derivation and you will find no unearned symbol.

---

Equipment checklist

State the meaning of each before revealing — if any stumps you, reread its section.

---
