Visual walkthrough — Newton's third law — action-reaction, common misconceptions

We link the tools as we borrow them: Conservation of Momentum, Newton's Second Law, and later Free Body Diagrams.

Step 1 — Draw the whole world as two dots

WHAT. Imagine the entire universe contains only two objects. Call them $A$ and $B$. Everything else is empty space. Each object is drawn as a single dot with an arrow showing how fast and which way it moves.

WHY. To prove something always true, we strip away every distraction. If we can show the pairing rule for the simplest possible universe — two things, nothing else — the argument scales up to books, rockets, and skaters later. The word for "nothing external touches them" is isolated.

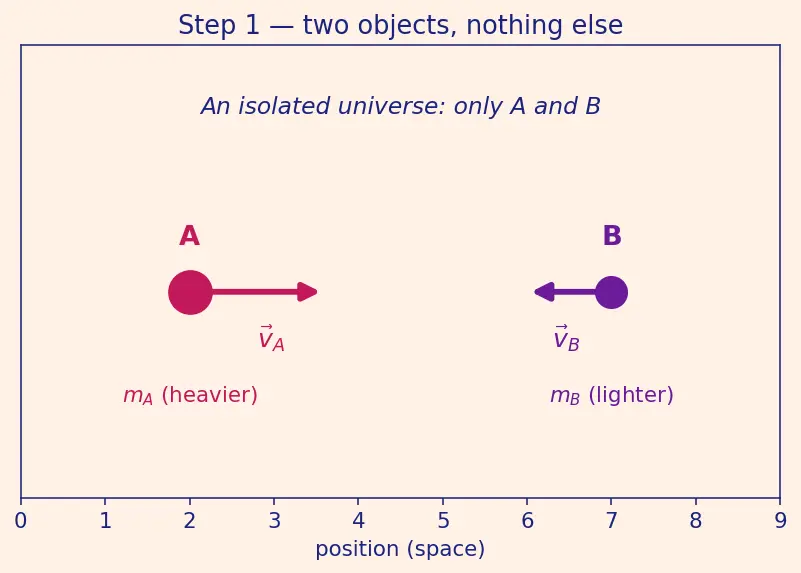

PICTURE. Two dots on a peach field. $A$ drifts right, $B$ drifts left. The arrow lengths are their speeds.

Step 2 — Give each dot a "momentum" arrow

WHAT. For each object, multiply its mass by its velocity arrow. That new arrow is the momentum, written $\vec{p}$: $\underset{\text{momentum of }A}{\underbrace{{\vec{p}}_A}}=\underset{\text{how heavy}}{\underbrace{m_A}}\underset{\text{how fast, which way}}{\underbrace{{\vec{v}}_A}}$

WHY. Velocity alone doesn't capture "how hard is this thing to stop." A slow truck and a fast bicycle can be equally hard to stop. Momentum is the honest measure of "quantity of motion" because it folds mass and velocity into one arrow. This is exactly the quantity Conservation of Momentum cares about — that is why we build it now and not later.

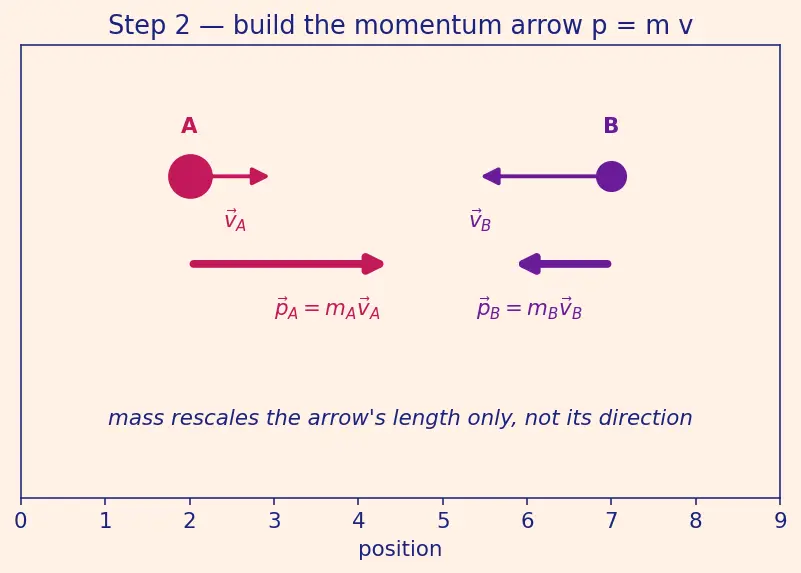

PICTURE. Each velocity arrow is re-scaled by its mass. A heavy-but-slow $A$ can have a longer momentum arrow than a light-but-fast $B$.

Step 3 — Add the two arrows: the total momentum

WHAT. Lay the two momentum arrows tip-to-tail and read off the single arrow from the first tail to the last tip. That sum is the total momentum of the whole two-object universe: $\underset{\text{total (capital P)}}{\underbrace{\vec{P}}}=\underset{A\text{’s part}}{\underbrace{{\vec{p}}_A}}+\underset{B\text{’s part}}{\underbrace{{\vec{p}}_B}}$

WHY. We want one number (well, one arrow) that describes the system, not the individuals. Adding vectors tip-to-tail is the rule for combining arrows: it answers "if I did both journeys, where do I end up net?" — here, "what is the combined motion?"

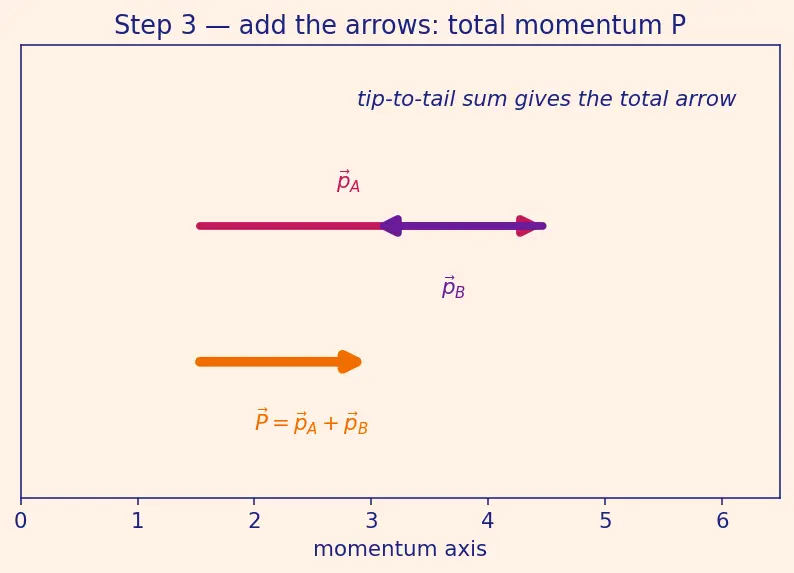

PICTURE. The magenta and violet arrows placed tip-to-tail; the orange arrow is their sum $\vec{P}$.

Step 4 — The experimental fact: $\vec{P}$ never changes

WHAT. Watch the two objects collide, attract, push, whatever — as long as nothing external touches them, the total arrow $\vec{P}$ has the same length and same direction before, during, and after. It is conserved.

WHY. This is not a guess; it is one of the most tested facts in physics — you can spin any isolated experiment and $\vec{P}$ holds steady. We take this as our starting truth and see what it forces upon the individual forces. (Individually ${\vec{p}}_A$ and ${\vec{p}}_B$ change wildly; only their sum is frozen.)

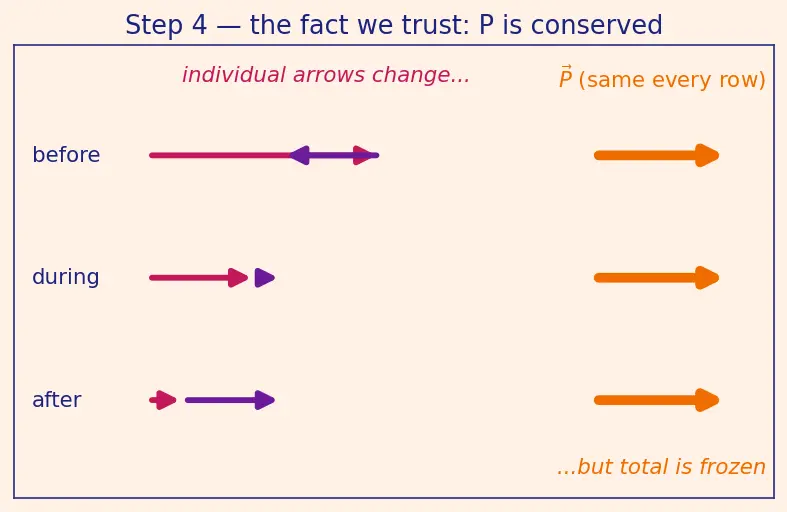

PICTURE. Three frozen snapshots — before / during / after a push. The individual arrows change dramatically, but the orange total arrow $\vec{P}$ is identical in all three.

Step 5 — "Not changing" means zero rate of change

WHAT. Ask how fast $\vec{P}$ is changing. The tool that answers "how fast is a quantity changing?" is the rate of change, written $\frac{d}{dt}$ (read "the change of ... per tiny bit of time $t$"). Since $\vec{P}$ never changes, its rate of change is zero: $\underset{\text{how fast }\vec{P}\text{ changes}}{\underbrace{\frac{d\vec{P}}{dt}}}=\underset{\text{rate for }A}{\underbrace{\frac{d{\vec{p}}_A}{dt}}}+\underset{\text{rate for }B}{\underbrace{\frac{d{\vec{p}}_B}{dt}}}=\underset{\text{because }\vec{P}\text{ is frozen}}{\underbrace{0}}$

WHY this tool. We need to connect momentum to forces, and force is precisely "the rate at which momentum changes" (that is the deep form of Newton's Second Law). The derivative $\frac{d}{dt}$ is the exact machine that converts "how much momentum" into "how fast momentum flows." No other tool answers that; that's why we reach for it here.

WHY the split. The rate of change of a sum equals the sum of the rates of change — you can differentiate each piece separately and add. Geometrically: if the total arrow is nailed in place, whatever tiny growth $A$'s arrow gains, $B$'s must lose exactly.

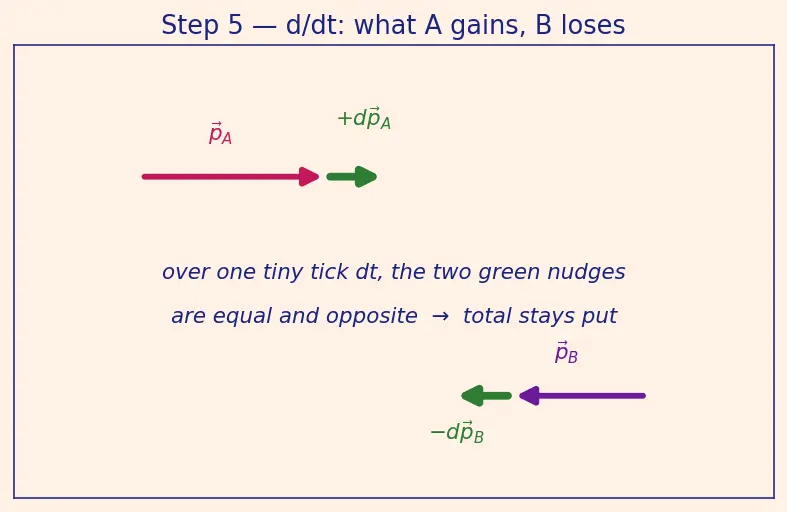

PICTURE. Over one tiny tick $dt$: $A$'s arrow grows by a small green nudge; $B$'s arrow shrinks by an identical green nudge pointing the opposite way. The two nudges are mirror images.

Step 6 — Rename each rate as a force

WHAT. By Newton's Second Law in its momentum form, the rate of change of an object's momentum is the net force on it. In our isolated pair, the only thing that can push $A$ is $B$, and vice versa: $\underset{\text{rate for }A}{\underbrace{\frac{d{\vec{p}}_A}{dt}}}=\underset{\text{force }B\text{ exerts on }A}{\underbrace{{\vec{F}}_{B\to A}}},\underset{\text{rate for }B}{\underbrace{\frac{d{\vec{p}}_B}{dt}}}=\underset{\text{force }A\text{ exerts on }B}{\underbrace{{\vec{F}}_{A\to B}}}$

WHY. We assumed the universe holds only $A$ and $B$. So no third object exists to push either one — the entire force on $A$ must come from $B$. This is where "isolated" pays off: it kills every other candidate force.

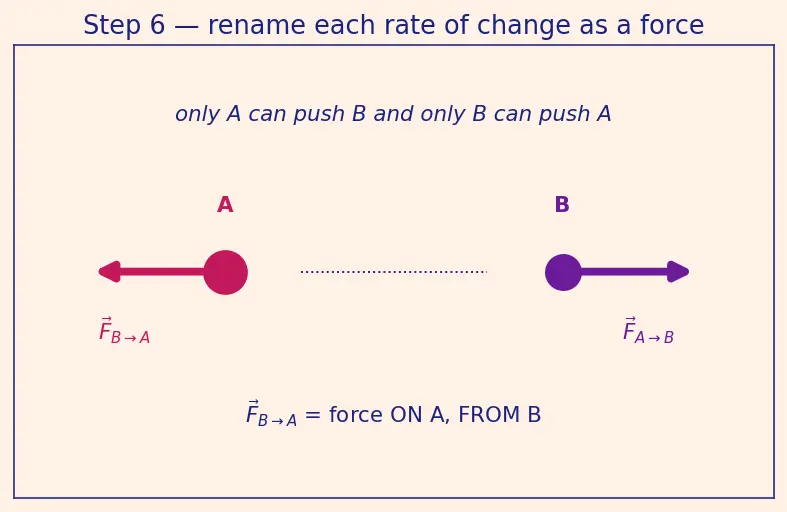

PICTURE. Same two dots, now with a magenta force arrow from $B$ onto $A$, and a violet force arrow from $A$ onto $B$. Notice the subscript order: $B\to A$ means "from $B$, onto $A$."

Step 7 — Snap it together: the pairing law falls out

WHAT. Put Step 6 into Step 5. The two rates become two forces: $\underset{\text{on }A}{\underbrace{{\vec{F}}_{B\to A}}}+\underset{\text{on }B}{\underbrace{{\vec{F}}_{A\to B}}}=0⟹\boxed{{\vec{F}}_{A\to B}=-{\vec{F}}_{B\to A}}$

WHY. If two arrows add to zero, they must be the same length pointing exactly opposite — that's the only way to cancel to nothing. The minus sign carries "opposite direction"; the equality carries "same magnitude." We did not assume this; the frozen total momentum forced it.

PICTURE. The two force arrows, tail-to-tail from a shared center: identical length, dead-opposite directions — a perfectly balanced see-saw of pushes.

Step 8 — The degenerate cases (never skip these)

WHAT. Test the boxed law at the boundaries, where naïve intuition breaks.

Case (a) — No interaction ($\vec{F}=0$). If $A$ and $B$ ignore each other, both force arrows have zero length. Zero $=-$zero. ✅ The law survives trivially; each keeps its own momentum.

Case (b) — Wildly different masses (truck vs. fly). The forces stay equal, ${\vec{F}}_{A\to B}=-{\vec{F}}_{B\to A}$. But acceleration is $a=F/m$ (from Newton's Second Law), so the tiny mass gets an enormous acceleration and the huge mass barely twitches. Same force ≠ same effect.

Case (c) — One object very heavy but not touching a third (book on Earth). Even here the pair is book↔Earth of the same force type. The Earth does recoil — its acceleration is just $a_{\oplus }=F/M_{\oplus }$, absurdly small, so we never notice. The law never says "the reaction is felt equally," only "the force is equal."

WHY these matter. A reader who only saw the tidy symmetric push would be blindsided by "why doesn't the wall fly back when I push it?" Answer: it does gain equal-and-opposite momentum; its gigantic mass hides the motion.

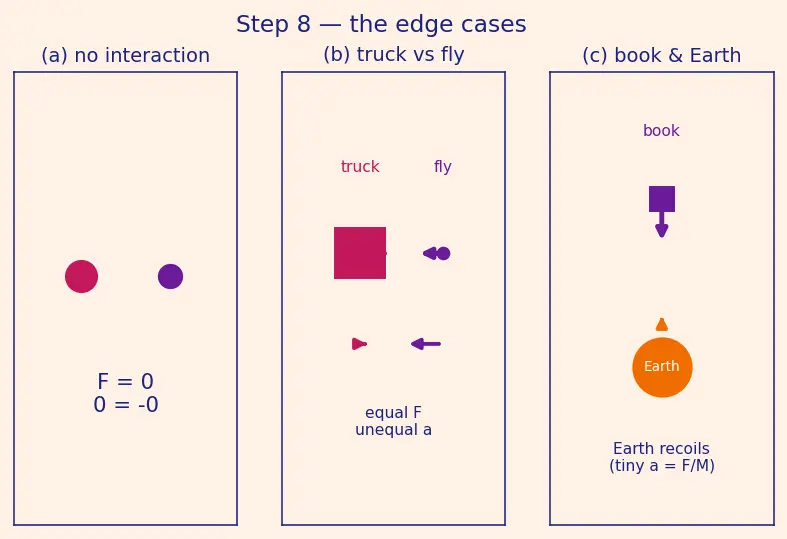

PICTURE. Three mini-panels: (a) two dots, no arrows; (b) truck with tiny nudge vs. fly with huge nudge, equal force arrows; (c) book pushing Earth with a real-but-microscopic recoil arrow.

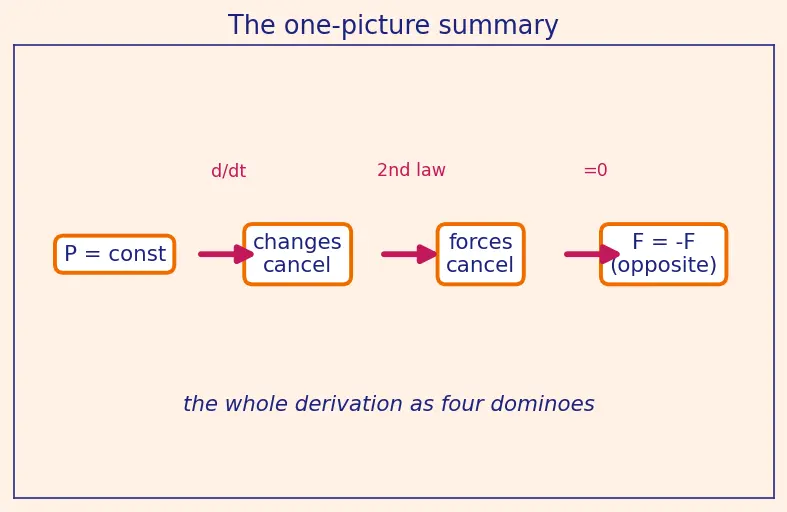

The one-picture summary

Everything above, compressed into a single flow: frozen total momentum $\Rightarrow$ opposite momentum changes $\Rightarrow$ opposite forces.

Active-recall

Connections

• Conservation of Momentum — the single fact we assumed in Step 4; the third law is its consequence.
• Newton's Second Law — supplies "force = rate of change of momentum" (Step 6) and $a=F/m$ (Step 8).
• Free Body Diagrams — the tool for keeping the two paired forces on different diagrams.
• Center of Mass Motion — the frozen total $\vec{P}$ is exactly the center of mass drifting at constant velocity.
• Rocket Propulsion & Variable Mass — the pairing law applied to ejected gas.
• Parent: Newton's Third Law.
