Graphs — x-t, v-t, a-t; areas and slopes meaning

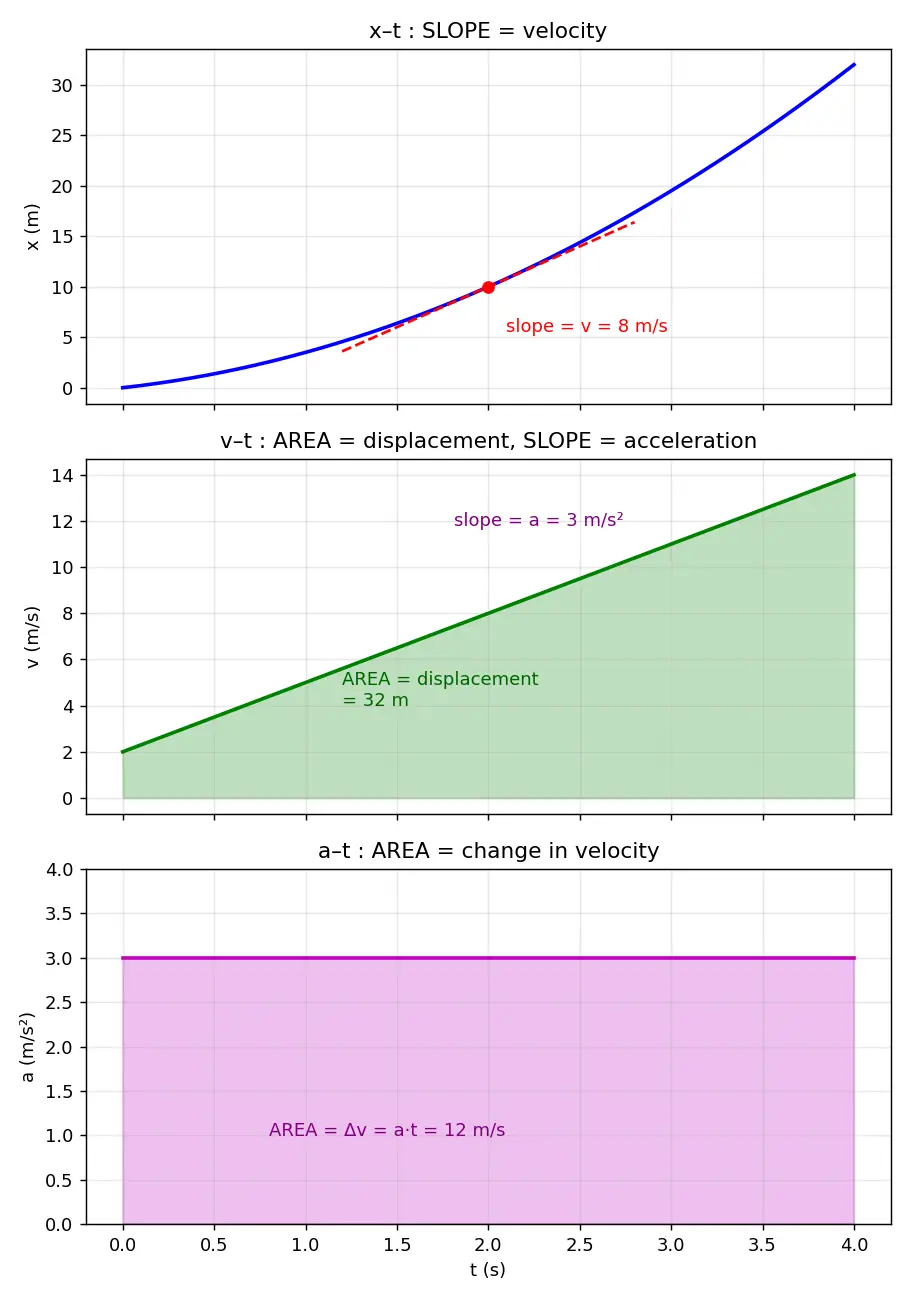

The core chain

So the structure is symmetric:

Going	Operation	Example
$x \to v \to a$	take slope	slope of $x$ - $t$ gives $v$
$a \to v \to x$	take area	area under $v$ - $t$ gives $\Delta x$

Deriving the kinematic equations from graphs (Derivation from scratch)

Worked example Constant acceleration ⇒ get

$v$ and $x$ Take $a =$ constant. The $a$ – $t$ graph is a horizontal line at height $a$ .

Step 1 — find $v(t)$ via area under $a$ – $t$ . Area from $0$ to $t$ = rectangle = $a\cdot t$ . This equals $\Delta v = v - u$ . Why this step? Area under $a$ – $t$ is $\Delta v$ (it accumulates the rate). $\boxed{v = u + at}$

Step 2 — find $\Delta x$ via area under $v$ – $t$ . The $v$ – $t$ graph is now a straight line from $u$ (at $t=0$ ) to $v$ (at $t$ ): a trapezium. Area of trapezium = average height × width = $\dfrac{u+v}{2}\,t$ . Why this step? Area under $v$ – $t$ is displacement. $\boxed{x = \frac{u+v}{2}\,t}$

Step 3 — combine. Substitute $v = u+at$ : $x = \frac{u + (u+at)}{2}t = ut + \tfrac12 a t^2$ Why this step? Eliminate $v$ to express $x$ in known quantities $u, a, t$ . $\boxed{x = ut + \tfrac12 a t^2}$ Geometrically: trapezium = rectangle $ut$ (base velocity) + triangle $\tfrac12 (at)(t)$ (the growing part).

Common mistakes (Steel-man + fix)

Quick forecast-then-verify

Flashcards

What does the slope of an x–t graph represent?

Instantaneous velocity,

v=dx/dt

What does the slope of a v–t graph represent?

Acceleration,

a=dv/dt

What does the area under a v–t graph represent?

Displacement

\Delta x=\int v\,dt

What does the area under an a–t graph represent?

Change in velocity

\Delta v=\int a\,dt

Does area under an x–t graph have physical meaning?

No (units m·s); for x–t you use the slope.

On a v–t graph, what does area below the time axis mean?

Negative displacement (motion in −direction).

How do you get distance vs displacement from a v–t graph?

Distance = sum of |areas|; displacement = net (signed) area.

Derive

v=u+at

from graphs.

Area under constant-

a

line =

at=\Delta v

, so

v=u+at

Derive

x=ut+\tfrac12at^2

from graphs.

Trapezium area

=

rectangle

ut

+ triangle

\tfrac12 at\cdot t

Flat (horizontal) x–t line means?

Object at rest,

v=0

A curving-up x–t graph implies what about acceleration?

Slope increasing ⇒

a>0

(speeding up in +x).

When is an object slowing down (in terms of signs)?

When

v

and

a

have opposite signs.

Recall Feynman: explain to a 12-year-old

Imagine a graph is a map of a car trip. The steepness of the position line tells you how fast the car is going right now — a steep hill on the graph means zooming, a flat road means parked. Now the speed graph: the space underneath it is like filling a tank — every second you go a bit further, and all those little bits stacked up tell you the total distance. If the car backs up, that part of the "tank" counts as empty-ing (negative), so going forward then back can leave you where you started even though you moved a lot. Slopes look down the ladder (position→speed→acceleration); areas climb back up it.

Connections

Instantaneous vs Average Velocity — slope of chord vs slope of tangent on x–t.
Equations of Uniformly Accelerated Motion — derived here directly from graph areas.
Differentiation and Integration in Physics — slope ≡ derivative, area ≡ integral.
Free Fall and Projectile Motion — constant- $a$ graphs with sign changes.
Distance vs Displacement — signed area vs absolute area.
Vectors — Components and Signs — why direction (sign) matters in v–t areas.

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, graph basically motion ki ek photo hai. Sabse pehla rule yaad rakho: slope matlab rate (kitni tezi se badal raha hai) aur area matlab total (kitna jama hua). x-t graph mein steepness (slope) batata hai velocity — zyada steep matlab zyada fast, flat line matlab gaadi rukī hui (rest). Slope niche ki taraf jaata hai ladder pe: x se v, v se a.

Ab ulta — area upar ki taraf le jaata hai. v-t graph ke niche ka area = displacement hota hai, aur a-t graph ke niche ka area = velocity ka change (Δv). Yahi se hum kinematic equations nikaal lete hain bina ratta maare: constant acceleration ka a-t ek horizontal line hai, uska area $at$ deta hai, toh $v=u+at$ . v-t mein trapezium ka area lo, $x=ut+\tfrac12at^2$ apne aap aa jaata hai.

Sabse common galti: log v-t ke area ko hamesha distance maan lete hain. Yaad rakho — axis ke niche ka area negative hota hai (peeche ki taraf gaya). Net (signed) area = displacement, aur saare areas ka |magnitude| jod do toh = distance. Aur "negative velocity = slow ho raha" — galat! Negative sirf direction batata hai. Slow down tab hota hai jab v aur a ke signs opposite hon.

Mnemonic simple rakho: "Slope Slides Down, Area Adds Up." Exam mein 80/20 — v-t graph master kar lo, kyunki usme slope (a) aur area (x) dono ka kaam ho jaata hai.
