Worked examples — Geometric interpretation — signed volume

This page is a drill through every case the determinant-as-signed-volume idea can hand you. We build a map of all the scenarios first, then work one example per cell so you never meet a situation you haven't already seen.

Everything here rests on the parent idea: Geometric interpretation — signed volume. If a symbol appears you don't recognise, it was earned there — but I'll re-anchor each one as it shows up.

---

The scenario matrix

Every determinant problem this topic throws is one of these cells. Read the "Covered by" column as a promise: each is worked below.

#	Case class	What's special about it	Covered by
A	2D, both signs positive area	ordinary slanted box, orientation kept	Ex 1
B	2D, negative determinant	a reflection/flip, sign is $-$	Ex 2
C	2D, zero determinant	edges parallel → box squashed to a line	Ex 3
D	2D, near-degenerate (limiting)	edges almost parallel → area $\to 0$	Ex 4
E	3D, right-handed frame	positive triple product	Ex 5
F	3D, left-handed frame	one axis flipped → negative	Ex 6
G	Scaling the whole matrix	$\det (cA)=c^n\det A$, the $n$-th power trap	Ex 7
H	Real-world word problem	area of a plot / physical volume, sign discarded	Ex 8
I	Exam twist (row op invariance)	shearing a column doesn't change volume	Ex 9
J	Non-square "volume"	need the Gram determinant $\sqrt{\det (A^{\top }A)}$	Ex 10

Prerequisite links live in Determinant — definition and cofactor expansion, Cross product and scalar triple product, Linear independence and rank and Change of variables and the Jacobian.

---

Worked examples

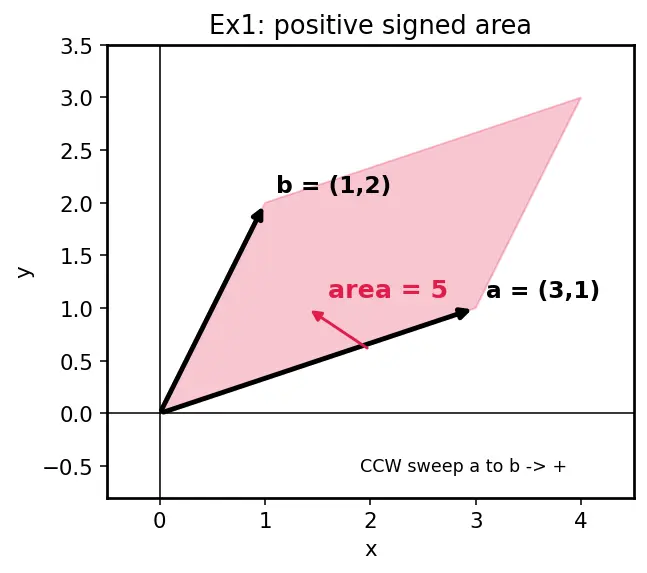

Ex 1 — Cell A: an ordinary slanted box

Step 1. Lay the vectors as columns and use the 2D formula $\det \left(\begin{array}{cc}{a}_1& b_1\\ a_2& b_2\end{array}\right)=a_1{b}_2-a_2{b}_1$.

Why this step? The parent derivation proved this cross-multiplication is the signed area — nothing else obeys the multilinear/alternating/normalized axioms.

Step 2. Plug in: $a_1=3,a_2=1,b_1=1,b_2=2$. $\det =(3)(2)-(1)(1)=6-1=5.$

Why this step? $a_1{b}_2$ is the "spread" of the box in the good rotational direction; $a_2{b}_1$ subtracts the part that would double-count the shear.

Verify: Look at the figure — the red parallelogram clearly fits inside a $3\times 3$ box (area 9) and is more than half of it, so 5 is sane. Sign is $+$ because sweeping $\mathbf{a}\to \mathbf{b}$ is counterclockwise. ✓

---

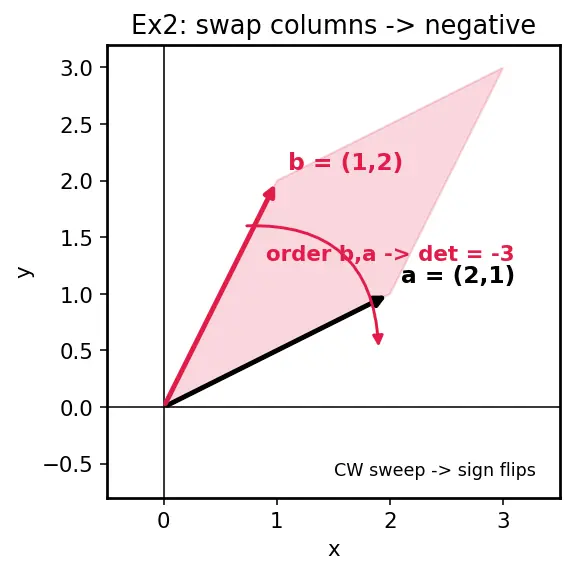

Ex 2 — Cell B: a reflection (negative determinant)

Step 1. First get the "natural" order $\det [\mathbf{a}\mathbf{b}]=(2)(2)-(1)(1)=3$.

Why this step? Anchoring the magnitude ($3$) lets us isolate what the swap alone does.

Step 2. Now the swapped order $\det [\mathbf{b}\mathbf{a}]=(1)(1)-(2)(2)=1-4=-3$.

Why this step? The alternating axiom says swapping two edges flips the sign: it's the same brick viewed from behind, so counterclockwise has become clockwise.

Verify: $|-3|=3=|+3|$ — the size is unchanged, only the SIDE flipped, exactly as Orientation and handedness of bases predicts. Negative is not "negative area", it is a mirrored orientation. ✓

---

Ex 3 — Cell C: a squashed box (zero)

Step 1. $\det =(2)(6)-(4)(3)=12-12=0.$

Why this step? When one edge is a scalar multiple of the other, the box collapses to a segment — no area to enclose.

Step 2. Interpret: zero determinant $⟺$ columns are linearly dependent $⟺$ the map is non-invertible.

Why this step? This is the bridge to Linear independence and rank and Invertibility and the inverse matrix — a flat box can't be un-flattened.

Verify: $\mathbf{b}-\frac{3}{2}\mathbf{a}=(0,0)$, confirming exact parallelism, so area must be $0$. ✓

---

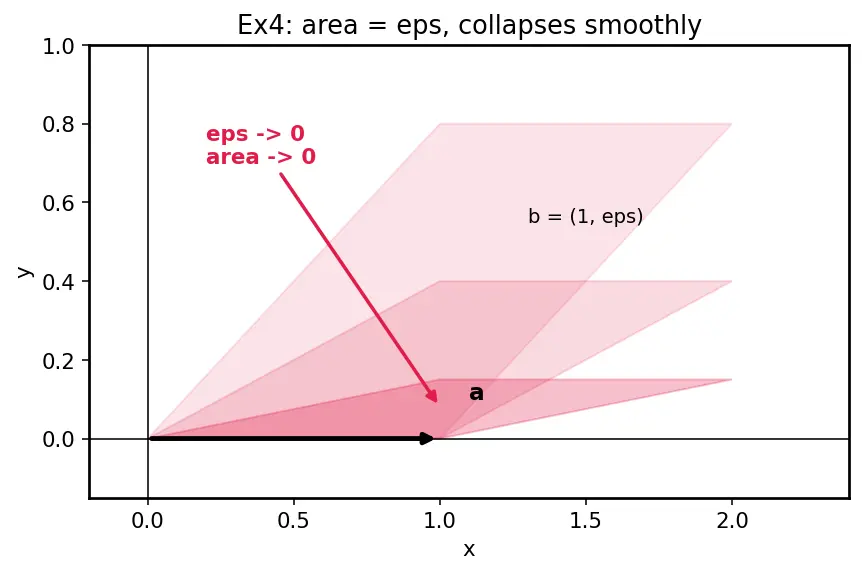

Ex 4 — Cell D: the limiting case (almost parallel)

Step 1. $\det =(1)(\epsilon )-(0)(1)=\epsilon .$

Why this step? The formula makes the shrinking explicit — area is the tiny height $\epsilon$.

Step 2. Take the limit: $\underset{\epsilon \to 0}{\lim }\epsilon =0$.

Why this step? We use a limit (not just plugging $\epsilon =0$) to see the approach: the box doesn't jump to flat, it continuously deflates. This continuity is why determinants behave nicely in Change of variables and the Jacobian.

Verify: At $\epsilon =0.1$, area $=0.1$; halve $\epsilon$ and the area halves — linear collapse, no surprises. At $\epsilon =0$ we hit Cell C exactly. ✓

---

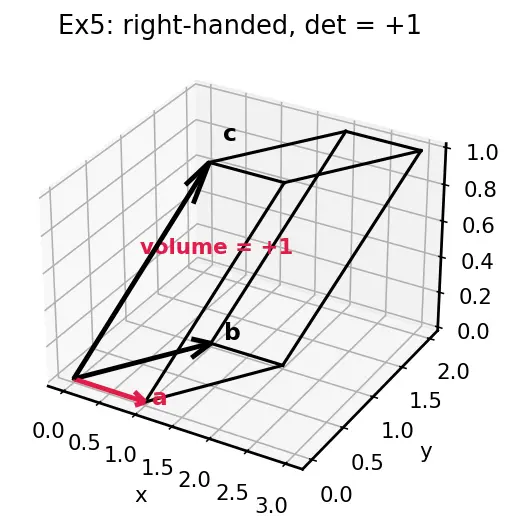

Ex 5 — Cell E: a right-handed 3D frame

Step 1. Use the triple product $\det [\mathbf{a}\mathbf{b}\mathbf{c}]=\mathbf{a}\cdot (\mathbf{b}\times \mathbf{c})$.

Why this step? $\mathbf{b}\times \mathbf{c}$ (the cross product, see Cross product and scalar triple product) is a vector whose length equals the base-parallelogram's area and which points perpendicular to that base. Dotting with $\mathbf{a}$ multiplies base-area by height-along-that-normal = volume.

Step 2. $\mathbf{b}\times \mathbf{c}=\left|\begin{array}{ccc}\mathbf{i}& \mathbf{j}& \mathbf{k}\\ 1& 1& 0\\ 1& 1& 1\end{array}\right|=\mathbf{i}(1\cdot 1-0\cdot 1)-\mathbf{j}(1\cdot 1-0\cdot 1)+\mathbf{k}(1\cdot 1-1\cdot 1)=(1,-1,0).$

Why this step? The determinant-of-a-symbol-grid is just the recipe for the cross product's components.

Step 3. $\mathbf{a}\cdot (1,-1,0)=(1)(1)+(0)(-1)+(0)(0)=1.$

Why this step? The dot product picks out the height component; here it's exactly $1$.

Verify: Shears preserve volume (they slide layers sideways without squeezing), so a sheared unit cube must have volume $1$. Sign $+$ → right-handed. ✓

---

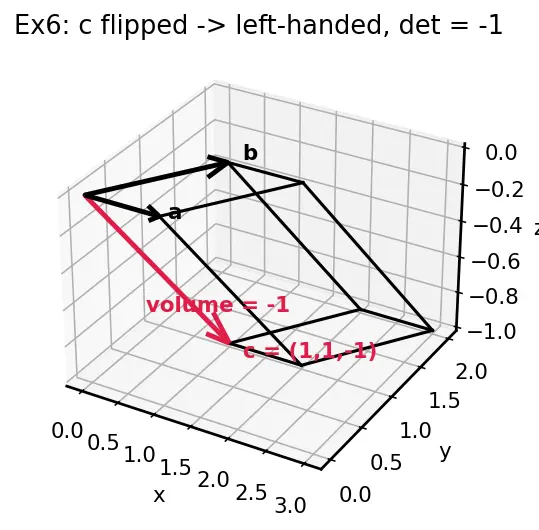

Ex 6 — Cell F: flip one axis to left-handed

Step 1. $\mathbf{b}\times {\mathbf{c}}^{\prime }=\left|\begin{array}{ccc}\mathbf{i}& \mathbf{j}& \mathbf{k}\\ 1& 1& 0\\ 1& 1& -1\end{array}\right|=\mathbf{i}(1\cdot (-1)-0)-\mathbf{j}(1\cdot (-1)-0)+\mathbf{k}(0)=(-1,1,0).$

Why this step? Same recipe; the sign of the third row flipped the normal's direction.

Step 2. $\mathbf{a}\cdot (-1,1,0)=(1)(-1)+0+0=-1.$

Why this step? Now $\mathbf{a}$ sits on the negative side of the base plane → negative height → negative signed volume.

Verify: $|-1|=1$, matching Ex 5's size; only the SIDE changed. This is exactly a handedness reversal — right hand became left hand. ✓

---

Ex 7 — Cell G: scaling the whole matrix

Step 1. $5A=\left(\begin{array}{cc}10& 5\\ 0& 15\end{array}\right)$, so $\det (5A)=(10)(15)-(5)(0)=150.$

Why this step? Computing directly exposes the trap before we trust a shortcut.

Step 2. Match to the rule $\det (cA)=c^n\det A$ with $n=2$: $5^2\cdot 6=25\cdot 6=150.$

Why this step? Scaling every edge by $c$ scales an $n$-dimensional volume by $c$ once per dimension — that's the $n$-th power.

Verify: $150=5^2\times 6$. ✓ In 3D the same matrix idea would give $c^3$; the exponent is always the dimension.

---

Ex 8 — Cell H: a real-world plot of land

Step 1. Signed area $=\det =(40)(50)-(10)(15)=2000-150=1850.$

Why this step? The determinant gives signed area; for land we then take the magnitude.

Step 2. Physical area $=|1850|=1850{\text{m}}^2$.

Why this step? Orientation is meaningless for a plot — we keep only the SIZE. Discarding the sign is the correct real-world move (the $\det =-1$ mistake in the parent note warns against reading sign as "impossible").

Verify: Bounding box $40\times 50=2000{\text{m}}^2$; the parallelogram is slightly less, and $1850<2000$ with the right order of magnitude. Units $\text{m}\times \text{m}={\text{m}}^2$ ✓.

---

Ex 9 — Cell I: exam twist (adding a multiple of one column)

Step 1. By multilinearity, $\det [\mathbf{a}{\mathbf{b}}^{\prime }]=\det [\mathbf{a}\mathbf{b}]+4\det [\mathbf{a}\mathbf{a}].$

Why this step? Multilinearity lets us split the sum inside a column into two determinants.

Step 2. The alternating axiom kills the second term: $\det [\mathbf{a}\mathbf{a}]=0$. So $\det [\mathbf{a}{\mathbf{b}}^{\prime }]=\det [\mathbf{a}\mathbf{b}]=5.$

Why this step? A box with two equal edges is flat → $0$; that's the whole reason column-shear operations preserve the determinant.

Step 3. Numeric check: ${\mathbf{b}}^{\prime }=(1,2)+4(3,1)=(13,6)$. Then $\det =(3)(6)-(1)(13)=18-13=5.$

Why this step? Confirms the axiom argument by brute force.

Verify: $5=5$. ✓ This invariance under column operations is precisely why Gaussian elimination preserves $\det$ (up to row swaps) — a load-bearing fact for Invertibility and the inverse matrix.

---

Ex 10 — Cell J: non-square, use the Gram determinant

Step 1. Form $M=[\mathbf{a}\mathbf{b}]$ (size $3\times 2$). The correct area is the Gram determinant $\sqrt{\det (M^{\top }M)}$.

Why this step? $\det M$ is undefined for non-square $M$. $M^{\top }M$ is the small $2\times 2$ matrix of dot products between the columns; its determinant recovers squared area regardless of the ambient dimension.

Step 2. $M^{\top }M=\left(\begin{array}{cc}\mathbf{a}\cdot \mathbf{a}& \mathbf{a}\cdot \mathbf{b}\\ \mathbf{b}\cdot \mathbf{a}& \mathbf{b}\cdot \mathbf{b}\end{array}\right)=\left(\begin{array}{cc}1& 0\\ 0& 25\end{array}\right).$

Why this step? $\mathbf{a}\cdot \mathbf{a}=1$, $\mathbf{b}\cdot \mathbf{b}=0+9+16=25$, and $\mathbf{a}\cdot \mathbf{b}=0$ (perpendicular).

Step 3. $\det (M^{\top }M)=(1)(25)-0=25$, so area $=\sqrt{25}=5.$

Why this step? The square root converts "squared area" back to area — the extension of $|\det |$ to shapes of lower dimension than the space.

Verify: Perpendicular vectors of lengths $1$ and $5$ span a rectangle of area $5$. ✓ Matches the forecast exactly.

---

Active recall

Recall Cover the answers

Does swapping two columns change $|\det |$? ::: No — only the sign flips; magnitude is unchanged. $\det A=6$ for a $2\times 2$ matrix; what is $\det (5A)$? ::: $5^2\cdot 6=150$. Two edges are parallel. What is the signed area? ::: Exactly $0$ (flattened box). How do you get the area of two vectors living in 3D? ::: $\sqrt{\det (M^{\top }M)}$, the Gram determinant. Adding $4\mathbf{a}$ to column $\mathbf{b}$ does what to $\det$? ::: Nothing — a shear preserves the determinant.

---
