Geometric interpretation — signed volume: Foundations

This page assumes you have seen nothing. Every symbol the parent note Signed Volume throws at you gets built here, one picture at a time, in an order where each idea leans on the one before it.

1. A number line, then two of them

Before vectors, arrows, or boxes, we need the flat page we draw on.

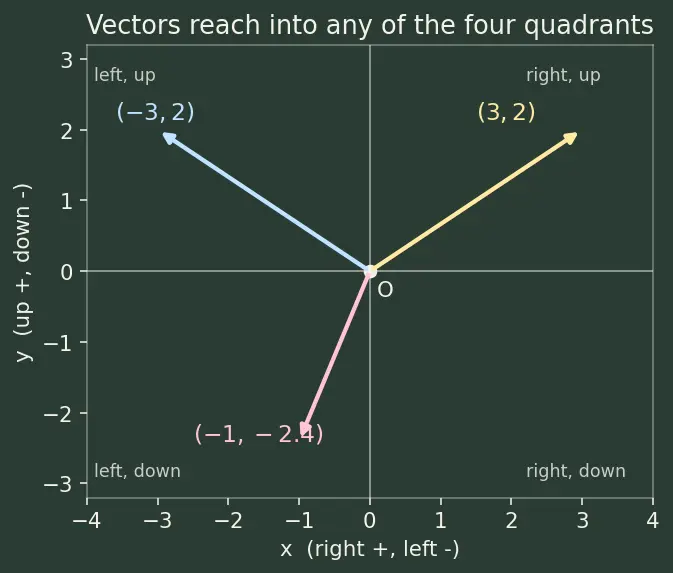

The picture: a flat sheet with two rulers glued at right angles, each ruler running both ways from $O$ . The number $(3, 2)$ means "3 right, 2 up"; $(- 3, 2)$ means "3 left, 2 up"; $(- 1, - 4)$ means "1 left, 4 down".

Why the topic needs it: the whole story is about how much area on this page changes. Arrows can point into any quadrant, so we must be free to walk left and down, not only right and up.

2. A vector — an arrow you can measure

Figure — Geometric interpretation — signed volume

Notice the subscripts: $a_{1}$ is read "a-one", the first number of $a$ ; $a_{2}$ is "a-two", the second. The subscript is just a label, never a power.

3. Basis vectors $e_{1}, e_{2}$ — the two rulers as arrows

The picture: $e_{1}$ points along the $x$ -axis, $e_{2}$ along the $y$ -axis, each exactly one unit long.

Why the topic needs it: the parent's derivation expands $a$ and $b$ into these pieces so it can pull scalars out one at a time. You can't follow that line unless $e_{1}, e_{2}$ are solid.

4. Scaling and adding arrows (the two moves)

The picture: lay $b$ 's tail on $a$ 's tip; the sum is the diagonal from $O$ to where you end up — the fourth corner of a parallelogram.

Why the topic needs it: these two moves are exactly what "linear" means, and they are the only two moves the determinant is allowed to respect.

5. The parallelogram — a box made of two arrows

In 3D the same idea with three arrows $a, b, c$ gives a slanted box called a parallelepiped (say it "pa-ra-lel-eh-piped"). Same story, one dimension up.

6. Why the box area is $a_{1} b_{2} - a_{2} b_{1}$ (a picture proof)

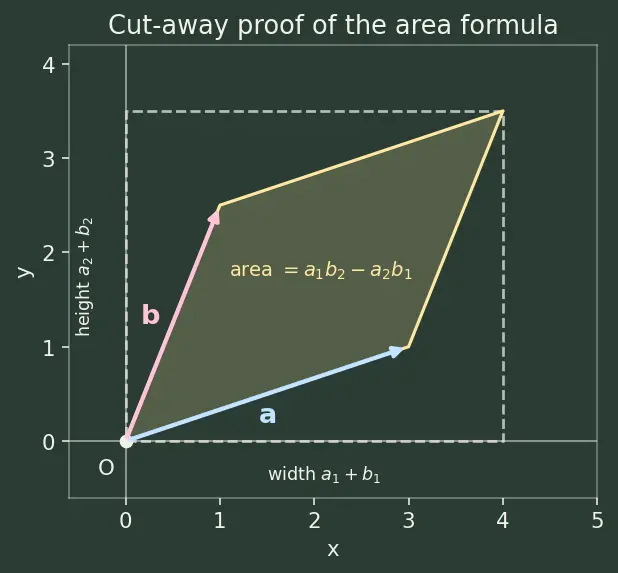

Before we attach a sign, let us see why cross-multiply-and-subtract gives area at all. Put $a$ and $b$ tail-at-origin and box them inside the smallest upright rectangle that contains all four corners — a rectangle of width $(a_{1} + b_{1})$ and height $(a_{2} + b_{2})$ .

7. Signed area — area that can be negative

The cut-away proof gives a bare number. That number already comes out negative for some arrangements — and that negative sign is a gift: it records orientation. Here is the precise rule, no vague "sweep the short way".

We write this signed area as $V (a, b)$ — a function eating two arrows and returning one signed number.

8. The determinant symbol $det$ and its bars

Two notations, one meaning: $det (a_{1} a_{2} b_{1} b_{2}) = a_{1} b_{2} - a_{2} b_{1} .$

The straight bars $∣ ∣$ around a matrix mean determinant — not "make it positive". A determinant can be negative even with the bars.

9. The dot product $\cdot$ and cross product $\times$ (for 3D)

The parent's 3D formula uses two more tools. Meet them:

10. Linear dependence — the flat box warning

The picture: $a = (2, 4)$ and $b = (1, 2)$ lie on one line; the box has no width.

Why the topic needs it: this is exactly the $det = 0$ case. More in Linear independence and rank.

Prerequisite map

Equipment checklist

Recall Self-test: are you ready? (cover the answers)

What does $(- 3, 2)$ mean on the plane? ::: Walk 3 steps LEFT, then 2 steps up from the origin. What are the four quadrants? ::: The four regions (right-up, left-up, left-down, right-down) made by the two axes. What are $e_{1}$ and $e_{2}$ ? ::: The unit arrows $(1, 0)$ and $(0, 1)$ along the two axes. How do you build $a$ from the basis? ::: $a = a_{1} e_{1} + a_{2} e_{2}$ . What does $c a$ do to the arrow? ::: Stretches it by $c$ (flips it if $c < 0$ ). How do you add two arrows geometrically? ::: Tip-to-tail; the sum is the diagonal of their parallelogram. What shape do $a$ and $b$ span? ::: A parallelogram (a slanted box). Where does the subtraction in $a_{1} b_{2} - a_{2} b_{1}$ come from? ::: Big bounding rectangle minus the leftover corner pieces around the tilted box. What is the precise rule for the sign of the signed area? ::: The sign of $a_{1} b_{2} - a_{2} b_{1}$ : positive = counterclockwise turn from $a$ to $b$ , negative = clockwise. What do the straight bars $∣ ∣$ around a matrix mean? ::: Determinant — NOT absolute value; it may be negative. What does $det [a b c]$ mean? ::: The determinant of the matrix whose columns are $a, b, c$ . Which of the two perpendicular directions does $b \times c$ take? ::: The one given by the right-hand rule (fingers from $b$ curl to $c$ , thumb points the way). When is a box flat (zero area)? ::: When the arrows are linearly dependent, one a scaled copy of the other.
