Geometric interpretation — signed volume

1,645 words7 min readdifficulty · medium
🇮🇳 Yeh note Hinglish mein padho →

WHY does this interpretation exist?

WHAT we want: a function V(a,b)V(\mathbf{a}, \mathbf{b}) giving the signed area of the parallelogram with edges a,b\mathbf{a}, \mathbf{b}.

HOW we pin it down: demand it behave like geometric area should.

Derivation from scratch (2D)

Let a=a1e1+a2e2\mathbf{a} = a_1\mathbf{e}_1 + a_2\mathbf{e}_2, b=b1e1+b2e2\mathbf{b} = b_1\mathbf{e}_1 + b_2\mathbf{e}_2.

Expand using multilinearity: V(a,b)=a1b1 V(e1,e1)+a1b2 V(e1,e2)+a2b1 V(e2,e1)+a2b2 V(e2,e2)V(\mathbf{a},\mathbf{b}) = a_1 b_1\,V(\mathbf{e}_1,\mathbf{e}_1) + a_1 b_2\,V(\mathbf{e}_1,\mathbf{e}_2) + a_2 b_1\,V(\mathbf{e}_2,\mathbf{e}_1) + a_2 b_2\,V(\mathbf{e}_2,\mathbf{e}_2)

Why this step? Each vector is a combination of basis vectors; multilinearity lets us pull the scalars out term by term.

Now apply alternating: V(e1,e1)=V(e2,e2)=0V(\mathbf{e}_1,\mathbf{e}_1)=V(\mathbf{e}_2,\mathbf{e}_2)=0, and swapping two arguments flips sign (because V(a+b,a+b)=0V(\mathbf{a}+\mathbf{b},\mathbf{a}+\mathbf{b})=0 forces V(e2,e1)=−V(e1,e2)=−1V(\mathbf{e}_2,\mathbf{e}_1) = -V(\mathbf{e}_1,\mathbf{e}_2) = -1).

V(a,b)=a1b2−a2b1=det⁡(a1b1a2b2)\boxed{V(\mathbf{a},\mathbf{b}) = a_1 b_2 - a_2 b_1 = \det\begin{pmatrix} a_1 & b_1 \\ a_2 & b_2\end{pmatrix}}

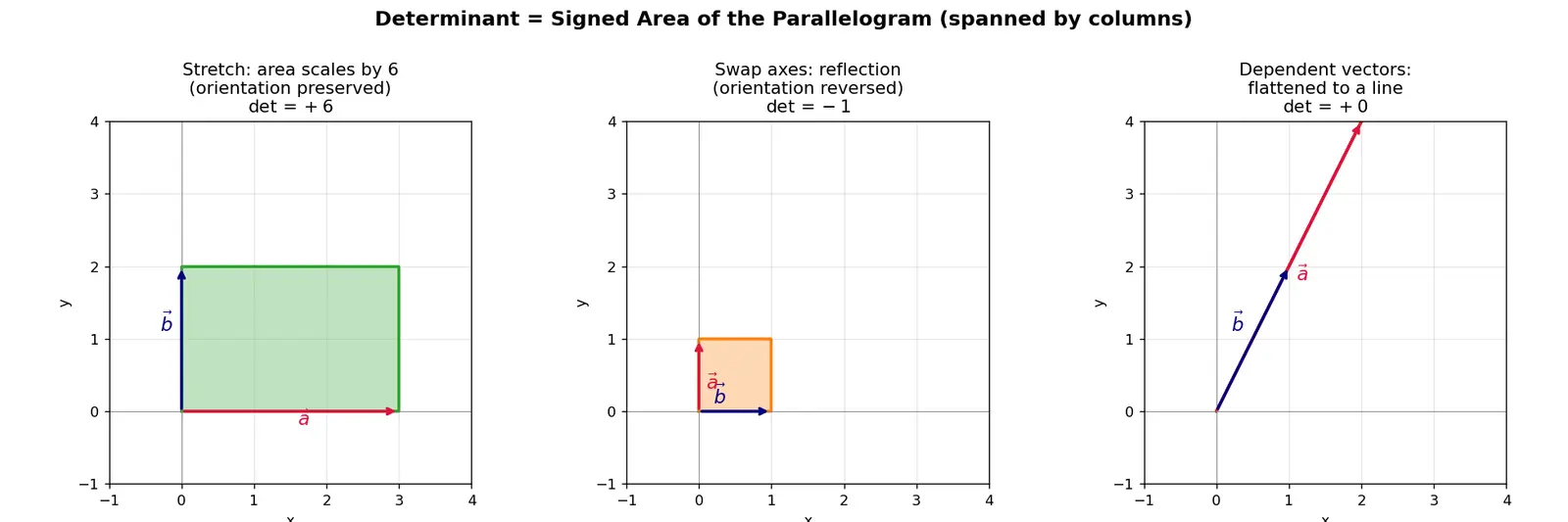

Figure — Geometric interpretation — signed volume

What the SIGN means

Worked Examples

Common Mistakes

Forecast-then-Verify

Active Recall

Recall Quick self-test (cover the answers)
  • What does ∣det⁡A∣|\det A| measure geometrically? → the volume-scaling factor of the box spanned by columns.
  • What does the sign tell you? → whether orientation is preserved (+) or reversed (−).
  • det⁡A=0\det A = 0 means? → vectors dependent / box flattened / map non-invertible.
Geometric meaning of ∣det⁡A∣|\det A|
The volume (area in 2D) of the parallelepiped spanned by the columns of AA; the factor by which the map scales all volumes.
Meaning of the SIGN of det⁡A\det A
Orientation — positive = preserved, negative = reversed (reflection).
Why does det⁡A=0\det A = 0 geometrically?
The spanned box is flattened to a lower dimension → columns are linearly dependent → map non-invertible.
Three axioms that force the determinant formula
Multilinear in each column, alternating (zero on repeated columns), normalized (det⁡I=1\det I = 1).
3D signed volume as a triple product
det⁡[a b c]=a⋅(b×c)\det[\mathbf a\,\mathbf b\,\mathbf c] = \mathbf a\cdot(\mathbf b\times\mathbf c).
How does det⁡\det scale when you multiply the whole matrix by cc?
det⁡(cA)=cndet⁡A\det(cA)=c^n\det A for n×nn\times n (every column scales).
2D determinant formula from the axioms
det⁡(a1b1a2b2)=a1b2−a2b1\det\begin{pmatrix}a_1&b_1\\a_2&b_2\end{pmatrix}=a_1b_2-a_2b_1.
Recall Feynman: explain to a 12-year-old

Imagine a rubber sheet with a little square drawn on it. A matrix is a machine that stretches and shears the whole sheet. The square turns into a slanted box. The determinant is just: "how many times bigger is the new box than the original square?" If the machine also flips the sheet over (like turning a page), we put a minus sign in front. And if the machine squashes the square completely flat into a line, the answer is zero — nothing left.

Connections

Concept Map

sends unit box to

volume change asked

multilinear alternating normalized

equals in 2D

sign records

positive

negative

zero means

implies

so map is

in 3D equals

via

Linear map A

Parallelepiped

Determinant

Area axioms

a1 b2 minus a2 b1

Orientation

Preserved handedness

Reflected / mirrored

Flattened box

Linearly dependent columns

Non-invertible

Scalar triple product

a dot b cross c

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, determinant ka asli matlab koi formula ratna nahi hai — yeh ek geometric cheez hai. Maan lo aapke paas do vectors hain (matrix ke columns), a⃗\vec a aur b⃗\vec b. Yeh dono milke ek slanted box (parallelogram) banate hain. Determinant aapko batata hai us box ka area kitna hai. 3D mein teen vectors ka box (parallelepiped) banta hai, aur determinant uska volume deta hai. Isliye isko "signed volume" kehte hain.

"Signed" kyun? Kyunki determinant positive bhi ho sakta hai aur negative bhi. Magnitude ∣det⁡∣|\det| toh sirf size batata hai — kitna stretch hua. Lekin sign ek extra info deta hai: orientation. Agar map space ko mirror ki tarah ulta kar de (handedness change), toh sign minus ho jaata hai. Yeh galat nahi hai — negative area ka matlab "flip ho gaya" hota hai, na ki impossible.

Sabse important case: jab det⁡=0\det = 0. Iska matlab box bilkul flat ho gaya — ek line ya point ban gaya. Geometrically yeh tab hota hai jab vectors ek doosre ke parallel/dependent hote hain. Aur agar box flat hai toh aap usko wapas open nahi kar sakte — isliye matrix invertible nahi hota. Yahi reason hai ki det⁡=0\det=0 aur "no inverse" same baat hai.

Yaad rakhne ka trick: SIZE aur SIDE. ∣det⁡∣|\det| = SIZE (volume kitna), sign = SIDE (kis taraf, flip hua ya nahi), aur zero = squish ho gaya. Bas itna samajh lo toh determinant ka pura geometry clear ho jaata hai — exam mein aur intuition dono mein.
