Foundations — Curl — definition, physical meaning (rotation)

This page assumes nothing. If the parent note wrote a symbol, we build it here first. Read top to bottom: each idea is a brick for the next.

1. A point in space: $(x,y,z)$

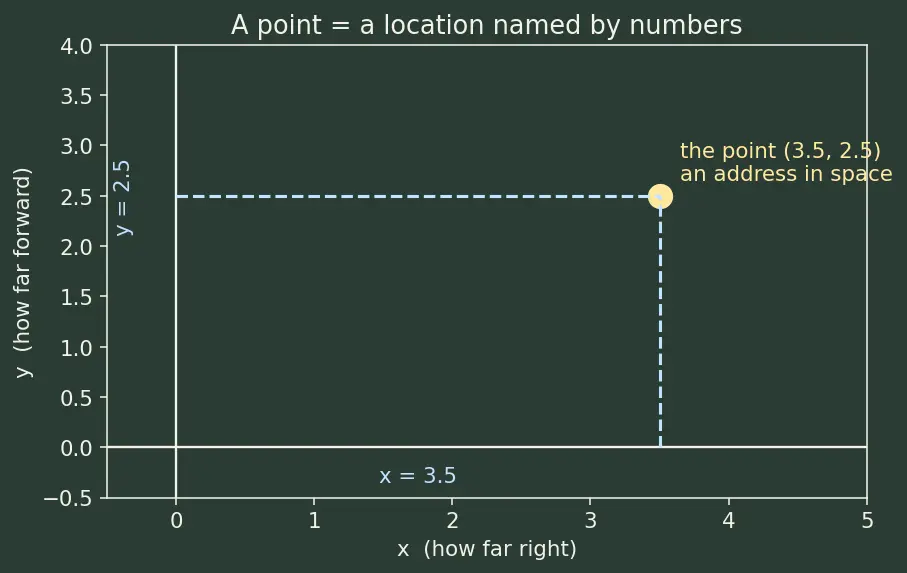

The figure below draws one such address on a flat $xy$-sheet: the yellow dot sits at $x=3.5$, $y=2.5$, and the blue dashed lines show how each coordinate is measured off its axis. Whenever this page says "a point", picture that yellow dot.

Why the topic needs it: curl is a local measurement — it lives at one point. Before we can say "the spin here" we need a way to name "here". That name is $(x,y,z)$.

2. A vector: an arrow with size and direction

Why the topic needs it: the thing curl acts on is a flow, and a flow at a point is exactly "an arrow saying which way and how fast the water moves there". That arrow is a vector.

3. A vector field: an arrow at every point

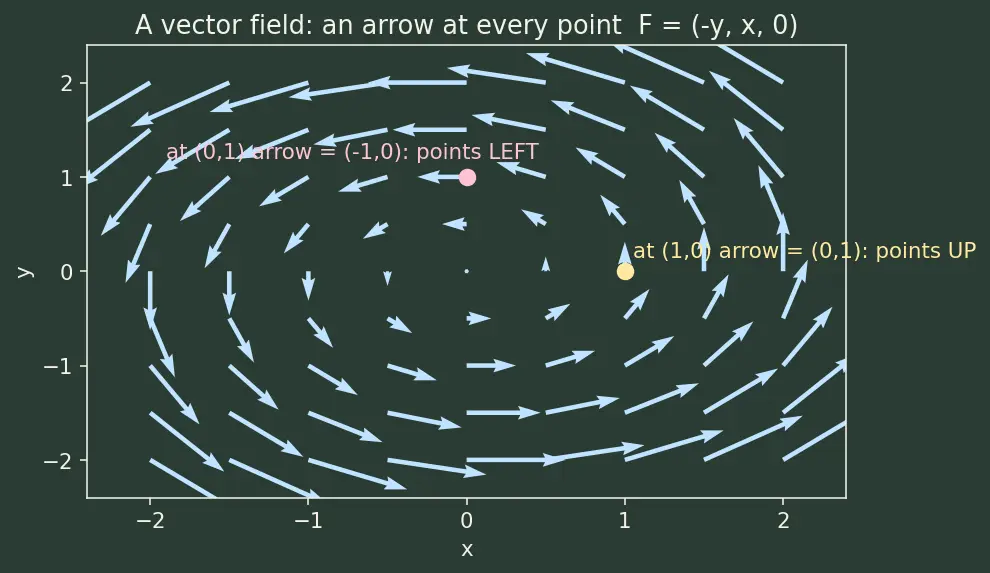

The figure shows the field $\vec{F}=(-y,x,0)$: a whole grid of blue arrows, one per point. Follow the yellow dot at $(1,0)$ — its arrow points straight up — and the pink dot at $(0,1)$ — its arrow points left. Sweep your eye around the origin and the arrows chase each other counterclockwise, the whirlpool described just below.

Why the topic needs it: curl compares the arrow here with the arrows just next door. That comparison only makes sense if there's an arrow at every neighbouring point — i.e. a field, not a single vector.

4. The symbol $\partial$ — a derivative that ignores the others

Why this tool and not another? Curl asks "does the flow on the bottom of the wheel differ from the flow on the top?" — a difference across a direction. A partial derivative is precisely the tool that measures "how much does the field differ as I move a tiny bit in one direction". No other tool answers that question as cleanly.

5. Small steps $\Delta x,\Delta y,\Delta z$, the area $A$, and the limit ${\lim }_{A\to 0}$

Why the topic needs it: the parent's core formula divides circulation by the area $A=\Delta x\Delta y$ then shrinks the loop. Without the small steps $\Delta x,\Delta y,\Delta z$ (to build the loop and its area) and $\lim$ (to shrink it) that sentence is meaningless.

6. The dot product $\vec{A}\cdot \vec{B}$ — "how much do these agree?"

The three little arrow-pairs in the figure make this concrete: yellow and blue nearly aligned (top-left) → big positive; at right angles (top-right) → zero; pointing against each other (bottom) → negative.

Why the topic needs it: circulation is $\oint \vec{F}\cdot d\vec{r}$. Along each edge of the paddlewheel loop we ask "how much of the flow $\vec{F}$ points along the way I'm walking $d\vec{r}$?" That's a dot product. If flow and walk agree it adds to the spin; if perpendicular it contributes nothing.

7. $d\vec{r}$, the loop $C$, and ${\oint }_C$ — walking a tiny loop the right way round

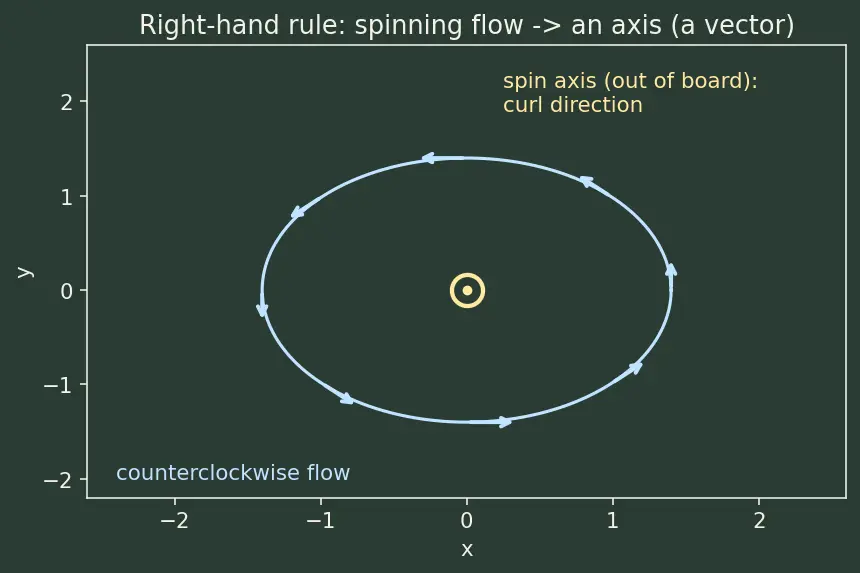

The figure shows this pairing: blue arrows run counterclockwise around the loop, and the yellow axle points straight out of the board — thumb-and-fingers of the right hand.

Why the topic needs it: this integral — with its orientation nailed down — is the definition of curl in the limit: circulation per area, sign fixed by the right-hand rule. It is the beating heart of the parent note.

8. The cross product and $\nabla \times$ — why curl is a vector

9. Equality of mixed partials (a fact we'll lean on)

Why the topic needs it: the parent's identity $\nabla \times (\nabla \varphi )=\vec{0}$ is entirely this fact — the two mixed partials cancel. See Equality of Mixed Partial Derivatives (Clairaut) and Gradient and Conservative Fields.

How the pieces feed the topic

Read it as: locations build arrows, arrows build fields, fields plus partial derivatives build both circulation (via dot product and loop) and an axis (via cross product) — and those two meet to become curl.

Equipment checklist

Cover the right side and test yourself. If any answer is fuzzy, reread that section above.
