Direction cosines and direction ratios: Foundations

This page assumes you have seen nothing. We build every symbol the Direction cosines and direction ratios note uses, one at a time, each resting on the last. When you finish, re-reading the parent note should feel like re-reading a sentence in your own language.

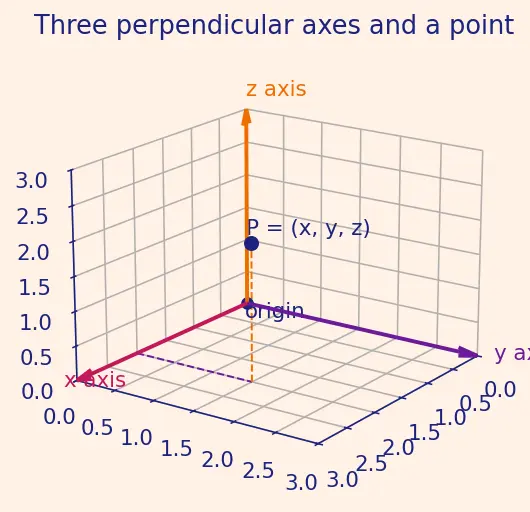

0. The playground — what "3D space" and an "axis" mean

Figure — Direction cosines and direction ratios

WHY we need this first: every later symbol — vectors, angles, cosines — is measured relative to these three axes. If the picture of "three perpendicular rulers meeting at a corner" is not solid, nothing else can be.

1. The symbols $x_{1}, y_{1}, z_{1}$ — subscripts just mean "which point"

WHY the topic needs it: the parent builds a direction from two points, so it must distinguish "the $x$ of the first point" from "the $x$ of the second". The subscript is the cheapest way to do that.

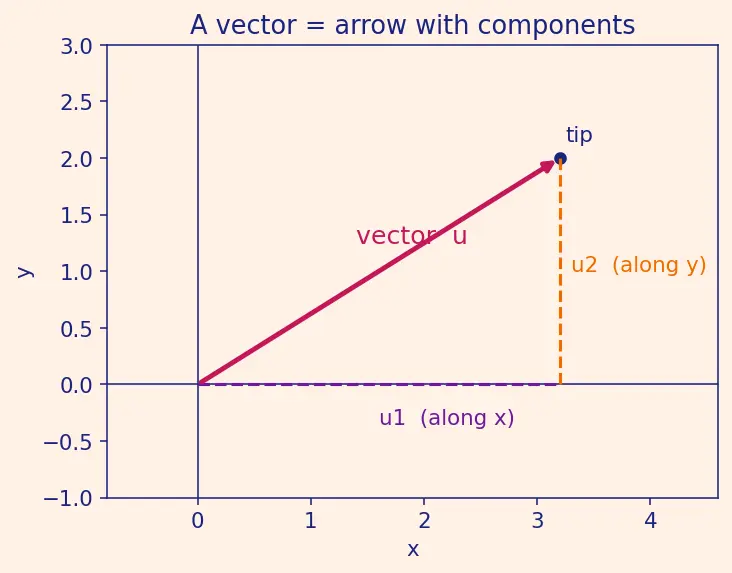

2. A vector — an arrow with a length and a direction

WHY the topic needs it: a "direction of a line" is exactly what an arrow captures. The parent's whole strategy is: turn the line into an arrow, then read the arrow's numbers.

3. Length of a vector — the symbol and why it appears

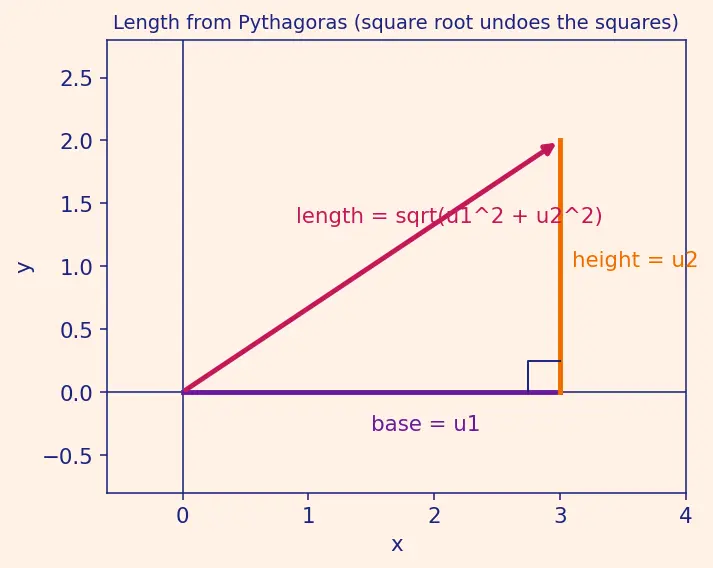

WHY this exact formula — and WHY a square root? In flat 2D, the Pythagoras theorem says a right triangle's long side (hypotenuse) is $(base)^{2} + (height)^{2}$ . In 3D we apply it twice — once in the floor, once going up — and the two applications collapse into the one formula above. The square root is there precisely to undo the squares that Pythagoras introduced, turning a sum-of-areas back into a plain length. See Distance between points in 3D for the same formula used to measure gaps between points.

WHY the topic needs unit vectors: direction cosines are defined as the components of the unit arrow along the line. The parent's rule "divide DRs by $a^{2} + b^{2} + c^{2}$ " is literally this normalising step.

4. Angles $α, β, γ$ — the tilt toward each axis

WHY three separate angles: one arrow leans differently toward each of the three axes, so it takes three tilt-numbers to describe it fully.

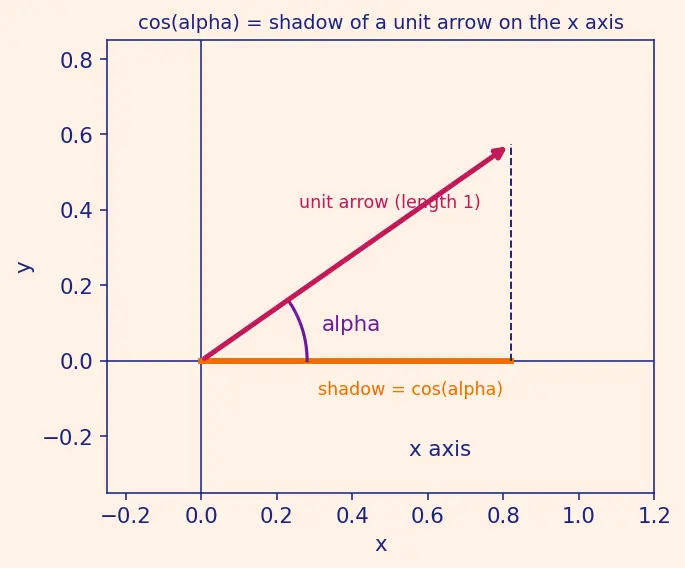

5. Cosine — turning a tilt-angle into a shadow-fraction

This is the pivot of the whole topic, so we build it slowly.

Sign of a cosine — all cases: cosine is positive when the angle is acute (line leans toward the positive axis, $0^{\circ} \leq θ < 9 0^{\circ}$ ), zero when $θ = 9 0^{\circ}$ (line is flat to that axis, no shadow), and negative when the angle is obtuse ( $9 0^{\circ} < θ \leq 18 0^{\circ}$ , line leans away). This is why direction cosines can be negative, as in the parent's $(2, - 1, 2) \to m = - \frac{1}{3}$ .

6. The dot product — the machine that measures angle

WHY the topic needs the dot product: the angle between two lines is the parent's headline result, and it is a dot product of the two direction-cosine unit arrows: $cos θ = l_{1} l_{2} + m_{1} m_{2} + n_{1} n_{2}$ . Full development lives in Vectors and dot product. Two arrows are perpendicular exactly when their dot product is $0$ (because $cos 9 0^{\circ} = 0$ ) — that is the origin of the perpendicularity test.

7. Proportional, and the ratio colon $:$

WHY the topic needs it: the direction of a line is unchanged if you make its arrow longer or shorter. So any arrow along the line describes the same direction — those are the direction ratios. Colon-notation $l : m : n = a : b : c$ says "the direction cosines are some common scaling of $a, b, c$ ." Direction ratios are the raw material of the Equation of a line in 3D.

8. How it all feeds the topic

Each box on the left is a foundation from this page; the two right-hand boxes ( $H$ and $K$ ) are the parent topic's main results. Notice the identity $l^{2} + m^{2} + n^{2} = 1$ is just "a unit vector has length $1$ " — foundation, not magic.

Equipment checklist

Test yourself — say the answer aloud before revealing.

What do the three axes

x, y, z

have in common at the origin?

They all meet at one point and are mutually perpendicular (at right angles).

Does the subscript in

x_{2}

mean squaring?

No — it labels "the

x

-coordinate of point 2"; squaring is the superscript

x^{2}

What are the components of the arrow

P Q

from

P (x_{1}, y_{1}, z_{1})

Q (x_{2}, y_{2}, z_{2})

(x_{2} - x_{1}, y_{2} - y_{1}, z_{2} - z_{1})

— finish minus start along each axis.

What does

q

ask?

Which non-negative number times itself gives

q

; it undoes squaring.

Give the length of

u = (u_{1}, u_{2}, u_{3})

∣ u ∣ = u_{1}^{2} + u_{2}^{2} + u_{3}^{2}

(3D Pythagoras).

What is a unit vector and how do you make one?

An arrow of length exactly

1

; divide every component by the arrow's length (normalising).

On a right triangle,

cos θ

equals which ratio?

adjacent over hypotenuse.

For a unit arrow, what does

cos α

physically equal?

The length of its shadow on the

x

-axis (its

x

-component).

When is a cosine negative?

When the angle is obtuse (

9 0^{\circ} < θ \leq 18 0^{\circ}

), i.e. leaning away from the positive axis.

Write the dot product of

(a_{1}, a_{2}, a_{3})

and

(b_{1}, b_{2}, b_{3})

a_{1} b_{1} + a_{2} b_{2} + a_{3} b_{3}

For two unit vectors, what does the dot product equal?

cos θ

, the cosine of the angle between them.

What does "proportional" mean for triples?

One is a fixed nonzero scaling of the other; only the ratios matter, not the size.

Connections

Direction cosines and direction ratios — the parent this page equips you for.
Vectors and dot product — the arrow, length, and dot product built here in full.
Distance between points in 3D — same square-root length formula.
Equation of a line in 3D — uses the direction-ratio arrow as its direction vector.
Equation of a plane — a plane's normal has its own DRs/DCs.
Angle between line and plane — extends the dot-product angle idea.
