3.4.5Conic Sections

Sum of focal radii = 2a property

1,688 words8 min readdifficulty · medium1 backlinks

80/20 core idea: For any point on an ellipse, the distances to the two foci always add up to 2a2a (the length of the major axis). This one fact is the definition of the ellipse.

The Big Picture

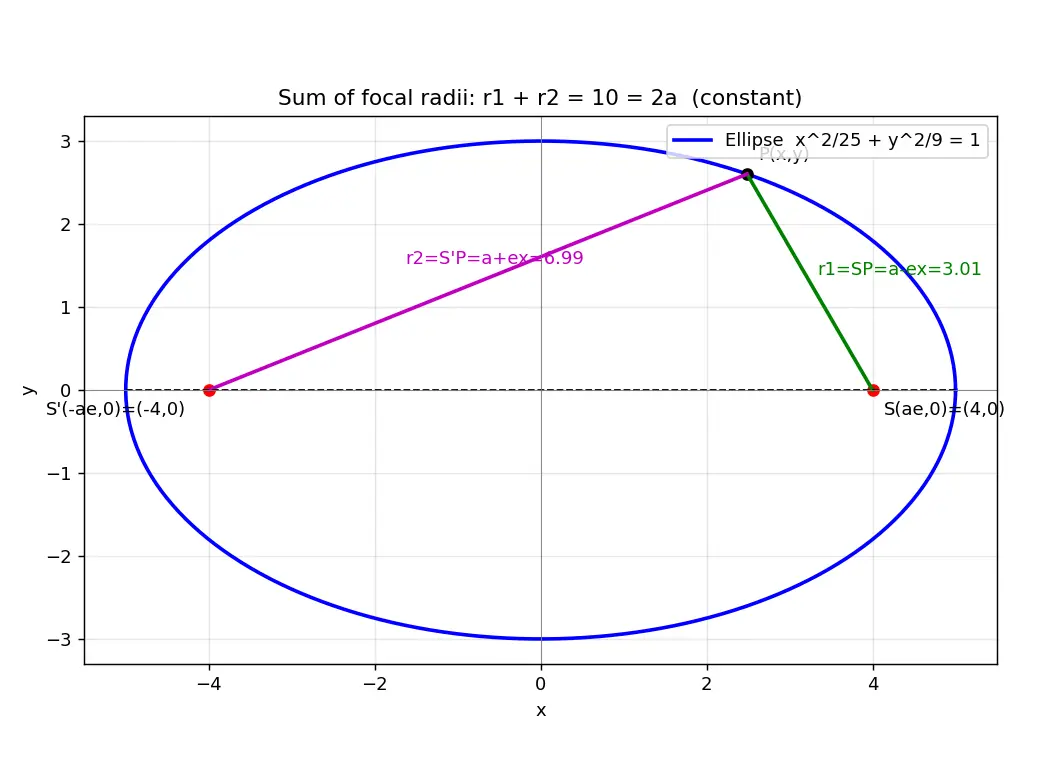

Figure — Sum of focal radii = 2a property

Derivation From Scratch (no memorising!)

We use the standard ellipse x2a2+y2b2=1,a>b>0.\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1, \qquad a > b > 0. Its foci are S(ae,0)S(ae,0) and S(ae,0)S'(-ae,0), where ee is the eccentricity and b2=a2(1e2)b^2 = a^2(1-e^2).

Step 1 — Write one focal radius using the distance formula. Let P=(x,y)P=(x,y) lie on the ellipse. r1=SP=(xae)2+y2.r_1 = SP = \sqrt{(x-ae)^2 + y^2}. Why this step? We need distances, and distance = square-root of coordinate differences squared.

Step 2 — Kill y2y^2 using the ellipse equation. From the equation, y2=b2(1x2a2)y^2 = b^2\left(1 - \dfrac{x^2}{a^2}\right). Substitute b2=a2a2e2b^2 = a^2 - a^2e^2: y2=(a2a2e2)(1x2a2)=a2a2e2x2+e2x2.y^2 = (a^2 - a^2e^2)\left(1-\frac{x^2}{a^2}\right) = a^2 - a^2e^2 - x^2 + e^2x^2. Why this step? We want r1r_1 in terms of xx only, so the sum simplifies cleanly.

Step 3 — Expand inside the square root. (xae)2+y2=x22aex+a2e2+a2a2e2x2+e2x2.(x-ae)^2 + y^2 = x^2 - 2aex + a^2e^2 + a^2 - a^2e^2 - x^2 + e^2x^2. The x2x^2, a2e2a^2e^2 terms cancel: =a22aex+e2x2=(aex)2.= a^2 - 2aex + e^2x^2 = (a - ex)^2. Why this step? The whole point of using b2=a2(1e2)b^2=a^2(1-e^2) is that this collapses into a perfect square.

Step 4 — Take the square root. r1=(aex)2=aex.r_1 = \sqrt{(a-ex)^2} = a - ex. (For a point on the ellipse axa-a\le x\le a and 0<e<10<e<1, so aex>0a-ex>0; the root is positive.)

Step 5 — Do the same for the other focus S(ae,0)S'(-ae,0). By identical algebra with +ae+ae instead of ae-ae: r2=SP=a+ex.r_2 = S'P = a + ex.

Step 6 — Add them. r1+r2=(aex)+(a+ex)=2a.r_1 + r_2 = (a-ex) + (a+ex) = 2a. \qquad\blacksquare

Worked Examples

Common Mistakes (Steel-manned)

Active Recall

Recall Test yourself (reveal after answering)
  • What is SP+SPSP+S'P for any point on an ellipse? → 2a2a.
  • Focal radius from the near (right) focus? → aexa-ex.
  • Why does the sum not depend on xx? → ex-ex and +ex+ex cancel.
  • Which axis length is the constant? → major axis, 2a2a.
  • Ellipse vs hyperbola constant? → sum vs difference.
Recall Feynman: explain to a 12-year-old

Imagine two nails in a board and a loose loop of string around them holding a pencil tight. As you draw, the pencil makes a squashed circle (an ellipse). The string never changes length — so the pencil's distance to nail A plus its distance to nail B is always the same number. That fixed number is the width of the oval across its longest direction, which we call 2a2a. The nails are the "foci."

Connections

  • Ellipse - Standard Equation — where a,b,ea,b,e come from.
  • Eccentricity of Conics — the ee inside a±exa\pm ex.
  • Directrix and Focal Distance — focal radius =e=e\cdot(distance to directrix).
  • Hyperbola - Difference of Focal Radii = 2a — the "difference" cousin.
  • Definition of Conic as Locus — ellipse as constant-sum locus.
For a point on an ellipse, what does SP+SPSP + S'P equal?
The length of the major axis, 2a2a.
Focal radius from the right focus S(ae,0)S(ae,0) is?
SP=aexSP = a - ex.
Focal radius from the left focus S(ae,0)S'(-ae,0) is?
SP=a+exS'P = a + ex.
Why is the sum of focal radii constant?
The ex-ex and +ex+ex terms cancel, leaving 2a2a independent of position.
In the derivation, (xae)2+y2(x-ae)^2+y^2 simplifies to what?
The perfect square (aex)2(a-ex)^2.
Which substitution makes the algebra collapse to a perfect square?
b2=a2(1e2)b^2 = a^2(1-e^2).
Ellipse constant vs hyperbola constant?
Ellipse: sum r1+r2=2ar_1+r_2=2a; hyperbola: difference r1r2=2a|r_1-r_2|=2a.
Given foci (±3,0)(\pm3,0) and focal-radii sum 1010, find aa and b2b^2.
2a=10a=52a=10\Rightarrow a=5; ae=3e=3/5ae=3\Rightarrow e=3/5; b2=25(19/25)=16b^2=25(1-9/25)=16.
What is SPSPS'P-SP in terms of xx?
2ex2ex.

Concept Map

foci at

point P on curve

distance formula

distance formula

kills y^2 term

simplifies via

square root

identical algebra

add

add

equals

defines

physical model

Ellipse equation

Foci S(ae,0), S'(-ae,0)

Point P x,y

r1 = SP

r2 = S'P

b^2 = a^2 1-e^2

Perfect square a-ex ^2

SP = a - ex

S'P = a + ex

SP + S'P = 2a

Length of major axis 2a

Definition of ellipse

Gardener string trick

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, ellipse ki sabse important baat ye hai ki uske do "focus" points hote hain (S aur S'). Ellipse par tum kahin bhi point P lo, agar tum P se S tak aur P se S' tak ki distance naapo aur add karo, to hamesha wahi ek number aayega — aur wo number hota hai 2a2a, yaani major axis ki poori length. Yahi ellipse ki asli definition hai: "sum of focal radii is constant".

Iska proof bilkul simple algebra se aata hai. Point P=(x,y)P=(x,y) leke distance formula se SP=(xae)2+y2SP=\sqrt{(x-ae)^2+y^2} likho, phir ellipse equation se y2y^2 ko replace karo aur b2=a2(1e2)b^2=a^2(1-e^2) daalo. Sab kuch cancel hoke ek perfect square (aex)2(a-ex)^2 ban jaata hai, jiska root aexa-ex hai. Isi tarah dusre focus ke liye a+exa+ex milta hai. Ab dono add karo — exex waale terms cancel, bacha sirf 2a2a. Yahi magic hai.

Yaad rakhne ka trick: near focus se distance kam (aexa-ex), far focus se distance zyada (a+exa+ex). Aur galti mat karna — ellipse mein hum sum lete hain (=2a=2a), jabki hyperbola mein difference lete hain (=2a=2a). Exam mein jab foci aur sum diye ho, to seedha 2a2a se aa nikaalo, foci se aeae nikaalo, phir b2=a2a2e2b^2=a^2-a^2e^2 — ellipse ready. Bahut saare questions bina coordinates ke, sirf is property se ho jaate hain.
