Kepler's connection — orbits are ellipses (motivation)

---

WHY should a maths student care?

WHAT we are doing: connecting the pure-geometry object (ellipse) to a physical law of motion.

WHY it matters: the ellipse's focus is normally an abstract point that makes distances behave nicely ($r_1+r_2 = \text{const}$). Kepler's law tells us that this abstract point is physically special — it's where the gravitating mass lives. So the same $e$ (eccentricity), $a$ (semi-major axis) you compute in a conic problem literally describe a planet's orbit.

HOW it links: A body moving under an inverse-square attractive force ($F \propto 1/r^2$) must follow a conic. Which conic depends on how much energy it has — this single fact unifies circles, ellipses, parabolas and hyperbolas as one family.

---

Kepler's three laws (the motivation)

---

Deriving the ellipse's key numbers from scratch

We won't do the full calculus orbit derivation (that's physics), but we derive the geometry that Kepler's first law needs, purely from the focus definition.

Step 1 — Set up the ellipse

$\frac{x^2}{a^2} + \frac{y^2}{b^2} = 1, \qquad a>b>0$

• Why? This is the standard ellipse centred at origin. $a$ = semi-major axis, $b$ = semi-minor.

The foci lie on the major axis at $(\pm c, 0)$ where $c = ae, \qquad e = \text{eccentricity}, \qquad b^2 = a^2(1-e^2).$

• Why $b^2 = a^2(1-e^2)$? Take the point $(0,b)$ on the top of the ellipse. Its distances to the two foci are equal (by symmetry), each $\sqrt{c^2+b^2}$. The sum-of-distances constant equals $2a$, so each distance is $a$. Thus $c^2 + b^2 = a^2$, giving $b^2 = a^2 - c^2 = a^2 - (ae)^2 = a^2(1-e^2)$. ✅

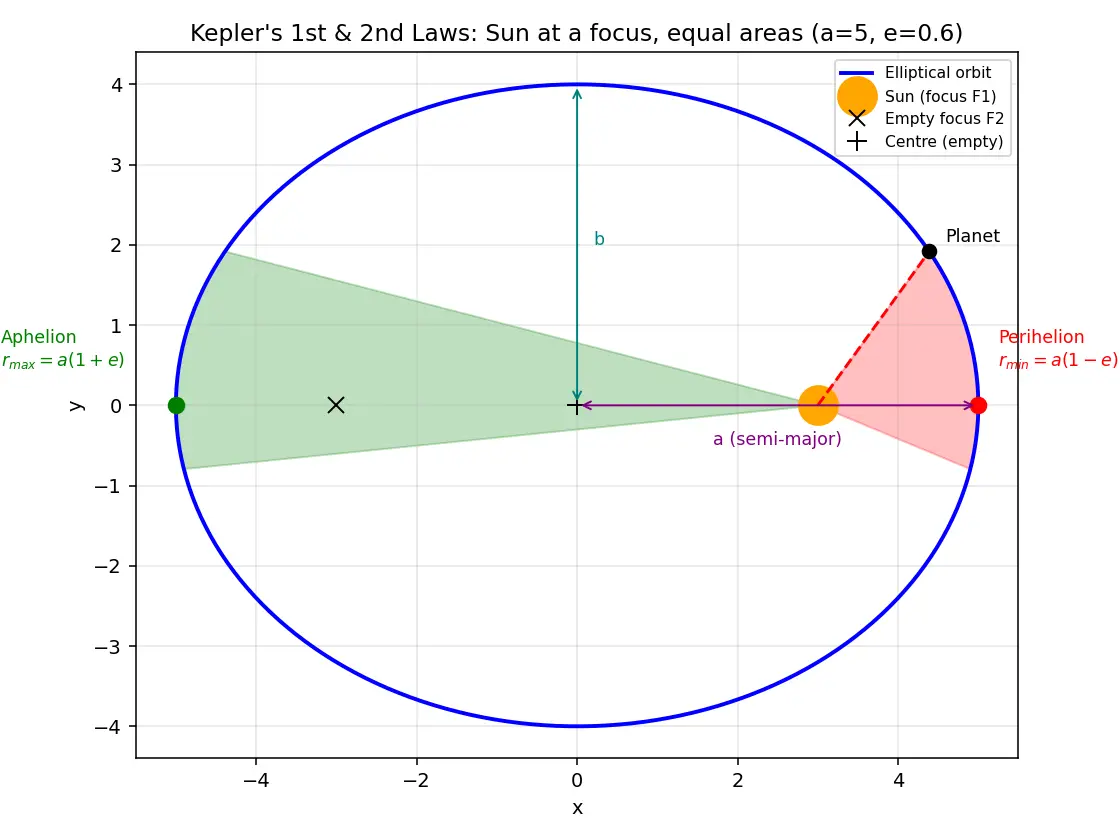

Step 2 — Nearest and farthest points (perihelion & aphelion)

Put the Sun at focus $F_1 = (c,0) = (ae,0)$. The planet's distance to the Sun along the major axis:

$r_{\min} = a - c = a(1-e) \quad(\text{perihelion, nearest})$ $r_{\max} = a + c = a(1+e) \quad(\text{aphelion, farthest})$

• Why this step? The major-axis endpoints are at $(\pm a, 0)$. Distance from $(a,0)$ to focus $(ae,0)$ is $a - ae = a(1-e)$; from $(-a,0)$ it is $a + ae = a(1+e)$. These are the closest/farthest a planet ever gets.

Step 3 — Why equal areas ⇒ faster near the Sun (Law 2 intuition)

The area swept per unit time is constant. Near perihelion the "radius arm" $r$ is short, so to sweep the same area the planet must swing through a bigger angle — i.e. move faster. This is angular-momentum conservation dressed as geometry.

$\frac{dA}{dt} = \frac{1}{2} r^2\frac{d\theta}{dt} = \text{const}$

• Why? A thin triangle swept in time $dt$ has area $\tfrac12 \cdot r \cdot (r\,d\theta)$. If $\tfrac{dA}{dt}$ is constant and $r$ shrinks, $\tfrac{d\theta}{dt}$ must grow.

---

Worked examples

---

Common mistakes (Steel-manned)

---

Active recall

Recall Cover and answer

• Where does the Sun sit in a planet's elliptical orbit? → at one focus.
• What is $r_{\min}$ in terms of $a,e$? → $a(1-e)$.
• How do you get $a$ from perihelion and aphelion? → their average.
• What does Kepler's 2nd law imply about speed? → faster near the Sun (equal areas).
• State Kepler's 3rd law. → $T^2 \propto a^3$.

Recall Feynman: explain to a 12-year-old

Imagine tying a stone to a string and swinging it — but the string is stretchy gravity. The stone (planet) goes around the Sun, but not in a perfect circle: it makes a squashed loop called an ellipse. The Sun isn't in the middle of the squashed loop; it sits a little to one side, at a special spot called a focus. When the planet comes close to the Sun it speeds up (like a kid running faster around the tight corner of a track), and when it's far away it slows down. And here's the magic: if you know the closest and farthest distances, just average them and you get the "size" of the whole loop.

---

Flashcards

---

Connections

• Ellipse — standard equation and focus
• Eccentricity of a conic
• Focus–directrix definition of conics
• Conic sections as slices of a cone
• Parabola — projectile motion connection
• Hyperbola — unbound orbits and escape
• Angular momentum conservation

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, conic section sirf geometry ki cheez nahi hai — nature khud ellipse banati hai! Kepler ne dekha ki har planet Sun ke around ek ellipse mein ghoomta hai, aur Sun ellipse ke centre pe nahi, balki ek focus pe baithta hai. Yahi reason hai ki focus itna important point hai jab hum conics padhte hain. Focus wahi jagah hai jahan "khinchne wala" body (Sun) hota hai.

Do khaas points yaad rakho: perihelion (Sun ke sabse paas, distance $a(1-e)$) aur aphelion (sabse door, distance $a(1+e)$). Inn dono ka average nikaalo to $a$ (semi-major axis) mil jaata hai, aur inka difference-by-sum nikaalo to eccentricity $e$ mil jaati hai. Simple formulas, lekin poore orbit ki puri kahani inme chhupi hai.

Kepler ka doosra law kehta hai equal time mein equal area sweep hota hai — matlab Sun ke paas planet tez chalta hai, door jaake dheema. Socho jaise race track ke tight corner pe bacha fast bhaagta hai. Aur teesra law: $T^2 \propto a^3$ — bada orbit matlab lamba saal (Mars ka saal Earth se lamba). Yeh sab isliye important hai kyunki inverse-square gravity ($F \propto 1/r^2$) wali koi bhi cheez conic hi banati hai — circle, ellipse, parabola, hyperbola sab ek hi family. Exam mein ellipse ke $a$, $b$, $e$ ke formulas ko iss physical picture se jodo, yaad rakhna aasaan ho jayega.
