Foundations — Kepler's connection — orbits are ellipses (motivation)

Before you can read the parent note fluently, you must be able to see every letter it uses. This page takes each symbol, gives it plain words, ties it to a picture, and says why the topic needs it. Read top to bottom — each item leans on the one before.

1. A point and its coordinates $(x,y)$

Picture: a dot with a horizontal ruler underneath (that reading is $x$) and a vertical ruler beside it (that reading is $y$).

Why the topic needs it: the whole orbit is a set of points, and to write "the orbit is this shape" as an equation we must be able to name each point with $(x,y)$ — including the ones to the left of and below the Sun.

2. Distance between two points — and the symbol $r$

Before writing a formula, we need a way to name two points at once without confusing them. We use a small number written low and to the right, called a subscript:

To compute it we use the Pythagoras idea: the straight gap is the diagonal of a right triangle whose legs are the horizontal gap ($x_2-x_1$, how much farther right point 2 is) and the vertical gap ($y_2-y_1$, how much higher it is).

$r=\sqrt{(x_2-x_1{)}^2+(y_2-y_1{)}^2}$

• Why the squares? Squaring makes each gap positive (a left gap and a right gap of the same size count equally) and Pythagoras' theorem says the two squared legs add up to the squared diagonal. The square root at the end undoes the squaring to give an honest length.

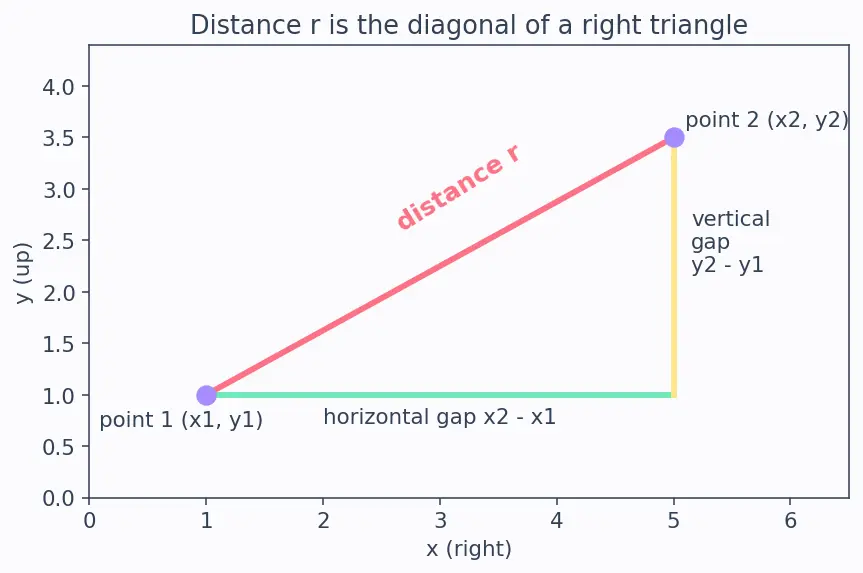

• WHAT the figure shows: two dots labelled point 1 $(x_1,y_1)$ and point 2 $(x_2,y_2)$, the horizontal leg, the vertical leg, and the diagonal $r$.
• WHY we need it: the parent note constantly talks about "distance to the Sun" $r$, "$r_{\min }$", "$r_{\max }$". All of these are just this one distance measured at different moments.

3. The ellipse — a squashed circle drawn by two pins

The two pins are the foci (plural of focus). Call them $F_1$ and $F_2$, and call the two distances $r_1$ and $r_2$ (note the subscripts again — distance to focus 1 and distance to focus 2).

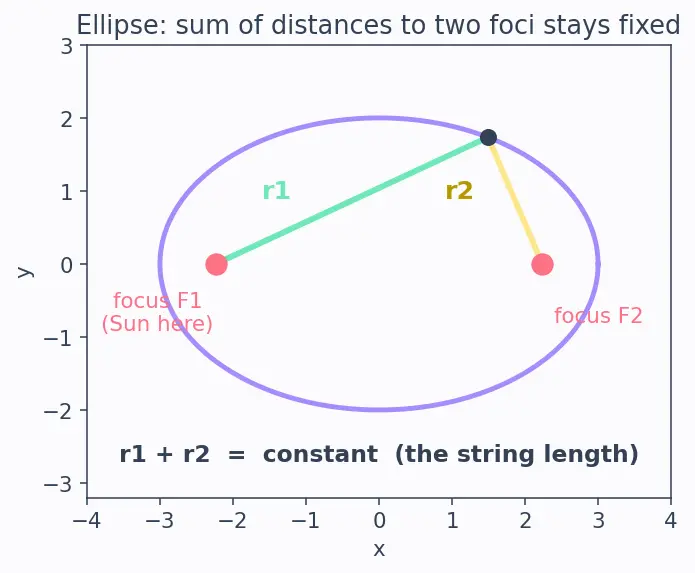

• WHAT the figure shows: two foci, a pencil point on the curve, the two coloured string-segments $r_1$ and $r_2$, and a note that their sum is fixed.
• WHY the topic needs it: Kepler's 1st law says the orbit is this curve, and the Sun sits at one of the pins ($F_1$). That single sentence is the whole motivation of the chapter.

4. The axes: $a$ (semi-major) and $b$ (semi-minor)

An ellipse has a long direction and a short direction.

Picture: the centre of the ellipse with a long arrow of length $a$ reaching one end, and a short arrow of length $b$ reaching the top.

Why the topic needs it: $a$ is the "size" of the whole orbit; Kepler's 3rd law ($T^2\propto a^3$) is written entirely in terms of $a$.

5. The centre vs. the focus — the distance $c$ and the relation $c^2=a^2-b^2$

Why the constant sum equals $2a$: put the pencil at the far right end of the ellipse, the point $(a,0)$. Its distance to the near focus $(c,0)$ is $a-c$, and to the far focus $(-c,0)$ is $a+c$. Their sum is $(a-c)+(a+c)=2a$. Since the sum is the same everywhere on the curve, the constant is $2a$.

Why the topic needs $c$: it measures how off-centre the Sun is. The nearest and farthest points the parent derives are exactly $a-c$ and $a+c$.

6. Eccentricity $e$ — the "squashedness dial"

Read it as a dial:

• $e=0$: the two foci merge at the centre → a perfect circle.
• $e$ small (like Earth's $0.0167$): almost a circle.
• $e$ close to $1$: long, stretched cigar shape.

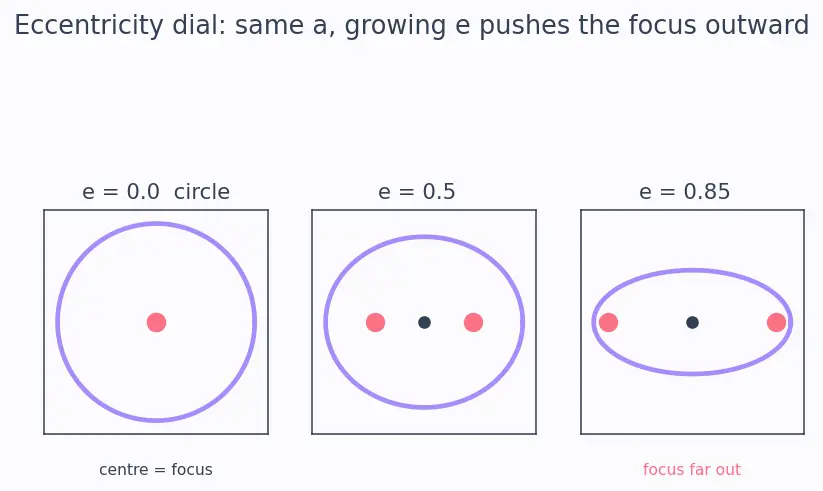

• WHAT the figure shows: three ellipses with the same $a$ but growing $e$, each with its focus marked, so you see the focus slide outward as $e$ rises.
• WHY we chose a ratio and not just $c$: $c$ alone can't tell you if a shape is "very squashed", because a huge orbit and a tiny orbit could share the same $c$ yet look totally different. Dividing by $a$ makes $e$ compare $c$ to the size of the ellipse, so the same $e$ means the same shape at any scale. That is why Eccentricity of a conic is the master number of the whole family.

Combining $e=c/a$ (so $c=ae$) with $c^2=a^2-b^2$ gives $b^2=a^2-c^2=a^2(1-e^2)$ — exactly the relation the parent uses.

7. Perihelion & aphelion — $r_{\min }$ and $r_{\max }$

Because the Sun is at the focus a distance $c$ off-centre, the closest end is $a-c$ away and the far end is $a+c$ away: $r_{\min }=a-c=a(1-e),r_{\max }=a+c=a(1+e).$

Why the topic needs it: these two measured numbers are how astronomers actually find $a$ and $e$ for a real orbit (average them for $a$; their difference over their sum gives $e$).

8. The Greek letter $\theta$ and the pieces $\frac{d\theta }{dt}$, $\frac{dA}{dt}$

The little "$\frac{d(\text{something})}{dt}$" symbol means "how fast that something changes as time $t$ ticks by." So:

• $\frac{d\theta }{dt}$ = how fast the angle is sweeping = the planet's turning speed.
• $\frac{dA}{dt}$ = how fast the swept area $A$ grows = how quickly the Sun–planet line paints new region.

9. Period $T$ and the shorthand $\propto$

So Kepler's 3rd law $T^2\propto a^3$ says: the square of the period follows the cube of the size, whatever the fixed conversion constant happens to be. Using Earth as the unit ($a=1$, $T=1$) makes that constant $1$, giving the clean $T=a^{3/2}$ the parent uses.

How these foundations feed the topic

Equipment checklist

Test yourself — cover the right side.
