3.1.21Advanced Trigonometry

Area of triangle = ½ab·sin C

1,676 words8 min readdifficulty · medium2 backlinks

WHAT is this?

The key condition: the angle must be sandwiched between the two sides you use. CC is opposite side cc, and it is enclosed by sides aa and bb. That is why it appears with abab, not acac or bcbc.

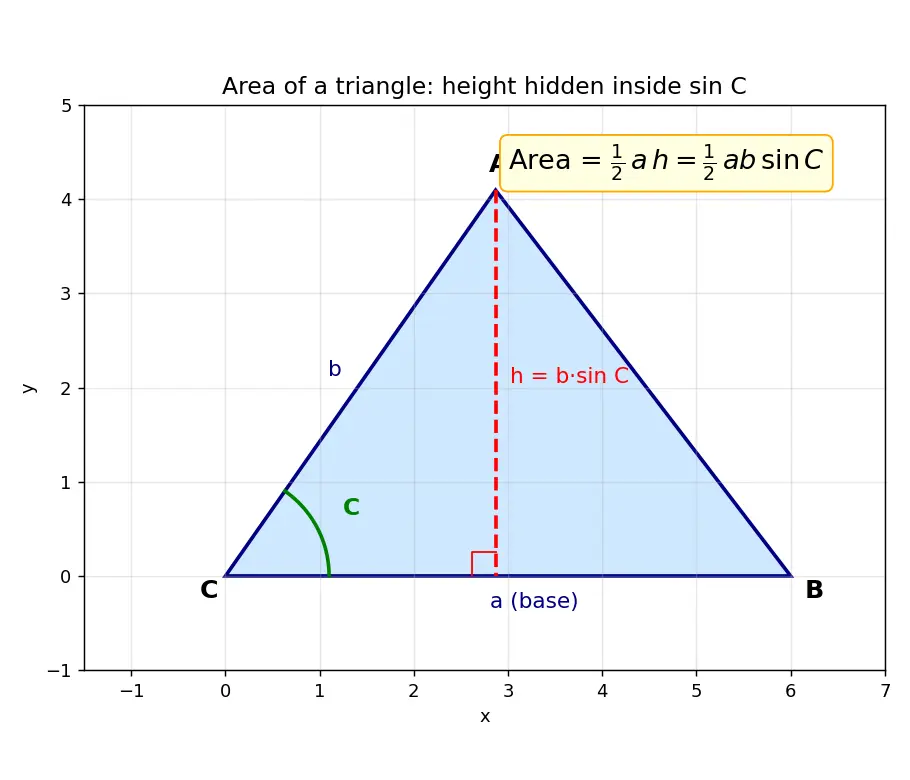

Figure — Area of triangle = ½ab·sin C

WHY does it work — derivation from scratch

We start from the only area fact we truly trust: Area=12×base×height.\text{Area}=\tfrac12\times \text{base}\times \text{height}.

Step 1 — Pick a base. Take side aa (the side from vertex BB to vertex CC) as the base. Why this step? We need some base; aa is convenient because it touches vertex CC, where our known angle lives.

Step 2 — Drop a perpendicular height hh from vertex AA down to the line containing base aa. Why this step? Height must be measured perpendicular to the chosen base — that's the definition of "height."

Step 3 — Express hh using angle CC. Look at the right-angled triangle formed by the height. The side bb (from CC to AA) is the hypotenuse of this small right triangle, and hh is the side opposite to angle CC. By the definition of sine (sin=opphyp\sin=\frac{\text{opp}}{\text{hyp}}): sinC=hbh=bsinC.\sin C=\frac{h}{b}\quad\Longrightarrow\quad h=b\sin C. Why this step? This is the whole point — it converts an unknown height into known quantities bb and CC.

Step 4 — Substitute. Area=12ah=12a(bsinC)=12absinC.\text{Area}=\tfrac12\,a\,h=\tfrac12\,a\,(b\sin C)=\boxed{\tfrac12\,ab\sin C.}


HOW to use it — worked examples


Common mistakes (steel-manned)


Recall Feynman: explain to a 12-year-old

Imagine a tent made of two poles leaning together, one long, one shorter, meeting at the top with some angle. To find how much floor the tent covers, you'd want base × height and cut it in half (it's a triangle). But you don't have a ruler for the height! Here's the magic: if you know how long a pole is and how much it leans, the "how high it reaches" is just the pole length times a special leaning-number called sine. So instead of measuring the height, you calculate it: height = pole × sine(angle). Then it's just half of base × height like always. That's the whole secret.


Flashcards

What is the area formula using two sides and their included angle?
Area=12absinC\text{Area}=\tfrac12 ab\sin C
In 12absinC\tfrac12 ab\sin C, which angle is CC?
The angle included between (enclosed by) sides aa and bb.
Why does the height equal bsinCb\sin C?
In the right triangle formed by the altitude, hh is opposite angle CC with hypotenuse bb, so sinC=h/bh=bsinC\sin C=h/b\Rightarrow h=b\sin C.
Why sine and not cosine in the area formula?
Height is a perpendicular distance = the "across" component of the slant side = side ×sin\times\sin(angle).
Does the formula work for an obtuse included angle?
Yes — sinC>0\sin C>0 for all 0<C<1800<C<180^\circ, so it stays valid.
Given area, aa, bb, why can solving for CC give two answers?
Because sinC=sin(180C)\sin C=\sin(180^\circ-C), giving an acute and an obtuse solution (ambiguous case).
What happens to the area as C0C\to0^\circ?
sinC0\sin C\to0, so area 0\to0 — the triangle collapses to a line.
For C=90C=90^\circ, what does the formula reduce to?
12ab\tfrac12 ab (since sin90=1\sin90^\circ=1), the standard right-triangle area with legs a,ba,b.

Connections

  • Sine Rule — same "two sides + angle" family; used to find missing sides/angles.
  • Cosine Rule — finds the third side; pairs with this to fully solve a triangle.
  • Heron's Formula — area from three sides instead of two-sides-one-angle.
  • Right-Angled Trigonometry (SOHCAHTOA) — the source of h=bsinCh=b\sin C.
  • Cross Productu×v=uvsinθ|\vec u\times\vec v|=|\vec u||\vec v|\sin\theta is the vector twin of this formula.
  • Unit Circle and Sine — why sin\sin of an obtuse angle stays positive.

Concept Map

choose base a

drop perpendicular

right triangle, b is hypotenuse

rearrange

substitute into area

requires

relabel symmetry

valid for

sine gives across-ness

example: a=6 b=8 C=30

Area = half base times height

base = side a

height h from vertex A

sin C = h over b

h = b sin C

Area = half ab sin C

C is included angle between a and b

half bc sin A = half ca sin B

obtuse C, sin stays positive

perpendicular component of b

Area = 12

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, kisi bhi triangle ka area hamesha 12×base×height\tfrac12\times\text{base}\times\text{height} hota hai — ye toh basic hai. Problem ye hai ki height (uchai) ka pata seedha nahi chalta. Lekin aksar hume do sides aur unke beech wala angle pata hota hai. Yahin par sine ka jaadu chalta hai: agar side bb ek angle CC par jhuki hui hai, toh uski height ka component bsinCb\sin C ho jaata hai. Isliye area ban jaata hai 12absinC\tfrac12 ab\sin C.

Sabse zaroori baat — angle CC ko un dono sides ke beech hona chahiye jinko aap multiply kar rahe ho. Isko "included angle" kehte hain. Formula ka pattern yaad rakho: 12absinC\tfrac12 ab\sin C mein angle CC hai aur sides a,ba,b hain — matlab angle wale letter ki side use nahi karte, baaki do use karte hain.

Ek important trick: agar aapko area de rakha ho aur angle nikalna ho, toh sinC\sin C do answer de sakta hai — ek acute aur ek obtuse (kyunki sinC=sin(180C)\sin C=\sin(180^\circ-C)). Isko ambiguous case kehte hain, dono likhna. Aur haan, obtuse angle ke liye bhi formula chalta hai kyunki sin\sin toh 180180^\circ tak positive rehta hai. Bas calculator degree mode mein rakhna, warna galat aayega!
