WHY two axes? To locate any point in 2D space, you need TWO pieces of information: how far left/right (x-coordinate) and how far up/down (y-coordinate).
HOW do they work together? Think of the x-axis as "street number" and y-axis as "floor number" in a building. The ordered pair (x, y)* is the complete address.
WHY this convention? Mathematicians agreed on right = positive and up = positive because it matches how we read (left to right) and natural intuition (higher = more).
WHY don't axis points belong to quadrants? Quadrants are defined by BOTH coordinates being non-zero with specific signs. Axis points have one coordinate = 0, so they're boundaries, not regions.
Imagine you're playing a treasure hunt video game. The map is a big grid with two lines crossing in the middle — one going left-right (like reading a book) and one going up-down (like climbing stairs).
The crossing point is called "home base" or the origin. Every treasure has an address made of two numbers: how many steps right (or left if negative) and how many steps up (or down if negative).
When you write (3, 5), it's like saying "Go 3 steps right from home, THEN 5 steps up." The order matters! If you go 5 right and 3 up, you'll find a different treasure.

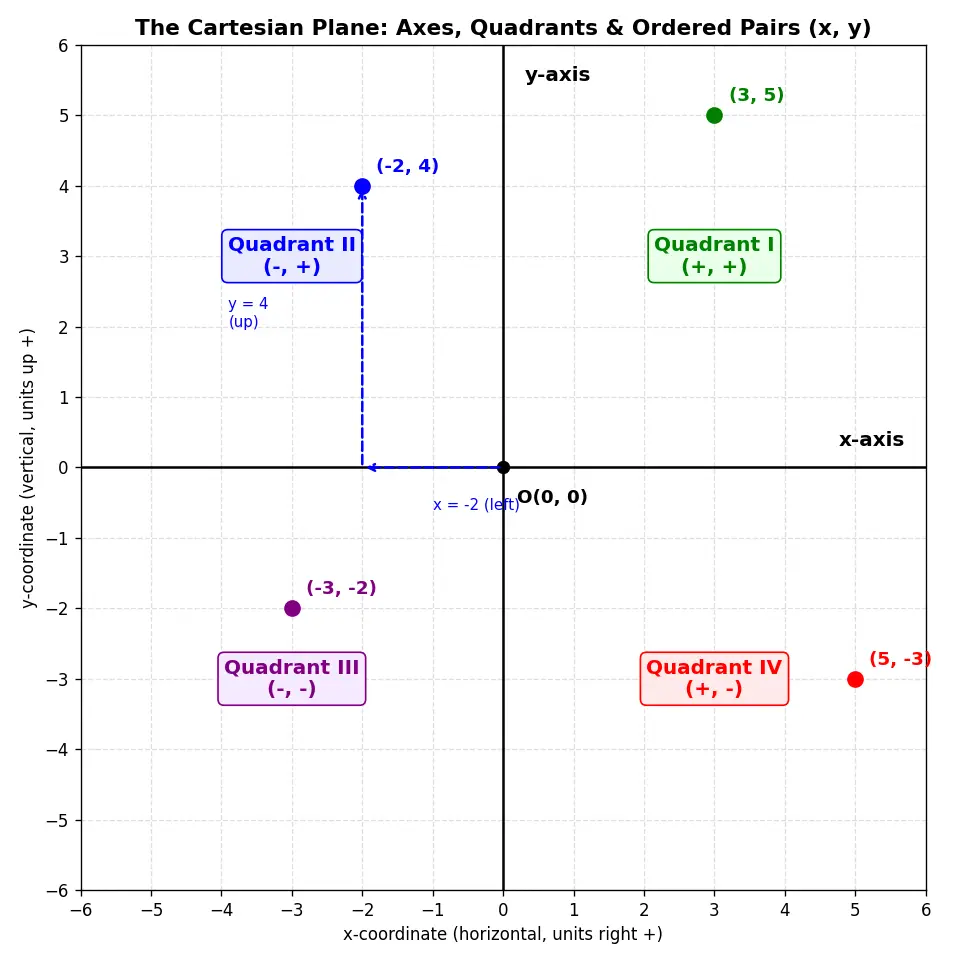

The map is split into 4 zones:
Zone 1 (top-right): Both numbers positive — easy to find
Zone 2 (top-left): First number negative (go left), second positive (go up)
Zone 3 (bottom-left): Both negative — deep in the dungeon
Zone 4 (bottom-right): First positive (go right), second negative (go down)
This treasure map system is called the Cartesian plane, and it's how computers know where to draw every pixel on your screen!
Section formula — generalizes midpoint for any ratio division
Slope of a line — rate of change of y with respect to x, pure coordinate geometry
Equation of a line — algebraic representation of geometric lines using coordinates
Colinearity — three points on same line, tested via coordinates
Area of triangle — calculable from coordinates alone using determinants
Polar coordinates — alternative system using distance and angle instead of (x, y)
Complex plane — extends Cartesian plane with imaginary numbers as y-axis
Vectors — ordered pairs can represent direction and magnitude
#flashcards/maths
What are the two axes in Cartesian plane and what do they represent? :: The x-axis (horizontal) represents left-right position, and the y-axis (vertical) represents up-down position. They are perpendicular number lines intersecting at the origin O(0,0).
What is an ordered pair and why is order important?
An ordered pair (x, y) specifies a point's position where x is horizontal displacement and y is vertical displacement from origin. Order matters because (3,5) and (5,3) are different points — the first coordinate is ALWAYS x (horizontal).
What are the sign conventions for the four quadrants?
QI: (+, +), QII: (−, +), QIII: (−, −), QIV: (+, −). They go counterclockwise starting from top-right.
Where do points with coordinates (a, 0) and (0, b) lie?
(a, 0) lies on the x-axis and (0, b) lies on the y-axis. Points on axes belong to NO quadrant because one coordinate is zero.
How do you plot the point P(−3, 4)?
Start at origin O(0,0), move 3 units LEFT (negative x), then move 4 units UP (positive y). The point is in Quadrant II.
What is the distance formula between points A(x₁, y₁) and B(x₂, y₂)?
d=(x2−x1)2+(y2−y1)2. It comes from Pythagoras theorem applied to the right triangle formed by horizontal and vertical differences.
Why are the axes called "Cartesian"?
Named after René Descartes, who created the coordinate system to connect algebra and geometry, allowing geometric problems to be solved with equations.
What quadrant contains the point (−5, −3)?
Quadrant III because both x and y coordinates are negative (bottom-left region).
If a point has x-coordinate 0, where must it lie?
On the y-axis (could be above or below origin depending on y value, but x=0 means it's on the vertical axis).
Why do quadrants go counterclockwise instead of clockwise?
This matches the mathematical convention for positive rotation direction, same as in trigonometry and the unit circle (anticlockwise = positive angle).
Cartesian plane matlab ek bahut hi powerful idea hai jisko Descartes ne discover kiya — har point ko do numbers se represent karna. Sochiye ap kisi ko apne ghar ka address bata rahe ho: "Sector 5, House 12" — yahi concept hai! X-axis matlab horizontal line (left-right), Y-axis matlab vertical line (up-down), aur dono ki crossing pe origin O(0,0) hai.
Jab aap kisi point ka address likhte ho, jaise (3, 5), toh iska matlab hai pehle x-direction mein 3 units RIGHT jao, phir y-direction mein 5 units UP jao. Order bahut important hai — (3,5) aur (5,3) bilkul alag points hain. Plane ko 4 quadrants mein divide kiya gaya hai: QI mein dono positive (+,+), QII mein x negative par y positive (−,+), QIII mein dono negative (−,−), aur QIV mein x positive par y negative (+,−). Yeh anticlockwise jate hain — yad rakhna "All Students Take Calculus."
Is concept ki power yeh hai ki geometry ko algebra mein convert kar sakte ho. Distance find karna ho, area nikalna ho, slope calculate karna ho — sab coordinates se ho sakta hai. Aage ap dekhoge ki lines, circles, parabolas sabka equation coordinates use karke likhte hain. Coordinate geometry modern mathematics aur physics ka foundation hai — har graph, har simulation, har GPS systemisi Cartesian plane pe based hai. Agar yeh concept strong hai toh aage ki sari coordinate geometry easy ho jayegi!
