Visual walkthrough — Reciprocal identities, quotient identities

---

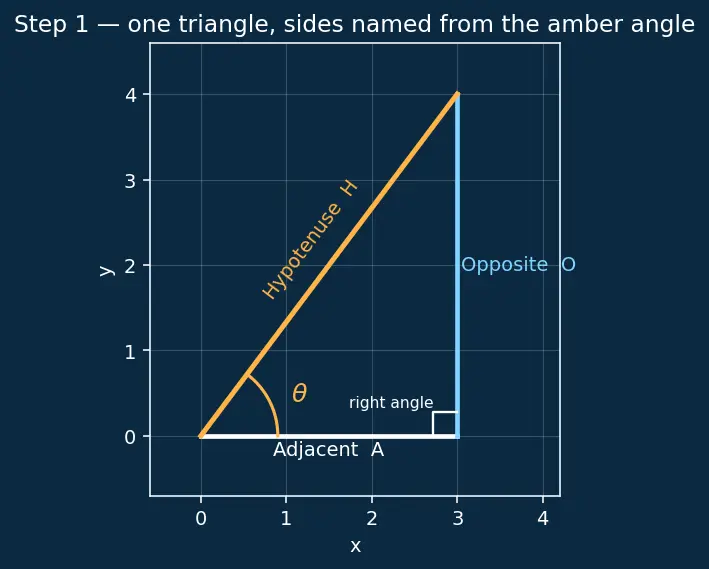

Step 1 — Draw the one triangle everything comes from

WHAT. We draw a right-angled triangle and pick one non-right corner to stare at. Call the size of the "opening" at that corner $\theta$ (the Greek letter theta — it is just a name for "the angle we care about").

WHY. Every trig ratio is a comparison of two side lengths. There is nothing to compare until we have named the sides, and side names only make sense relative to a chosen corner. So the very first act is: fix the corner.

PICTURE. In the figure, the small square marks the $90^{\circ }$ (right) corner. The three sides get names from the point of view of the amber angle $\theta$:

• Opposite ($O$) — the side that does not touch $\theta$, sitting across from it (cyan).
• Adjacent ($A$) — the side that does touch $\theta$ and is not the longest (white).
• Hypotenuse ($H$) — the longest side, always across from the right angle (amber).

---

Step 2 — Put real numbers on the sides so we can see the ratios

WHAT. We drop the triangle onto grid paper with the chosen corner at the origin, and let the far tip land at the point $(3,4)$. Then $A=3$ (how far right), $O=4$ (how far up).

WHY. Abstract letters hide the story. Concrete lengths let us compute actual numbers and later check that flipping and dividing really do line up. The point $(3,4)$ is chosen because its hypotenuse comes out to a whole number.

PICTURE. Read the hypotenuse straight off the grid using Pythagoras (the rule that the two short sides, squared and added, equal the long side squared — see Pythagorean identities): $H=\sqrt{\underset{3^2=9}{\underbrace{A^2}}+\underset{4^2=16}{\underbrace{O^2}}}=\sqrt{25}=5.$

So now, purely from the definitions of Step 1: $\sin \theta =\frac{O}{H}=\frac{4}{5},\cos \theta =\frac{A}{H}=\frac{3}{5}.$

---

Step 3 — Divide $\sin$ by $\cos$ and watch the hypotenuse vanish

WHAT. We compute the fraction $\frac{\sin \theta }{\cos \theta }$ using the definitions, not a formula.

WHY. We want $\tan \theta =O/A$, but our two "known" numbers are $\sin$ and $\cos$, both of which are built on $H$. The question is: can we get rid of $H$? Division is the tool that cancels a common factor — that is exactly the "why this tool" — so we try dividing the two ratios.

PICTURE. Watch the two amber $H$'s collide and cancel: $\frac{\sin \theta }{\cos \theta }=\frac{\stackrel{\sin }{\overbrace{O/H}}}{\underset{\cos }{\underbrace{A/H}}}=\frac{O}{H}\cdot \underset{\text{flip to divide}}{\underbrace{\frac{H}{A}}}=\frac{O}{\cancel{H}}\cdot \frac{\cancel{H}}{A}=\frac{O}{A}=\tan \theta .$

• The step $\frac{O/H}{A/H}=\frac{O}{H}\cdot \frac{H}{A}$ is "dividing by a fraction = multiply by its flip".
• The $H$ in the numerator and the $H$ in the denominator are the same length (one hypotenuse), so they cancel.
• What survives, $O/A$, is word-for-word the definition of $\tan \theta$.

---

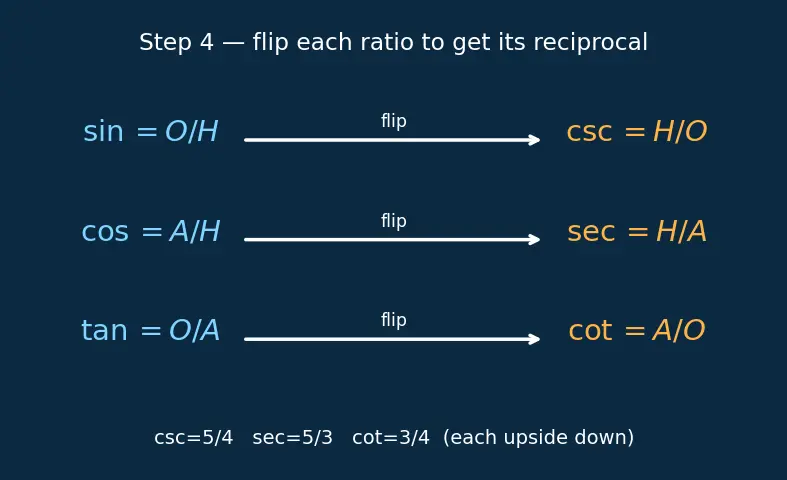

Step 4 — Flip a ratio and read off its reciprocal partner

WHAT. We turn each of $\sin ,\cos ,\tan$ upside down and give the result its own name.

WHY. A fraction turned over is called its reciprocal. The three "extra" ratios $\csc ,\sec ,\cot$ are defined as $H/O,H/A,A/O$ — which are exactly $\sin ,\cos ,\tan$ upside down. Flipping is the whole mechanism; there is no new geometry, just the same triangle read the other way up.

PICTURE. The see-saw: whatever $\sin$ puts on top, $\csc$ puts on the bottom. $\sin \theta =\frac{O}{H}\stackrel{\text{flip}}{\to }\frac{H}{O}=\csc \theta ,\cos \theta =\frac{A}{H}\stackrel{\text{flip}}{\to }\frac{H}{A}=\sec \theta ,\tan \theta =\frac{O}{A}\stackrel{\text{flip}}{\to }\frac{A}{O}=\cot \theta .$

---

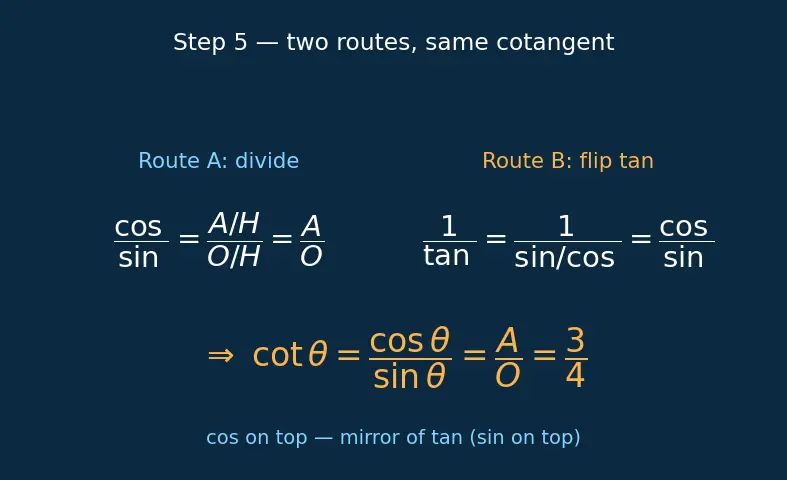

Step 5 — The second quotient, and why two routes agree

WHAT. We derive $\cot \theta =\cos \theta /\sin \theta$ twice — once by dividing, once by flipping — and check the answers match.

WHY. Getting the same result from two independent paths is how you gain confidence a formula is not a fluke. It also forces the classic trap ($\cot =\sin /\cos$?) out into the open.

PICTURE.

Route A (divide, $H$ cancels): $\frac{\cos \theta }{\sin \theta }=\frac{A/H}{O/H}=\frac{A}{\cancel{H}}\cdot \frac{\cancel{H}}{O}=\frac{A}{O}=\cot \theta .$

Route B (flip the tangent): $\cot \theta =\frac{1}{\tan \theta }=\frac{1}{\sin \theta /\cos \theta }=\frac{\cos \theta }{\sin \theta }.$

• Both routes land on $\cos \theta /\sin \theta$ — so $\cot$ has $\cos$ on top, mirroring how $\tan$ has $\sin$ on top.
• Numeric check: $\frac{3/5}{4/5}=\frac{3}{4}=\frac{A}{O}$. ✓

---

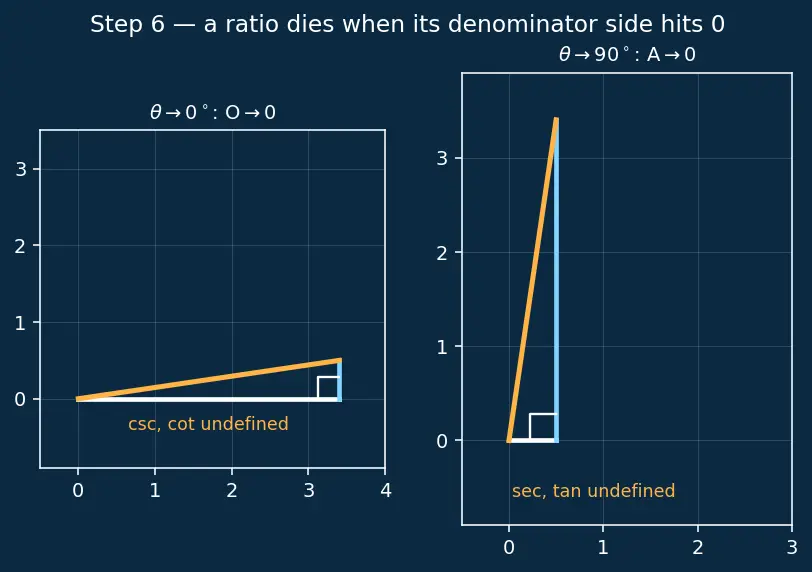

Step 6 — The degenerate cases: where a ratio breaks

WHAT. We push $\theta$ to the two extremes a right triangle allows and watch which ratios blow up.

WHY. The contract says: never let the reader meet a scenario you didn't show. A reciprocal $1/\text{something}$ is undefined when that something is $0$ — and each of $\sin ,\cos$ hits $0$ at an extreme angle. We must say exactly when and why.

PICTURE — flatten the triangle ($\theta \to 0^{\circ }$). The opposite side shrinks to nothing, so $O\to 0$: $\sin \theta =\frac{O}{H}\to 0,\csc \theta =\frac{H}{O}\to \frac{H}{0}=\text{undefined},\cot \theta =\frac{A}{O}\to \text{undefined}.$ Dividing by a vanishing length has no answer — that is what "undefined" means.

PICTURE — stand it up ($\theta \to 90^{\circ }$). Now the adjacent side shrinks, so $A\to 0$: $\cos \theta =\frac{A}{H}\to 0,\sec \theta =\frac{H}{A}\to \text{undefined},\tan \theta =\frac{O}{A}\to \text{undefined}.$

---

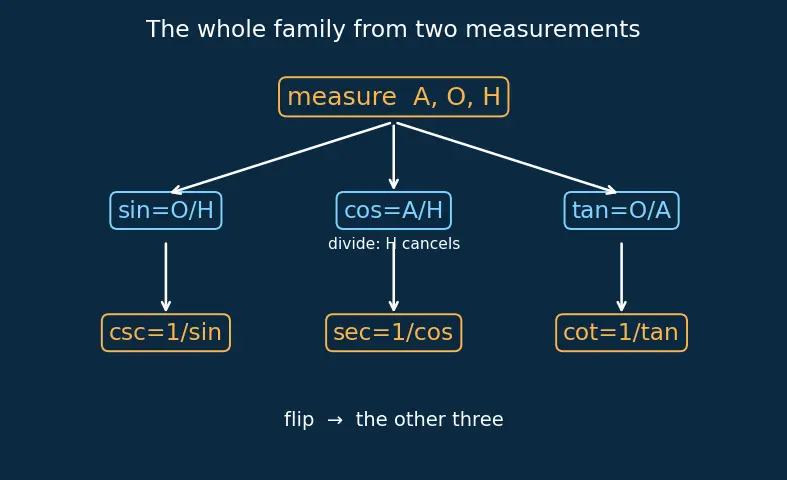

The one-picture summary

Two side lengths at the top; three raw ratios below; the "extra" three born by flipping; the tangents born by dividing. Everything on the page in one diagram.

Recall Feynman: tell the whole walkthrough to a 12-year-old

Draw a slanted triangle and pick a corner. Name the side across from it "opposite", the side under it "adjacent", and the long slanty one "hypotenuse". Now play a measuring game: opposite ÷ hypotenuse is sine, adjacent ÷ hypotenuse is cosine. If you divide sine by cosine, the hypotenuse appears on both top and bottom and cancels out — leaving opposite ÷ adjacent, which is tangent. So tangent was hiding inside sine and cosine the whole time. The last three names — cosecant, secant, cotangent — aren't new shapes at all; they're just the first three turned upside down, like flipping $\frac{2}{3}$ into $\frac{3}{2}$. The only time any of them refuses to work is when you flatten or stand up the triangle so hard that one side becomes zero — because you can't divide by nothing. Two measurements, and the whole family of six pops out for free.

---

Connections

• Right triangle trigonometry (SOH-CAH-TOA) — the source of $O,A,H$ and the three raw ratios.
• Pythagorean identities — how we read $H$ off the two legs in Step 2.
• Unit circle definitions — extends every step to all angles, confirming the Step 6 gaps.
• Simplifying trigonometric expressions — the "cancel the $H$ / convert to sin & cos" move in action.
• Inverse trigonometric functions — contrast with the ${\sin }^{-1}$ trap in Step 6.
