Visual walkthrough — Reciprocal identities — cosec, sec, cot in terms of sin, cos, tan

---

Step 1 — Draw the triangle and name its three sides

WHAT. We draw a right-angled triangle. One corner has a little square — that is the $90°$ corner. We pick one of the other corners and call the angle there $\theta$ (theta, just a name for "the angle we care about").

The three sides get names relative to $\theta$:

• the side touching $\theta$ (not the slope) is the adjacent, length $b$,
• the side facing $\theta$ (across from it) is the opposite, length $a$,
• the long slanted side, always across from the $90°$ corner, is the hypotenuse, length $r$.

WHY. Every trig function is just a ratio of two of these three lengths. So before any formula, we must fix which length is which. If we mislabel a side, every later step inherits the error.

PICTURE.

---

Step 2 — Build $\sin$, $\cos$, $\tan$ as three ratios

WHAT. From the three lengths we form three ratios. Each is one length divided by another:

$\underset{\text{name of the ratio}}{\underbrace{\sin \theta }}=\frac{\stackrel{\text{opposite}}{\overbrace{a}}}{\underset{\text{hypotenuse}}{\underbrace{r}}},\cos \theta =\frac{\stackrel{\text{adjacent}}{\overbrace{b}}}{\underset{\text{hypotenuse}}{\underbrace{r}}},\tan \theta =\frac{\stackrel{\text{opposite}}{\overbrace{a}}}{\underset{\text{adjacent}}{\underbrace{b}}}$

WHY. A single length ($a=3\text{ cm}$) tells you nothing about the angle — shrink the triangle and it changes. But a ratio like $a/r$ stays exactly the same for every triangle of the same shape. That constant number is what the angle $\theta$ "controls". This is the whole reason trig ratios exist — see 2.4.01-Definition-of-sine-cosine-tangent-from-right-triangle.

PICTURE.

Recall

Which two sides make $\tan \theta$? ::: opposite over adjacent, $a/b$ — the two shorter sides, no hypotenuse involved.

---

Step 3 — The single idea: flip the fraction

WHAT. Take any of those ratios and turn it upside down. Flipping $a/r$ gives $r/a$. That is the entire mathematical move behind reciprocal functions.

Algebraically, flipping a fraction is the same as putting $1$ over it: $\frac{1}{a/r}=1\times \frac{r}{a}=\frac{r}{a}$

Read left to right: "one divided by (a-over-r)" equals "one times (r-over-a)" equals "r-over-a". Dividing by a fraction is multiplying by its upside-down version.

WHY. In real problems (waves, calculus — see 3.2.04-Derivatives-of-trigonometric-functions) the quantity $r/a$ shows up again and again. Writing $\frac{1}{\sin \theta }$ ten times is clumsy, so we give the flip its own short name. Nothing new is invented — it is the same triangle, read backwards.

PICTURE.

---

Step 4 — Name the three flips: $\csc$, $\sec$, $\cot$

WHAT. Apply the flip to each of the three ratios and name the results.

$\csc \theta =\frac{1}{\sin \theta }=\frac{r}{a}=\frac{\text{hypotenuse}}{\text{opposite}}$

$\sec \theta =\frac{1}{\cos \theta }=\frac{r}{b}=\frac{\text{hypotenuse}}{\text{adjacent}}$

$\cot \theta =\frac{1}{\tan \theta }=\frac{b}{a}=\frac{\text{adjacent}}{\text{opposite}}$

Term by term for the first line: $\csc \theta$ is the new name; $\frac{1}{\sin \theta }$ says "one over sine"; $\frac{r}{a}$ is what that becomes after the flip; and $\frac{\text{hyp}}{\text{opp}}$ names the two sides so you can read it straight off the triangle.

WHY. Notice the pairing is cross-linked, not obvious: $\sec$ (the "sec" that sounds like "co-nothing") pairs with $\cos$, and $\csc$ (starts with "co") pairs with $\sin$. That crossing is the classic trap; the mnemonic below fixes it.

PICTURE.

---

Step 5 — The better face of cotangent

WHAT. There are two ways to write $\cot \theta$. We already have $\cot \theta =\frac{1}{\tan \theta }$. But since $\tan \theta =\frac{\sin \theta }{\cos \theta }$, we can flip that:

$\cot \theta =\frac{1}{\tan \theta }=\frac{1}{\frac{\sin \theta }{\cos \theta }}=\frac{\cos \theta }{\sin \theta }$

The middle step is the flip rule from Step 3 with $p=\sin \theta$, $q=\cos \theta$: one over (sin-over-cos) becomes cos-over-sin.

WHY. The form $\frac{\cos \theta }{\sin \theta }$ lets terms cancel when a problem is already written with sines and cosines. It saves you from nested "fraction-inside-a-fraction" messes. Both forms are correct — keep both handy.

PICTURE.

---

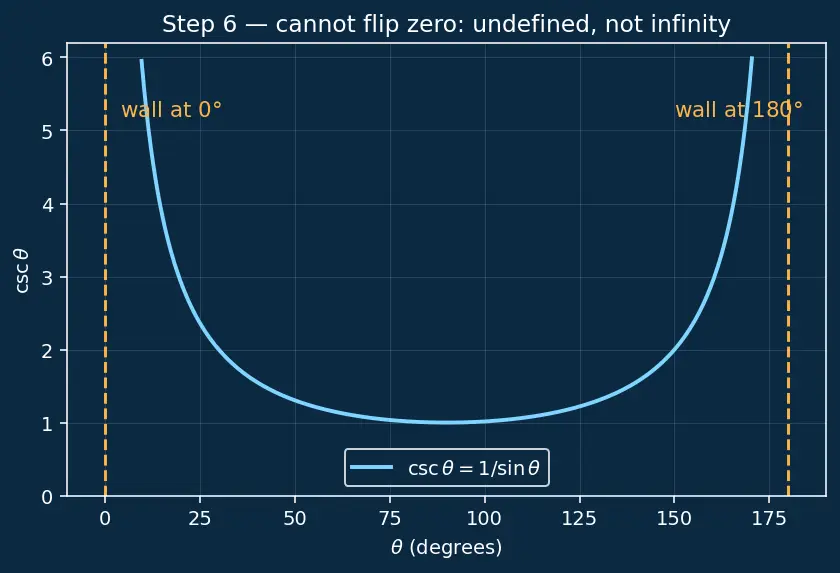

Step 6 — Where the flips break: the degenerate cases

WHAT. A flip $\frac{1}{x}$ is only allowed when $x\ne 0$. So each reciprocal function has "forbidden" angles where its partner hits zero:

• $\csc \theta$ dies when $\sin \theta =0$: at $\theta =0°,180°,360°,\dots$ (opposite side $a$ shrinks to $0$).
• $\sec \theta$ dies when $\cos \theta =0$: at $\theta =90°,270°,\dots$ (adjacent side $b$ shrinks to $0$).
• $\cot \theta$ dies when $\tan \theta =0$: at $\theta =0°,180°,\dots$ (opposite side $a=0$).

WHY. As $\theta \to 0°$, the opposite side $a$ gets tiny, so $\sin \theta =a/r$ approaches $0$, and $\csc \theta =r/a$ grows without bound. It does not "equal infinity" — infinity is not a number. The value simply does not exist; the graph has a vertical wall (an asymptote) there.

PICTURE.

---

Step 7 — A free bonus identity from the same picture

WHAT. The same triangle gives us a squared identity for free. Start from the Pythagorean identity (built in 2.4.05-Pythagorean-identities): ${\sin }^2\theta +{\cos }^2\theta =1$ Divide every term by ${\sin }^2\theta$: $\frac{{\sin }^2\theta }{{\sin }^2\theta }+\frac{{\cos }^2\theta }{{\sin }^2\theta }=\frac{1}{{\sin }^2\theta }$ Now read each piece with our new names: $\frac{{\sin }^2\theta }{{\sin }^2\theta }=1$; $\frac{{\cos }^2\theta }{{\sin }^2\theta }={\left(\frac{\cos \theta }{\sin \theta }\right)}^2={\cot }^2\theta$; and $\frac{1}{{\sin }^2\theta }={\csc }^2\theta$. So: $\boxed{1+{\cot }^2\theta ={\csc }^2\theta }$

WHY. This shows the reciprocal names aren't just shorthand — they let the Pythagorean picture re-speak itself in a new form used constantly in 2.5.02-Trigonometric-equations-basic.

PICTURE.

---

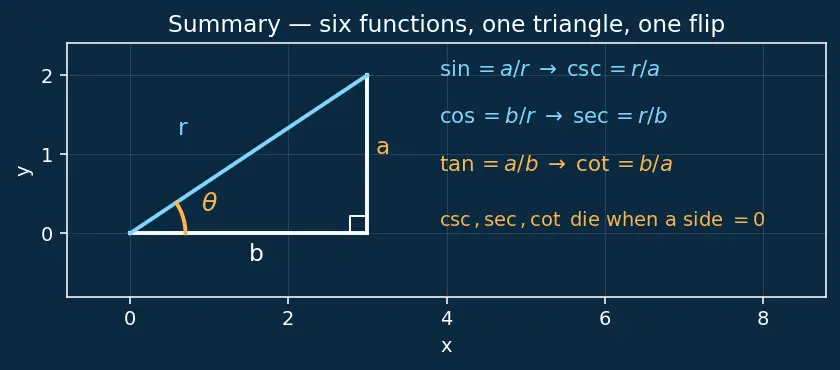

The one-picture summary

Everything above is one triangle read six ways: three ratios and their three flips, plus the forbidden angles where a side collapses to zero.

Recall Feynman retelling — say it to a friend

I draw a right triangle and mark my angle $\theta$. Three lengths: the side facing $\theta$ (opposite $a$), the side touching it (adjacent $b$), and the long slope (hypotenuse $r$). I make three ratios — sine is opposite/hyp, cosine is adjacent/hyp, tangent is opposite/adjacent. A ratio is nicer than a length because it doesn't care how big the triangle is.

Then I do one trick: flip each fraction upside down. Flipping sine ($a/r$) gives $r/a$, and I nickname that cosecant. Flipping cosine gives secant. Flipping tangent gives cotangent — and because tangent was sine-over-cosine, its flip is neatly cosine-over-sine. That's the whole invention: same triangle, fractions turned over, new short names so I don't keep writing "one over sine".

The only catch: you can't flip zero. When a side shrinks to nothing (like the opposite side at $\theta =0°$), sine becomes zero and its flip cosecant blows past every number — it's undefined there, a wall in the graph, not "infinity". Finally, taking the Pythagorean rule ${\sin }^2+{\cos }^2=1$ and dividing by ${\sin }^2$ hands me a bonus: $1+{\cot }^2\theta ={\csc }^2\theta$. Same picture, new sentence.

Recall

In one sentence, what is every reciprocal function? ::: The same trig ratio with its fraction turned upside down — nothing more. Why is $\csc \theta$ undefined at $\theta =0°$? ::: Because $\sin 0°=0$ and you cannot divide $1$ by $0$; the opposite side has length $0$.
