Visual walkthrough — Parallel lines — equal slopes

---

Step 1 — What a line even is, and what "direction" means

WHAT. Draw two dots on graph paper and lay a straightedge through them. That straight track, extended forever both ways, is a line. The only thing that makes one line differ from another (ignoring where it sits) is which way it tilts.

WHY. Before we can say two lines "point the same way," we need a way to measure the way a single line points. We are hunting for one number that captures tilt.

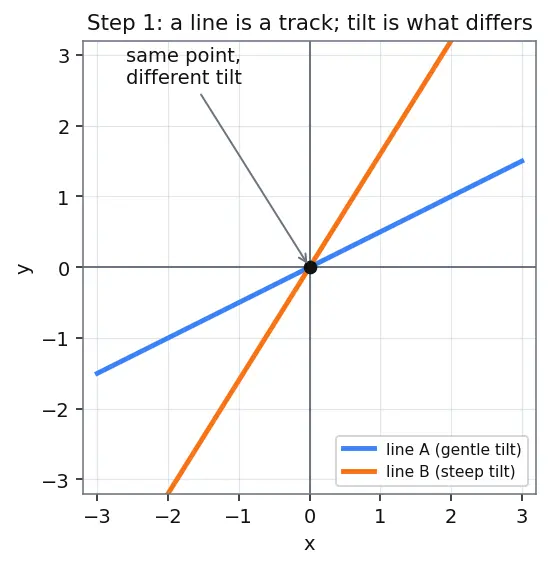

PICTURE. In the figure, two different lines pass through the same point. They are the same line except for tilt — so tilt is exactly the thing we must pin down.

---

Step 2 — Inventing "steepness": rise over run

WHAT. Pick any two points on the line, call them $(x_1,y_1)$ and $(x_2,y_2)$. Walk from the first to the second. You move sideways by an amount we name the run, and up/down by an amount we name the rise.

$\underset{\text{run: sideways move}}{\underbrace{x_2-x_1}}\underset{\text{rise: up/down move}}{\underbrace{y_2-y_1}}$

Here $x_1$ is the horizontal position of the first point and $x_2$ of the second, so $x_2-x_1$ is how far right we walked. Likewise $y_2-y_1$ is how far up we climbed.

WHY. "Steepness" should mean how much climb you get per step sideways. That is a ratio: climb divided by step. So we build the number

$m=\frac{\text{rise}}{\text{run}}=\frac{y_2-y_1}{x_2-x_1}.$

Each symbol: $m$ is the tilt-number (our target), the top $y_2-y_1$ is vertical climb, the bottom $x_2-x_1$ is horizontal walk.

PICTURE. The right triangle under the line has a horizontal leg (run) and a vertical leg (rise). The slope $m$ is just how tall that triangle is compared to how wide it is.

---

Step 3 — Why the same $m$ no matter which two points you pick

WHAT. Choose a different pair of points on the same line — a bigger triangle. Its rise and run are both larger, but their ratio is identical.

WHY. A line is straight, so any triangle you drop from it is a scaled copy of any other (they are similar triangles). Scaling multiplies rise and run by the same factor $k$:

$\frac{k\cdot \text{rise}}{k\cdot \text{run}}=\frac{\text{rise}}{\text{run}}=m.$

The $k$ on top and bottom cancel — so slope is a property of the whole line, not of the two points you happened to pick. This is the fact that makes $m$ trustworthy.

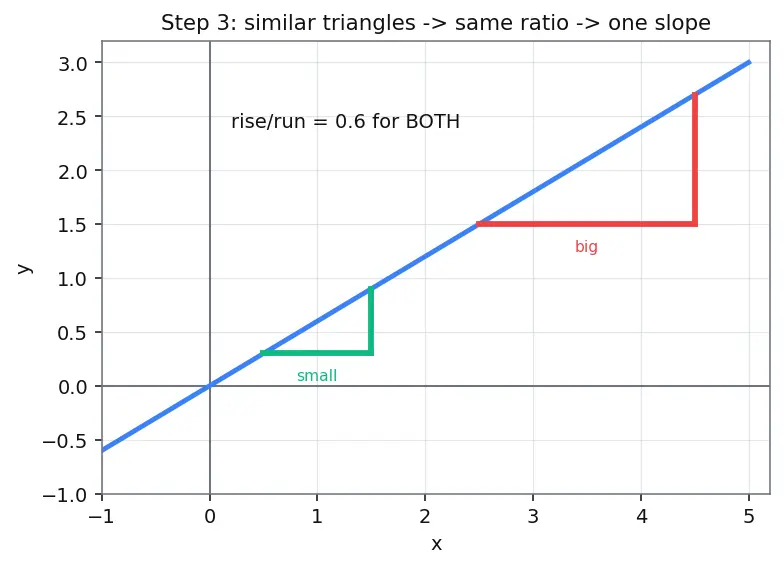

PICTURE. A small triangle and a big triangle sit under one line. Same shape, different size, same ratio — the tilt is one fixed number.

Recall Why can we speak of

the slope of a line? Because any two triangles dropped from the line are similar; scaling cancels in rise÷run. ::: The ratio is invariant, so slope belongs to the line itself.

---

Step 4 — Turning tilt into an angle: $m=\tan \theta$

WHAT. Instead of "rise over run," describe tilt by the angle $\theta$ the line makes with the positive $x$-axis (the rightward horizontal). Sweep anticlockwise from the horizontal up to the line; that opening is $\theta$.

WHY. Angle is the most honest way to say "direction." And there is a bridge between the angle and our ratio. In the little right triangle, the vertical leg is opposite the angle $\theta$ and the horizontal leg is adjacent to it. The tangent function is defined as

$\tan \theta =\frac{\text{opposite}}{\text{adjacent}}=\frac{\text{rise}}{\text{run}}=m.$

Why $\tan$ and not $\sin$ or $\cos$? Because $\sin$ uses the slanted hypotenuse and $\cos$ mixes horizontal with hypotenuse — but steepness is precisely vertical compared to horizontal, which is opposite-over-adjacent. That is $\tan$ exactly, no other function.

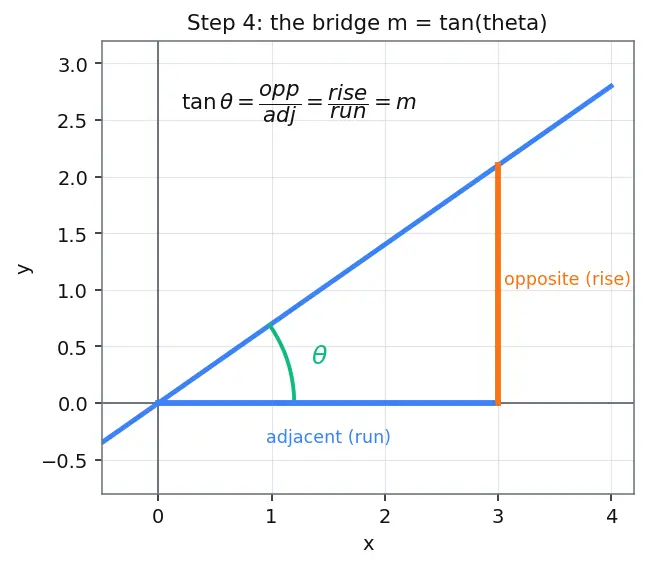

PICTURE. The angle $\theta$ is marked between the $x$-axis and the line; the "opposite" leg (rise) glows in orange, the "adjacent" leg (run) in blue. Their ratio is $\tan \theta$, which is $m$.

---

Step 5 — Two lines "point the same way" = equal angles

WHAT. Now bring in a second line. Treat the $x$-axis as a transversal — a single straight line crossing both. Each line makes its own angle with it: ${\theta }_1$ for line 1, ${\theta }_2$ for line 2.

WHY. "Parallel" is the geometric statement these lines never meet. The classic transversal theorem says: when a line crosses two others, the two lines are parallel exactly when the corresponding angles are equal. So the phrase "point the same way" becomes the crisp equation

${\theta }_1={\theta }_2.$

Here ${\theta }_1$ and ${\theta }_2$ are the two lines' inclinations measured from the same horizontal — comparing them is fair because both use the same reference.

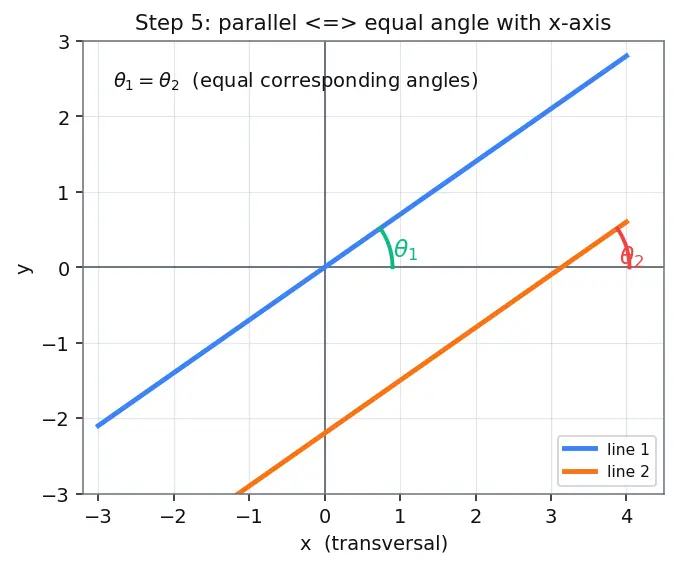

PICTURE. Two lines cross the $x$-axis; the equal corresponding angles are shaded the same colour. When those wedges match, the lines run side by side forever.

---

Step 6 — Equal angles ⇒ equal slopes (and back again)

WHAT. Feed the angle equation through our bridge $m=\tan \theta$:

${\theta }_1={\theta }_2⟺\tan {\theta }_1=\tan {\theta }_2⟺m_1=m_2.$

Reading it: equal inclinations (${\theta }_1={\theta }_2$) give equal tangents, and equal tangents are equal slopes ($m_1=m_2$).

WHY the arrows go BOTH ways. For a line, $\theta$ lives in $(-90^{\circ },90^{\circ })$ (a line tilting more than $90^{\circ }$ is the same as one tilting the other way). On that stretch $\tan$ is one-to-one — it never repeats a value, always climbing. So $\tan {\theta }_1=\tan {\theta }_2$ forces ${\theta }_1={\theta }_2$; nothing else could produce the same tangent. That is why "equal slopes" and "same direction" are the same statement, not just one implying the other.

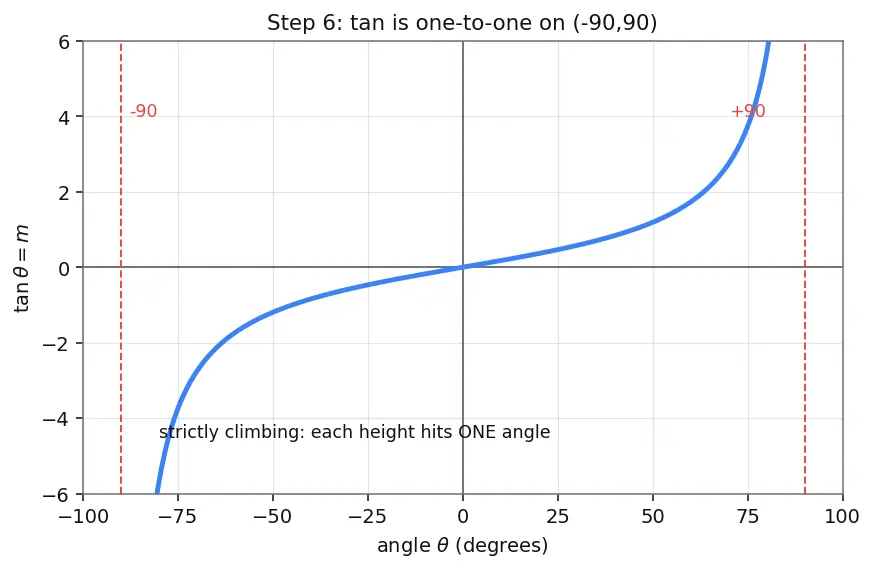

PICTURE. The graph of $\tan \theta$ on $(-90^{\circ },90^{\circ })$ climbs without ever levelling off or repeating: one height, one angle. That strict climb is what powers the "if and only if."

---

Step 7 — The vertical edge case (where $\tan$ blows up)

WHAT. Tilt a line up toward straight-up. As $\theta \to 90^{\circ }$, the run shrinks to $0$ while the rise stays positive, so

$m=\frac{\text{rise}}{\text{run}}\to \frac{\text{rise}}{0}=\text{undefined}.$

A vertical line like $x=c$ has no slope number at all — division by a zero run.

WHY it needs its own step. Our bridge $m=\tan \theta$ fails at $\theta =90^{\circ }$ because $\tan 90^{\circ }$ doesn't exist. So the rule "$m_1=m_2$" cannot judge two vertical lines — neither has a number to compare. We handle them by inspection: any two vertical lines point straight up, hence are parallel, even though "their slopes are equal" is not a meaningful sentence (both are undefined).

PICTURE. Two vertical lines $x=2$ and $x=5$ run side by side forever — clearly parallel — while the run of each is $0$, so the slope formula chokes.

---

Step 8 — Same slope but not the same line (the intercept guard)

WHAT. Equal slope pins down direction only, not position. Two lines can share $m$ yet sit apart because they cross the $y$-axis at different heights (different intercepts).

WHY. Same $m$ = same rise-per-run = the vertical gap between them never changes. A constant nonzero gap means they never touch → genuinely parallel. But if the gap is zero (same intercept too), they lie on top of each other → the same (coincident) line. So:

$m_1=m_2,\text{different intercept}\Rightarrow \text{parallel};m_1=m_2,\text{same intercept}\Rightarrow \text{same line}.$

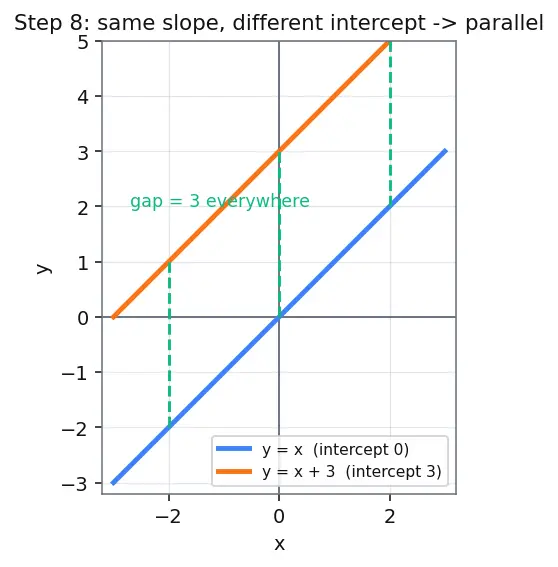

PICTURE. Two lines with identical slope $m=1$ but intercepts $0$ and $3$: a fixed vertical gap of $3$ everywhere, never meeting.

---

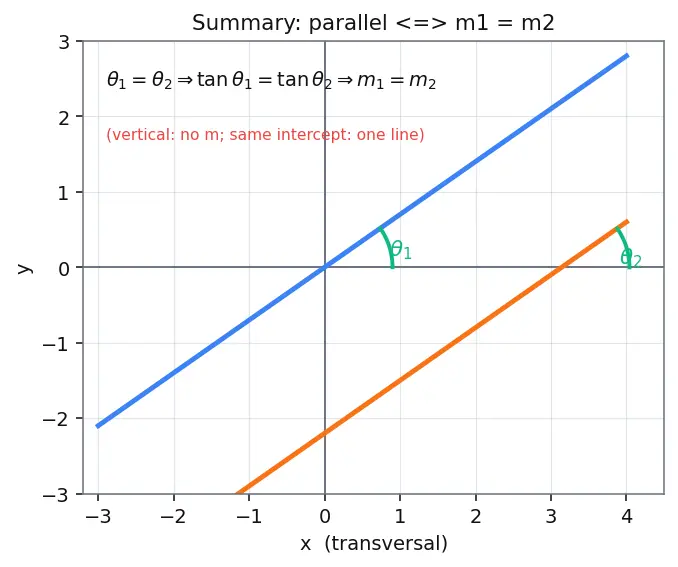

The one-picture summary

Everything above, compressed: two lines, one transversal ($x$-axis), equal wedge angles ${\theta }_1={\theta }_2$, the bridge $m=\tan \theta$ turning those equal angles into equal slopes $m_1=m_2$ — with the vertical exception flagged and the intercept guard noted.

Recall Feynman retelling — say it to a friend

Draw a line; the only thing that matters is how tilted it is. Measure tilt two equal ways: as rise over run (a triangle) or as the angle $\theta$ off the horizontal — they're linked by $m=\tan \theta$, because steepness is literally vertical-over-horizontal, which is what tangent means. Now put a second line beside the first and use the flat $x$-axis as a ruler crossing both. Geometry says the two lines run parallel exactly when they open the same angle off that ruler. Because the tangent function never repeats a value between $-90^{\circ }$ and $90^{\circ }$, "same angle" and "same slope number" are the identical fact — so parallel means $m_1=m_2$. Two exceptions to keep in your pocket: straight-up lines have no slope (you'd divide by a zero run, so just eyeball them), and two lines can share a slope yet be different lines if they cross the $y$-axis at different heights — then they're parallel; if they cross at the same height they're secretly one line.

---
