Foundations — Parallel lines — equal slopes

This page assumes nothing. Before we can even say "$m_1=m_2$" we must earn every mark on that line: what a point is, what a slope is, what $\tan \theta$ means, what $ax+by+c=0$ hides. Read top to bottom; each idea uses only the ones above it.

0 · The coordinate plane — where everything lives

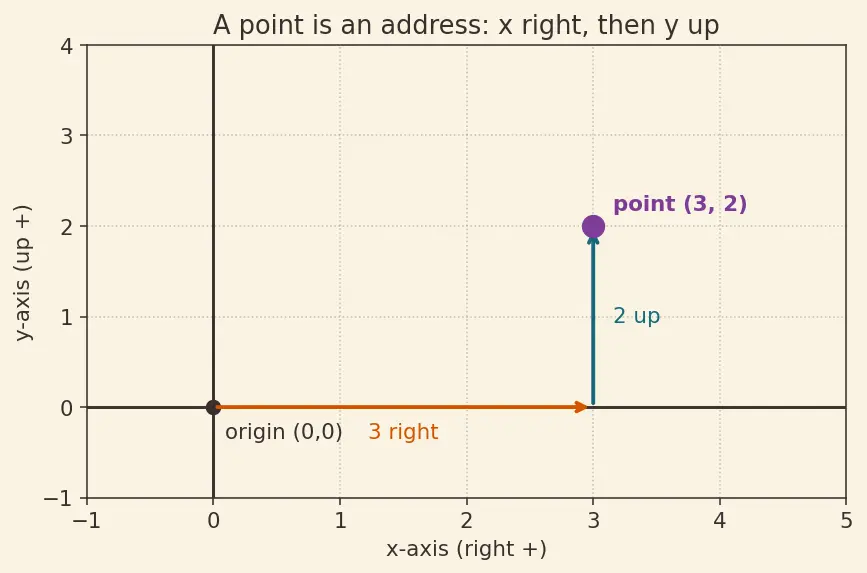

Look at the figure. The plum dot sits at $(3,2)$: walk 3 right, then 2 up. That pair of numbers is the point's address. Every point we ever mention on this topic is just such an address.

1 · Rise, run, and the slope $m$

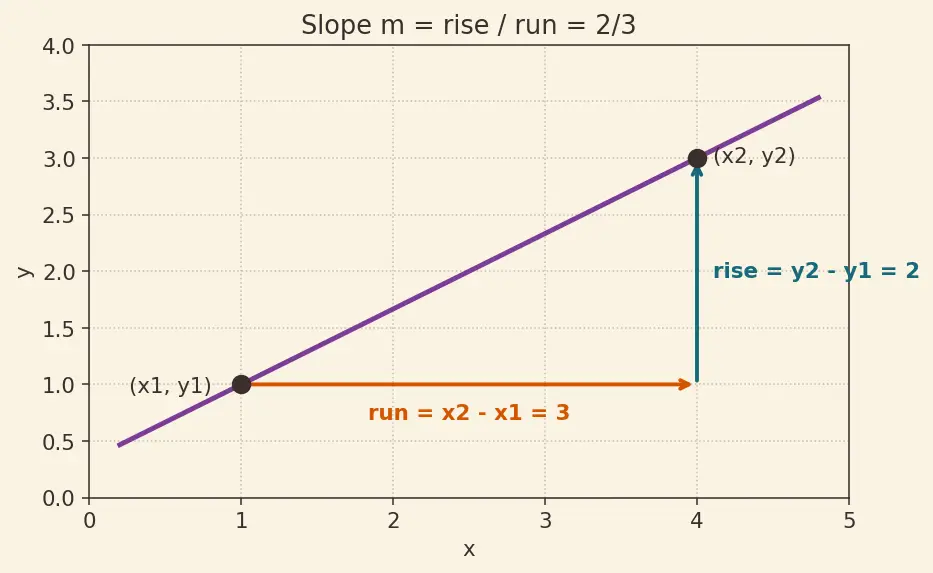

Pick two points on a line, say $(x_1,y_1)$ and $(x_2,y_2)$. The little "$1$" and "$2$" (called subscripts) are just name-tags — "first point", "second point" — they are not multiplication.

Why divide? Because tilt is a rate, not a raw distance. A staircase climbing 2 up for every 1 across is steeper than 2 up for every 4 across — the same rise, different steepness. Only the ratio captures steepness, so we divide.

The signs of slope — all four cases

The parent topic quietly uses positive, negative, zero, and undefined slopes. Here they all are:

That last case is exactly why the parent note keeps warning "handle vertical lines by inspection." Division by zero is undefined, so vertical lines have no slope number — you cannot compare them with "$m_1=m_2$".

2 · The angle $\theta$ and why $\tan \theta$ appears

The parent claims $m=\tan \theta$. That symbol $\theta$ (Greek letter "theta") and the word "$\tan$" need earning.

Now, why does the ratio rise/run equal $\tan \theta$?

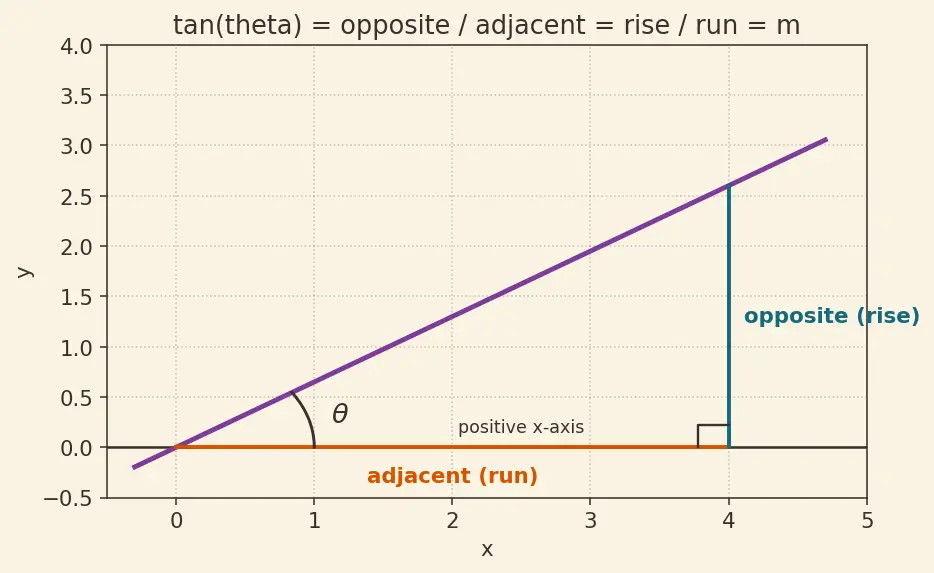

Look at the figure. The line, the run, and the rise form a right triangle. The angle $\theta$ sits at the bottom-left. The side opposite $\theta$ is the vertical rise; the side adjacent is the horizontal run. So

$\tan \theta =\frac{\text{opposite}}{\text{adjacent}}=\frac{\text{rise}}{\text{run}}=m.$

Because equal angles give equal tangents, "two lines point the same way" (${\theta }_1={\theta }_2$) becomes "two lines have the same slope" ($m_1=m_2$). That is the entire parent theorem in one line.

3 · The general form $ax+by+c=0$

The parent uses $ax+by+c=0$ and the shortcut $m=-\frac{a}{b}$. Let's earn those letters.

Why this form exists: it can describe every straight line, including vertical ones (set $b=0$, giving $ax+c=0$, i.e. $x=-c/a$). The rise/run form $y=mx+\dots$ cannot do verticals, so this fuller form is the safe container.

4 · What "parallel" and "$⟺$" mean

Prerequisite map

Everything on the left eventually feeds the single conclusion on the right: parallel = equal slope.

Related vault topics

• Slope of a Line — the full story of $m$.
• General Equation of a Line ax+by+c=0 — where $m=-a/b$ comes from.
• Point-Slope Form of a Line — used to build a parallel line through a point.
• Perpendicular Lines — Product of Slopes = −1 — the opposite idea, for contrast.
• Angle Between Two Lines — generalises "same angle" to "any angle".
• Distance Between Two Parallel Lines — measures the constant gap.

Equipment checklist

Test yourself — say the answer before revealing.
