Properties of each quadrilateral — diagonals, angles, symmetry: Visual walkthrough

Before we start, three words we will use constantly, defined in plain language and pinned to a picture in Step 1:

A rhombus is a four-sided shape (a quadrilateral) whose four sides all have the same length — think of a square that has been "pushed over" so it leans.
A diagonal is a straight line drawn from one corner to the opposite corner. A quadrilateral has exactly two of them.
Area means "how much flat space is enclosed", measured in little unit squares.

Step 1 — Meet the rhombus and name its corners

WHAT. We draw a rhombus and label its four corners $A$ , $B$ , $C$ , $D$ , going around. All four sides — $A B$ , $B C$ , $C D$ , $D A$ — are drawn the same length. We draw both diagonals: $A C$ and $B D$ .

WHY. You cannot reason about a shape whose parts have no names. Naming the corners lets us talk about "the diagonal $A C$ " instead of "that slanted line over there". Everything downstream refers back to these labels.

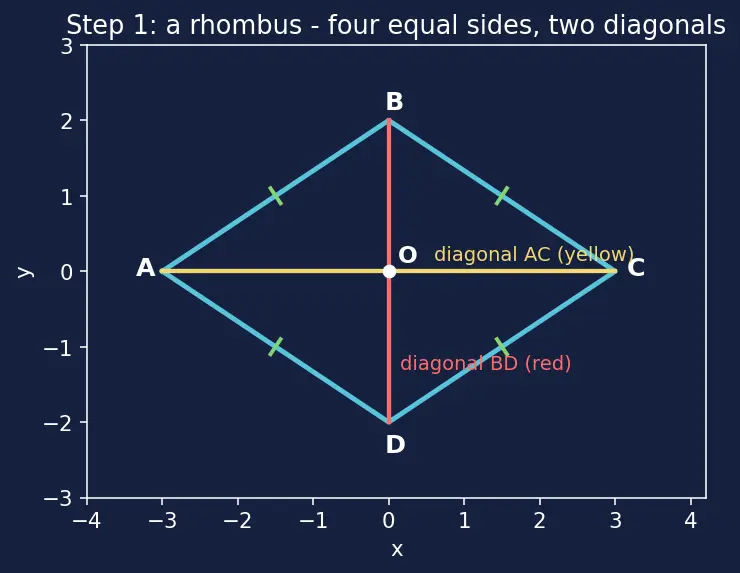

PICTURE. In the figure, the four blue sides are all equal — count them, they match. The two diagonals are drawn in yellow ( $A C$ ) and red ( $B D$ ). Notice they cross somewhere in the middle at a point we will call $O$ .

Figure — Properties of each quadrilateral — diagonals, angles, symmetry

Step 2 — The diagonals cut each other exactly in half

WHAT. Let $O$ be the point where the diagonals cross. We claim $O$ is the midpoint of both diagonals: $A O = O C$ and $B O = O D$ .

WHY. A rhombus is a special parallelogram (opposite sides parallel), and in any parallelogram the diagonals bisect each other — they chop each other into two equal halves. The parent note proved this with triangle congruence (ASA): the two triangles on either side of the crossing are identical, so the pieces they cut match. We inherit that fact for free.

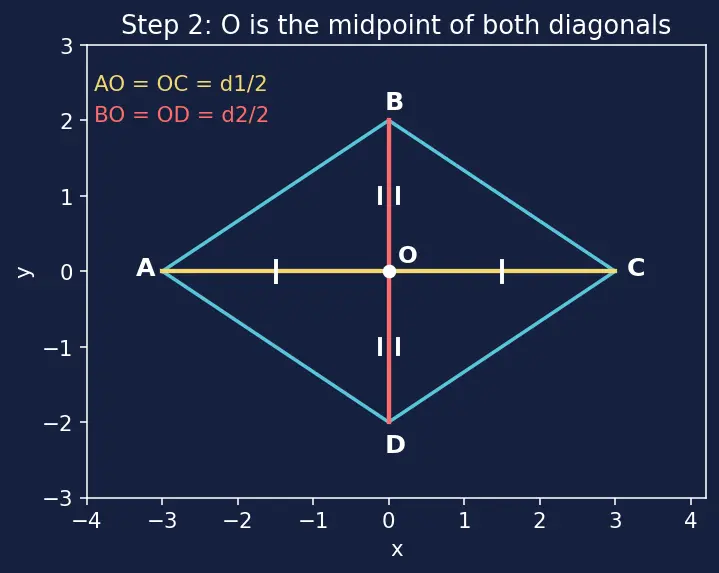

PICTURE. Look at the four little segments meeting at $O$ . The two halves of the yellow diagonal are marked with a single tick each (equal); the two halves of the red diagonal are marked with a double tick each (equal). So each half-diagonal has length:

A O = O C = half of yellow \frac{d _{1}}{2}, B O = O D = half of red \frac{d _{2}}{2}

Here $\frac{d _{1}}{2}$ literally means "take the full yellow diagonal and split it in two". Same for $\frac{d _{2}}{2}$ with red.

Step 3 — The diagonals meet at a right angle

WHAT. We claim the two diagonals are perpendicular: where they cross at $O$ , they form a $9 0^{\circ}$ angle. In symbols $A C ⊥ B D$ .

WHY. This is the extra property a rhombus has beyond a plain parallelogram, and it is the hinge of the whole derivation. Here is the clean reason, using congruence:

All four sides are equal, so in particular $A B = C B$ . That makes triangle $A B C$ isosceles with apex at $B$ .
From Step 2, $O$ is the midpoint of the base $A C$ of that isosceles triangle.
In an isosceles triangle, the line from the apex ( $B$ ) to the midpoint of the base ( $O$ ) is the axis of symmetry — and the axis of symmetry meets the base at a right angle.
Therefore $B O ⊥ A C$ , i.e. the diagonals cross at $9 0^{\circ}$ . ✓

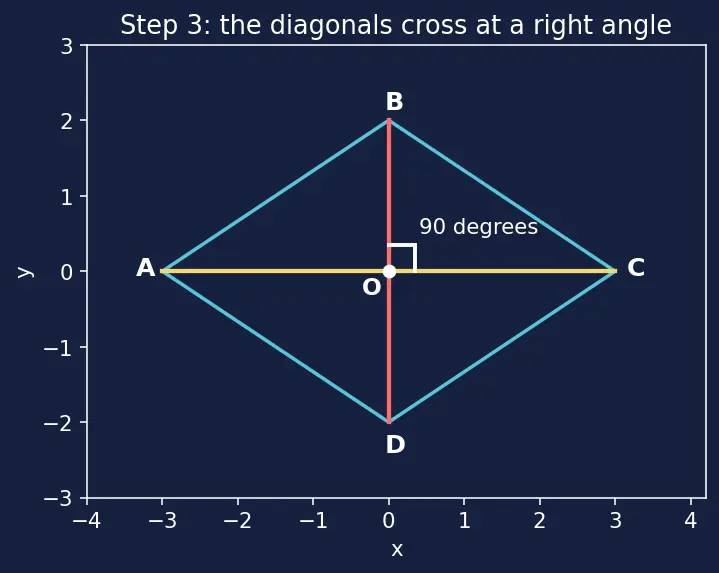

PICTURE. The little red square drawn in the corner at $O$ is the universal symbol for "exactly $9 0^{\circ}$ ". All four corners at $O$ are right angles (they must be, since a straight line is $18 0^{\circ}$ and the opposite angle mirrors it).

Step 4 — Chop the rhombus into four right triangles

WHAT. The two crossing diagonals slice the rhombus into four triangles that all meet at $O$ : $△ A O B$ , $△ B O C$ , $△ C O D$ , $△ D O A$ . Because of Step 3, every one of them has a right angle at $O$ .

WHY. Big shapes are hard; triangles are easy. This is the whole strategy of geometry — the parent note opened with it: "any polygon can be decomposed into triangles." We break the messy rhombus into four bite-sized right triangles whose areas we can each compute, then add them up.

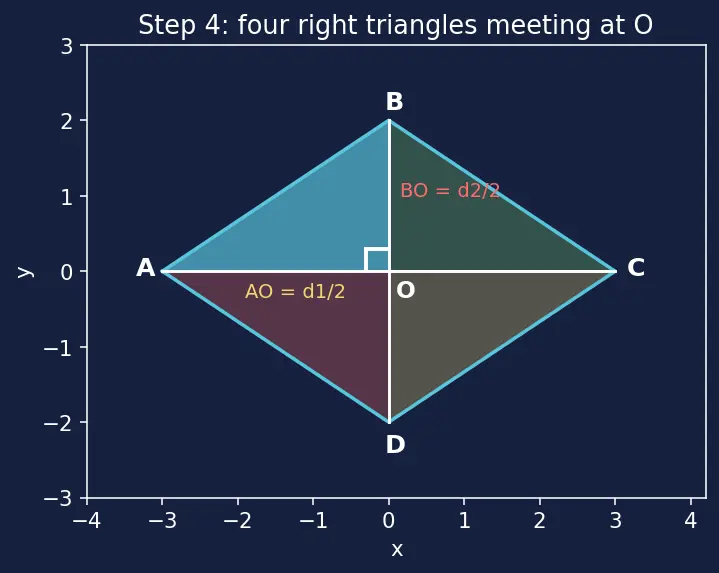

PICTURE. The four triangles are shaded in four different tints. Focus on the bottom one, $△ A O B$ (highlighted). Its two legs are:

horizontal-ish leg $A O = \frac{d _{1}}{2}$ (half the yellow diagonal),
vertical-ish leg $B O = \frac{d _{2}}{2}$ (half the red diagonal),

and the angle between those two legs is the $9 0^{\circ}$ from Step 3.

Step 5 — Area of one little right triangle

WHAT. Compute the area of the single triangle $△ A O B$ .

WHY. For a right triangle, the two legs are automatically a base–height pair (they are perpendicular, exactly the condition the area formula wants). So:

Area (△ A O B) = \frac{1}{2} \times A O = d_{1} /2 base \times B O = d_{2} /2 height = \frac{1}{2} \cdot \frac{d _{1}}{2} \cdot \frac{d _{2}}{2} = \frac{d _{1} d _{2}}{8}

Reading the last expression term by term: the $\frac{1}{2}$ is the triangle's own "half"; each $\frac{1}{2}$ came from halving a diagonal; multiplying the three halves gives $\frac{1}{8}$ ; the $d_{1} d_{2}$ on top is the product of the full diagonals.

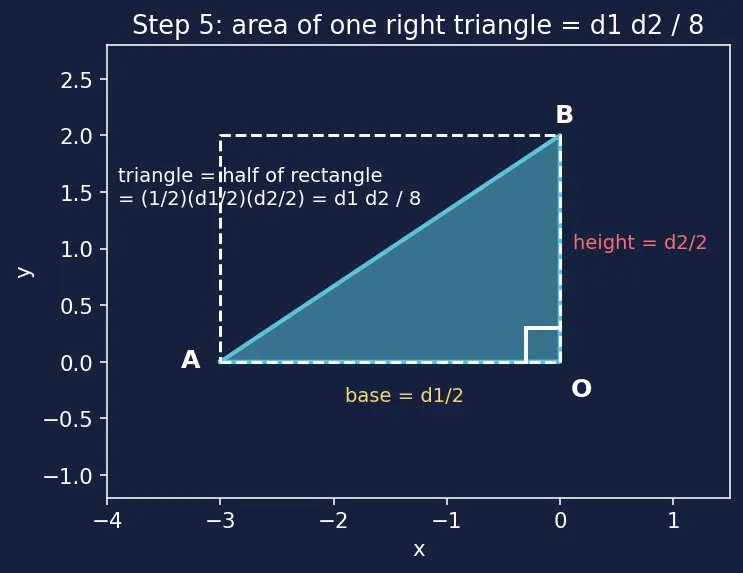

PICTURE. The highlighted triangle is redrawn on its own with a dashed rectangle around it. The triangle is exactly half that rectangle — the rectangle has area $\frac{d _{1}}{2} \cdot \frac{d _{2}}{2}$ , and the diagonal splits it into two equal triangles, so the triangle is $\frac{d _{1} d _{2}}{8}$ .

Step 6 — Add up all four (they are identical)

WHAT. All four triangles have the same area, so we multiply one by four:

Area of rhombus = 4 \times one triangle \frac{d _{1} d _{2}}{8} = \frac{4 d _{1} d _{2}}{8} = \frac{d _{1} d _{2}}{2}

WHY are all four equal? Each triangle has legs of length $\frac{d _{1}}{2}$ and $\frac{d _{2}}{2}$ meeting at $9 0^{\circ}$ — the very same measurements — so by SAS congruence they are identical, hence equal in area. Multiplying by 4 and cancelling the 8 into a 2 gives our target.

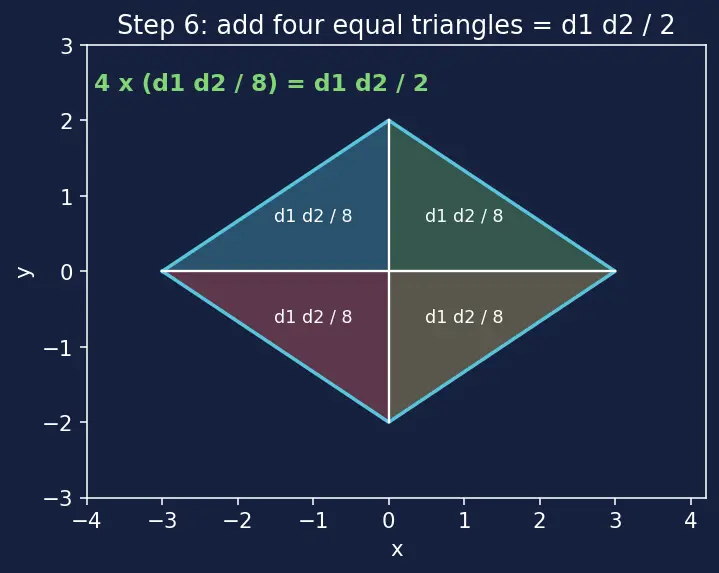

PICTURE. The four tinted triangles are shown reassembled, each stamped with its area $\frac{d _{1} d _{2}}{8}$ ; the running total ticks up to $\frac{d _{1} d _{2}}{2}$ .

Step 7 — Edge & degenerate cases (never leave a gap)

WHAT & WHY. A formula you trust must survive its extreme inputs. Let's test three.

Case A — the square. A square is a rhombus whose angles are all $9 0^{\circ}$ . Its diagonals are equal, $d_{1} = d_{2} = d$ , so the formula gives $\frac{1}{2} d^{2}$ . Check: a square of side $s$ has diagonal $d = s 2$ (by the Pythagorean theorem), so $\frac{1}{2} d^{2} = \frac{1}{2} (s 2)^{2} = \frac{1}{2} \cdot 2 s^{2} = s^{2}$ — exactly the familiar side-squared. ✓

Case B — a very "squashed" rhombus. Push the rhombus flat so one diagonal, say $d_{2}$ , shrinks toward $0$ . The four sides fold onto the long diagonal, the shape thins to a sliver, and its enclosed area should vanish. Formula: $\frac{1}{2} d_{1} \cdot 0 = 0$ . ✓ The formula degrades gracefully to zero — no nonsense.

Case C — both diagonals equal but not $9 0^{\circ}$ ? Impossible for a rhombus — Step 3 forces the diagonals to be perpendicular. If they weren't, the four sides couldn't all be equal. So there is no "missing" case hiding here: perpendicularity is guaranteed, and our derivation used exactly that.

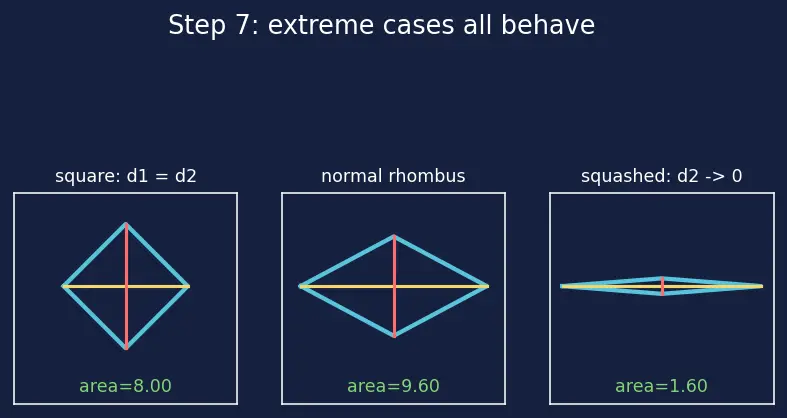

PICTURE. Three thumbnails: a square (diagonals equal), a normal rhombus, and a squashed sliver whose short red diagonal is nearly zero — with the area shrinking from $s^{2}$ down to $0$ .

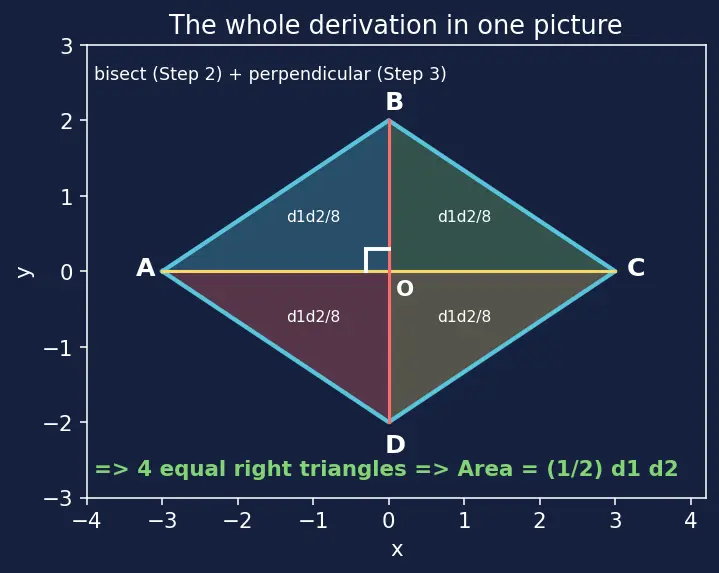

The one-picture summary

Everything at once: full rhombus, midpoint $O$ , the right angle, the four congruent triangles each labelled $\frac{d _{1} d _{2}}{8}$ , and the closing sum $4 \cdot \frac{d _{1} d _{2}}{8} = \frac{d _{1} d _{2}}{2}$ .

Recall Feynman retelling — explain it to a friend in plain words

"A rhombus is a slanted-square: four equal sides. Draw its two diagonals — the corner-to-corner lines. Two facts make the whole thing collapse: first, the diagonals cut each other exactly in half, so each half is $\frac{d _{1}}{2}$ or $\frac{d _{2}}{2}$ ; second, because all sides are equal, the diagonals cross at a perfect right angle. That right angle is the whole trick, because for a right triangle the two legs are just base and height. The crossing diagonals slice the rhombus into four identical right triangles, each with legs $\frac{d _{1}}{2}$ and $\frac{d _{2}}{2}$ , so each has area $\frac{1}{2} \cdot \frac{d _{1}}{2} \cdot \frac{d _{2}}{2} = \frac{d _{1} d _{2}}{8}$ . Four of them make $\frac{4 d _{1} d _{2}}{8} = \frac{d _{1} d _{2}}{2}$ . Test it: a square ( $d_{1} = d_{2}$ ) gives side-squared, and a flattened rhombus (one diagonal $\to 0$ ) gives area zero — both exactly right."

Recall Quick self-test

Why must the diagonals of a rhombus be perpendicular? ::: All sides equal makes each triangle (e.g. $A B C$ ) isosceles; the median from the apex to the base midpoint (which is where the diagonals meet) is also the perpendicular axis, so the diagonals cross at $9 0^{\circ}$ . Where does the $\frac{1}{8}$ come from in one triangle's area? ::: One $\frac{1}{2}$ from the triangle-area formula and two more $\frac{1}{2}$ 's from halving each diagonal: $\frac{1}{2} \cdot \frac{1}{2} \cdot \frac{1}{2} = \frac{1}{8}$ . What happens to the area as one diagonal shrinks to zero? ::: It goes to $0$ — the rhombus flattens into a line segment. ::: A rhombus has diagonals 10 and 24. Its area? ::: $\frac{1}{2} \cdot 10 \cdot 24 = 120$ square units.
