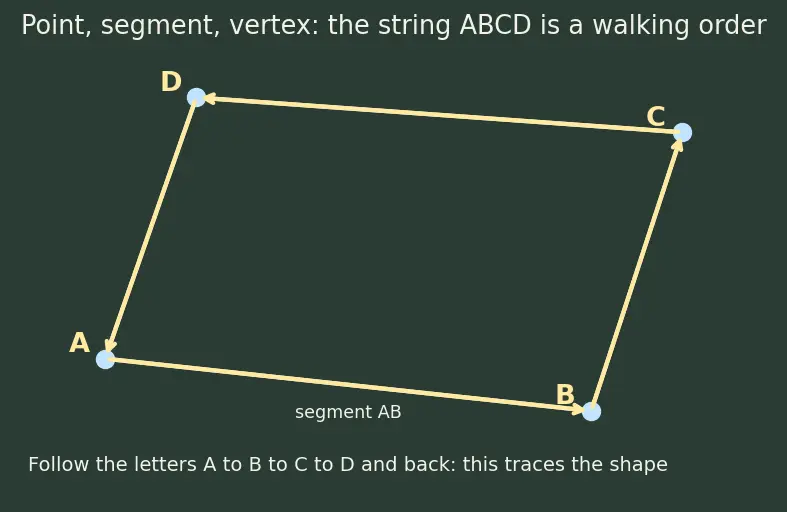

Why we need this: the whole topic is written in capital letters like ABCD. That string is just a walking order — start at A, walk to B, then C, then D, then back to A. Look at the figure: following the letters in order traces the shape without lifting your pencil.
Picture it: four points, four segments joining them in a loop. In the figure the left shape closes (last side returns to the start) with no crossing → it is a quadrilateral. The right shape's sides cut through each other → not an ordinary quadrilateral.
Even among clean, non-crossing quadrilaterals there are two flavours, and the difference decides whether the "split into two triangles" trick works.
Read the figure. The left (convex) shape has both diagonals drawn inside, each splitting the shape into two triangles that together fill it. The right (concave) shape has an inward dent at the arrow-marked vertex; the pink diagonal to that vertex actually leaves the shape — it does not cut the interior into two triangles.
Read the picture. Stand at vertex A, face along one side, then rotate to face the other side. How far you turned is the angle. A full spin all the way around is 360°; half a spin is 180° (a straight line); a quarter spin is 90° (a square corner).
Why the topic needs this: the topic's very first fact is "interior angles sum to 360°". That statement is meaningless until you know ∠ is turning at a corner, that ° is the unit of turning, that we mean the inside turning, and that 360° is one full turn.
Picture (left panel): the two blue rails stay the same distance apart forever → parallel. Picture (right panel): the two pink lines cross making a square corner → perpendicular.
Look at the figure. The four sides (AB, BC, CD, DA) are the outline. The two diagonals (AC, BD) cut across the inside and cross at a point we usually call O.
Since diagonals turn quadrilaterals into triangles, we first must be clear what a triangle is, then borrow two facts about it.
Why the topic needs congruence: almost every "WHY?" in the topic ("why do diagonals bisect?", "why are opposite sides equal?") is answered by finding two triangles and proving them congruent. Congruence is the engine; the quadrilateral facts are the output.
Why the square root? This is the 2.1.08-Pythagorean-theorem: run and rise are the two legs of a right triangle, and the segment is the hypotenuse (the long slanted side). Using the letters just defined, the topic gets the isosceles-trapezium diagonal d=h2+(2a+b)2 and the rhombus side s=32+42=5.
Read the figure. Left: the rectangle folds onto itself along the two dashed mirror lines → 2 lines of symmetry. Right: turning the parallelogram 180° about its centre gives the same picture → rotational symmetry of order 2 (it matches twice per full turn: at 180° and at 360°).
Read the map as arrows meaning "is needed for": each foundation flows into the topic at the bottom.
If the diagram does not render for you, read it as this plain chain: points build a non-crossing closed loop (the quadrilateral), which is either convex or concave; the angle symbol with its degree unit gives interior angles, and naming adjacent vs opposite neighbours powers the 360° and supplementary rules; a diagonal cuts the loop into triangles; the triangle angle sum feeds those angle rules while congruence (using three-letter angles) proves the diagonal and side facts; Pythagoras with Δ gives lengths; and parallelism builds the family whose symmetry we classify — all feeding the topic Properties of each quadrilateral.
Cover the right side and answer out loud — if you stumble, reread that section.
What does the string ABCD tell you to do?
Walk from vertex A to B to C to D and back to A, tracing the four sides in order.
What makes a figure a quadrilateral (three conditions)?
Four sides, a closed loop, and no two sides crossing.
What does "crossing" mean here?
Two sides passing through each other like scissor blades, instead of only touching at a shared corner.
Convex vs concave — what is the visible difference?
Convex has every corner pushed outward (all interior angles under 180°, both diagonals inside); concave has one inward dent (a reflex angle over 180°, one diagonal outside).
In a concave quadrilateral, which diagonal splits it into two interior triangles?
The one drawn to the dented (reflex) vertex — it stays inside; the other diagonal goes outside.
What does ∠A mean, and which turning does the topic intend?
The turning at vertex A, measured in degrees — specifically the interior angle (the turn on the inside of the loop).
What does the degree symbol ° stand for?
The unit of turning: one full turn is split into 360 equal parts, and each part is 1°.
In ∠BAC, which letter is the vertex?
The middle letter A; the outer letters B and C pick the two directions we turn between.
90°, 180°, 360° correspond to what turns?
Quarter turn (square corner), half turn (straight line), full turn (all the way round).
Which angles are "adjacent" and which are "opposite" in ABCD?
Adjacent = next-door vertices joined by a side (e.g. ∠A,∠B); opposite = diagonally across, sharing no side (e.g. ∠A,∠C).
"Supplementary" means the angles add to…?
180° — and that is not the same as being equal.
AB∥CD and AC⊥BD read as…?
AB is parallel to CD (same direction, never meet); AC is perpendicular to BD (they cross at 90°).
What is a diagonal, and how many does a quadrilateral have?
A segment joining two opposite vertices; there are exactly two (AC and BD).
"The diagonals bisect each other" means…?
Their crossing point O is the midpoint of both, so AO=OC and BO=OD.
What is a triangle, in one line?
A closed figure of exactly three sides meeting at three vertices with no crossing.
Why does one diagonal help prove the 360° angle rule?
It splits the (convex) quadrilateral into two triangles, each summing to 180°; 2×180°=360°.
What do a, b, h stand for in the diagonal work?
a = longer parallel side, b = shorter parallel side, h = height (perpendicular gap between the parallel sides).
What does Δx mean, and what is Δx equal to?
"Change in x" — the horizontal run — equal to x2−x1 (and Δy=y2−y1).
What is the distance formula and which theorem gives it?
d=(Δx)2+(Δy)2, from the Pythagorean theorem (run and rise as legs).
What do d1 and d2 label in the rhombus area formula?
The lengths of the two diagonals (the subscripts just say which diagonal, they are not powers).
How do you test line symmetry vs rotational symmetry?
Fold along a line for line symmetry; spin about the centre for rotational symmetry.
What does the order of rotational symmetry count?
How many times the shape matches itself during one full 360° turn.
Recall Quick self-check: name three shape "fingerprints" this foundation lets you read
Diagonals (equal? bisect? perpendicular?), angles (all 90°? opposite equal? supplementary?), and symmetry (how many mirror lines? what rotational order?). Every quadrilateral in the topic is identified by these three.
