Properties of each quadrilateral — diagonals, angles, symmetry

Think of quadrilaterals as a family tree: the general quadrilateral is the ancestor, and as we add constraints (parallel sides, equal sides, right angles), we get specialized descendants with richer properties.

---

The Quadrilateral Family

1. General Quadrilateral

WHY 360°? Derive from first principles:

• Any quadrilateral can be split into 2 triangles by drawing one diagonal
• Each triangle has angles suming to 180°
• Total: $2 \times 180° = 360°$

Properties:

• **Diagonals Unequal, intersect at any point (not necessarily bisecting)
• Angles: No special relationships, but $\angle A + \angle B + \angle C + \angle D = 360°$
• Symmetry: None (no lines of reflection, no rotational symmetry)

---

2. Trapezium (Trapezoid)

Properties:

• Diagonals: Unequal length, intersect inside (but don't bisect each other)
• Angles: Adjacent angles on each leg are supplementary
  • WHY? Because parallel lines cut by a transversal create co-interior angles
  • If $AB \parallel CD$, then $\angle A + \angle D = 180°$ and $\angle B + \angle C = 180°$
• Symmetry: None (unless it's an isosceles trapezium)

Solution:

1. Since $AB \parallel CD$ and $AD$ is a transversal
2. $\angle A$ and $\angle D$ are co-interior angles
3. Why co-interior? They're on the same side of the transversal between parallel lines
4. Co-interior angles are supplementary: $\angle A + \angle D = 180°$
5. $110° + \angle D = 180°$
6. $\angle D = 70°$

---

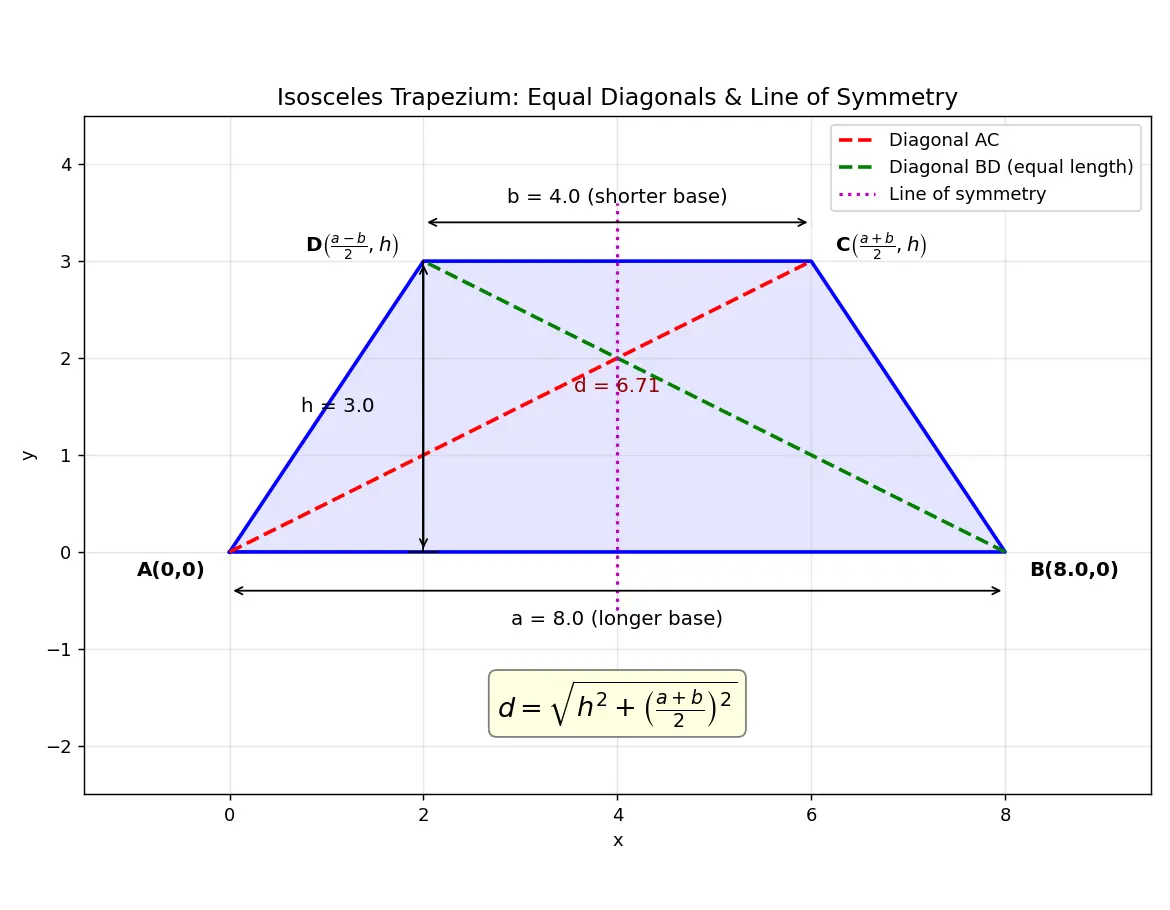

3. Isosceles Trapezium

Properties:

• Diagonals: Equal in length (this is the key distinguishing feature!)
  • WHY? By SS congruence of triangles formed by diagonals
• Angles: Base angles are equal ($\angle A = \angle B$ and $\angle C = \angle D$)
• Symmetry: 1 line of symmetry (perpendicular bisector of the parallel sides)

$d = \sqrt{h^2 + \left(\frac{a-b}{2}\right)^2 + b\,(a-b) + b^2}$

which simplifies neatly. But the clean, correct standard form is:

$\boxed{d = \sqrt{h^2 + \left(\frac{a+b}{2}\right)^2}}$

Derivation from first principles (dual coding — draw it!):

• Place the trapezium with the long base $a$ on the x-axis from $(0,0)$ to $(a,0)$.
• By symmetry, the short base $b$ sits at height $h$, centered: from $\left(\frac{a-b}{2}, h\right)$ to $\left(\frac{a+b}{2}, h\right)$.
• Label vertices $A=(0,0)$, $B=(a,0)$, $C=\left(\frac{a+b}{2}, h\right)$, $D=\left(\frac{a-b}{2}, h\right)$.
• The diagonal $AC$ runs from $A=(0,0)$ to $C=\left(\frac{a+b}{2}, h\right)$.
• Why use coordinates? Because the horizontal run and vertical rise give the diagonal directly via distance formula.
• Horizontal run $= \frac{a+b}{2}$, vertical rise $= h$.
• $d = \sqrt{\left(\tfrac{a+b}{2}\right)^2 + h^2}$

Cross-check with legs: The leg $c = AD = \sqrt{h^2 + \left(\frac{a-b}{2}\right)^2}$ (horizontal run $\frac{a-b}{2}$, rise $h$). Both diagonals are equal by the left–right symmetry of the shape. ✓

---

4. Parallelogram

Properties — here's where things get interesting:

Diagonals:

• Bisect each other (but are NOT equal in length, unless it's a rectangle)
• WHY do they bisect? Let diagonals intersect at $O$. Consider $\triangle AOB$ and $\triangle COD$:
  • $AB \parallel CD$ → alternate angles: $\angle OAB = \angle OCD$
  • $AB = CD$ (opposite sides equal) → we'll prove this next
  • $\angle OBA = \angle ODC$ (alternate angles)
  • By ASA congruence: $AO = OC$ and $BO = OD$ ✓

Sides:

• Opposite sides are equal: $AB = CD$ and $AD = BC$
• WHY? Draw diagonal $AC$. It creates $\triangle ABC$ and $\triangle CDA$:
  • $AC$ is common
  • $\angle BAC = \angle DCA$ (alternate angles, since $AB \parallel CD$)
  • $\angle BCA = \angle DAC$ (alternate angles, since $BC \parallel AD$)
  • By ASA: $AB = CD$ and $BC = AD$ ✓

Angles:

• Opposite angles are equal: $\angle A = \angle C$, $\angle B = \angle D$
• Adjacent angles are supplementary: $\angle A + \angle B = 180°$
• WHY? Co-interior angles between parallel lines

Symmetry:

• No line symmetry, but rotational symmetry of order 2 (180° rotation around center)

Solution:

1. Why can we double? Because diagonals of a parallelogram bisect each other
2. $AC = 2\times AO = 2 \times 5 = 10$ cm
3. $BD = 2 \times BO = 2 \times 7 = 14$ cm

---

5. Rhombus

Properties (inherits paralelogram properties + more):

Diagonals:

• Bisect each other (inherited from parallelogram)
• Perpendicular to each other ($AC \perp BD$)
  • WHY perpendicular? Consider $\triangle AOB$ where $O$ is intersection:
    • $AO$ is part of diagonal $AC$, $BO$ is part of $BD$
    • Since all sides equal: $AB = AD$
    • Since diagonals bisect: $O$ is midpoint of both
    • $O$ is equidistant from $A$ and $C$ along one diagonal, from $B$ and $D$ along other
    • By symmetry of isosceles triangles $\triangle ABD$ and $\triangle CBD$, diagonals meet at right angles
• Bisect the angles of the rhombus
  • WHY? Each diagonal is the axis of symmetry, so it must split the angle equally

Angles:

• Opposite angles equal (from parallelogram)
• Adjacent angles supplementary (from parallelogram)

Symmetry:

• 2 lines of symmetry (both diagonals)
• Rotational symmetry of order 2

where $d_1$ and $d_2$ are diagonal lengths.

WHY this formula?

• The perpendicular diagonals split the rhombus into 4 right triangles
• Each triangle has legs $\frac{d_1}{2}$ and $\frac{d_2}{2}$
• Area of one triangle: $\frac{1}{2} \cdot \frac{d_1}{2} \cdot \frac{d_2}{2} = \frac{d_1 d_2}{8}$
• Total area: $4 \times \frac{d_1 d_2}{8} = \frac{d_1 d_2}{2}$ ✓

Solution:

1. Why can we use Pythagoras? Diagonals are perpendicular and bisect each other
2. They form4 right triangles with legs $\frac{6}{2} = 3$ cm and $\frac{8}{2} = 4$ cm
3. Side is the hypotenuse: $s = \sqrt{3^2 + 4^2} = \sqrt{9 + 16} = \sqrt{25} = 5$ cm

---

6. Rectangle

Properties:

Diagonals:

• Bisect each other (from parallelogram)
• Equal in length ($AC = BD$)
  • WHY equal? Consider right triangles $\triangle ABC$ and $\triangle BAD$:
    • $AB$ is common
    • $BC = AD$ (opposite sides of paralelogram)
    • $\angle ABC = \angle BAD = 90°$
    • By SAS: $AC = BD$ ✓
• But diagonals are NOT perpendicular (unless it's a square)

Angles:

• All angles are $90°$
• WHY? One angle is $90°$ by definition. In a paralelogram, adjacent angles are supplementary: $90° + \angle B = 180°$ → $\angle B = 90°$. All four angles must be $90°$.

Symmetry:

• 2 lines of symmetry (perpendicular bisectors of opposite sides, NOT diagonals)
• Rotational symmetry of order 2

Derivation: Direct application of Pythagoras theorem to the right triangle formed by two adjacent sides and a diagonal.

---

7. Square

Properties (inherits ALL properties from both):

Diagonals:

• Bisect each other (from parallelogram)
• Equal in length (from rectangle)
• Perpendicular (from rhombus)
• Bisect the angles (from rhombus) → each diagonal creates two 45° angles

Angles:

• All $90°$

Symmetry:

• 4 lines of symmetry (2 diagonals + 2 midline perpendicular bisectors)
• Rotational symmetry of order 4 (90°, 180°, 270°, 360°)

WHY diagonal is $a\sqrt{2}$?

• By Pythagoras on the right triangle with both legs $a$:
• $d^2 = a^2 + a^2 = 2a^2$
• $d = \sqrt{2a^2} = a\sqrt{2}$ ✓

---

Visual Summary

---

Comparison Table

Quadrilateral	Diagonals Equal?	Diagonals Perpendicular?	Diagonals Bisect?	All Sides Equal?	All Angles Equal?	Lines of Symmetry
General	✗	✗	✗	✗	✗	0
Trapezium	✗	✗	✗	✗	✗	0
Isosceles Trap.	✓	✗	✗	✗	✗	1
Parallelogram	✗	✗	✓	✗	✗	0
Rhombus	✗	✓	✓	✓	✗	2
Rectangle	✓	✗	✓	✗	✓	2
Square	✓	✓	✓	✓	✓	4

---

Mistake 1: "All paralelograms have equal diagonals"

• Why it feels right: Paralelograms look symmetric, and opposite sides are equal
• The fix: Only rectangles (and squares) have equal diagonals. Draw a slanted paralelogram and measure — the diagonals will differ. The perpendicular diagonal in a rhombus is NOT equal to the other diagonal.

Mistake 2: "Diagonals of a rectangle are perpendicular"

• Why it feels right: Rectangles have right angles everywhere, so diagonals "should" be perpendicular too
• The fix: Perpendicular diagonals come from equal sides (rhombus property), not equal angles. A rectangle has equal angles but unequal sides (unless it's a square). Test: In a 3×4 rectangle, diagonals meet at angle ≠ 90°.

Mistake 3: "A square is not a rectangle"

• Why it feels right: We learn them as separate shapes in early education
• The fix: A square satisfies ALL properties of a rectangle (4 right angles, opposite sides parallel and equal) PLUS additional constraints (all sides equal). It's a special case of a rectangle. Venn diagram: Square ⊂ Rectangle ⊂ Paralelogram.

Mistake 4: "If diagonals bisect each other, it's a parallelogram"

• Why it feels right: This is the converse of a true statement
• The fix: This one is actually TRUE! It's an "if and only if" relationship. If diagonals bisect each other, you CAN conclude it's at least a parallelogram. (But be careful with other properties — not all converses work.)

---

For rhombus, add: PERP → Perpendicular diagonals, Equal sides, Right angles where diagonals meet, Pointing at angle bisectors

For rectangle: DEAR → Diagonals Equal, All angles Right (90°)

Square gets it ALL.

---

Recall Feynman Technique: Explain to a 12-year-old

Imagine you have a stretchy rubber band shaped like a rectangle. If you pull two opposite corners outward while keeping the sides straight, you get a paralelogram — the shape tilts, but opposite sides stay parallel. Notice how the diagonals (corner-to-corner lines) change: they're still cutting each other in half, but now they're different lengths!

Now, instead of pulling corners out, squeeze the rectangle from the sides until all four sides become equal. You've made a rhombus! The cool thing? The diagonals now form a perfect "plus sign" — they cross at exactly 90°. They also cut the corners exactly in half.

A square is like winning the lottery: you get BOTH the rectangle's perfect right-angle corners AND the rhombus's all-equal sides. So a square gets the best of both worlds — equal diagonals that are also perpendicular, and perfect symmetry in every direction.

A trapezium is the rebel of the family — it only has one pair of parallel sides, so it's less symmetric. But if you make its legs (non-parallel sides) equal, you get an isosceles trapezium, which at least has equal diagonals and one line of symmetry.

---

Connections

• 1.2.01-Types-of-quadrilaterals — classification foundation
• 1.2.07-Angle-sum-property-of-quadrilaterals — why360° always
• 1.12-Triangle-congruence-criteria — used in proving properties
• 1.3.05-Line-symmetry — understanding reflectional symmetry
• 1.3.06-Rotational-symmetry — understanding rotational symmetry
• 2.1.08-Pythagorean-theorem — diagonal length calculations
• 2.2.04-Area-of-quadrilaterals — using diagonal formulas

---

#flashcards/maths

What is the sum of interior angles in ANY quadrilateral? :: 360° (derived from splitting into2 triangles, each 180°)

Do the diagonals of a paralelogram bisect each other? :: Yes, always (this is a defining property)

Which quadrilaterals have equal diagonals? :: Rectangle, square, and isosceles trapezium

Concept Map

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Hinglish (regional understanding)

Intuition Hinglish mein samjho

Dekho, quadrilaterals humari geometry ki ek badi family hai, aur inhe samajhna isliye zaroori hai kyunki koi bhi polygon ko hum triangles aur quadrilaterals mein tod sakte hain. Aur real life mein toh yeh har jagah hain — mobile screen, table, tiles, khet — sab quadrilateral shapes hi toh hain. Iska core intuition yeh hai ki inhe ek family tree ki tarah socho: sabse upar hai general quadrilateral (dada ji), aur jaise-jaise hum constraints add karte hain — jaise parallel sides, equal sides, ya right angles — waise-waise humein specialized shapes milte hain jinke paas zyada rich properties hoti hain.

Sabse foundational baat yeh hai ki har quadrilateral ke interior angles ka sum 360° hota hai, aur yeh koi ratne wali cheez nahi hai — isko derive kar sakte ho. Ek diagonal kheech do, quadrilateral do triangles mein bant jayega, aur har triangle ka angle sum 180° hota hai, toh 2 × 180° = 360°. Isi tarah trapezium mein jab ek pair parallel sides hoti hain, toh parallel lines aur transversal ki wajah se co-interior angles supplementary ban jaate hain, matlab unka sum 180° hota hai. Yahi reason hai ki example mein ∠A = 110° hone par ∠D = 70° aa gaya.

Ab jo cheez har quadrilateral ko unique banati hai woh hai uska "fingerprint" — yaani diagonals equal hain ya nahi, woh ek dusre ko bisect karte hain ya nahi, aur symmetry lines kitni hain. Jaise isosceles trapezium ka special feature yeh hai ki uske diagonals barabar hote hain aur usme ek line of symmetry hoti hai. Yeh saari properties tumhe kisi bhi shape ko pehchan-ne aur usme calculations karne mein help karti hain. Aur ek important tip — diagonal formulas ko blindly mat ratna, coordinates laga ke distance formula se derive karna seekho, tabhi galat formula ke trap mein nahi phasoge.
