Instruction-level semantics and exceptions: Worked examples

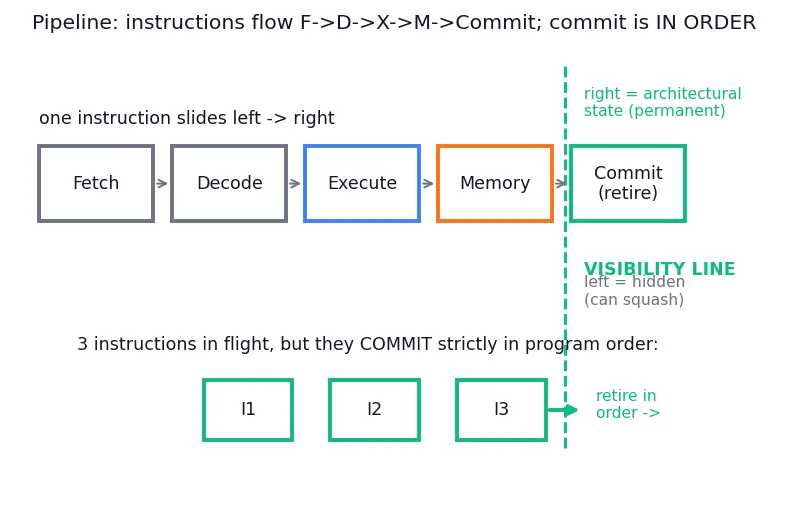

First, the words we lean on the whole page: commit and retire

Before any example, we must define one idea the parent note only hinted at, because every "which PC?" answer secretly depends on it.

Figure — Instruction-level semantics and exceptions

Two model conventions we fix up front so nothing later is ambiguous:

The scenario matrix

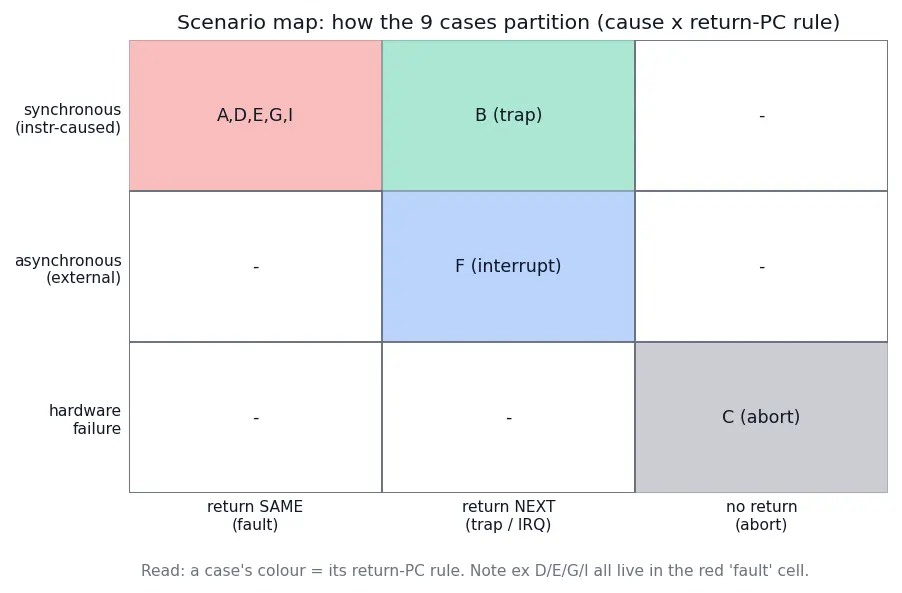

Here is the full grid of case-classes this topic can throw at you. The figure right after it is the same grid drawn as a coloured map, so you can see at a glance how the nine cases partition the space of behaviours (by return-PC rule on one axis, cause on the other).

#	Case class	The distinguishing question	Covered by
A	Fault on a memory access	Return to same instruction	Ex 1
B	Trap (deliberate)	Return to next instruction	Ex 2
C	Abort (unrecoverable)	No return at all	Ex 3
D	Zero / degenerate input (÷0)	Fault triggered by data, not address	Ex 4
E	Tie-break — two faults same cycle	Report the program-order-oldest	Ex 5
F	Asynchronous interrupt	Not tied to one instruction; where to insert it	Ex 6
G	Speculative / squashed instruction faults	A fault that must be thrown away	Ex 7
H	Word problem (real syscall trace)	Chain several rules together	Ex 8
I	Exam twist — branch delay / limiting PC	Which PC when the faulting instr also changes PC?	Ex 9

Two ideas repeat across every cell, so pin them now:

Recall The one number that decides everything: the return PC

Which PC does the handler save into the Exception PC (EPC)? Fault ::: the address of the faulting instruction itself (retry it) Trap ::: the address of the next instruction (we already did the job) Abort ::: no return — the program is killed Interrupt ::: the address of the next instruction not yet committed (resume where we paused)

Assume a fixed-length ISA: every instruction is 4 bytes, so "next instruction" means "current address $+ 4$ " unless a branch says otherwise.

Ex 1 — Cell A · Fault on a load

Worked example Fault:

LW R5, 0(R6) at address 0x1000, page not resident The page holding the address in R6 is not in physical memory, so the hardware raises a page fault.

Forecast: guess before reading — after the OS loads the page, does execution resume at 0x1000, 0x1004, or somewhere else? And is R5 written or untouched?

Classify. This is a fault (see Virtual Memory and Page Faults): correctable, detected before the instruction commits. Why this step? The family determines the return PC; everything else follows from it.
State check. Because the exception must be precise, R5 is not modified — no half-load. Why? If R5 were partly written, re-running the load would be unsafe; precision guarantees a clean restart point. (The LW never committed, so nothing it computed reached R5.)
Return PC. $E P C = 0 x 1000$ — the address of the LW itself. Why? The OS fixes the missing page, then the same load must run again to actually fetch data.

Verify: After handling, the CPU jumps to 0x1000, re-executes LW, and this time the page is present, so R5 gets its value. No instruction was skipped, none double-ran. $E P C = 0x1000 = 4096$ .

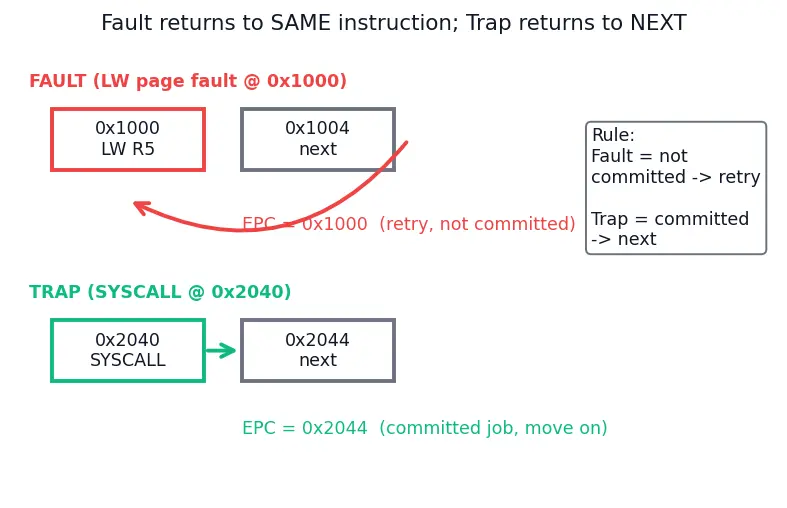

The figure below places this fault vs a trap on the same picture so the EPC arithmetic is visual.

Ex 2 — Cell B · Trap (deliberate)

Ex 3 — Cell C · Abort (no return)

Ex 4 — Cell D · Zero / degenerate input (÷0)

Worked example Data-triggered fault:

DIV R7, R8, R9 at 0x4000 with R9 = 0 Integer division by zero.

Forecast: is this a fault or a trap? Which PC?

State our convention (read this first!). Whether ÷0 is a fault or a trap is an ISA design choice, not a universal truth. Many real ISAs (e.g. x86 #DE) treat divide-error as a trap and return to the next PC. This page's abstract machine treats it as a FAULT so we can illustrate the "retry after fixing the cause" behaviour on a data-driven condition. Why call it out? If you skip this, the answer looks contradictory next to a real x86 manual.
Classify (under our convention). A fault — detected before R7 is written, restartable in principle (the OS could deliver a signal and let a handler fix the operand). Why? The division never produced a valid result, so nothing committed — R7 is untouched.
Degenerate-input note. Unlike Ex 1, the trigger is the operand value (R9 = 0), not an address. The exception fires purely from data. Why this matters? Re-running unchanged would fault again — so the OS must change something (fix R9, or advance the PC in a signal handler) before resuming.
Return PC (our convention). $E P C = 0 x 4000$ — the DIV itself. Why? Fault rule: retry the faulting instruction after the cause is addressed. (On an ISA that makes it a trap, EPC would instead be $0 x 4000 + 4 = 0 x 4004$ .)

Verify: $R 9 = 0$ makes $R 8/ R 9$ undefined, so R7 stays untouched — precise. Fault EPC $= 0 x 4000 = 16384$ ; the trap-convention alternative would be $0 x 4004 = 16388$ .

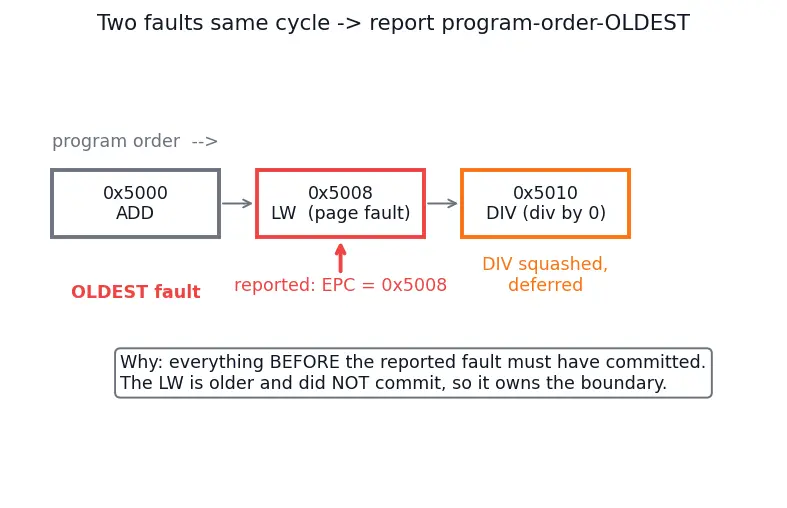

Ex 5 — Cell E · Two faults, same cycle (tie-break)

Worked example Priority:

DIV at 0x5010 (÷0) and older LW at 0x5008 (page fault), detected same cycle Both exceptions are ready in the same clock cycle. In program order the LW (0x5008) is older than the DIV (0x5010).

Forecast: which exception does the CPU report first?

Order rule. Report the exception of the program-order-oldest faulting instruction ⇒ the LW at 0x5008. Why? Precise semantics says everything before the reported fault must have committed. If we reported the DIV first, we'd be claiming the LW committed — but it didn't (it faulted). Impossible in the sequential world.
What happens to the DIV? It is squashed (discarded before commit) and not reported yet. After the OS handles the page fault and restarts at 0x5008, execution flows forward and may reach the DIV again, which will fault a second time — and then be reported. Why? Only one clean commit boundary exists at a time; the oldest un-committed fault owns it.

Verify: $0 x 5008 < 0 x 5010$ , so the LW is older ⇒ reported ⇒ $E P C = 0 x 5008 = 20488$ . The DIV's fault is deferred, matching the Out-of-Order Execution and the Reorder Buffer retire-in-order rule.

Ex 6 — Cell F · Asynchronous interrupt (with masking & priority)

Worked example Interrupt: timer fires while the CPU is between

0x6100 and 0x6104 A hardware timer (see Interrupts and I/O) raises an interrupt — nothing to do with the current instruction's data.

Forecast: is the return PC tied to a faulting instruction? Where do we resume? And what if the timer fires at the same time as a page fault?

Classify. An interrupt — asynchronous. It is not caused by any instruction's semantics. Why this matters? Re-running the program would not reproduce it at the same spot (unlike an exception, which is a deterministic function of the instruction stream).
Masking check. Interrupts can be masked — temporarily blocked when the CPU is in a critical region or already servicing a higher-priority handler. If the timer is masked, it simply waits (stays pending) until unmasked; the current instruction stream is undisturbed. Why include this? Faults and traps cannot be masked (they are part of an instruction's meaning); interrupts can. That is a real, testable difference.
Priority. If several interrupts are pending, the CPU takes the highest-priority one first; lower ones stay pending. A timer might outrank a keyboard, for example.
Insertion point (if unmasked). Hardware picks a clean commit boundary: it lets the instruction at 0x6100 commit, squashes younger not-yet-committed work, and records the next uncommitted PC.
Return PC. $E P C = 0 x 6104$ — resume at the next instruction that had not yet committed. Why $+ 4$ ? We are pausing, not retrying; the instruction at 0x6100 already committed.
Coincidence rule (interrupt + exception same cycle). A synchronous exception wins over an asynchronous interrupt on the same boundary: the exception belongs to the instruction stream and must be handled to keep state precise; the interrupt is still pending and taken immediately after. Why? Delivering the interrupt "over" an un-handled fault would leave imprecise state.

Verify: $0 x 6100 + 4 = 0 x 6104$ . Same EPC arithmetic as a trap (Ex 2), but the cause is external, not the instruction — the "synchronous vs asynchronous" distinction from the parent note.

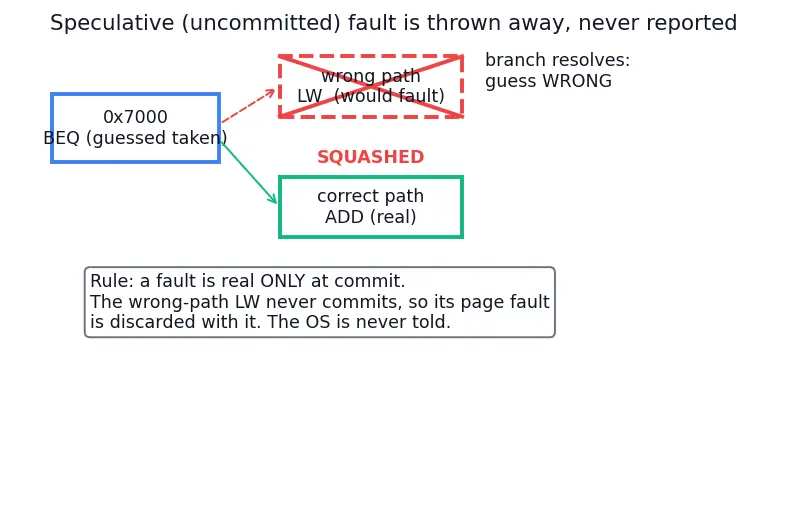

Ex 7 — Cell G · Speculative instruction that faults, then gets squashed

Worked example Squashed fault: a branch is mispredicted; a speculatively-fetched

LW on the wrong path faults The pipeline guessed a branch outcome and ran ahead. On the wrong (mispredicted) path sits a LW that would page-fault. Later the branch resolves — the guess was wrong.

Forecast: does the OS ever see this page fault?

Recognise the trap-door. A fault is only real once the faulting instruction reaches commit (this is exactly the rule we defined at the top). Speculative instructions have not committed. Why? Architectural state only changes at commit; before that, everything is provisional microarchitectural state.
Squash. When the branch resolves wrong, the LW and all wrong-path work are squashed (discarded — see Pipelining and Hazards). Its page fault is discarded with it. Why? In the sequential model that LW never executes — so its fault must never be visible.
Result. No exception is reported. The OS is never told. Why? Reporting a fault from an instruction that "never ran" would violate precise semantics.

Verify: Compare to Ex 1: identical LW page fault, but here it is on a squashed path, so "exception reported" flips from yes to no. The deciding factor is always did it commit?

Ex 8 — Cell H · Word problem (chained rules, real trace)

Worked example A

write() call that also crosses a missing page A program runs, in order:

Addr	Instr	Note
`0x8000`	`LW R1, 0(R2)`	loads a byte-count, page present
`0x8004`	`LW R3, 0(R4)`	page not resident
`0x8008`	`SYSCALL`	requests `write()`

Forecast: what is the first exception, its EPC, and what is the final EPC after everything resolves and the syscall completes?

First instruction (0x8000). Commits normally; R1 written; PC advances. Why start here? Precision needs older instructions fully committed before any later fault is reported.
Second instruction (0x8004). Page fault → fault → $E P C = 0 x 8004$ (retry). Why not skip to the syscall? The LW is older; its un-committed fault owns the boundary (Ex 5 rule).
OS handles it, restarts at 0x8004. Page now present; R3 loads and commits; PC advances to 0x8008. Why re-run the whole LW? Fault semantics = retry the faulting instruction (Ex 1).
Third instruction (0x8008). SYSCALL → trap → after servicing, resume at $E P C = 0 x 8008 + 4 = 0 x 800 C$ . Why $+ 4$ ? The syscall committed its job; continue past it (Ex 2).

Verify: First reported exception EPC $= 0 x 8004 = 32772$ (fault). Final resume EPC after the trap $= 0 x 8008 + 4 = 0 x 800 C = 32780$ . Two different EPC rules chained correctly in one trace.

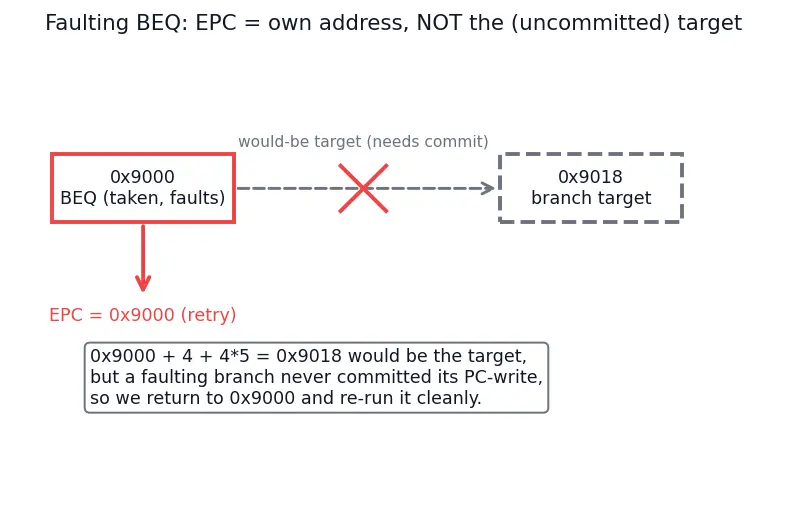

Ex 9 — Cell I · Exam twist: the faulting instruction is itself a branch

Worked example Limiting case: a taken branch

BEQ R1,R2,offset at 0x9000 also triggers a fault Suppose the branch is taken (so it wants to set PC ← 0x9000 + 4 + 4·offset) but the same instruction raises a fault before it commits, with offset = 5.

Forecast: does EPC use the branch target or the branch's own address?

Compute what the branch would do. Taken target $= 0 x 9000 + 4 + 4 \cdot 5 = 0 x 9000 + 24 = 0 x 9018$ . Why compute it? To show that this target is only reached if the branch commits.
Apply fault rule. A fault means the instruction did not commit ⇒ its PC-update never happened. So $E P C = 0 x 9000$ — the branch's own address, not the target. Why? Fault = retry the faulting instruction from scratch. The branch has not yet decided anything architecturally.
After the OS fixes the cause and returns to 0x9000, the branch re-executes, now commits, and then sets the PC to 0x9018. Why? The branch's semantics (including its PC-write) only take effect on a clean, committed run.

Verify: Would-be target $0 x 9000 + 4 + 4 \cdot 5 = 0 x 9018 = 36888$ , but $E P C = 0 x 9000 = 36864$ because a faulting branch never committed its PC-write. The twist: the most tempting answer (the target) is exactly the wrong one.

Wrap-up recall

Recall Reconstruct the whole matrix from one question

"Did the instruction commit, and did it want to finish?" Fault (not committed, must retry) → EPC ::: address of the faulting instruction Trap (committed its job) → EPC ::: address of the next instruction Abort (uncorrectable) → EPC ::: none; process killed Interrupt (external, paused cleanly, maskable) → EPC ::: next uncommitted instruction Squashed speculative fault → reported? ::: never — it never committed Two faults same cycle → report which? ::: the program-order-oldest one Interrupt + exception same cycle → who wins? ::: the synchronous exception (interrupt stays pending)

Back to the parent topic · this whole page is the practical face of the hardware–software contract.
