Parity generators - checkers: Worked examples — Hardware deep dive

This page is a drill. The parent note built the formulas; here we throw every kind of input at them — even data, odd data, all-zeros, all-ones, single flips, double flips, a real transmission story, and an exam-style twist. Follow along, and by the end there is no parity question that can surprise you.

Before anything, two reminders in plain words:

The scenario matrix

Every parity question is one cell of this grid. If we work one example per cell, nothing is left uncovered.

Cell	What makes it distinct	Covered by
A. Even parity, data has even 1s	generator must output $P = 0$	Ex 1
B. Even parity, data has odd 1s	generator must output $P = 1$	Ex 2
C. Odd parity (complement branch)	$P = \overline{X}$ , opposite convention	Ex 3
D. Degenerate input: all-zeros	edge: no 1s at all	Ex 4
E. Degenerate input: all-ones	edge: max 1s, count depends on $n$	Ex 4
F. Checker, no error	$E$ must read "OK"	Ex 5
G. Checker, single flip (detected)	$E$ flips → error	Ex 6
H. Checker, double flip (blind spot)	$E$ unchanged → missed	Ex 7
I. Real-world word problem	keyboard byte over a cable	Ex 8
J. Exam twist: parity of a parity / wider word	$n$ large, mixed convention	Ex 9

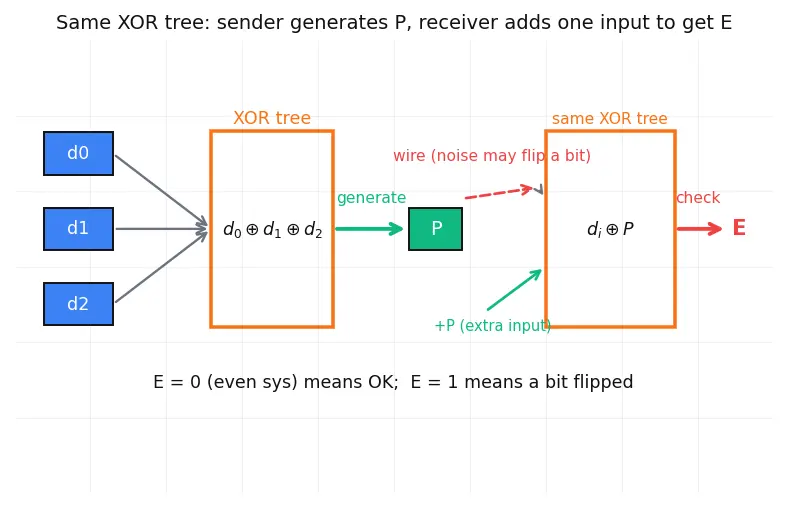

The map below shows how a bit-vector flows through the same XOR tree at the sender and receiver — the only difference is one extra input at the receiver.

Ex 1 — Cell A: even parity, even data

Ex 2 — Cell B: even parity, odd data

Ex 3 — Cell C: odd parity, same data

Ex 4 — Cells D & E: degenerate all-zeros and all-ones

Worked example Even parity. Find

$P$ for (D) $0000$ and (E) $1111$ ; also $1111111$ (seven ones). Forecast: all-zeros has no 1s — is zero even? And does all-ones depend on how many bits there are?

(D) $0000$ : $X = 0 \oplus 0 \oplus 0 \oplus 0 = 0$ . Zero 1s, and zero counts as even. So $P = 0$ , word $= 00000$ . Why this step? This is the "empty" edge case — parity treats "no 1s" as an even count, not a special case.
(E) $1111$ : four 1s. $X = 1 \oplus 1 \oplus 1 \oplus 1$ : pairs cancel, $(1 \oplus 1) \oplus (1 \oplus 1) = 0 \oplus 0 = 0$ . $P = 0$ , word $= 11110$ . Why this step? An even number of 1s XORs to 0 — the identical result as all-zeros, because parity only sees the parity of the count.
$1111111$ (seven 1s): odd count. $X = 1$ (seven 1s → odd). $P = 1$ , word $= 11111111$ (eight 1s, even). Why this step? All-ones flips answer with $n$ : even $n$ → $P = 0$ , odd $n$ → $P = 1$ . The count's parity, not the value, decides.

Verify: D: $00000$ has 0 ones (even) ✓. E: $11110$ has 4 (even) ✓. Seven-ones: $11111111$ has 8 (even) ✓.

Ex 5 — Cell F: checker, no error

Ex 6 — Cell G: single flip is caught

Worked example Even-parity system sent

$10111$ . TWO bits flip: positions 3 and 1 → receiver gets $11110$ ? Let's be exact. Forecast: two flips — the parent warned us. Will $E$ read OK even though the data is wrong?

Original $10111$ . Flip the leftmost 0 (position 3) to 1, and flip the rightmost 1 (position 0) to 0: received $= 11110$ . Why this step? We deliberately pick two flips: one adds a 1, one removes a 1.
$E = 1 \oplus 1 \oplus 1 \oplus 1 \oplus 0$ : $1 \oplus 1 = 0$ , $0 \oplus 1 = 1$ , $1 \oplus 1 = 0$ , $0 \oplus 0 = 0$ . So $E = 0$ . Why this step? Two flips changed the count by $+ 1 - 1 = 0$ — an even change — so parity is restored.
Even system, $E = 0$ ⇒ "OK" — but the received word $11110 \neq = 10111$ ! The error is missed.

Verify: $11110$ has four 1s → even → $E = 0$ , yet it's corrupt. Parity detects only an odd number of flips. For stronger detection see Checksums and CRC; for correction see Hamming Codes.

Ex 8 — Cell I: a real transmission (word problem)

Worked example A keyboard sends the ASCII byte for

A $= 01000001$ (eight data bits) over a serial cable using odd parity. Build the 9-bit frame, then a lightning strike flips exactly one bit. Show detection. Forecast: eight bits, odd convention — will the parity bit be 0 or 1?

Count 1s in $01000001$ : positions with a 1 are just two of them → two 1s (even). Why this step? The count decides everything before we even touch the formula.
$X =$ XOR of all eight bits $= 0$ (even count XORs to 0). Why this step? Same as Ex 1's logic — even count means $X = 0$ .
$P_{odd} = \overline{X} = \overline{0} = 1$ . Transmitted 9-bit frame $= 010000011$ , which has three 1s (odd). Why this step? Odd parity needs an odd total; two data 1s → add one → three, odd ✓.
Lightning flips bit 0: receiver gets $010000010$ ... wait, careful — appending $P$ we sent $010000011$ ; flip its last bit to get $010000010$ . Why this step? We model one physical flip on the wire.
Checker: $E =$ XOR of received $010000010 =$ (two 1s in it) $= 0$ . Why this step? Received word now has an even count (2).
Odd system: a good word has odd 1s → $E = 1$ for OK; here $E = 0$ ⇒ ERROR flagged ✓. Why this step? In odd parity the "good" and "bad" readings of $E$ swap — always re-ask "what count should a correct word have?".

Verify: frame $010000011$ has 3 ones (odd) ✓; corrupted $010000010$ has 2 (even) → $E = 0$ → flagged in an odd system ✓.

Ex 9 — Cell J: exam twist (wide word, mixed reasoning)

Worked example A 16-bit data word

$D = 1111000010101100$ uses even parity. (a) Find $P$ . (b) A colleague claims XORing the two 8-bit halves and then XORing those results gives the same $P$ — verify the shortcut. Forecast: 16 bits is a lot — but you never need to XOR all 16 in one line. Can you split the work?

Split into halves: $H_{1} = 11110000$ , $H_{2} = 10101100$ . Why this step? XOR is associative — grouping is free, so we can compute each half's parity separately.
Parity of $H_{1}$ : four 1s → even → $X_{1} = 0$ . Parity of $H_{2}$ : four 1s ( $1, 0, 1, 0, 1, 1, 0, 0$ ) → even → $X_{2} = 0$ . Why this step? Count each half; even count ⇒ that half's XOR is 0.
Combine: $X = X_{1} \oplus X_{2} = 0 \oplus 0 = 0$ . So $P_{even} = 0$ . Why this step? The parity of the whole is the XOR of the parts' parities — the shortcut is legitimate.
Full frame $= 11110000101011000$ .

Verify: total 1s in $D$ = 4 + 4 = 8 (even) → $P = 0$ ✓, matching the split method. The colleague's shortcut is exactly the associativity of XOR, and it's how real hardware builds a wide parity tree from smaller XOR gates.

Recall Which cell does each example prove?

Ex1→A, Ex2→B, Ex3→C, Ex4→D&E, Ex5→F, Ex6→G, Ex7→H, Ex8→I, Ex9→J. Every cell covered.

Recall Odd vs even data under even parity — quick check

Even data → $P = 0$ ; odd data → $P = 1$ ::: because $P$ equals $X$ , and $X$ tells you if the data count is odd.

Recall Why does the double-flip fool the checker?

Two flips change the 1-count by an even amount, so the parity (and $E$ ) is unchanged ::: parity sees only odd/even, not the actual number.

Connections

XOR and XNOR gates — every step above is chained XOR / one XNOR.
Combinational Circuits — all these examples are memoryless, output depends only on current bits.
Error Detection and Correction — Ex 6–8 are the detection story; Ex 7 is its limit.
Hamming Codes — the fix for "which bit?" that parity can't answer.
Checksums and CRC — stronger successors that catch the double-flip Ex 7 misses.
Multiplexers & Adders — other XOR-heavy blocks built the same associative way (Ex 9).
