Visual walkthrough — Truth tables construction
Before anything else, two plain-word anchors we will lean on:
Step 1 — One switch: the smallest possible table
WHAT. We start with a single input, call it . is one switch, so it has exactly two settings: (off) or (on).
WHY start here. You cannot understand a table with 8 rows if you have not seen why a table with 1 switch has exactly 2 rows. We build the "doubling" idea from its seed.
PICTURE. Look at the figure: one switch drawn twice — once down (0), once up (1). Those two drawings are the two rows. There is no third setting, so there is no third row.

- — the name of our single switch.
- — the only two values a bit may take; the curly braces mean "the set of".
- The arrow means "therefore": two settings force two rows.
Step 2 — Add a second switch: rows DOUBLE
WHAT. We add a second input . For each setting of , the switch can independently be 0 or 1. So each of the 2 old rows splits into 2 new rows.
WHY doubling and not adding. Here is the crux most people trip on. The switches are independent — setting tells you nothing about . So we are not counting "2 switches + 2 values". We are counting combinations: 2 choices for , and for each of those, 2 choices for . Choices that stack multiply.

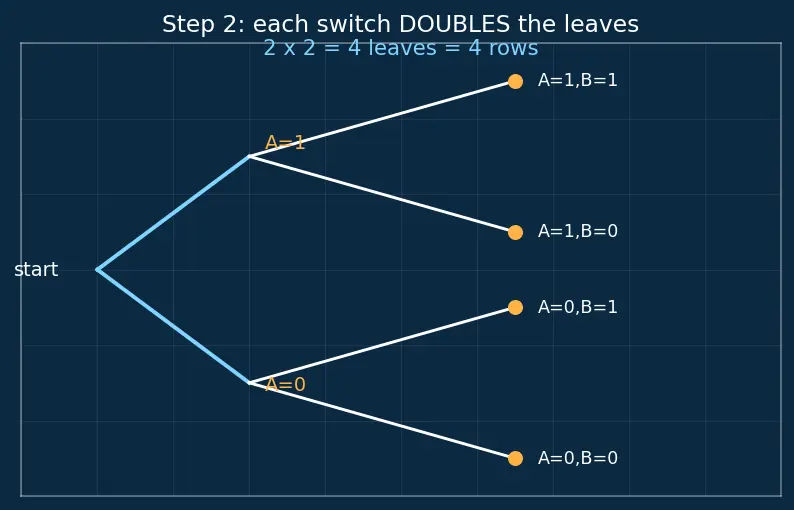

PICTURE. The figure shows a tree: the trunk splits into and (2 branches). Each of those branches splits again into and . Count the leaves at the bottom — there are . Each leaf is one row.

- The is the multiplication principle: independent choices multiply, they never add.
- Follow one path from trunk to leaf — that path spells out one complete input row, e.g. .
Step 3 — Generalise: switches give rows
WHAT. Every time we add one more independent switch, the tree grows one more level and the number of leaves doubles. Starting from 1 switch (2 rows) and doubling more times gives:
WHY the exponent. The little superscript in is not decoration — it literally counts how many switches we multiplied together. It is shorthand for "multiply 2 by itself, once per input". That is exactly the tree from Step 2 grown to levels.

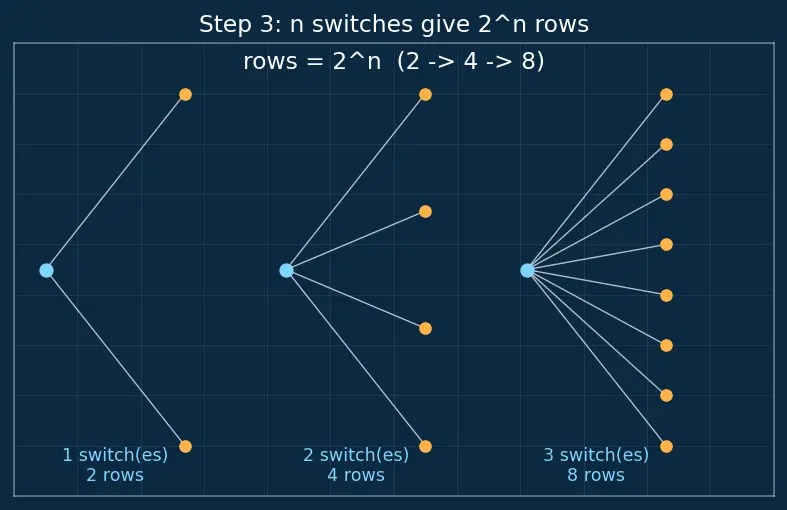

PICTURE. The figure stacks three trees side by side — 1, 2, and 3 switches — so you can watch the leaf-count go . Each new switch is a new fork on every existing branch.

- — a name for "number of rows when there are inputs".
- — read aloud as "two to the ". For it is .
Rows
Step 4 — List the rows without missing any: COUNT IN BINARY
WHAT. We now need to write down all rows with none missing and none repeated. The trick: treat each row as a number and count — but in binary, where the only digits are 0 and 1.
WHY binary and not "make them up". If you list combinations from memory you will skip one or write one twice, and you will never know. Counting is a built-in checksum: the numbers cannot repeat and cannot skip, so the rows cannot either. For the counts written as 2-bit binary are — all four combos, guaranteed once each.
PICTURE. The figure shows the odometer / counter: each column is a "digit wheel". The rightmost wheel flips every row (), the next flips half as fast (), the next half as fast again (). Slower wheels to the left.

- The leftmost column is the most significant bit (MSB) — it changes slowest, like the hundreds digit of a car odometer.
- The rightmost is the least significant bit (LSB) — it flips every single row.
Step 5 — Divide and conquer: intermediate columns
WHAT. A real expression like has pieces. We refuse to evaluate it in one giant mental leap. Instead we add one extra column per piece: one for , one for , and then one for the final .
WHY split it. Two reasons. First, precedence: computing pieces separately forces the correct order — NOT first, then AND, then OR. Second, error-hunting: if the final answer is wrong you can look at each small column and see exactly which piece broke.
PICTURE. The figure shows the expression as a little circuit flowing left to right: inputs enter, a NOT gate makes , an AND gate makes , and an OR gate merges them into . Each gate = one intermediate column.

Recall the three gate rules we are about to use:
- (NOT) flips the bit: .
- (AND) is 1 only when both are 1.
- (OR) is 1 when at least one is 1; it is 0 only when both are 0.
Step 6 — Fill the table for
WHAT. Three inputs, so rows (Step 3). We lay out by the odometer rule (Step 4), then fill , then , then combine with OR into .
WHY this exact order of columns. We fill the two intermediate columns first because the final OR is then trivial: look across the row, if either intermediate is 1, write 1.
PICTURE. The figure is the finished table, colour-coded: the AND column and the NOT column feed arrows into the amber column. Follow the arrows on any row to see where its answer came from.

| 0 | 0 | 0 | 0 | 1 | 1 |
| 0 | 0 | 1 | 0 | 0 | 0 |
| 0 | 1 | 0 | 0 | 1 | 1 |
| 0 | 1 | 1 | 0 | 0 | 0 |
| 1 | 0 | 0 | 0 | 1 | 1 |
| 1 | 0 | 1 | 0 | 0 | 0 |
| 1 | 1 | 0 | 1 | 1 | 1 |
| 1 | 1 | 1 | 1 | 0 | 1 |
- Row 1 (): but , so . The light is on because of the NOT branch.
- Row 2 (): and , so — the only kind of row OR turns off.
- Row 8 (): , so regardless of . Once AND fires, OR is on.
Step 7 — The edge cases: never leave a stone unturned
WHAT. We check the extreme rows and the degenerate zero-input idea, so no reader ever meets a case we skipped.
WHY. A table is only a "complete promise" if it truly covers everything — including the boring corners where mistakes hide.

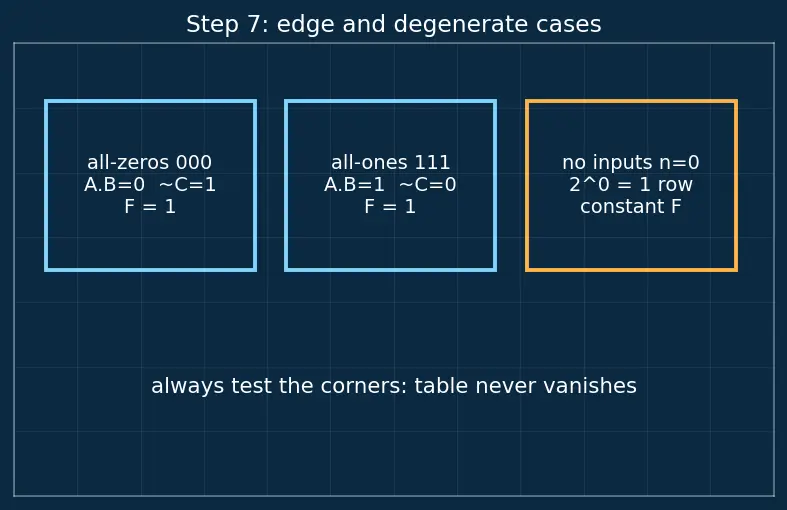

PICTURE. The figure highlights three special situations: the all-zeros row, the all-ones row, and the strange "no inputs at all" case.

- All-zeros row (): , , so . A common surprise — with no switches on, the light is still ON because of the NOT term. Always test this row.
- All-ones row (): , , so . Test this too; it catches AND/OR mix-ups.
- Zero inputs (): the formula gives row. That single row is the empty combination — a constant function that is just one fixed value. The table never vanishes; the minimum is one row, not zero.
Recall Why
and not means "multiply 2 together zero times". Multiplying nothing leaves you at the starting value 1 (the same reason an empty product is 1). So a function with no inputs still has exactly one row — its constant output.
The one-picture summary

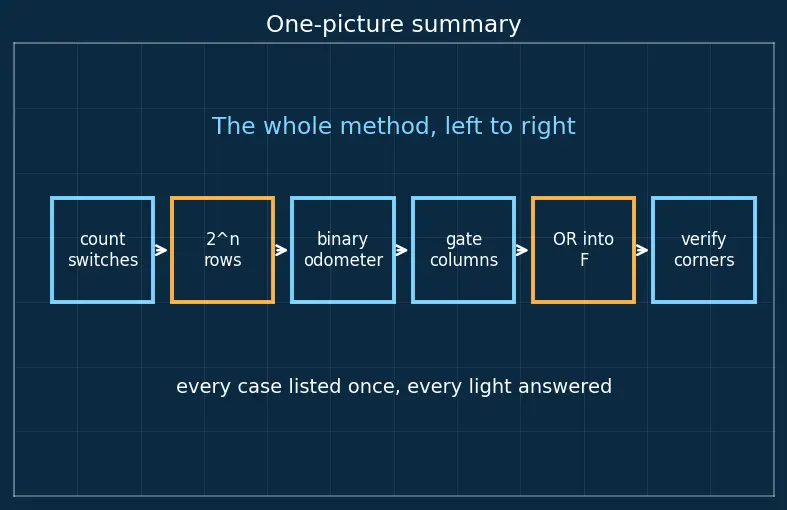

Everything on this page collapses into a single flow: count switches → get rows → list them by binary odometer → split the expression into gate-columns → OR the pieces into → verify the corner rows.

Recall Feynman retelling — say it to a 12-year-old
Imagine a lamp wired to some switches. First I ask: how many switches? Say three. Each switch is either up or down, and the switches don't care about each other, so I have different ways to set them — that's why the table has 8 rows, not 6.
To make sure I write down all 8 ways and never repeat, I count like a robot: 0,1,2,3,… but using only 0s and 1s (binary). The right-hand switch flips every time, the middle one every two counts, the left one every four — like the wheels of an odometer spinning at different speeds.
Now for each row I don't try to figure out the whole rule in my head. I break it into little jobs: one column for " and ", one column for "not ". I fill those tiny columns, then I combine them with OR — which just asks "is at least one of these a 1?" Finally I double-check the boring corners: all switches off, all switches on. If those two look right, I trust the whole table. That's it — no guessing, every case listed once, the light's answer written for every possible day.
Connections
- Logic Gates AND OR NOT — the three tiny tables (Step 5) we glue together.
- Binary Number System — the odometer counting of Step 4 that guarantees completeness.
- Boolean Algebra Laws — two expressions are equal exactly when their finished tables match.
- Sum of Products (SOP) — read straight off the rows where (Step 6).
- Karnaugh Maps — the same table redrawn as a grid to simplify.
- Combinational Logic Circuits — the physical wiring the table describes.
